Shanghai Handong Machinery Technology Co., Ltd.
China Manufacturer with main products: Pneumatic Clutch, Pneumatic Brake, Clutch and Brake Unit, Safety Chuck, Air Shaft, Tension Controller, Mechanical Chuck |

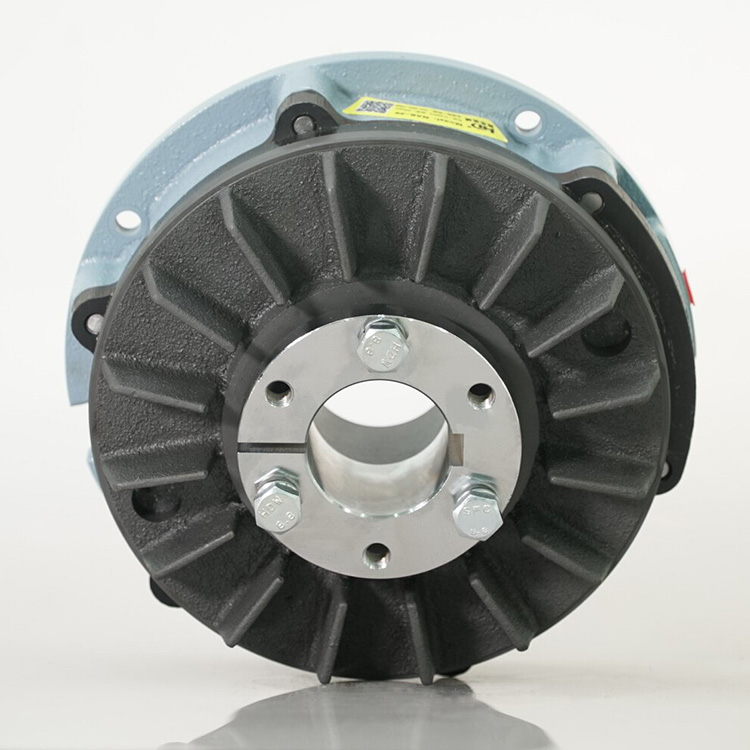

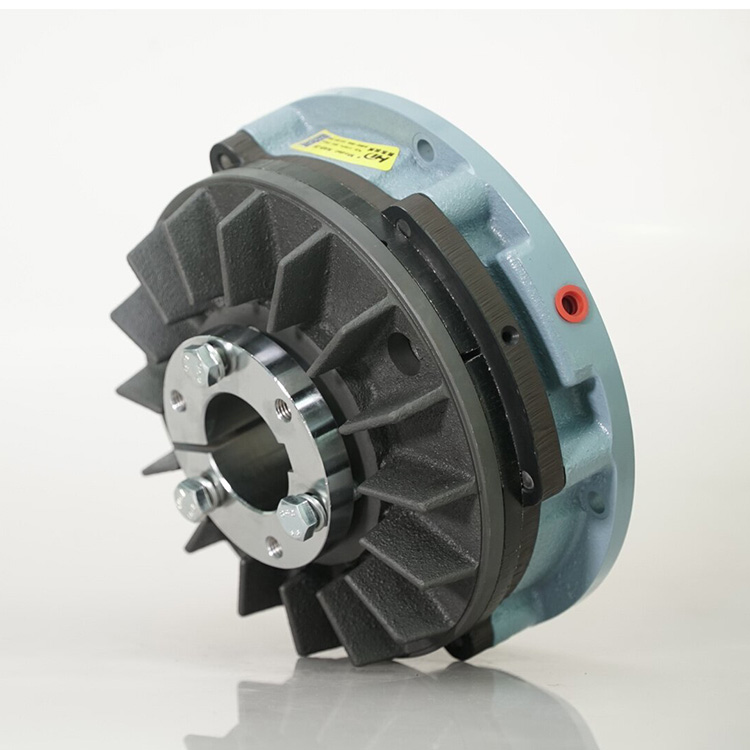

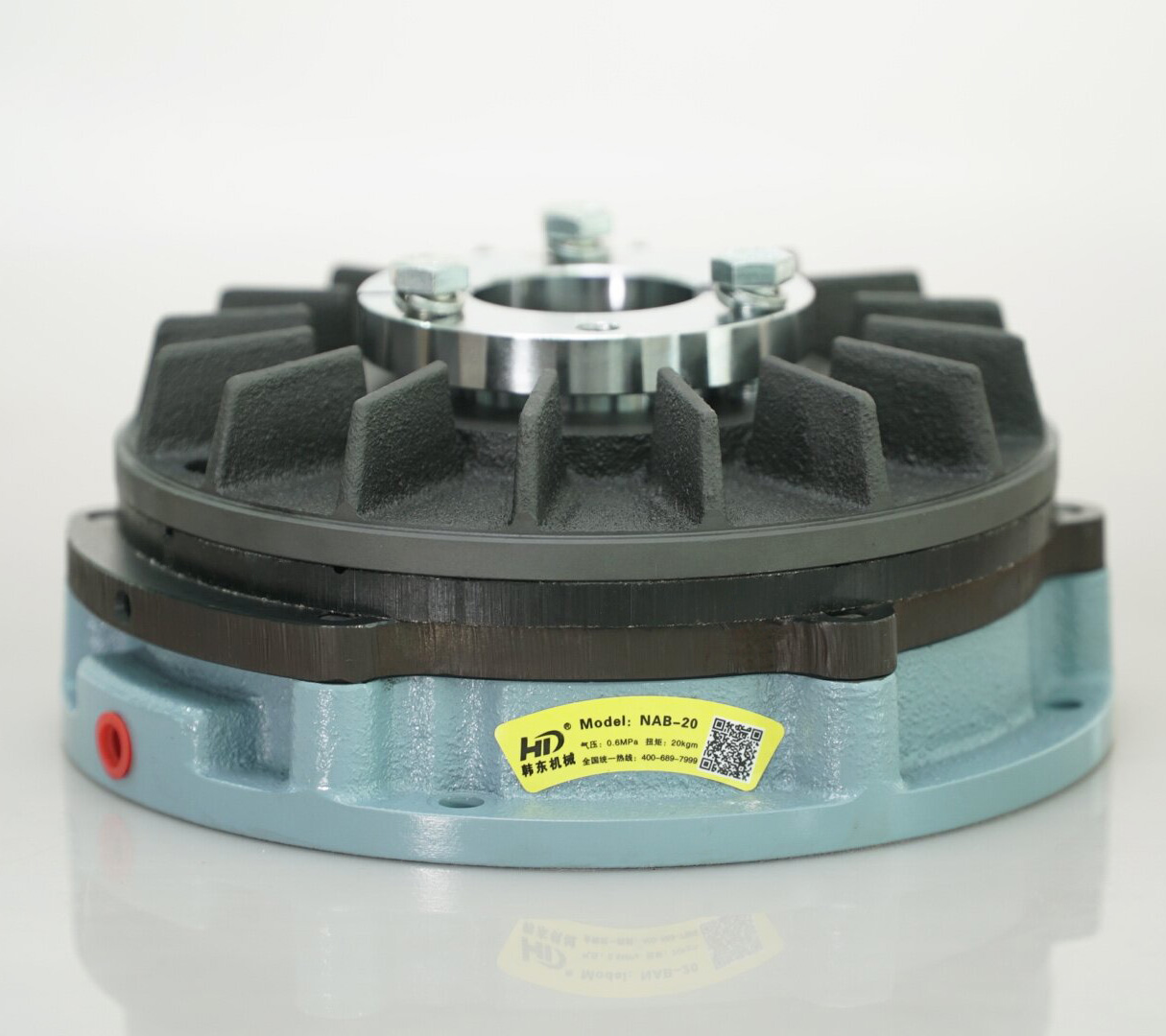

Air Shaft Brake with Conical Shaft Spanned Tube
| FOB Price: | 100.00 - 1000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set(s) per Month |
| Shipping: | by sea or air |
| Payment Terms: | L/C, T/T, Western Union, Other, by cash |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | standard export package |
Quick Details
- Brand Name: Handong
- TR50: carbon steel
- Model Number: NAB-20T
- HS code: 8483600001
- Model: NAB-20T
- Max air pressure: 0.6Mpa
- Max torque: 216N.m
- Dimension: 228mm*96mm
- Friction pads material: Non-asbestos
- Working mode: Air engagement
- Bore diameter: 50mm
- Installation: Shaft mounted
- Weight: 12kgs
Specifications
NAB air shaft brake has two types, one is without conical shaft spanned tube, another is with conical shaft spanned tube. As usually, for the small size NAB-2S, NAB-5S, NAB-10S is without spanned tube, NAB-20T, NAB-40T, NAB-65T is with spanned tube.
NAB pneumatic disc brake's friction pads are made of non-asbestos material, it is safe, environment protection, durable and easy for replacement. Two cut friction pads structure, change a new one is convenient.
Technical data of this NAB air shaft brake:
Product name: NAB model Air shaft brake
Product category: Air brake
Brand: HD
Model: NAB-5T, NAB-5S, NAB-10T, NAB-10S, NAB-20T, NAB-40T, NAB-65T
Weight: 3.5-36kgs
Torque: 53-636N.M
Shaft diameter: 25-75mm
Rotating speed: 1600-3600r/min
NAB pneumatic disc brake usage case:
Product name: NAB model Air shaft brake
Product category: Air brake
Brand: HD
Model: NAB-5T, NAB-5S, NAB-10T, NAB-10S, NAB-20T, NAB-40T, NAB-65T
Weight: 3.5-36kgs
Torque: 53-636N.M
Shaft diameter: 25-75mm
Rotating speed: 1600-3600r/min
NAB pneumatic disc brake usage case:

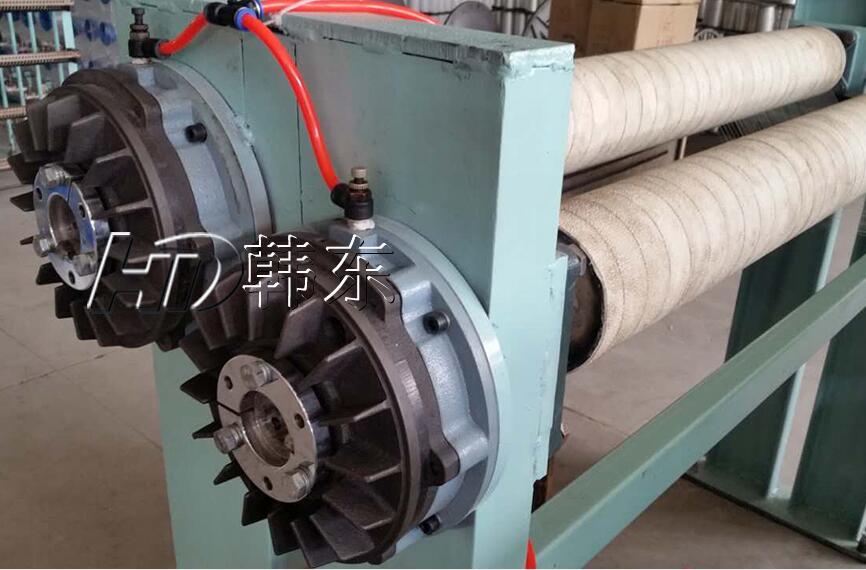

this air shaft disc brake is widely used for industry machinery, such as wire machinery, printing and packing machinery, rubber tire machinery, automatic machinery and etc. In this case, NAB pneumatic disc brake is applied in paper making machine, it is connected with air expanding shaft or steel bar for tension control. the brake's braking force can be adjusted via regulating air pressure volume.
