Shanghai Handong Machinery Technology Co., Ltd.
China Manufacturer with main products: Pneumatic Clutch, Pneumatic Brake, Clutch and Brake Unit, Safety Chuck, Air Shaft, Tension Controller, Mechanical Chuck |
Home
>Products Catalog > Pneumatic Clutch Brake Combination > HACB Pneumatic Friction Clutch Brake Manufacturer

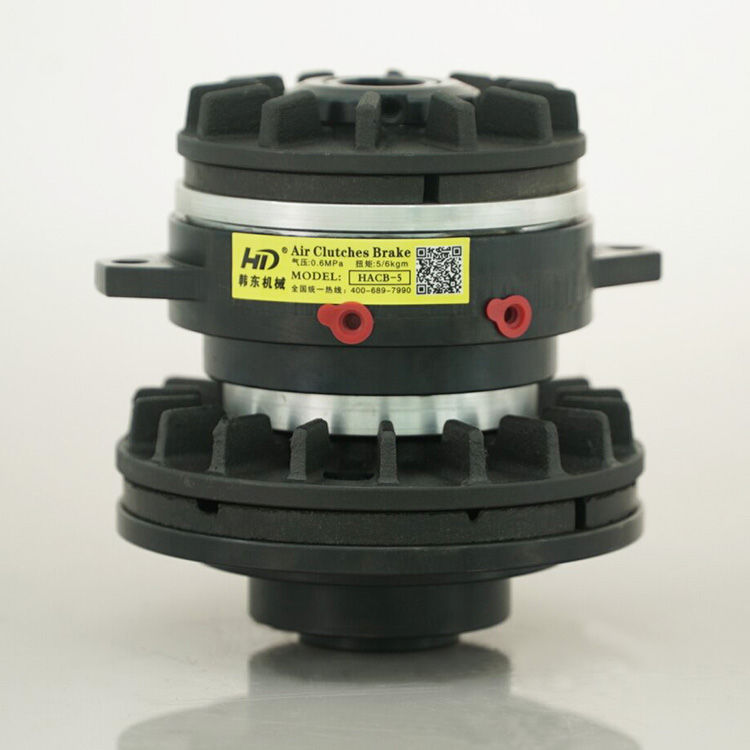

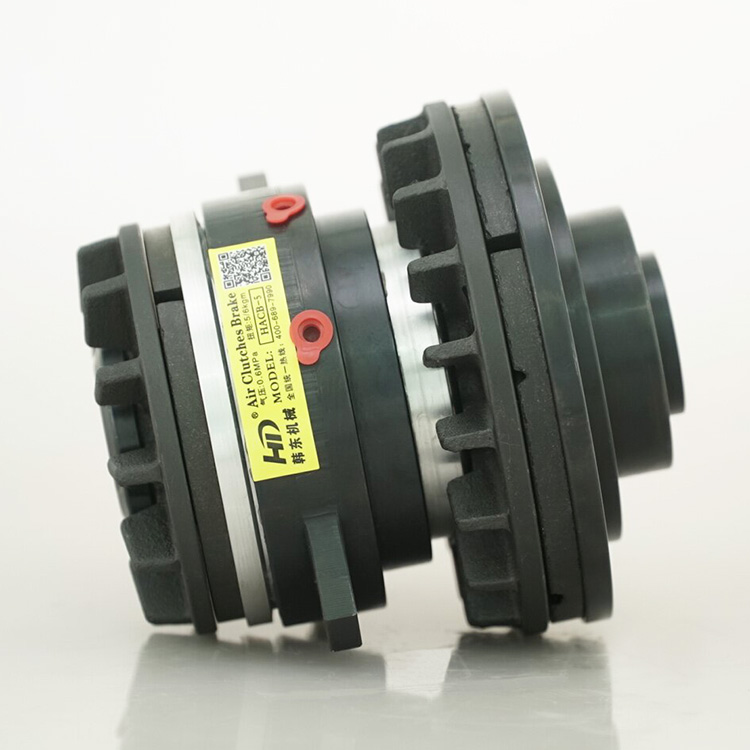

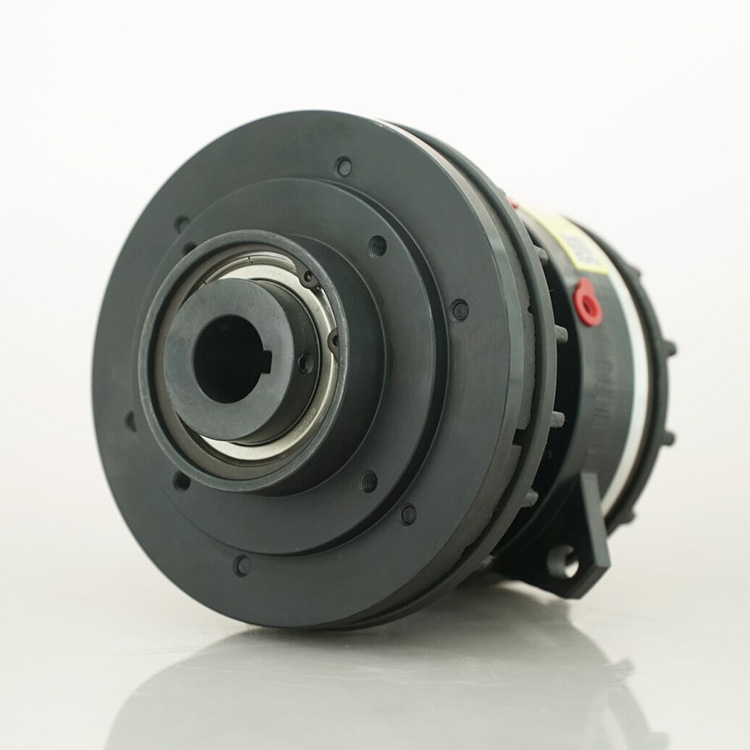

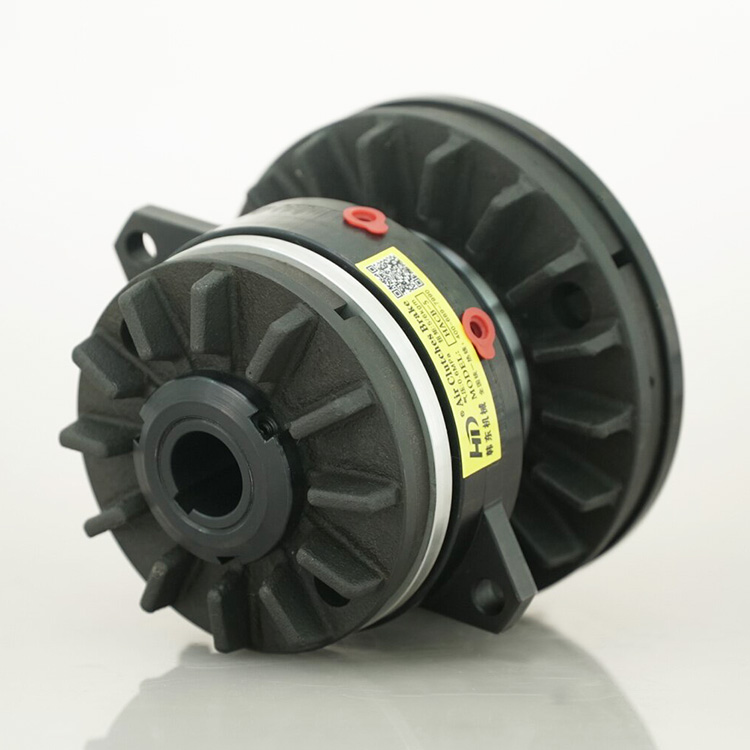

HACB Pneumatic Friction Clutch Brake Manufacturer
| FOB Price: | 100.00 - 1000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set(s) per Month |
| Shipping: | by sea or air |
| Payment Terms: | L/C, T/T, Western Union, Other, by cash |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | standard export package |
Quick Details
- Brand Name: Handong
- TR50: carbon steel
- Model Number: HACB-10
- HS code: 8483600001
- Model: HACB-10
- Max air pressure: 0.6Mpa
- Max clutch torque: 100N.m
- Max brake torque: 108N.m
- Friction pads material: Non-asbestos
- Working mode: Air engagement
- Bore diameter: 35mm
- Weight: 13kgs
Specifications
HACB pneumatic friction clutch brake is air engagement clutch and brake combination. It is driven by air pressure, and clutch brake are controlled in separately. There are two air input ports, one for clutch and another one for brake.
HACB mode pneumatic shaft clutch and brake unit response is fast, it is suitable for clutch and braking, replacement lining keeping complete structure. Available shaft diameter is 20-110mm, when air pressure is 0.4Mpa, torque is 100-4000N.m. Clutch and brake are driven through air pressure for independent working, when air pressure exhausted, clutch and brake released by return springs. Power input via driving disc, and output via shaft.
Flange and torque stop rod will prevent air chamber from connecting rotating. after supplying air pressure, clutch disc friction plate move towards to and compressed friction plate in axial movement, then brake piston with friction plate compressed brake disc.
Technical data of HACB pneumatic clutch brake combination:
Flange and torque stop rod will prevent air chamber from connecting rotating. after supplying air pressure, clutch disc friction plate move towards to and compressed friction plate in axial movement, then brake piston with friction plate compressed brake disc.
Technical data of HACB pneumatic clutch brake combination:
HACB pneumatic clutch brake combination is widely used in rubber machine rollers, conveyor, elevator, handling machinery, food machinery, printing machinery, crusher, motor, tire and rubber machinery, packaging machinery, forming machinery, automatic machinery, wire machinery, sheet metal machinery, filling machinery, plywood machinery, medical machinery, stretching wire machinery, fiber machinery, metalworking machinery, pulverizing machinery, tire forming machinery, paper making machinery and etc.

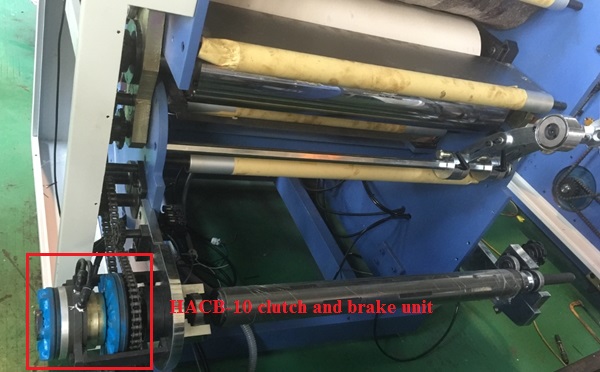

in this case, HACB pneumatic clutch brake unit is applied in paper packing and printing machine. Clutch and brake are controlled in independently.
