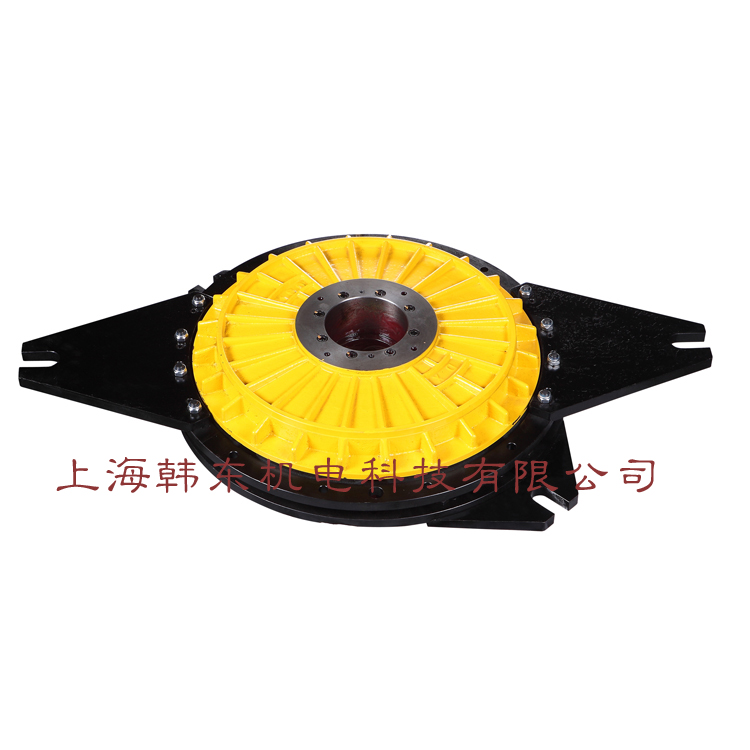

KB Thin Type Pneumatic Friction Clutch & Brake Unit

FOB Price:	100.00 - 1000.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	by sea or air
Payment Terms:	L/C, T/T, Western Union, Other, by cash

In Stock

Inquiry Now

Related products from verified members

Electromagnetic Brake

Price:450.00-550.00 USD/Set

Min. Order:20 Sets
500L Brew house

Price:1,000.00-20,000.00 USD/Piece

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	standard export package

Quick Details

Brand Name: Handong
TR50: carbon steel
Model Number: KB0100CS
HS code: 8483600001
Model: KB0100CS
Max air pressure: 0.6Mpa
Max clutch torque: 1050N.m
Max brake torque: 650N.m
Friction pads material: Non-asbestos
Working mode: Air engagement
Bore diameter: 44-60mm
Weight: 32kgs

Specifications

KB thin type pneumatic friction clutch and brake unit is a special clutch and brake assembly, because it can be worked as a clutch and brake together in one complete structure. There are three types of it: KB-BB, KB-CC and KB-CS.

According to its installation mode, this KB thin type pneumatic clutch and brake unit can be divided into three type, KB-BB, KB-CC and KB-CS. KB-BB is without side installation lugs, KB-CC is equiped four short side installation lugs, KB-CS is equiped with two long and two short side installation lugs, KB-CS is more popular for usage.

Technical data of KB thin type pneumatic clutch and brake unit:

KB model pneumatic clutch and brake unit is mainly applied in:
Cold heading machinery, high speed stamping machinery, forging and stamping machinery, high precision punch machinery, textile machinery, paper making machinery, die cutting machinery, cutting machinery and etc.

in above case, KB0200CS Thin type pneumatic clutch and brake unit is applied in high precision punch machinery. It can be used as a clutch and brake together. Clutch part is mounted in flywheel to transmit torque, and brake part is fixed on flange plate for stopping.

after inputting air source, KB thin type pneumatic clutch and brake unit clutch linked, then transmit motor power to end load via rotary joint, after exhausting air source, brake locked and making rotating part stopped.
