Boxianglai Vet B Ultrasound Scanner BXL-V10 Bovine Goat Equine Pig Ultrasound Equipment

FOB Price:	1580.00 - 1600.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

portable green powder coated corral horse fenci...

Price:20.00-45.00 USD/Set

Min. Order:50 Sets
Living Cattle Machinery Muslim Killing Box

Price:40000.00 USD/Set

Min. Order:1 Set
Stainless Steel Egg Beater with Different Sizes...

Price:0.20-0.60 USD/Piece

Min. Order:3,000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	carton

Quick Details

Brand Name: boxianglai
certificate: CE
usage: pregnancy
Color: blue
Capacity: V10
Model Number: BXL-V10
Display screen: 5.6 inch LCD monitor
Host size: 93x44x151mm
Battery specifications: 3000mAH/7.4V

Specifications

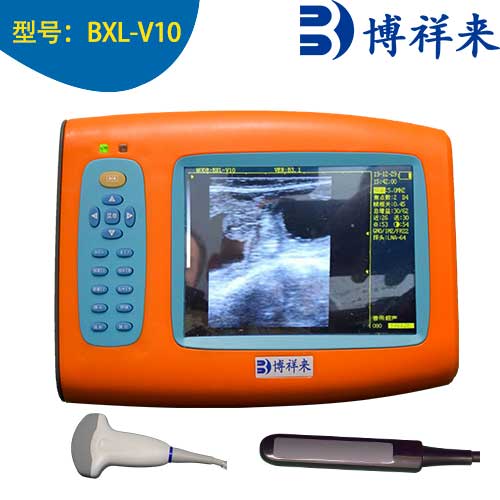

Boxianglai Vet B Ultrasound Scanner BXL-V10 bovine Goat Equine Pig Ultrasound Equipment

BoxianglaiVet B Ultrasound Scanner BXL-V10Can accurately monitor the life and death of the fetus. the Veterinary ultrasound machines can not only display images, but also heart rate graphs. Using ultrasound to detect the heartbeat of the fetus can predict the life and death of the fetus.
Before the embryo dies, the heartbeat is significantly reduced. Fetal movement disappears, the fetal sac is filled with dark areas of liquid, the embryo cannot be seen, the echo in the uterus is disordered, and the inability to distinguish the fetal sac, placenta, and fetal structure all indicate embryonic death.
Facebook:+8615515670076
Boxianglai Vet B Ultrasound Scanner BXLV10 bovine Goat Equine Pig Ultrasound Equipment

Technical Parameters
Model:BXL-V10
Host size:93 x 44 x 151mm
Software: B3.1 HD version, Professional veterinary software
Display screen: 5.6 inch LCD monitor
Host appearance: sling design, independent couplant slot design.
Scanning method: electronic convex array (micro convex), electronic linear array
Image processing: false color, grayscale correction, image smoothing, histogram, microcomputer control and digital scan converter (DSC), using digital beam synthesis (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA) ), real-time point-by-point dynamic receiving focus (DRF), numerical control dynamic frequency scanning (DFS), frame correlation and other technologies, the whole machine image is clear, stable, and high resolution.
Image display: depth 90-240cm, 16 levels adjustable (rectal probe) 60-130cm, 8 levels adjustable, image can be up/down, left/right, image grayscale 256 levels, 16 animal body mark marks.
Frequency adjustment: 5.0-7.5MHz three-speed adjustment (rectal probe), 2.5-5.0MHz three-speed adjustment (large convex probe)
Frame related adjustment: 0.20-0.95 16-level adjustment
Storage function: images can be stored and movie playback is possible
Measurements: distance, circumference, area, volume, gestational age, expected date of delivery
Battery specifications:3000mAH/7.4V
Gain adjustment: total gain 0-62 adjustable, near field gain 0-30 adjustable, far field gain 0-30 adjustable.
Brightness adjustment: 38-64 adjustment
Contrast adjustment: 34-98 adjustment
Characters, notes and body mark: date, clock, full-screen character editing, 16 body marks
Boxianglai Vet B Ultrasound Scanner BXLV10 bovine Goat Equine Pig Ultrasound Equipment
