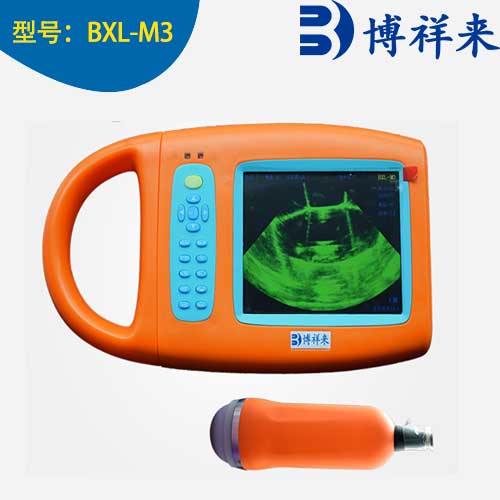

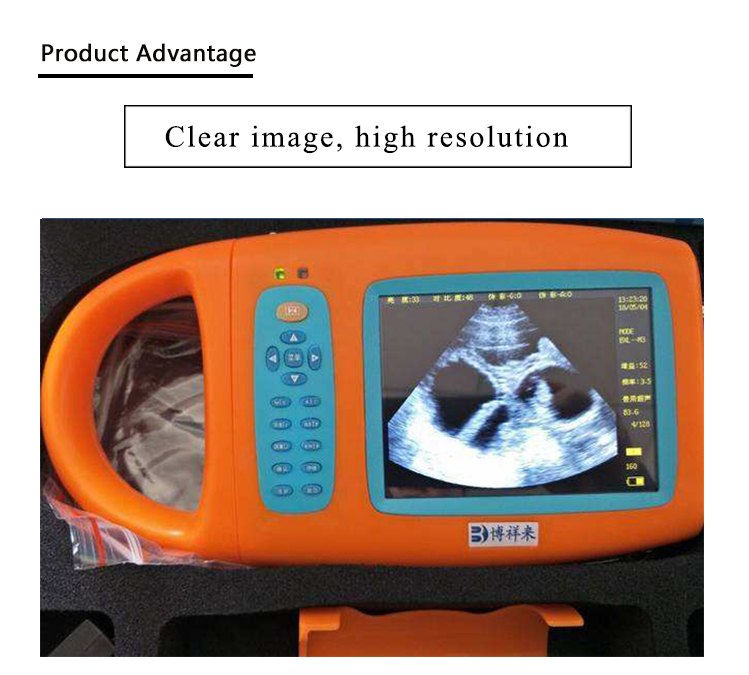

Boxianglai Veterinary Scanners BXL-M3 Pig Sheep VET ULTRASOUND 5.6 Inch Ultrasound Equipment
| FOB Price: | 950.00 - 960.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: boxianglai
- certificate: CE
- usage: pregnancy
- Color: blue
- Capacity: M3
- Model Number: BXL-M3
- Display screen: 5.6 inch LCD monitor
- Standard probe: 3.5MHz mechanical fan scan
- Image storage: 128 sheets
- weight: 1.2 kg
- Host size: 282mmx44mmx151mm
Specifications
Boxianglai Veterinary Scanners BXL-M3 Pig Sheep VET ULTRASOUND 5.6 Inch Ultrasound Equipment

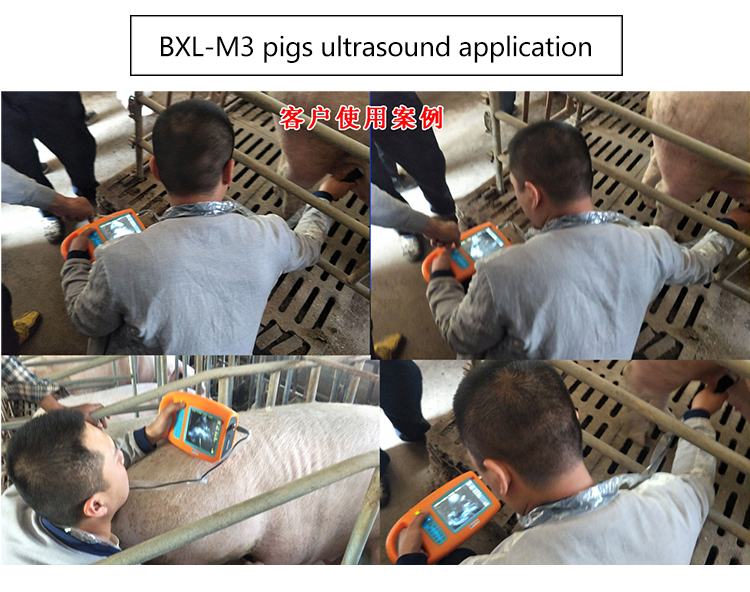

Boxianglai Veterinary Scanners BXL-M3 is mainly used to test the pregnancy of animals, estimate the gestational age, the number of births, uterine diseases, and can also detect symptoms such as empty pregnancy and stillbirth. Commonly used in major breeding farms, pet hospitals, etc.Facebook: +8615515670076
BXL-M3 Parameters:
Host size: 282mmx44mmx151mm

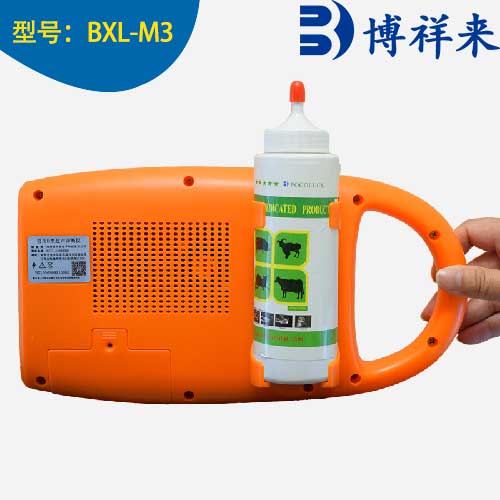

Host appearance: Two styles of use: handle type and sling type (Suitable for many people) Independent couplant card slot design
Software: B3.8 HD version Professional veterinary software
Image gain adjustment: 30-70 adjustable
Image contrast adjustment: 16-48 adjustable
Probe frequency: 2.5-5.0 adjustable

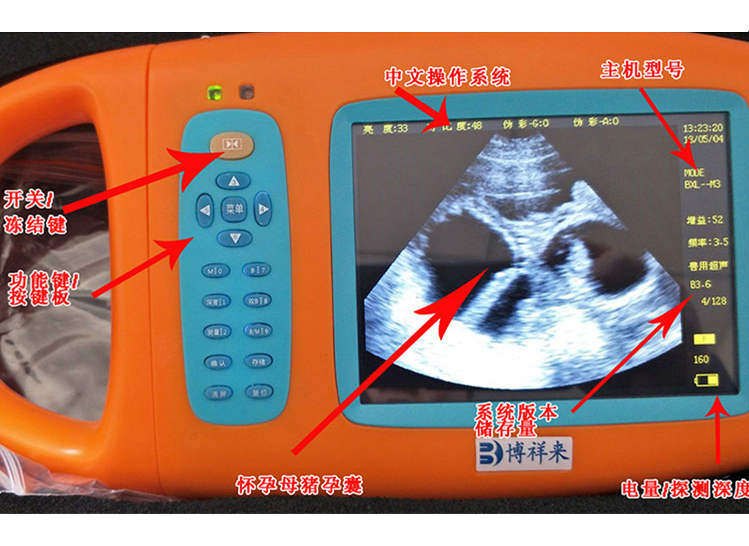

Image display: B mode, double B mode, B+M mode, M mode
Depth: the default depth of the host 160mm, Maximum depth≥190mm
Host display screen size (inch): 5.6TFT-LCD
Host display resolution: 640*480
Pseudo-color display: Multiple
Standard probe: 3.5MHz mechanical fan scan Waterproof level: IPX5

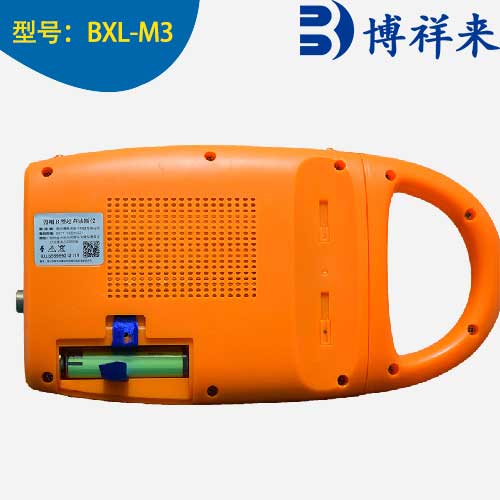

Battery specifications: 18650 Two rechargeable batteries,the single-cell specification is 3.7V rated voltage, 47g, 18.5mm*69mm plus protective board battery.
Measurement function: Distance, circumference, area, volume, various animal obstetrics (Pigs, cows, horses, sheep, dogs, cats, etc.) Measurement functions such as measurement
Histogram statistics function
Special measurement: Heart rate measurement in M mode
Image grayscale: 256 gray scale
Image storage: 128 sheets
Image Processing: Image smoothing technology,Simultaneous use of digital beam synthesis (DBF) Real-time dynamic aperture imaging (RDA) Real-time dynamic sound velocity (DRA) and other technologies.
Image zoom: Depth display 60mm,70mm, 80mm, 90mm, 100mm, 110mm, 120mm,130mm, 140mm, 150mm, 160mm, 170mm, 180mm, 190mm A total of 14 levels adjustable
Image brightness adjustment: 20-46 adjustable
Probe longitudinal resolution: ≤2
Standard configuration:
One host * 1
3.5MHz mechanical fan scan probe * 1
Battery charger * 1
Couplant card slot * 1
Battery charger * 1
Battery * 2
Veterinary Couplant * 1
Manual * 1
