Dongzheng Motor Co., Ltd.
China Manufacturer with main products: DC MOTOR, DC GEAR MOTOR, GEAR REDUCER, MAGNET |

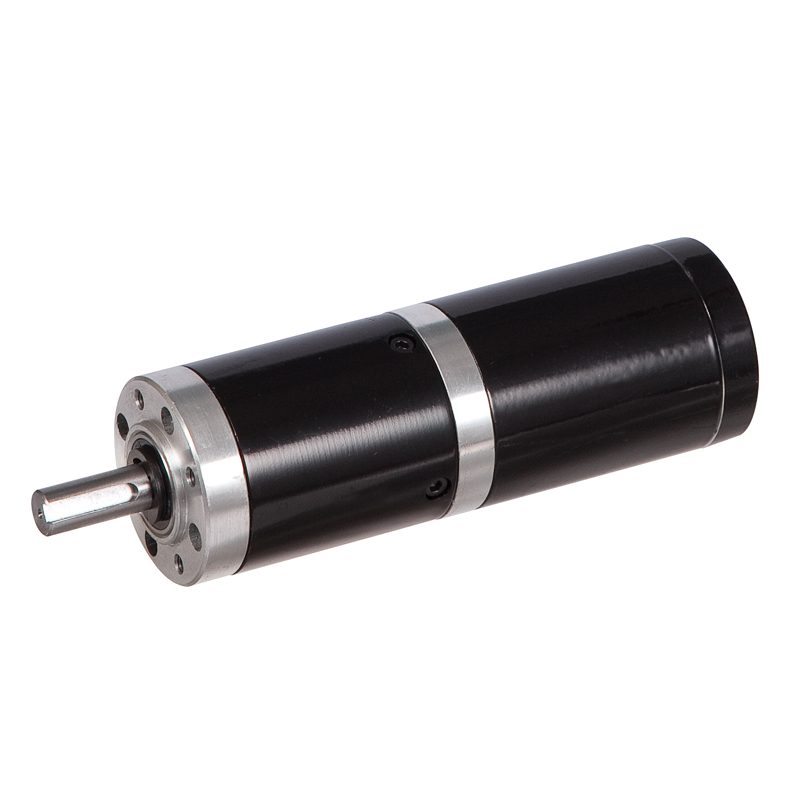

DC Planetary Gear Motor 42JX150K/42ZY85
| Supply Ability: | 5,000 Piece(s) per Month |
|---|---|
| Shipping: | FCA, CFR, CIF, DDU |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Carton/pallet/container |
Quick Details
- Voltage(V): 6 ~ 400V DC
- Type: Gear Motor
- Certification: CCC,CE,ROHS,UL
- Usage: Boat,Car,Electric Bicycle,Fan,Home Appliance
- Brand Name: DYD MOTOR
- Output Power: up to 50W
- Continuous Current(A): within 25A
- Speed(RPM): 1 ~ 999rpm
- Protect Feature: Waterproof
- Commutation: Brush
- Construction: Permanent Magnet
- Torque: up to 15N.m
- Model Number: 42JX150K/42ZY85
- Keywords: DC planetary gear motor
- Noise level: Very low
- Shaft material: Customer's needs
- Gear material: Plastic/steel/ powder metal
- Gearbox type: Planetary
- Color: Black or customized
- Motor diameter: 42MM
- Warranty: 1 year
- Option: Magnetic/optical encoder; brake; connector

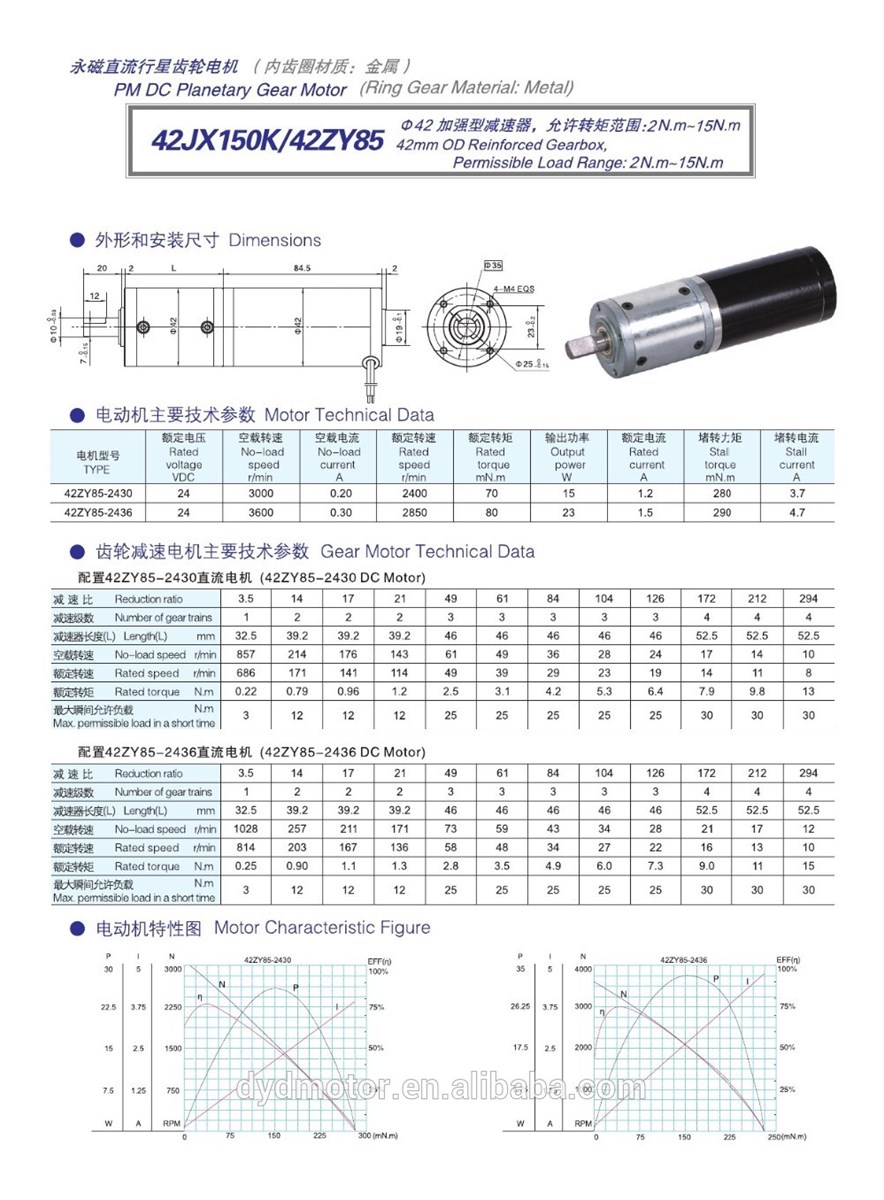

Specifications
DC Planetary Gear Motor
Model: 42JX150K/42ZY85
Voltage: 6 ~ 400V DC
Rated torque up to 15N.M for continuous running
CE, Reach and RoHS approval
Customized technical specs. and shaft dimensions are available upon requested.
Optional components: magnetic/optical encoder; brake; connector
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
Gear Motor from this supplier
FOB Price: 50.00-80.00 USD/Piece
Min Order: 10 Pieces
FOB Price: 10.00-100.00 USD/Piece
Min Order: 10 Pieces
FOB Price: 16.00-18.00 USD/Unit
Min Order: 1 Unit
FOB Price: 50.00-80.00 USD/Piece
Min Order: 10 Pieces
