Storage Racks Long Arm Cantilever Racking from Huadenaite

Specifications

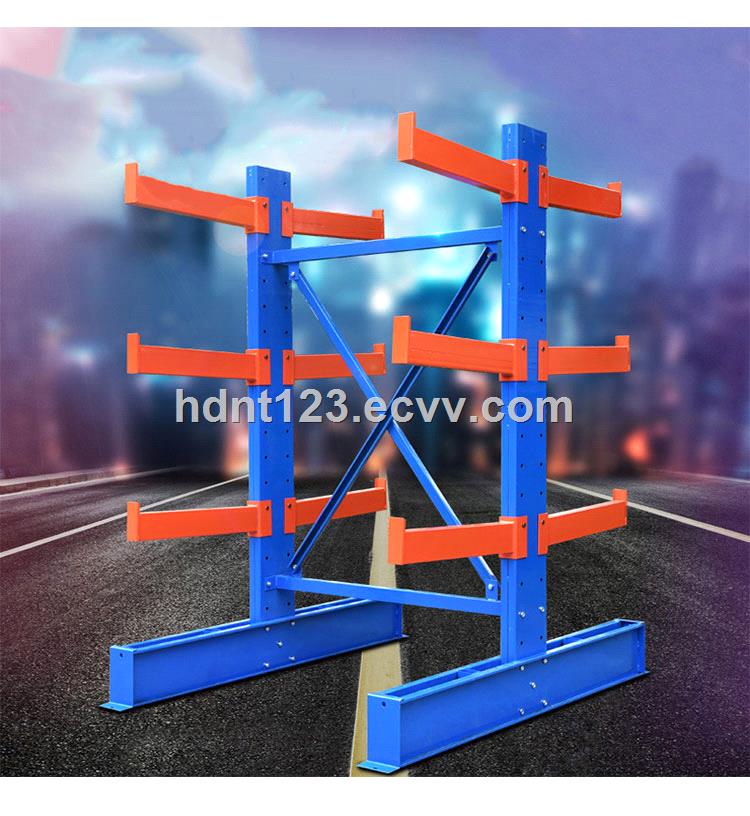

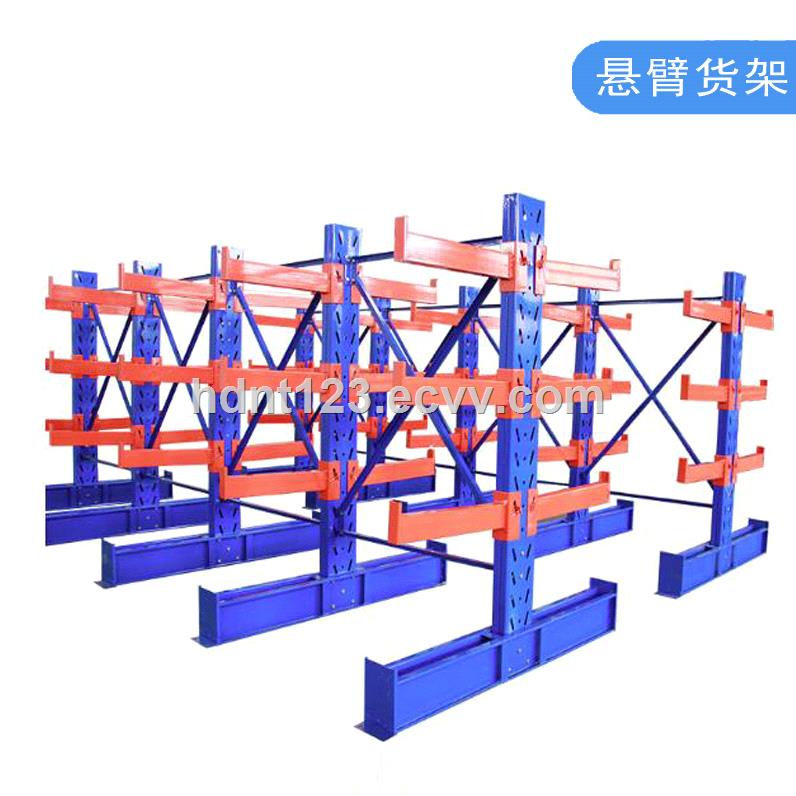

Cantilever shelf is mainly composed of column piece, cross brace, transverse cantilever beam, connecting rod, etc. Its characteristics are that the cantilever structure is light and light with strong load. It can greatly improve the utilization rate and work efficiency of the warehouse for the storage of non-standard or long rod materials. the cantilever can be single or double-sided. It is especially suitable for the warehouse with small space and low density after adding wood board or steel grating, which is convenient for management and has wide vision. Widely used in mechanical processing and building materials supermarket industry.

ADvantages

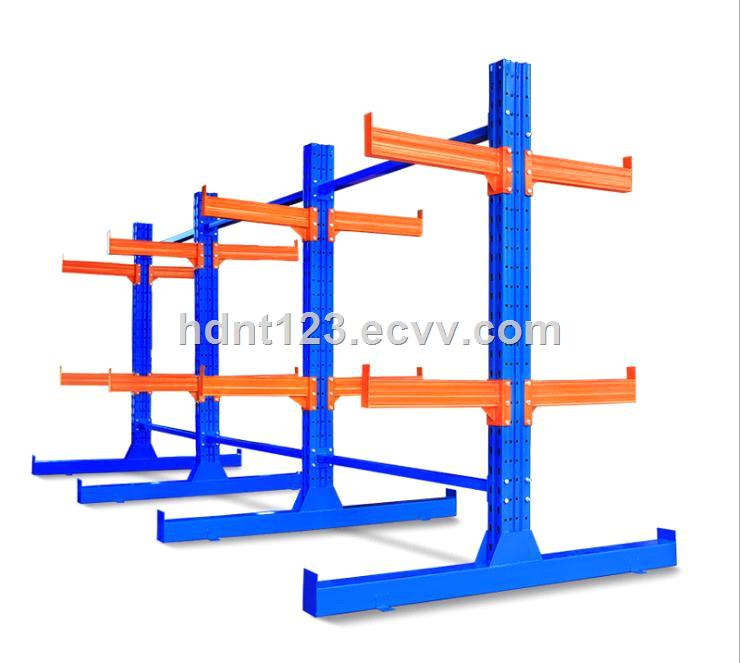

Cantilever shelf is suitable for storing long materials, circular materials, plates, pipes and irregular goods. the cantilever can be single-sided or double-sided. the cantilever shelf has the characteristics of stable structure, good load capacity and high space utilization rate. Loading and unloading of goods is carried out by forklift, crane or manual operation.

the height of cantilevered shelf is usually less than 2.0 meters (up to 5 meters if the goods are stored and unloaded by forklift), and the cantilever length is 2.0 meters

Within meters, the load per arm is usually less than 800kg.

Application

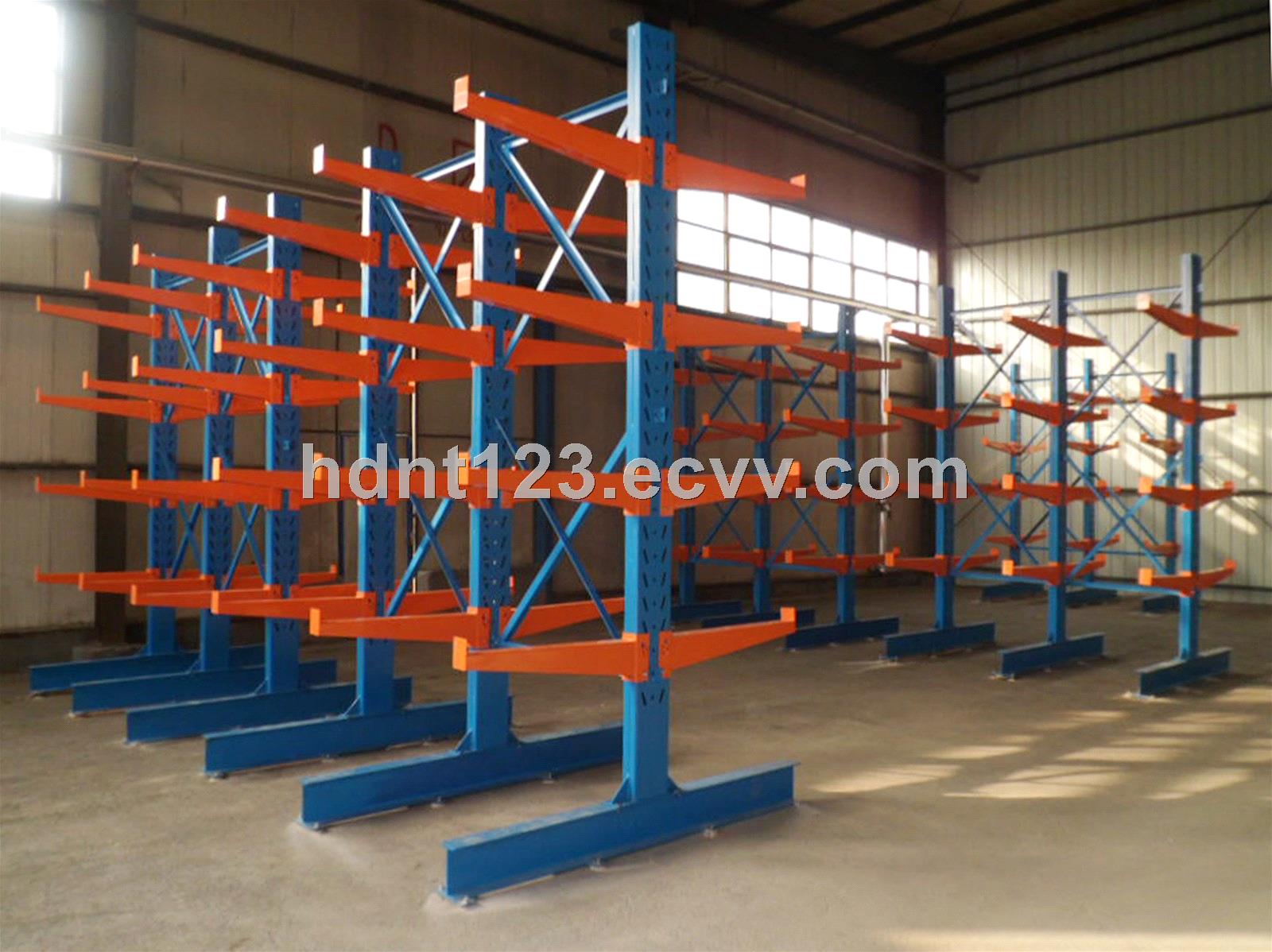

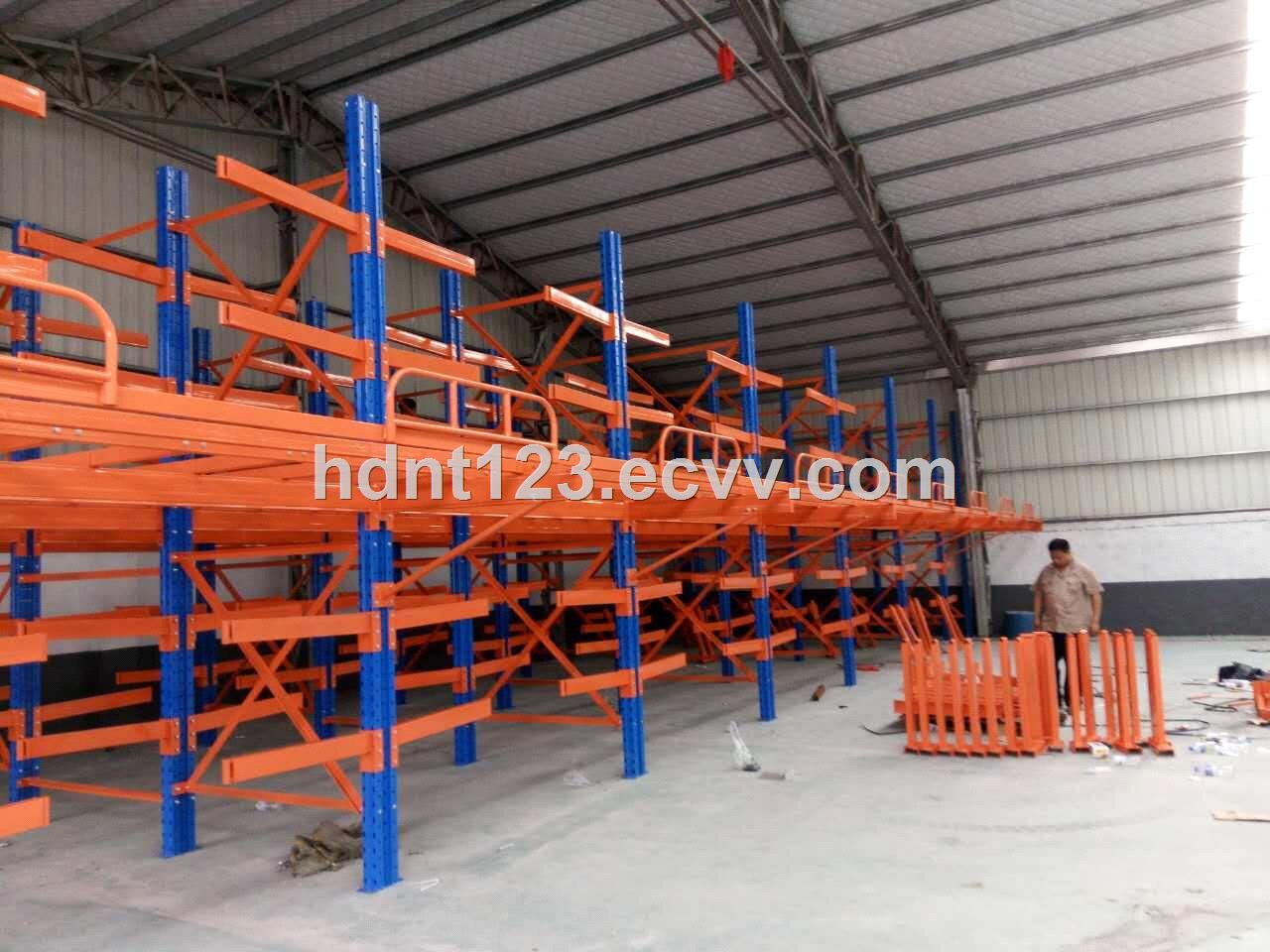

Cantilever shelf is mostly used in machinery manufacturing industry and building materials supermarket. Add shelf, especially suitable for small space, height

Low warehouse, convenient management, wide vision, higher utilization than ordinary shelves.

Technology

the base of cantilever shelf can be made of H-beam or special profile. H-beam is selected according to the requirements of bearing capacity.the selection of national standard steel. the bolt connecting eye with the column is opened on the H-beam to facilitate the connection with the column. Lower welding joint.Connect the bottom plate, and the expansion bolt hole is opened on the bottom plate to facilitate the connection between the shelf and the ground with the expansion bolt. To fix the shelf.

the cantilever shelf uses special profiles as the base, welding two pieces of C-shaped steel back-to-back with connecting steel plates.the width of connecting steel plate is the width of column. after the welding of two pieces of E-shaped steel is completed, the connecting bolt hole is opened at the position of connecting column.Connect with column. the bottom plate is welded on the side to facilitate the connection between the expansion bolt and the ground.

Two pieces of C-section steel are used for butt welding of cantilever rack column. C-section steel is made of Q235 high-quality strip steel.after rolling E-shaped steel, the cantilever connection control is punched out on the automatic punch, and the hole spacing is 140mm. under the column, such as a connecting plate is welded with H-beam. If the connection with special profile is adopted, it will be connected under the column.Bolt connection hole shall be opened at the joint part.
