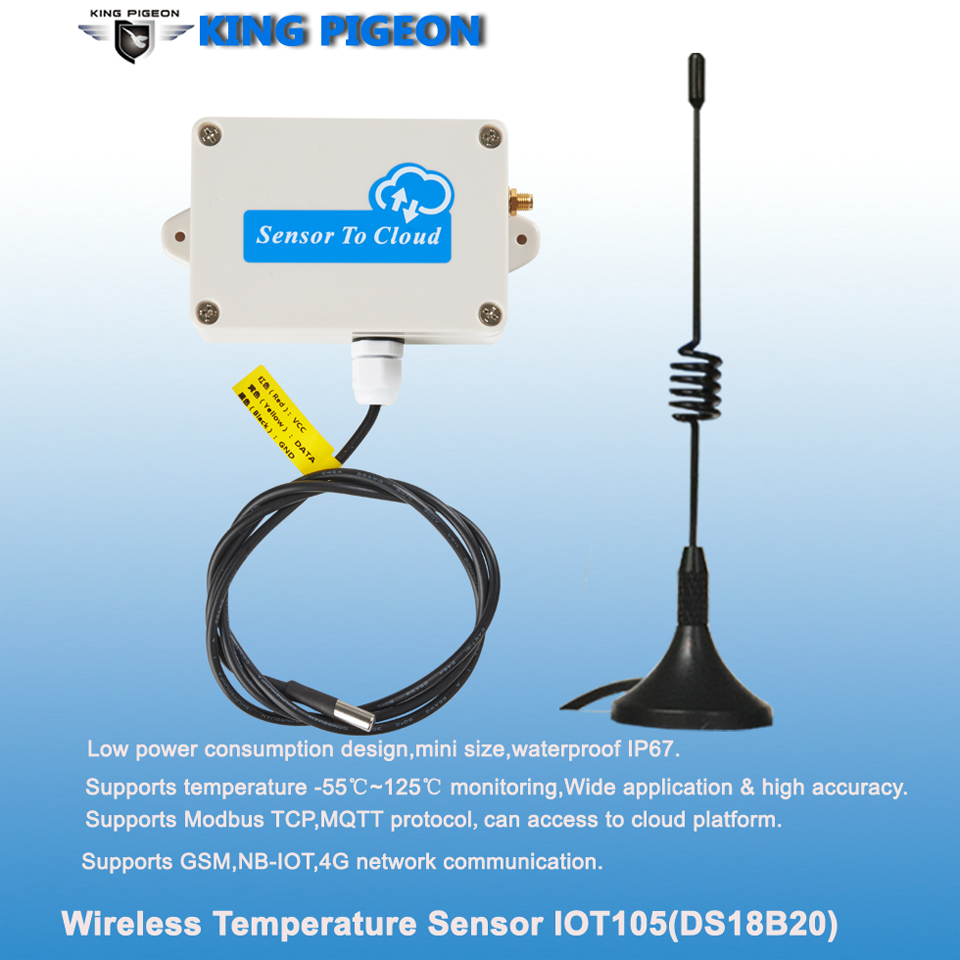

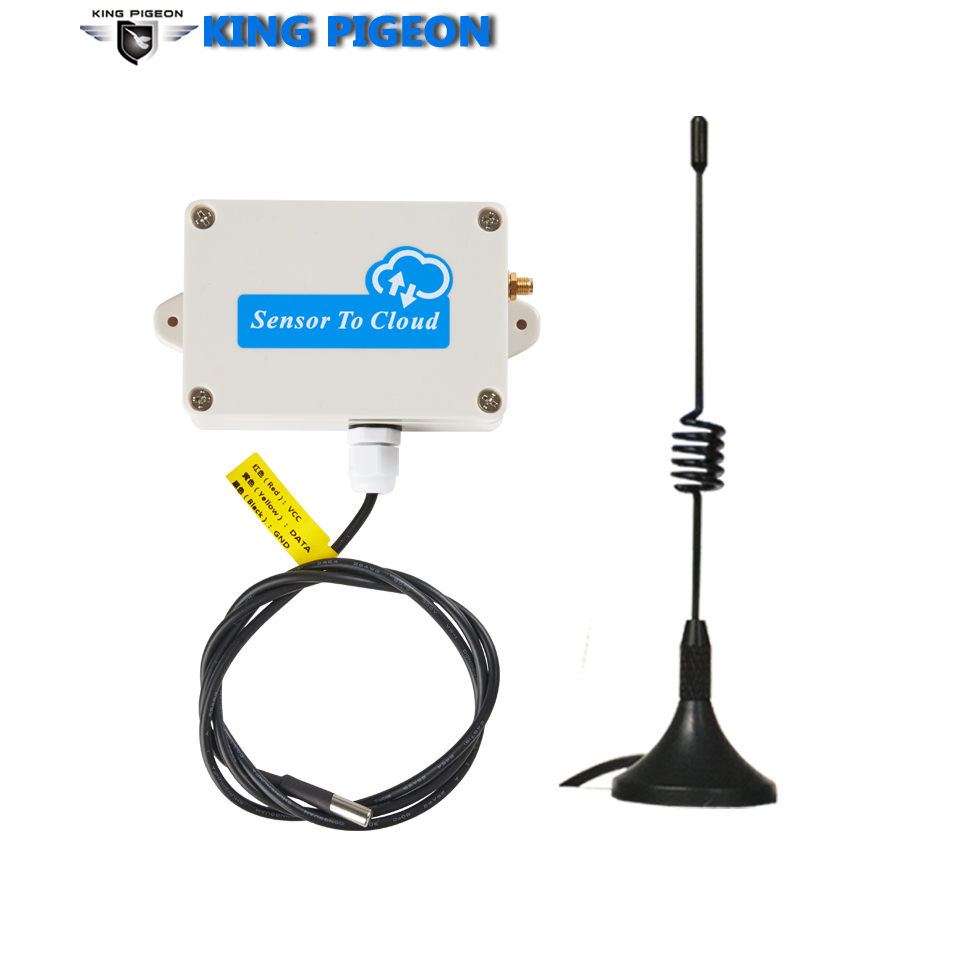

IOT105 Industrial MQTT Modbus Low Consumption Temperature IOT Sensor
| Supply Ability: | 5,000 Piece(s) per Month |
|---|---|
| Shipping: | Express |
| Payment Terms: | T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Contact Load: Low Power
- Protect Feature: Sealed
- Size: Miniature
- Theory: Electromagnetic Relay
- Brand Name: King Pigeon
- Usage: General Purpose
- Model Number: IOT105
- DC Power supply: 7-24VDC
- Communication: GSM/GPRS/3G/4G/
- Protocols: Modbus RTU Over TCP, MQTT
- Temperature Input: DS18B20
Specifications
the wireless temperature IoT Sensors are low power comsuption design,it is a wireless Internet of things gateway, designed for converting DS18B20 Temperature sensor signal to Wireless communcation over SMS/GPRS/3G/4G Cellular Network, and connect to the IoT Cloud Platform.
the wireless temperature IoT Sensor is wIdely used to real time remotely monitoring temperature of Refrigerator freezer, chicken factory, chemical plant, food production and storage, warehouse, hospital etc.
the Wireless temperature IoT Sensor supports Modbus TCP Protocol and MQTT Protocol, compatiable KPIIOT cloud platform and other cloud platform or SCADA or OPC Server.
1. Can be used as a complete product or as a secondary development module;
2. Two working modes are available:
Normal mode: Real-time data transmission,Users can inquiry the real-time status;
Low power consumption mode: Ultra low power consumption(230uA);
3. Multiple communication methods:GSM,GPRS,3G,4G,NB-IoT,LoRa,Ethernet,etc;
4. Coverting DS18B20 temperature probe signal to cloud platform over cellular network;
5. Support configure parameters and query real-time data via SMS,software,cloud platform;
6. up to 10 SMS Alert and dial numbers, can program to receive specified alarm message;
7. Support two different server centers,can set IP address or domain name;
8. Support Modbus RTU over TCP and MQTT protocol;
9. Wide range power supply 7~24VDC with phase-reversal protection;
10. Using Nano SIM card,support PIN code function;

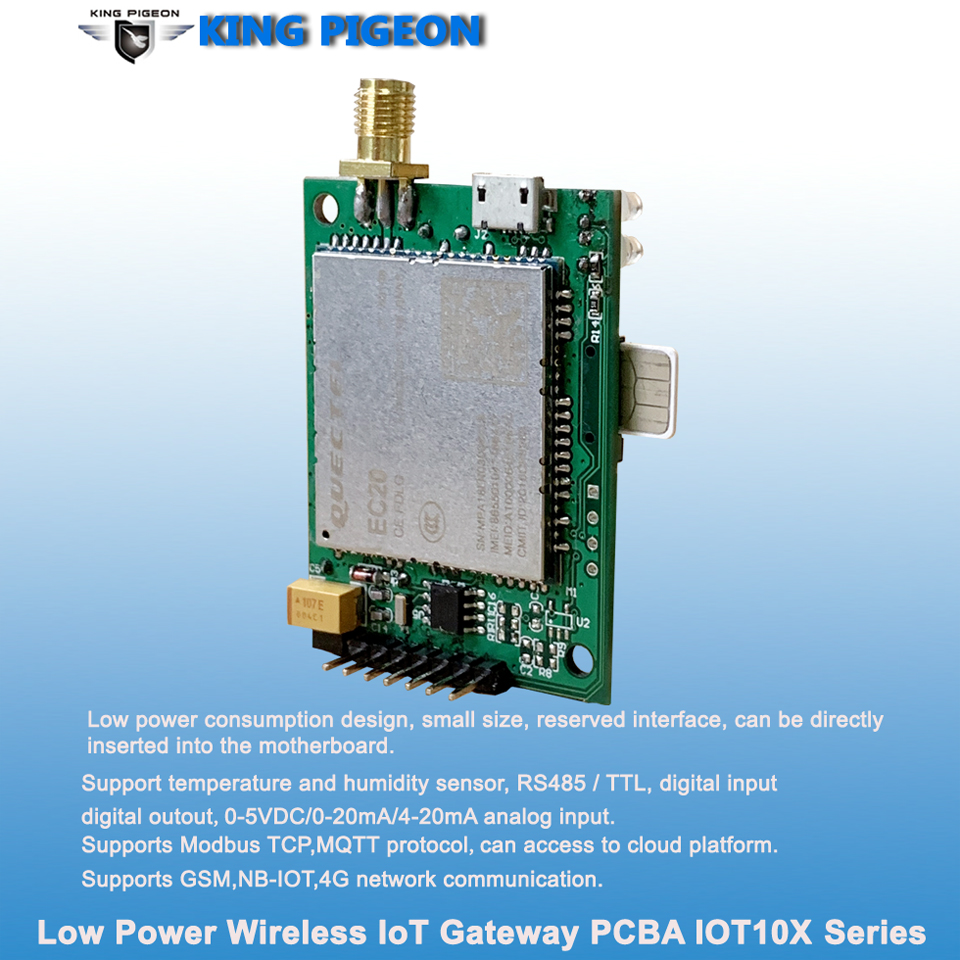

11. Provide PCBA or waterproof enclosure,can be used outside.
