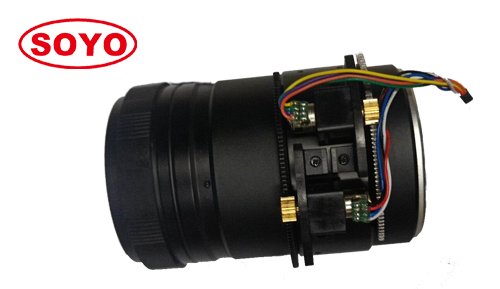

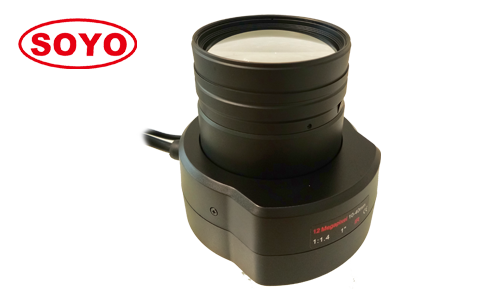

10-40mm 1" 12MP Motorized Zoom Lenses Megapixel CCTV Camera Lens ITS Industrial IR Day & Night DC /3 Motors / P-Iris Opt
| FOB Price: | 1.00 - 400.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Week |
| Shipping: | FOB |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | Southeast Asia, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Standard |
Quick Details
- Brand Name: Soyo
- Focal Length: 10-40mm
- Material: Glass Metal
- Iris: Auto, P-iris, 3-motors
- Focus: Motorized
- Model Number: S1MZ1040IR-12M
Specifications
10-40mm 1" 12MP Motorized Zoom Lenses Megapixel CCTV Camera Lens ITS Industrial IR Day & Night DC /3 Motors / P-iris Optional Surveillance Optical Parts
- High resolution: 12 megapixel covering 4K, 1080P
- Suitable F. Length: 10-40mm making up short distance surveillance.
- Big aperture: F1.6 suitable for dark vision
- Large format: 1" large format covering all 2/3",1/1.7",1/2"
- Compact size: Compact small size lens for special application.
- Optional Iris: P-iris & 3 motors, DC iris for option
- Application: Highway,train, industry, power station, city surveillance.
Model |
S1MZ1040-12M | |
Resolution |
12 Megapixel | |
IR Correction |
IR ( with filter ) | |
Format (inch) |
1" | |
Focal LengtH (mm) |
10-40mm | |
Aperture (Close/360) |
F1.6 P-iris ( DC / 3 Motors optional ) | |
Angle of View (°) DxHxV |
1" |
68.5*54.6*41.5 |
2/3" |
48.2*38*23.7 | |
1/2" |
35.7*27.9*24.9 | |
M.O.D (m) |
2.5m | |
Distortion |
-8% ~ -4.8% | |
C.R.A |
<5.8° (wide); <4.9° (Tele) | |
B.F.L |
11.6mm | |
M.F.L |
10.97mm | |

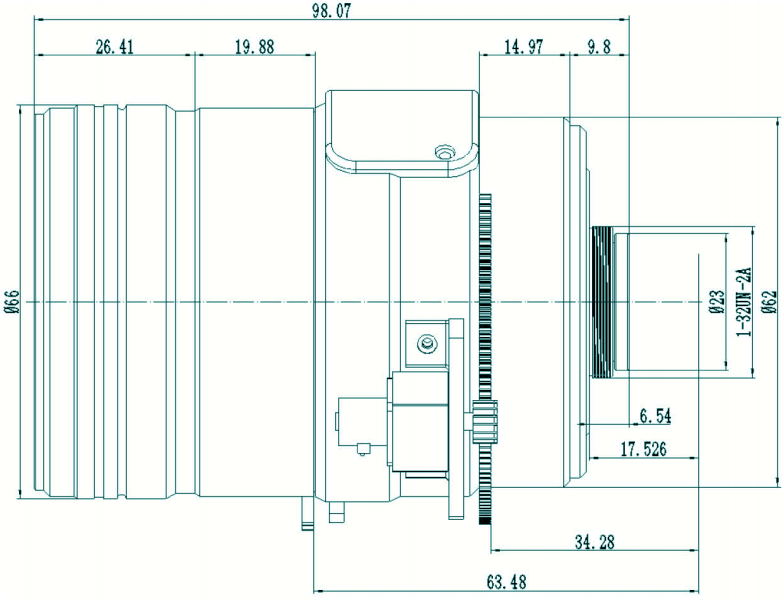

Dimension mm |
Φ66*98.07 | |
Mount |
C | |
Weight (g) |
560g | |
Marks |
-20°~+60° | |
Character |
P-iris, DC iris, 3 Motors Optional | |
