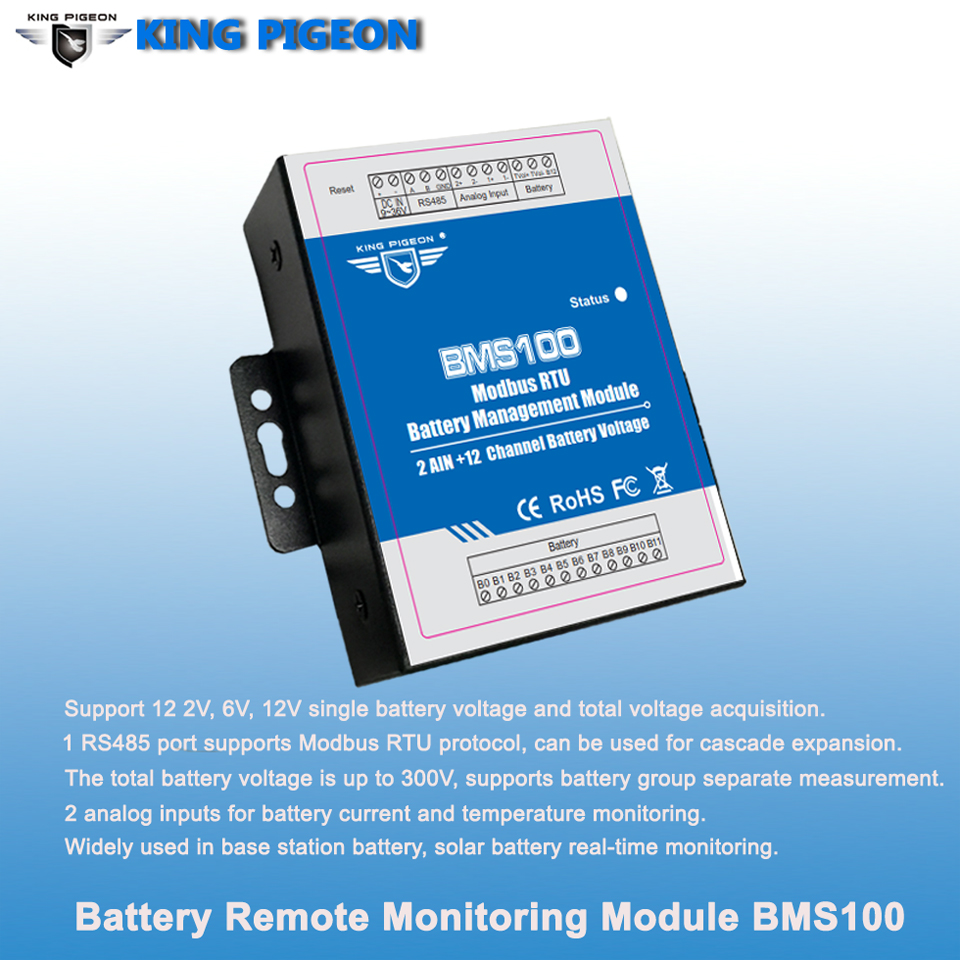

BMS100 Battery Voltage Monitoring IO Module for Telecom Tower
| FOB Price: | 60.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Shipping: | Express |
| Payment Terms: | T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | BOX |
Quick Details
- Contact Load: Low Power
- Protect Feature: Sealed
- Size: Miniature
- Theory: Electromagnetic Relay
- Brand Name: King Pigeon
- Usage: General Purpose
- Model Number: BMS100
- RS485: 1
- Analog Input: 2
Specifications

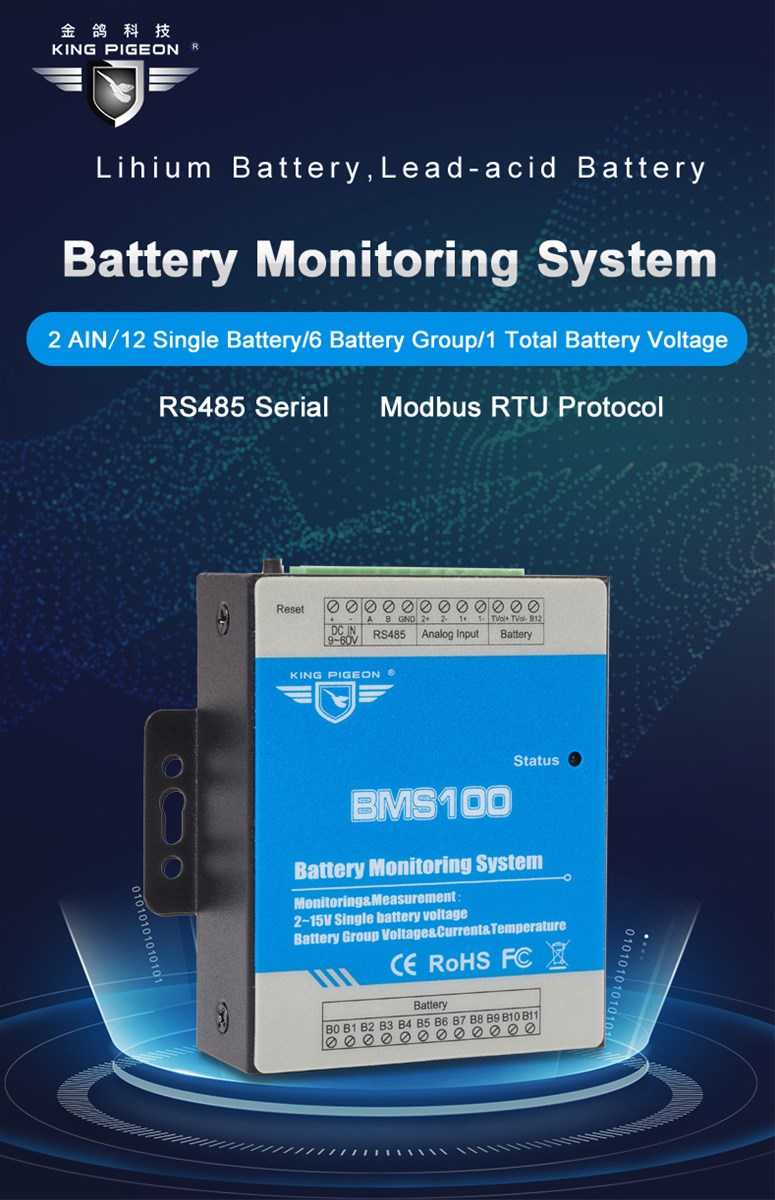

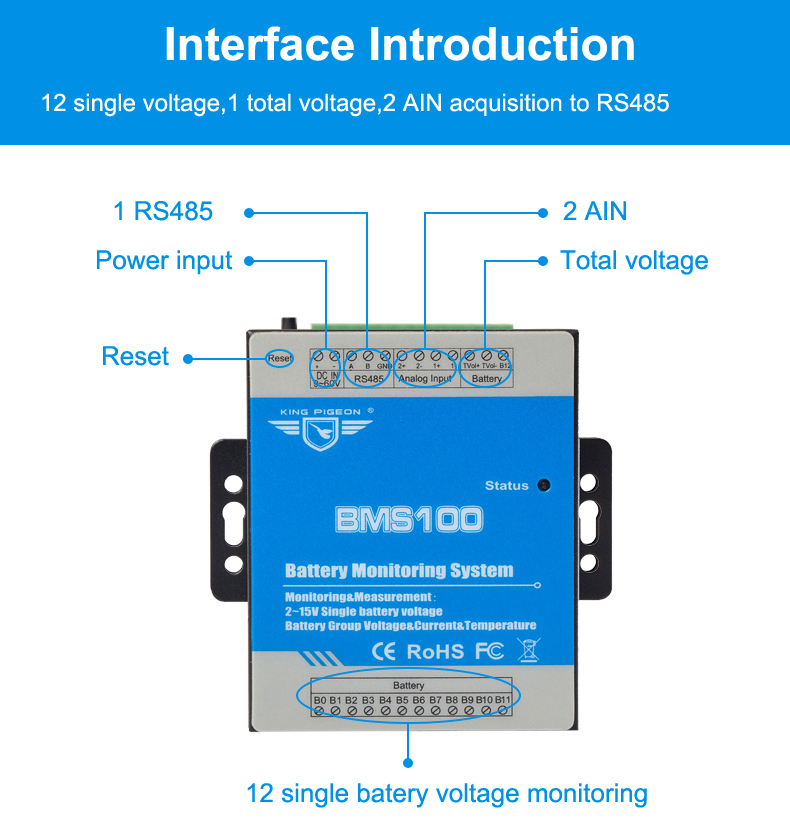

Battery Monitoring Module BMS100 model can realize 2 analog input and 13 battery voltage measurement.It is with RS485 serial port, MODBUS-RTU communication protocol.Power supply is 9-36V DC. Battery Monitoring Module BMS100 can be used in various industrial automation measurement and control systems. It can measure 4-20mA and 0-5V transducer signal of pressure, temperature,current,etc.It can measure server room battery management and voltage of each battery in each group. Battery Monitoring Module BMS100 use 16-bit high-precision AD acquisition and data processing technology, professional MCU Controller, non-linear processing algorithm.It has high accuracy, stable performance, strong anti-interference ability, etc.
1.Acquisition 2/4 channels of analog input 4 20mA, 0 5V, optional;
2.Adopt 12-bit AD acquisition processing, high accuracy measurement;

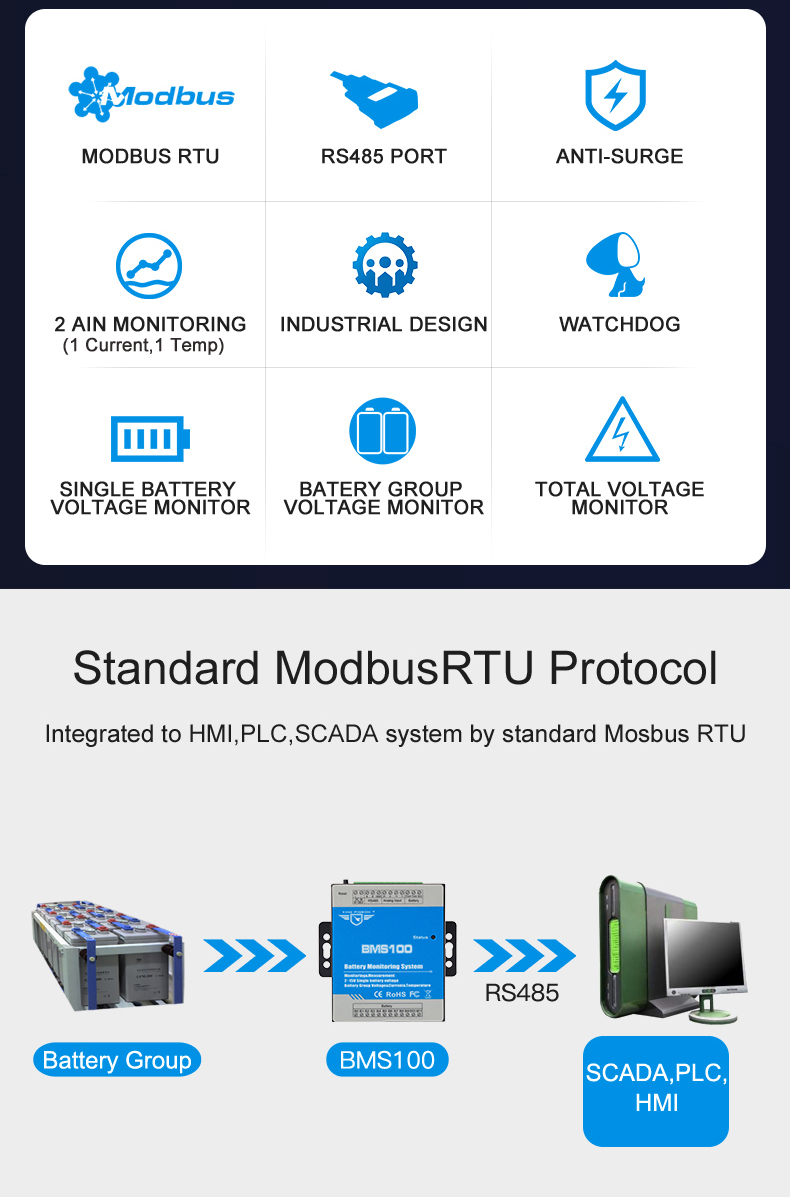

3.Standard Modbus-RTU protocol;
4.RS-485 (RS-422 optional) communication interface with ESD protection circuit;
5.Wide working voltage DC9 36V, with anti-reverse protection function;
6.Using industrial-grade chip, built-in watchdog, and has perfect anti-lightning and anti-interference measures to ensure reliability;
7.Configurable maximum and minimum value of analog input, intelligent conversion of actual value, convenient for various analog measurement requirements;
8.Can measure 12 single battery voltages,several battery group and 1 total voltage;
9.It has 3 precision gears for different voltage ranges to improve the voltage measurement accuracy;
10.with LED light to indicate working status, easy to install and debug on site.
