Shenzhen Coban Electronic Co., Ltd.

China Manufacturer with main products: GPS Tracker, GPS Tracking Unit, GPRS Tracking Platform, Car Tracker, Motorcycle GPS Tracker, Large Battery, Vehicle GPS Tracker, Coban Tk GPS...

Home >Products Catalog > GPS Accuracy Motorcycle Tracker with Engine Shut Motion Sensor GPS Tracking Device Tk303F

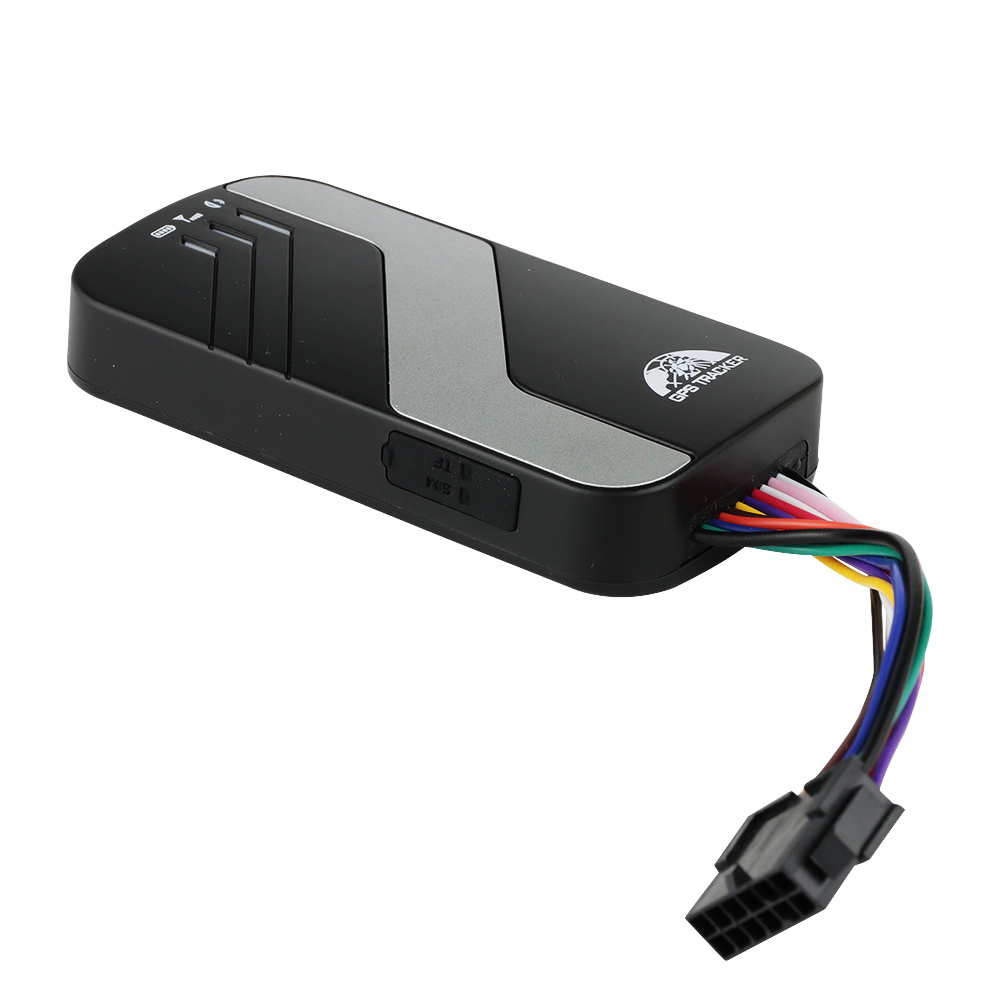

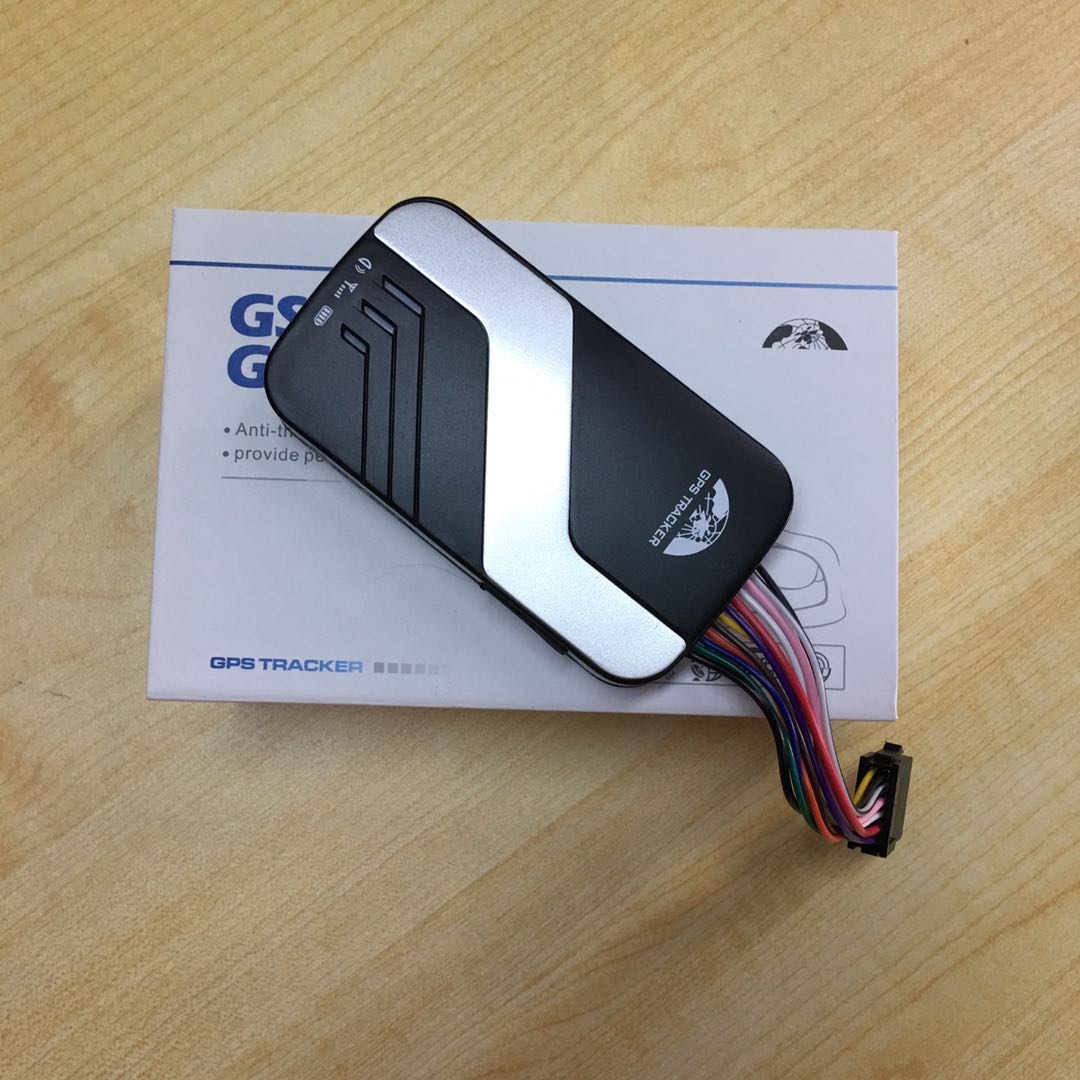

GPS Accuracy Motorcycle Tracker with Engine Shut Motion Sensor GPS Tracking Device Tk303F

FOB Price:	16.00 - 26.00 USD/Piece
Supply Ability:	50,000 Piece(s) per Month
Shipping:	DHL,UPS ,fedex,By air by sea
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	retail/wholesales gps tracking package

Quick Details

Warranty: 12Months
Brand Name: coban
Function: gps tracking ,car security alarms
Type: Gps Tracker
Combination: gps tracker
Model Number: 4G GPS Tracker 403
Use: Automotive

Specifications

for car & Motorcycle tracking

1   9.65.31.8cm, 70g
2 Band:
2G 1900/1800/900/850 MHz
4G B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40"
3   350mAh rechargeable battery
4   SOS / Microphone
5   Cut off engine
6   Support fuel sensor
7   Door open /shock /movement /GEO fence alerts
8   Free tracking platform
9   Free mobile app
10   Internal memory 100KB
GPS accuracy motorcycle tracker with engine shut motion sensor gps tracking device tk303F
1, Summary
this tracker is a new product based on the LTE/ GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas,Anti-theft GPS car tracker Vehicle GPS tracker with built-in GPS/GSM antennas,Anti-theft GPS car tracker

2, Specifications

Content	Specification
DIM	9.65.31.6cm
Weight	70g
Network	GSM/GPRS/LTE
Band	4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40) 2G (1900/1800/900/850 MHz)
GPS sensitivity	-159dBm
GPS accuracy	5m
GPS start time	Cold status 45s Warm status 35s Hot status 1s
Car power supply	12 V -24V
Back up battery	Chargeable 3.7V 450mAh Li-ion battery
Storage Temp	-40°C to +85°C
Operation Temp.	-20°C to +65°C
Humidity	5%--95% non-condensing

3, Features and Functions:
GSM/GPS LED Indicator
Initialization
Change Password
Authorization
Single Locating
Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System
Packaging Detail:
GPS unit

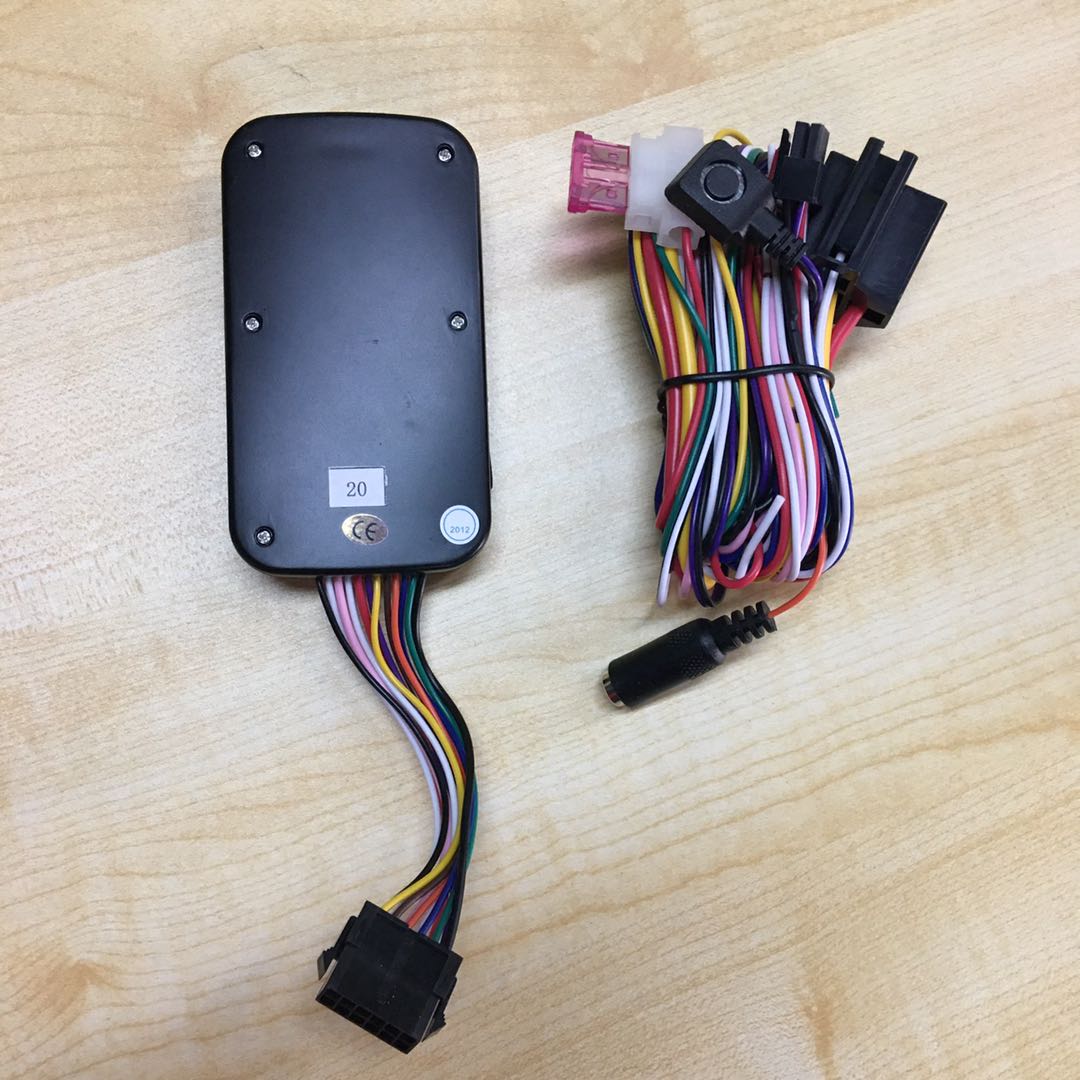

12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox

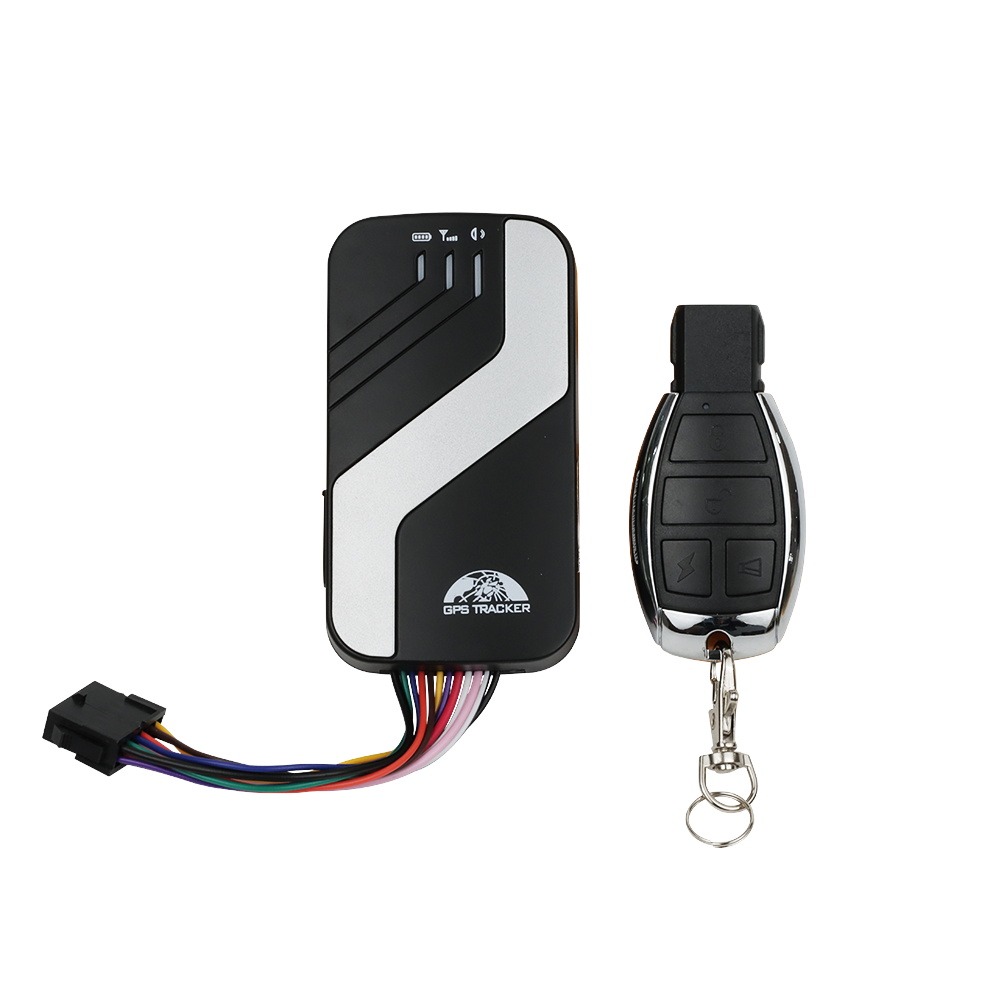

Remote controller ( only for model 403B)

Optional
MicroSD
Alarm siren(big or small both ok)
Fuel sensor
