Smallest Lwir Infrared Thermal Imaging Camera Core 640x480

FOB Price:	2100.00 - 12100.00 USD/Piece
Supply Ability:	500 Piece(s) per Month
Shipping:	EXW HANGZHOU
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Africa, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Waterproof Hangzhou

Quick Details

Magnification: 1-8x
Type: Monocular
Weight: <33g without lens
Size: 28x28mm
Brand Name: MT
Operating Voltage: 2.5v-5.5v
Effective Visual Distance: depend on the lens focus

Specifications

the following example is for you reference.

Main Advantages:

Ultra small size

Boot time less than 3 seconds

NETD30mk @300k F1.0

Lowest power consumption less than 0.9W

Scene adaptive image correction technology

standard video output: 14 Bit(50Hz) or BT.656 data output

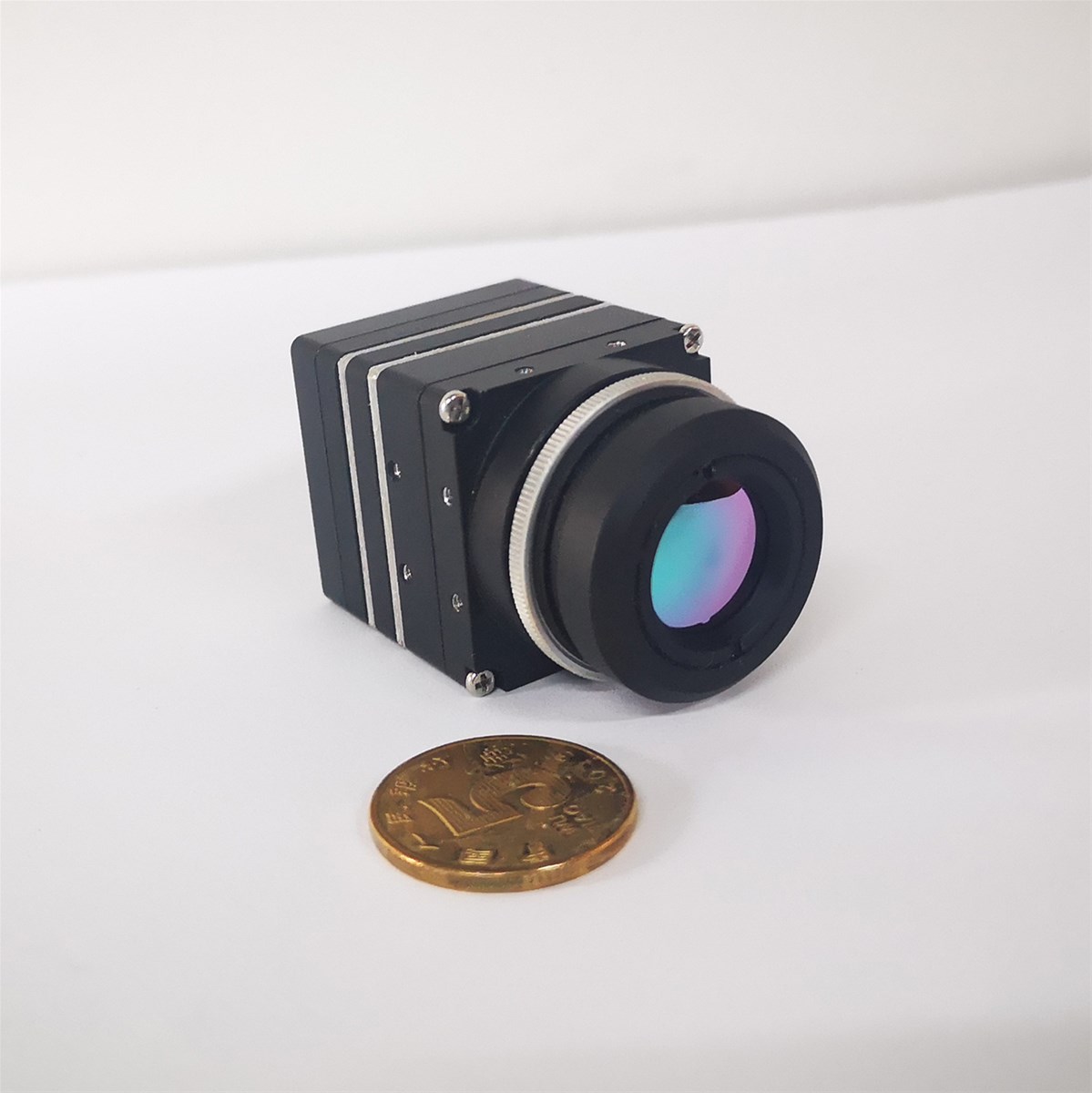

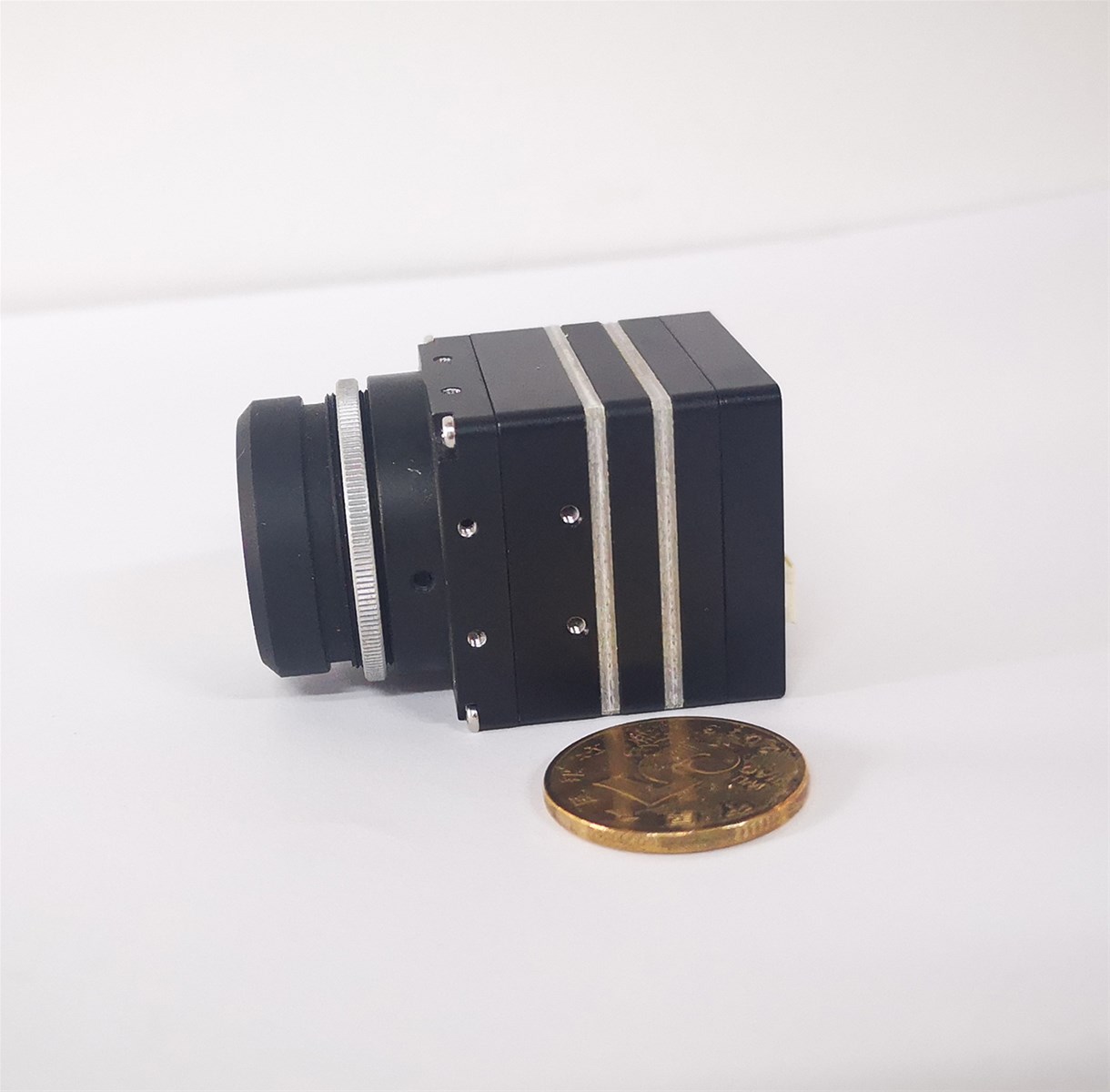

smallest lwir infrared thermal imaging camera core 640x480

Technical details:

Detector Performance
Type	Uncooled amorphous silicon FPA(Non TEC)
FPA format/Pixel pitch	640480 / 17um(Gen 2)
Sensitivity	≤30mk at f/1.0 300K
Frame rate	50Hz
Spectral range	8~14um
Image Processing
Non-uniformity correction	Self-adaption calibration
Time to image	3s
Image enhancement	DDE
Image display resolution	640480/768x576
Frame rate	50Hz(PAL)
Lens	Optional 12mm, 19mm, 35mm, 40mm, 50mm
Display Control
Polarity	while hot/black hot
Image zoom	1-8x
Brightness	Auto/manual
Contrast	Auto/manual
Image reversal	Horizontal/Vertical
Crosshair	One or more
Power
Operation Voltage range	DC: +2.5V~+5.5V
Typical	DC: 3.7V
Power consumption	<0.9W
Reverse protection	Yes
over/under voltage protection	Yes
Environment Parameters
Operation temperature range	Commercial: -20C~+60C
Operation temperature range	Special purpose: -40C~+60C
Storage temperature range	-45C~+65C
Humidity	5%~95% non-condensing
Anti-Vibration and shock	GJB 150-16 2.3.1
Anti-Vibration and shock	GJB 150-18 T7 100g/6ms
Temperature shock	-5C/min(-40C~+60C)
Physical Attributes
Weight	33g
PCB size	24mm24mm
Module Size	27mm28mm33mm(HWL)
Interface
External Power supply	Yes
Digital video output	14 Bit(50Hz)/ BT.656(customized)
Communication	RS-232 or RS-485
Analogue video	BNC(75Ω); Support dual composite video
Keyboard	5-button

Our Factory:

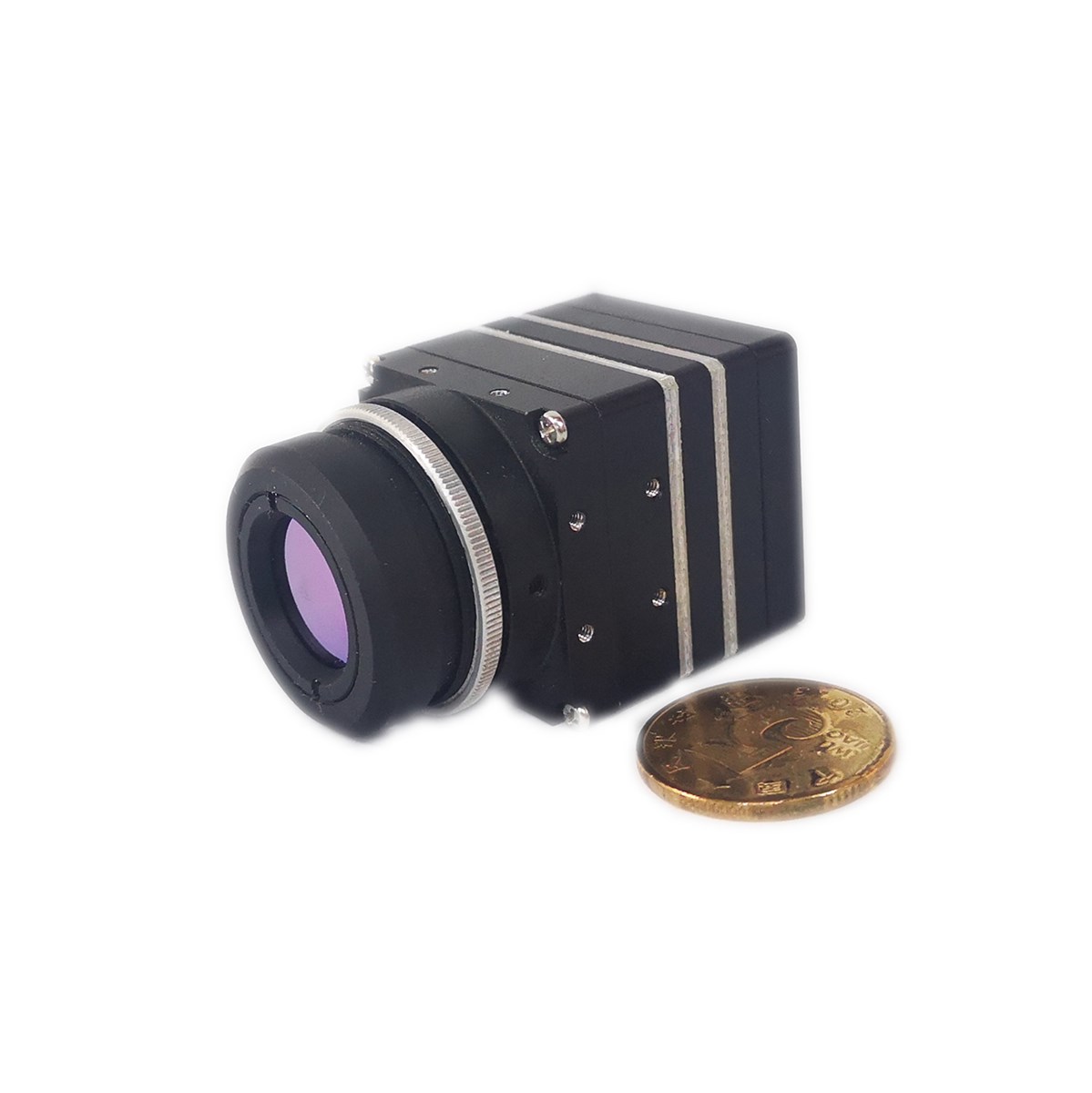

smallest lwir infrared thermal imaging camera core 640x480

Certificates:

ISO9001
