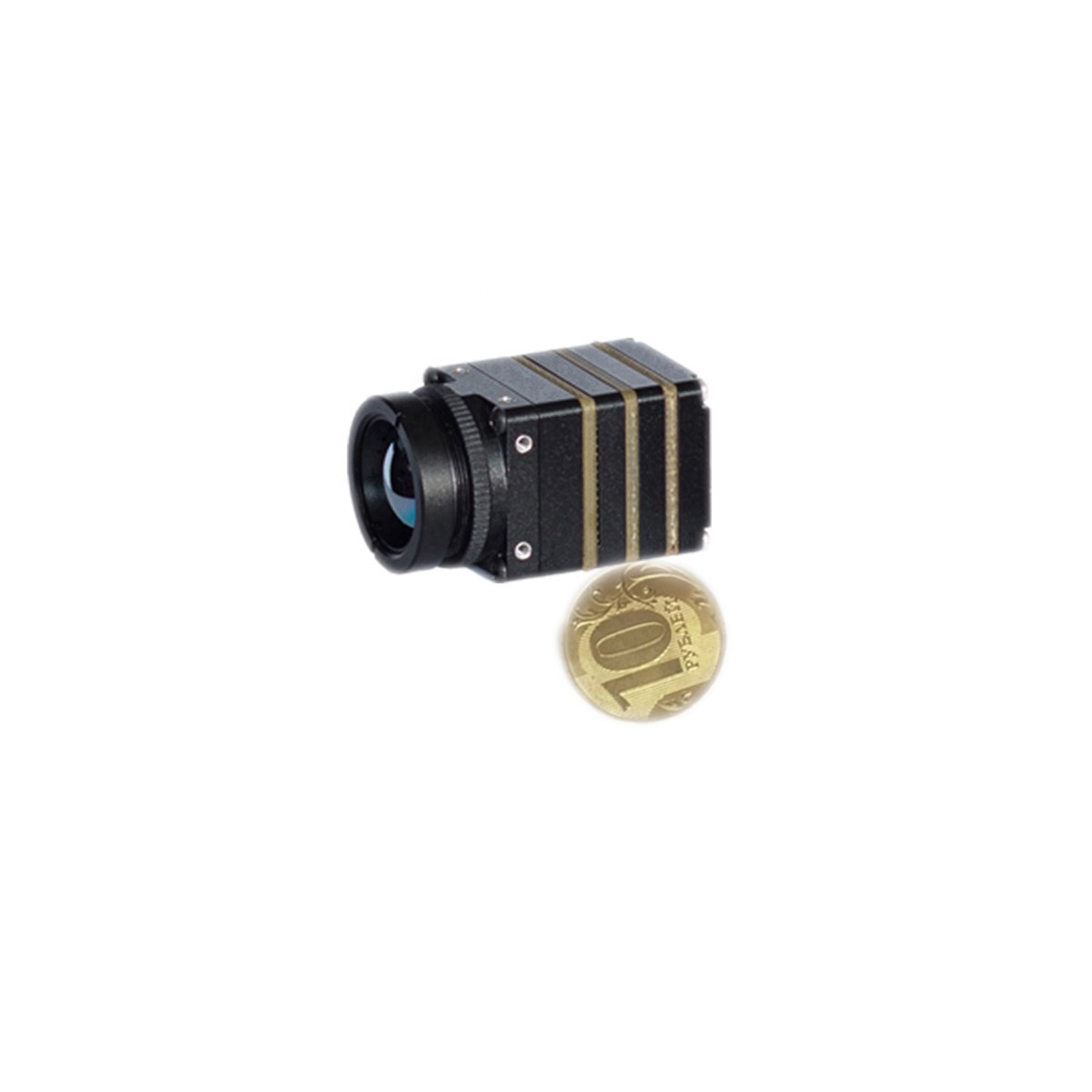

Super Small & Light Lwir Thermal Imaging Camera Module for Uav Drone

FOB Price:	1100.00 - 11000.00 USD/Piece
Supply Ability:	400 Piece(s) per Month
Shipping:	exw hangzhou /fob shanghai
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	waterproof case or carton

Quick Details

Magnification: 1-4x
Type: thermal camera
Weight: <12g without lens
Size: 20x20mm
Brand Name: MT
Operating Voltage: 2.5V-5.5V
Effective Visual Distance: Depend on the lens

Specifications

Super small and light lwir thermal imaging camera module for uav drone
Main Advantages:

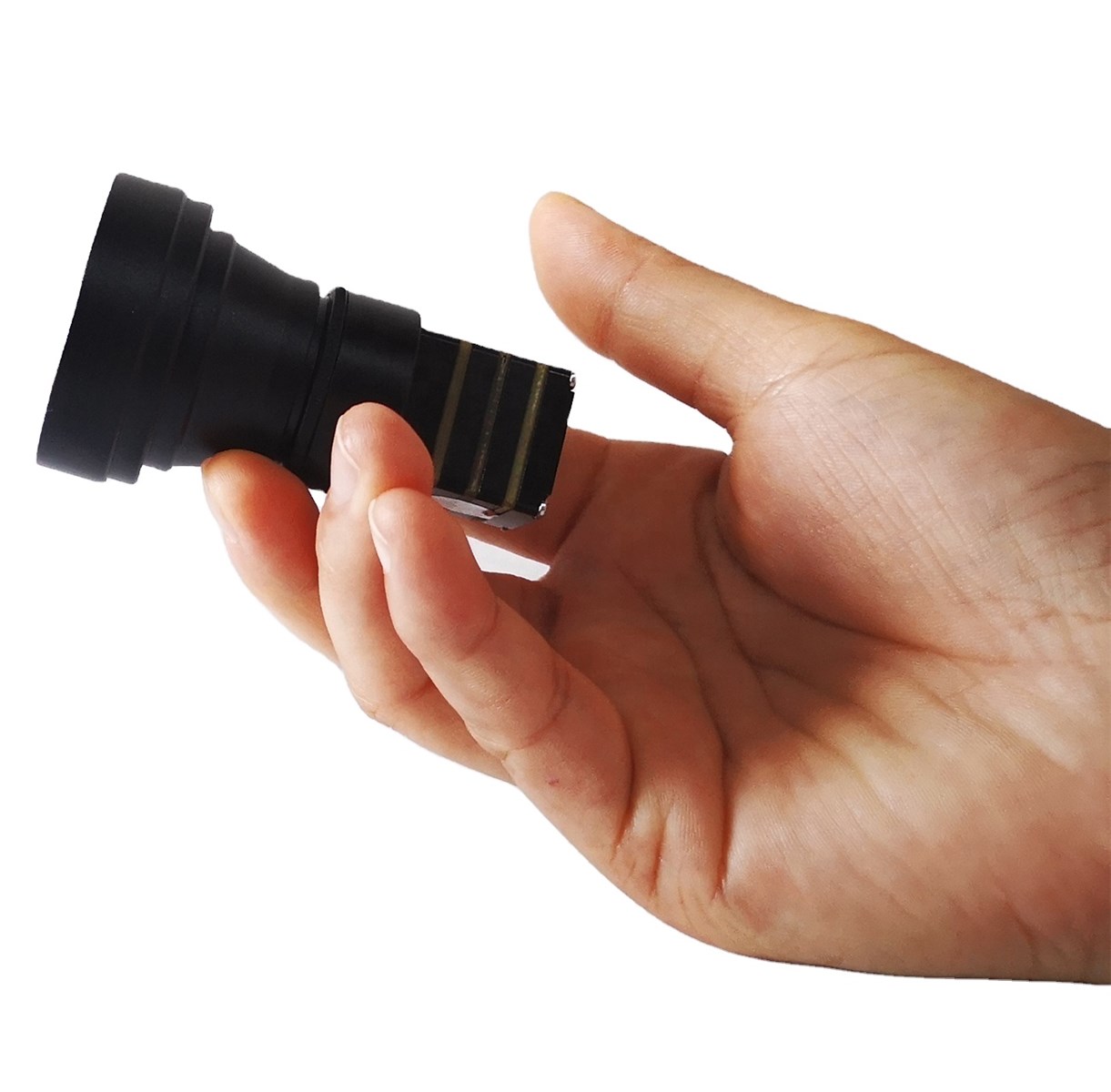

Ultra small size

Boot time less than 3 seconds

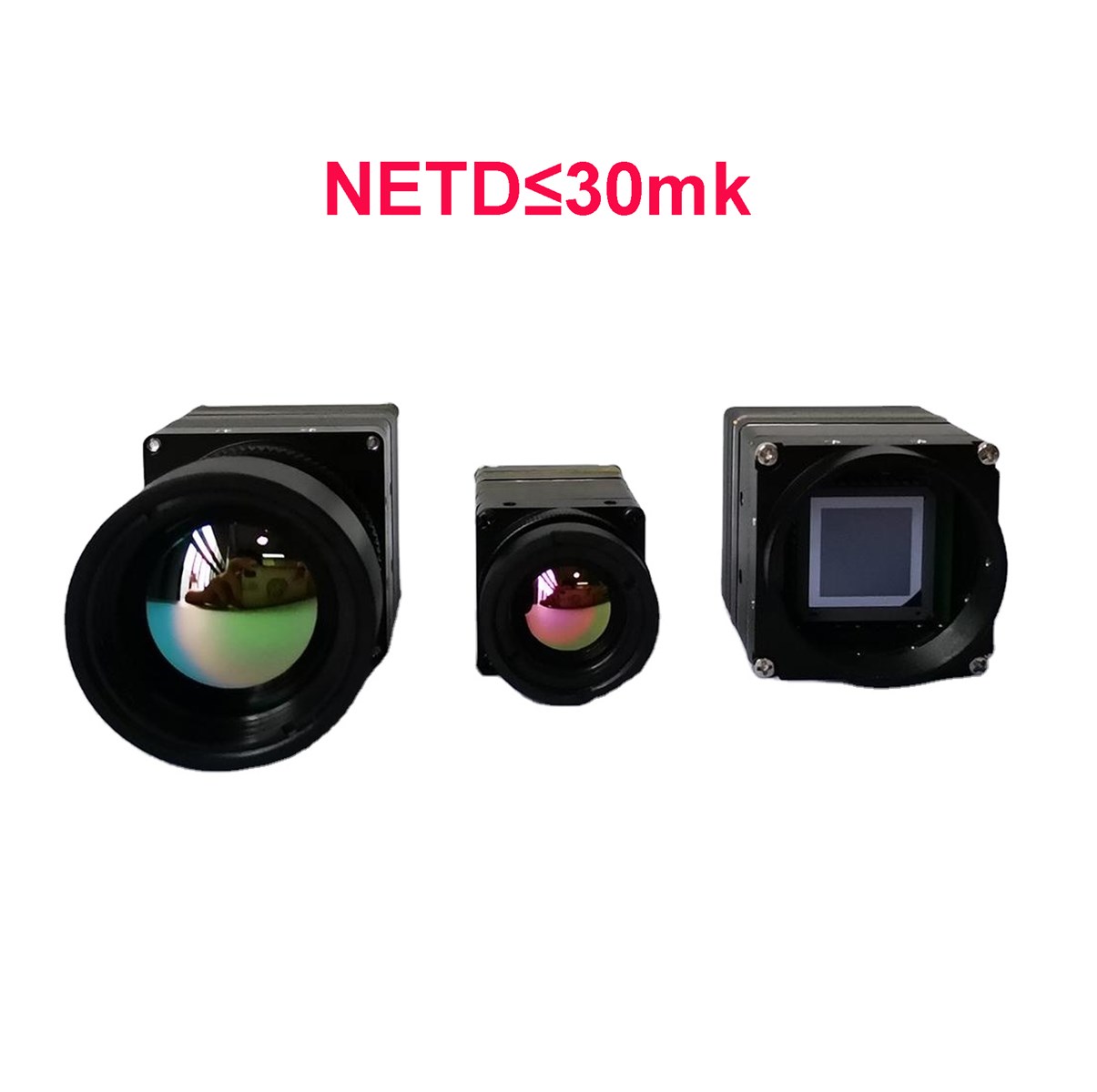

NETD30mk @300k F1.0

Lowest power consumption less than 0.5W

Scene adaptive image correction technology

14 Bit(50Hz) or BT.656 data output

Technical details:

Detector Performance
Type	Uncooled amorphous silicon FPA(Non TEC)
FPA format/Pixel pitch	384288 / 17um(Gen 2)
Sensitivity	≤30mk at f/1.0 300K
Frame rate	50Hz
Spectral range	8~14um
Image Processing
Non-uniformity correction	Self-adaption calibration
Time to image	3s
Image enhancement	DDE
Image display resolution	768576
Frame rate	50Hz(PAL)

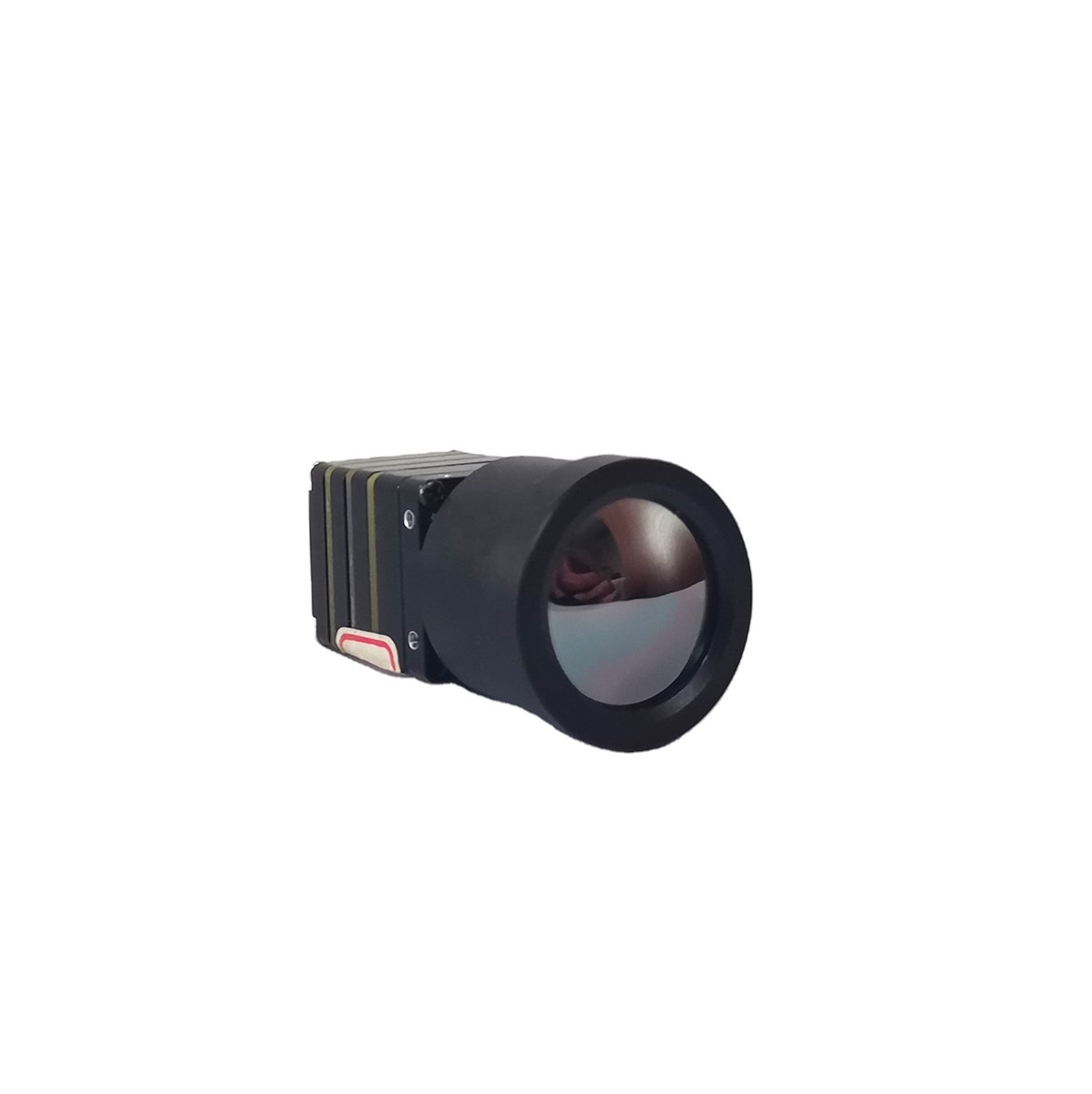

Lens	Optional 12mm, 19mm, 35mm, 40mm, 50mm
Display Control
Pallets	9 colors optional
Image zoom	1-4x digital zoom
Brightness	Auto/manual
Contrast	Auto/manual
Image reversal	Horizontal/Vertical
Crosshair	One or more
Power
Operation Voltage range	DC: +2.5V~+5.5V
Typical	DC: 3.3V
Power consumption	<0.6W
Reverse protection	Yes
over/under voltage protection	Yes
Environment Parameters
Operation temperature range	Commercial: -20C~+60C
Operation temperature range	Special purpose: -40C~+60C
Storage temperature range	-45C~+65C
Humidity	5%~95% non-condensing
Anti-Vibration and shock	GJB 150-16 2.3.1
Anti-Vibration and shock	GJB 150-18 T7 100g/6ms
Temperature shock	-5C/min(-40C~+60C)
Physical Attributes
Weight	12g
PCB size	20mm20mm

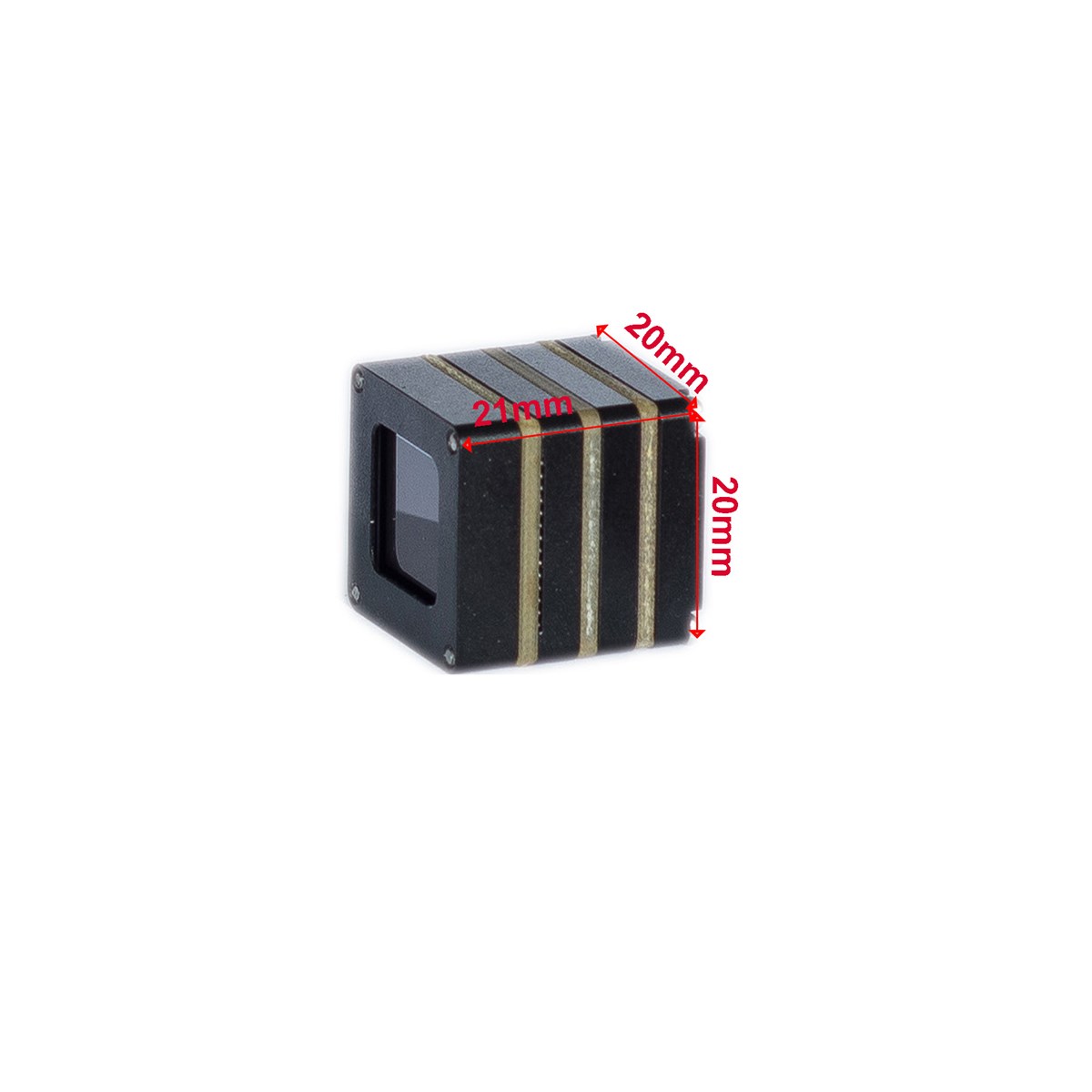

Module Size	20mm20mm20mm(HWL)
Interface
External Power supply	Yes
Digital video output	14 Bit(50Hz)/ BT.656(customized)
Communication	RS-232
Analogue video	BNC(75Ω)
Keyboard	4-button

Our Factory:

Super small and light lwir thermal imaging camera module for uav drone
