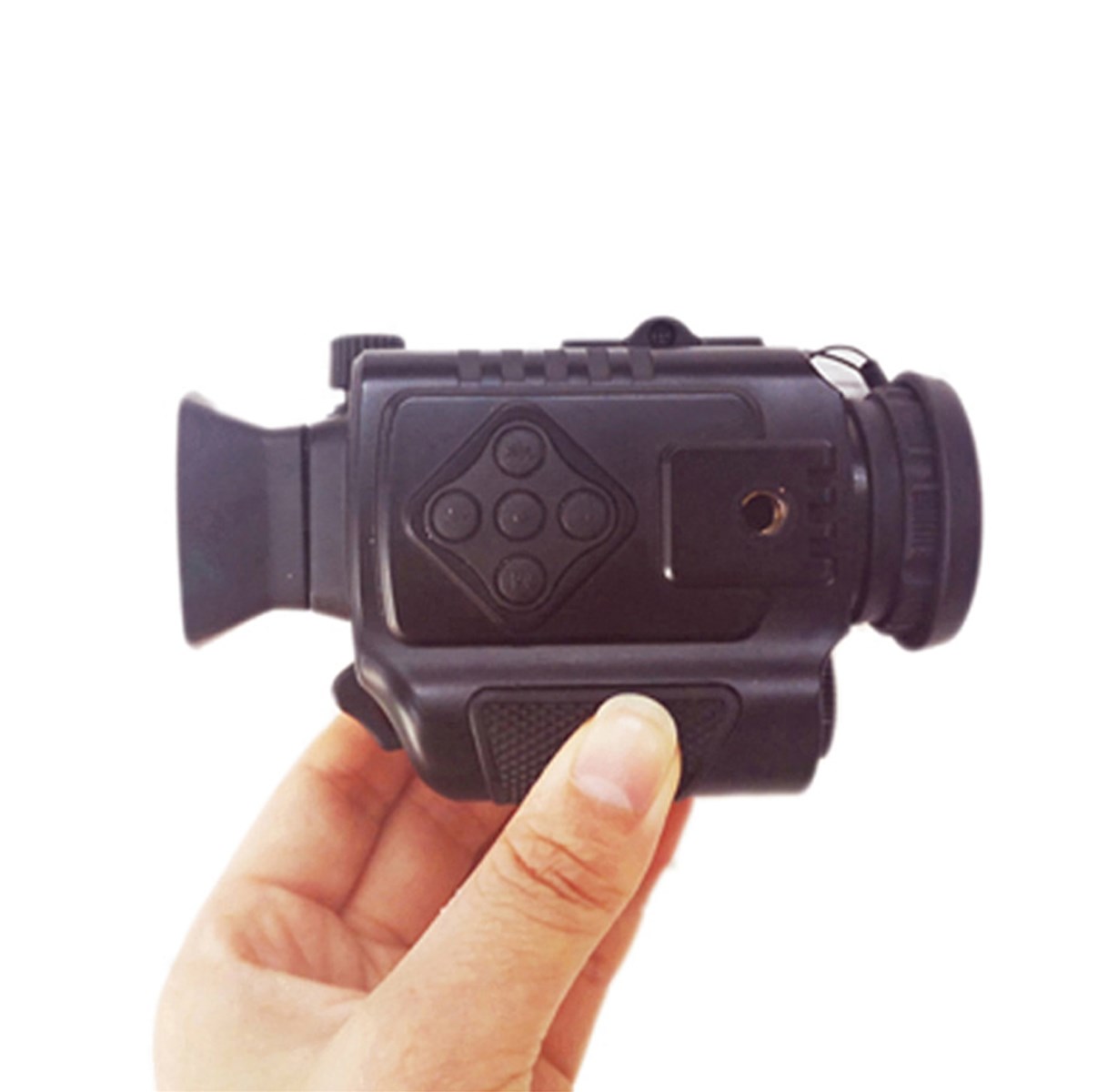

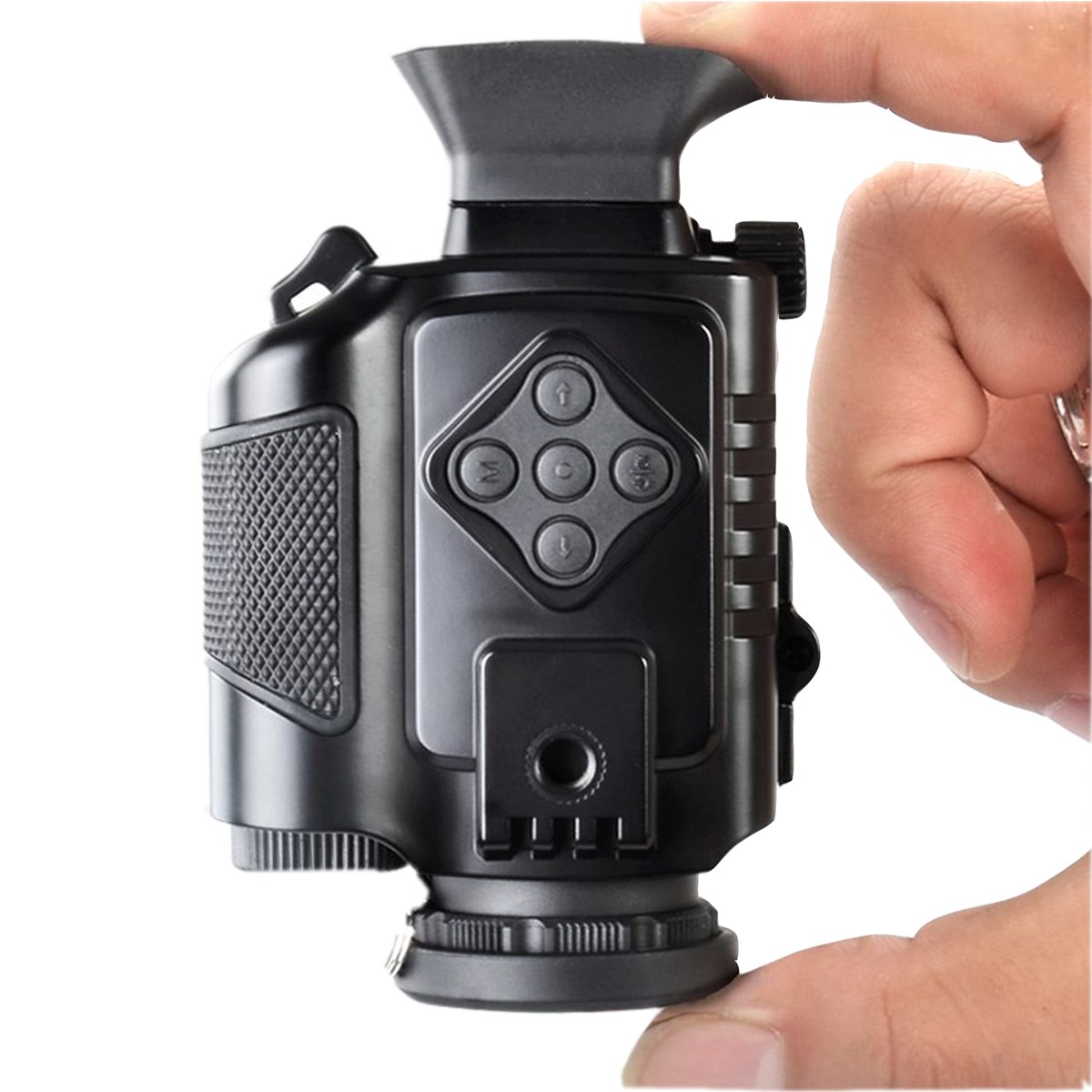

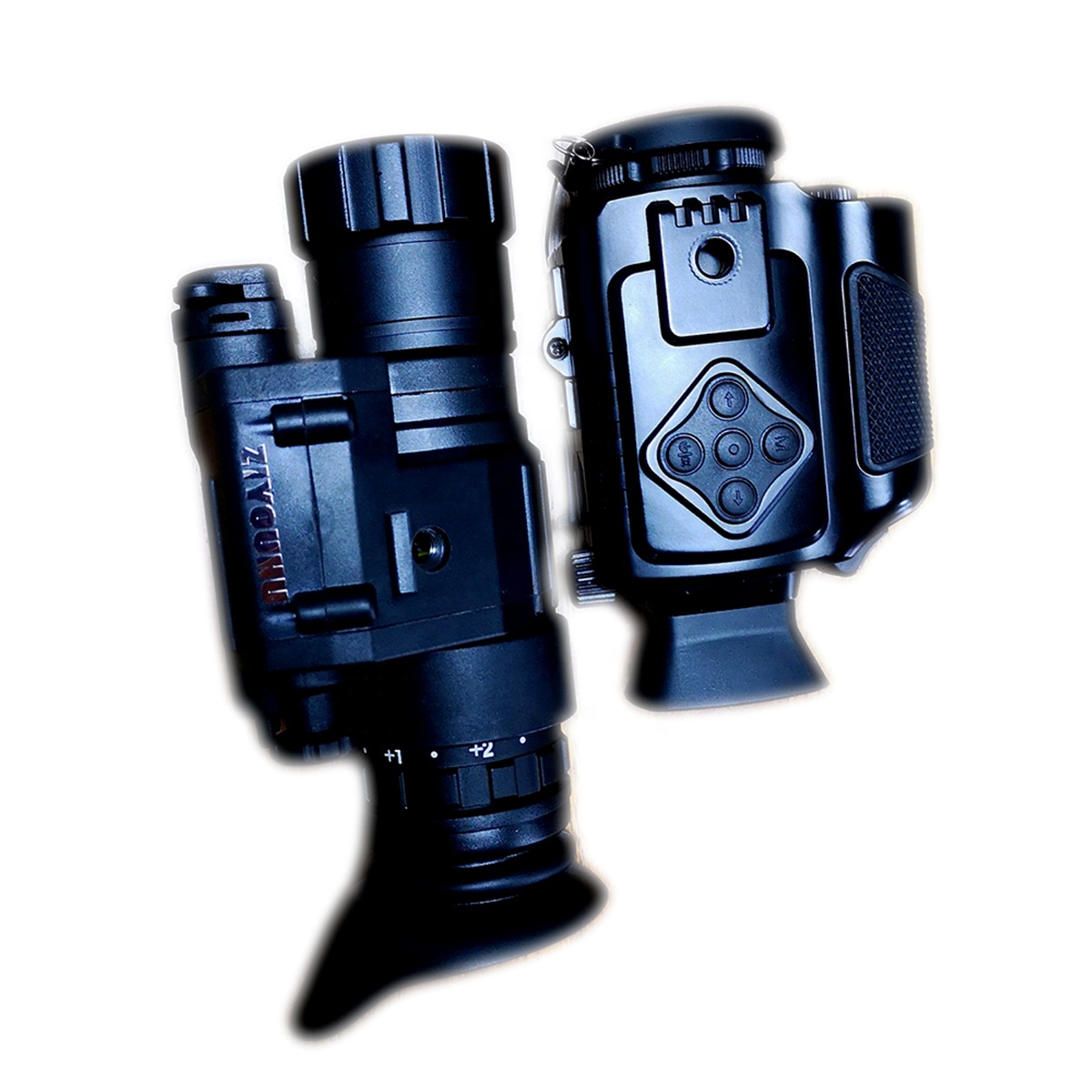

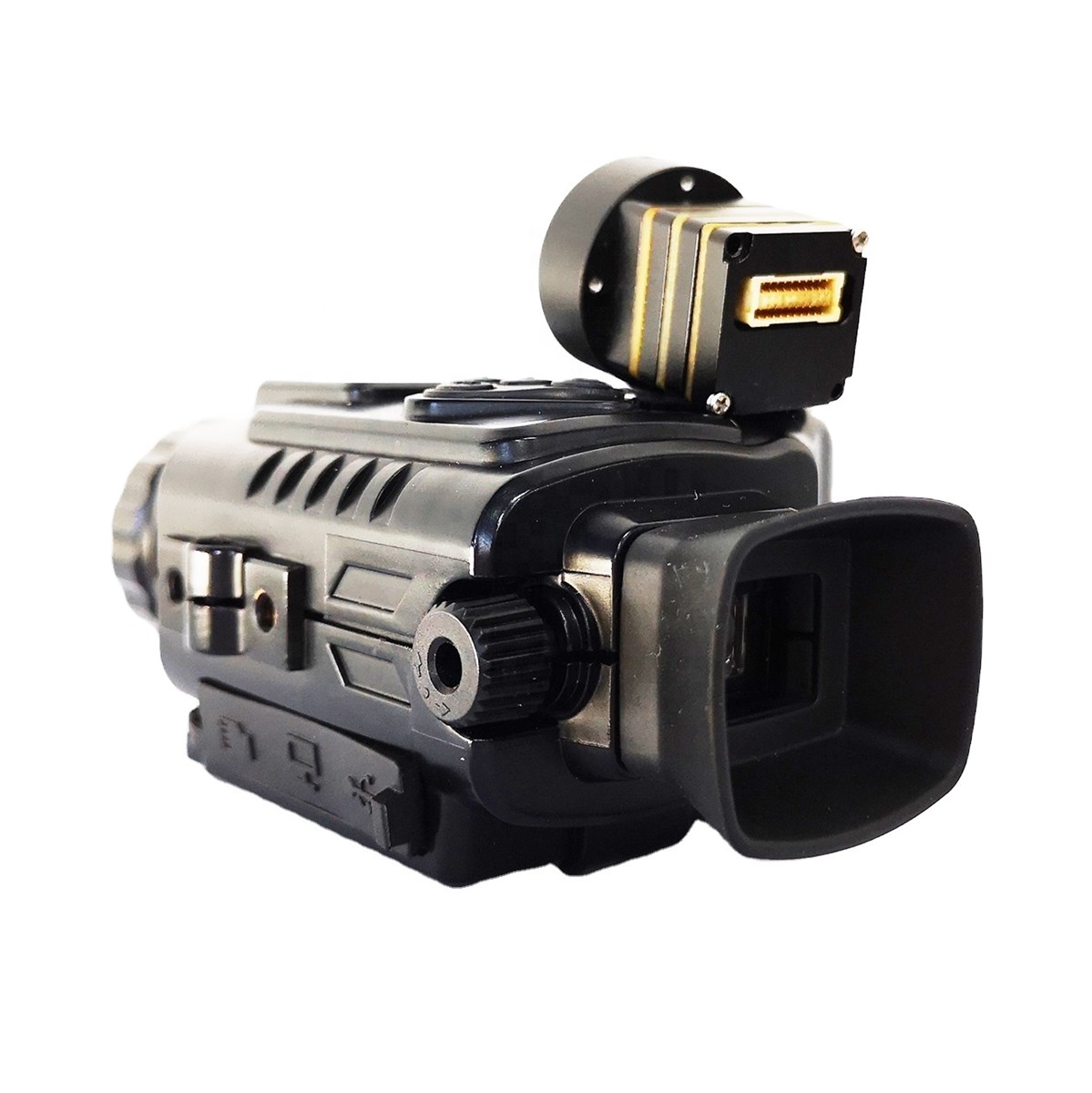

Handheld Lwir Thermal Imaging Night Vision Hunting Monocular

FOB Price:	1400.00 - 1600.00 USD/Piece
Supply Ability:	500 Piece(s) per Month
Shipping:	EXW HANGZHOU/FOB SHANGHAI
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Africa, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	waterproof case or carton

Quick Details

Brand Name: MT
Weight: 190g
size: 106mmX66.5mmX46mm
Waterproof: no
Length: 106mm

Specifications

handheld lwir thermal imaging night vision hunting monocular
Main Advantages:

Ultra small size

Boot time less than 3 seconds

NETD30mk @300k F1.0

Lowest power consumption less than 0.8W

Self-advaptive image calibration technology

Technical details:

Detector Performance
Type	Uncooled amorphous silicon FPA
FPA format/Pixel pitch	384288 /17um(Gen2)
Sensitivity	≤30mk at f/1.0 300K
Frame rate	25Hz
Spectral range	8~14um
Controls

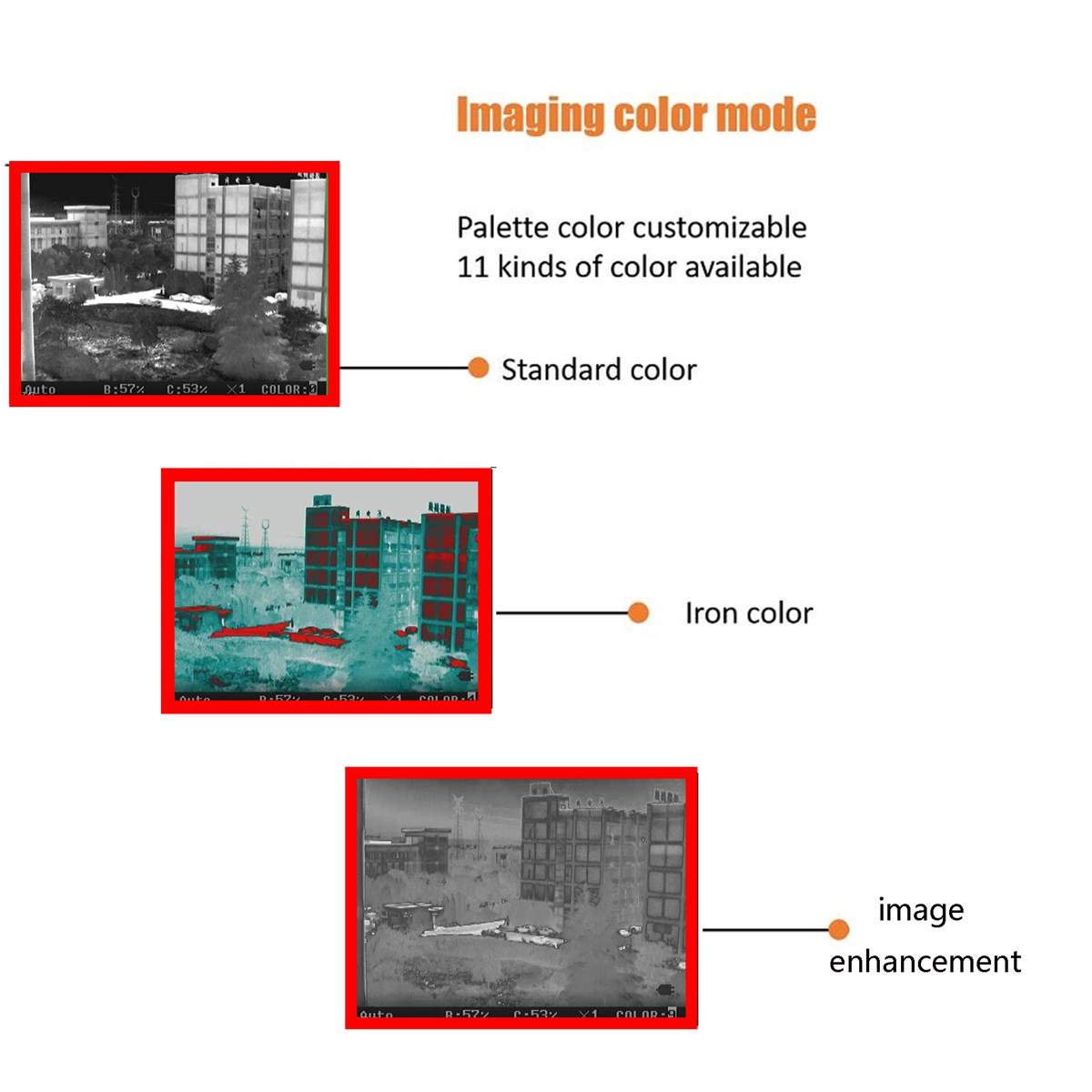

Polarity	White hot/black hot/WD/color
Digital zoom	1-4x
Brightness/contrast	Auto/manual
Image reversal	Horizontal/Vertical
Crosshair	YES
Power consumption	0.8W
Operation Voltage rage	DC: +2.5V~+5.5V(Typical 3.7V)
Physical Attributes
Weight	190g
Size	PCB:20mm20mm
External dimension	106mm66.5mm46mm(LWH)
Optical feature
Lens	12.8mm,19mm,25mm,35mm
Distance of exit pupil	Manual adjustment
OLED resolution	720(H)540(V)
Environment Parameters
Operation temperature range	Commercial: -20C~+60C
Operation temperature range	Special purpose: -40C~+60C
Storage temperature range	-45C~+65C
Humidity	5%~95% non-condensing
Anti-Vibration and shock	GJB 150-16 2.3.1
Anti-Vibration and shock	GJB 150-18 T7 100g/6ms
Temperature shock	-5C/min(-40C~+60C)
Interface
Battery	Single lithium battery 14500
Keyboarrd	5 buttons with electronic switch
