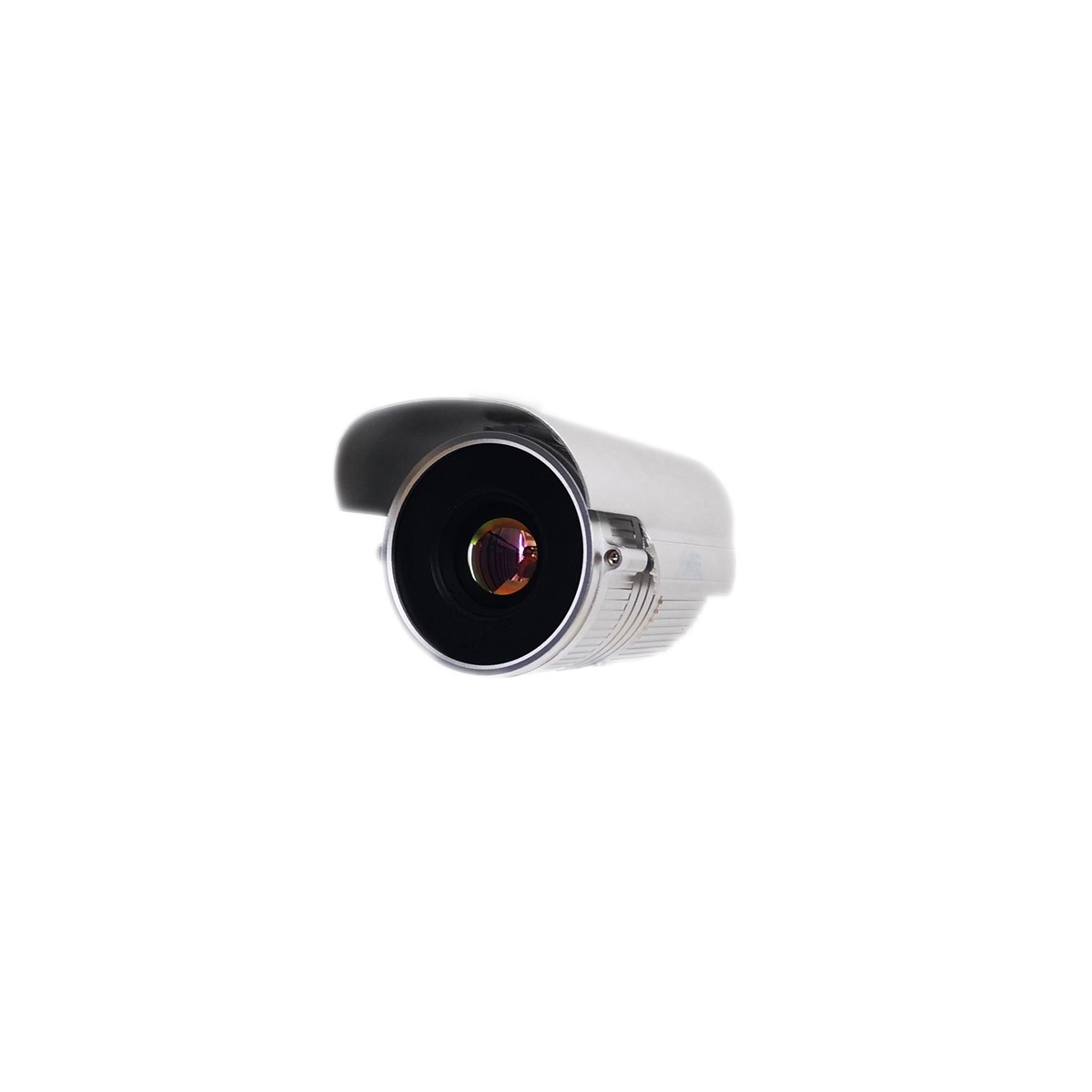

Uncooled Infrared Thermal Imaging CCTV Surveillance IP Camera

FOB Price: 1500.00 - 2800.00 USD/Piece
Supply Ability: 300 Piece(s) per Month
Shipping: EXW HANGZHOU/FOB SHANGHAI
Payment Terms: T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: WATERPROOF CASE OR CARTON

Quick Details

  • Special Features: Waterproof / Weatherproof
  • Technology: Infrared
  • Sensor: CMOS
  • Type: Analog Camera
  • Brand Name: MT
  • Style: Dome Camera

Specifications

uncooled infrared thermal imaging cctv surveillance IP camera

Main Advantages:

    Ultra small size

  Boot time less than 3 seconds


NETD30mk @300k F1.0

  Scene adaptive image correction technology

  IP Ethernet data output



Technical details:

Article Thermal imaging camera MT3E 6E
Specification Feature
Detector Detector Uncooled amorphous silicon FPA
FPA format/Pixel pitch      384x288/640x480 17um
Sensivity ≤30mk at f/1.0 300K
Frame rate 50Hz
Spectral range 8~14um
Image Processing Self-adaption calibration Self-adaptive calibration
Start-up time < 3s
Image enhancement DDE
Image display resolution 768*576
Image frame rate 50Hz(PAL)
Lens(optional) Optional 12mm, 19mm, 35mm, 40mm, 50mm
Thermal imaging adjustment Polarity Black hot & white hot/9 colors
Digital zoom X2, x4
Brightness/Contrast Auto/manual
Image reversal Horizontal/vertical
Crosshair Yes
Power Operation voltage range DC: +2.5V~+5.5V
Typical operation voltage DC: 3.7V
Power consumpion <1.5W/2W
Environment Operation temprature  range Commercial use:-20C~+60C
Special use: -40C~+60C
Non-operating  temprature  range -45C~+65C
Humidity 5%~95% Non condensing
Shock Vibration:GJB 150-16 2.3.1
Axial:GJB 150-18  Test7 100g/6ms
Anti temperature impact -5C/min(-40C~+60C)
Physical attributes Weight 500g

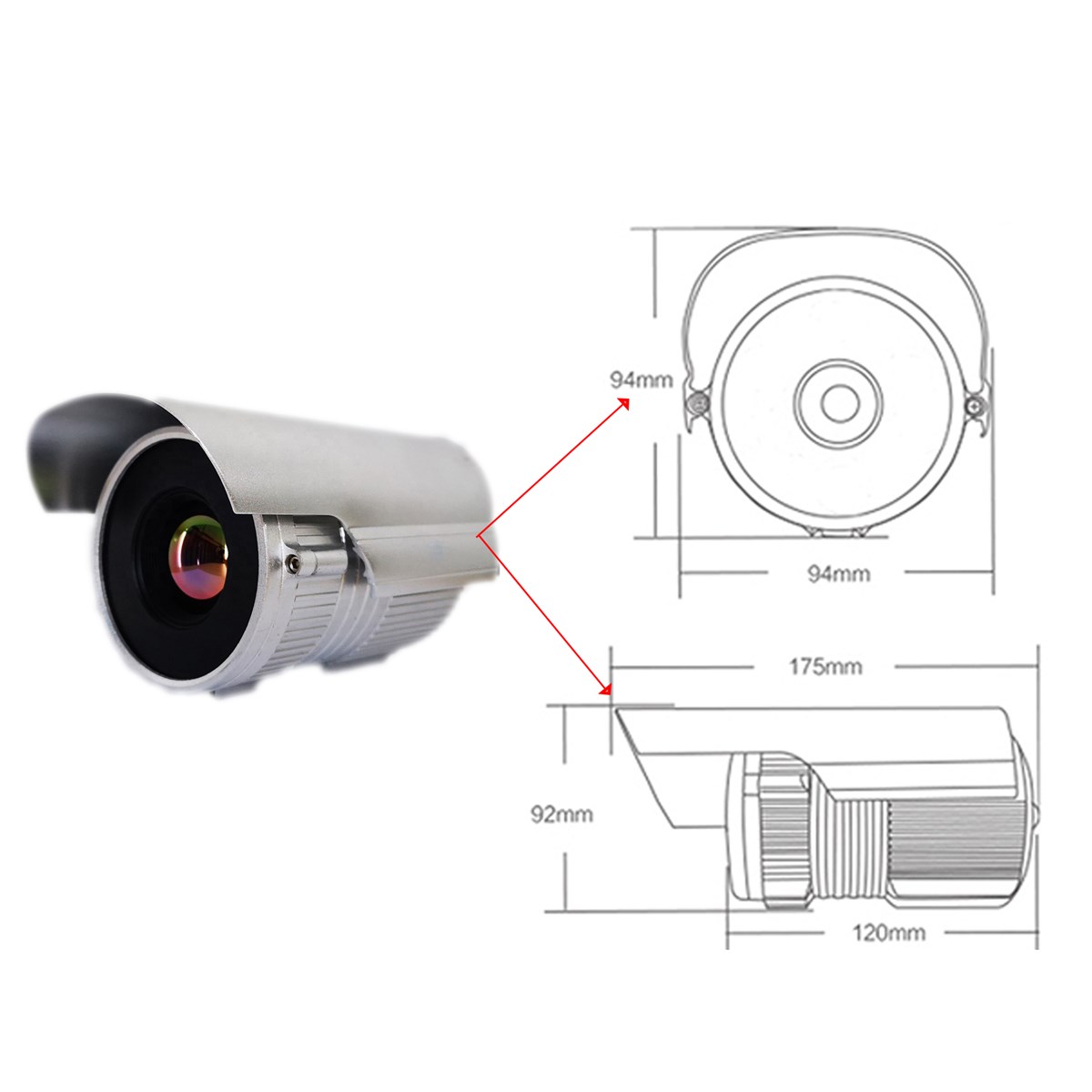

Size 175X94X92mm
Interface External power input Yes
Communication RS-232/RS-485
IP interface Yes




Our Factory:

  uncooled infrared thermal imaging CCTV surveillance IP camera
