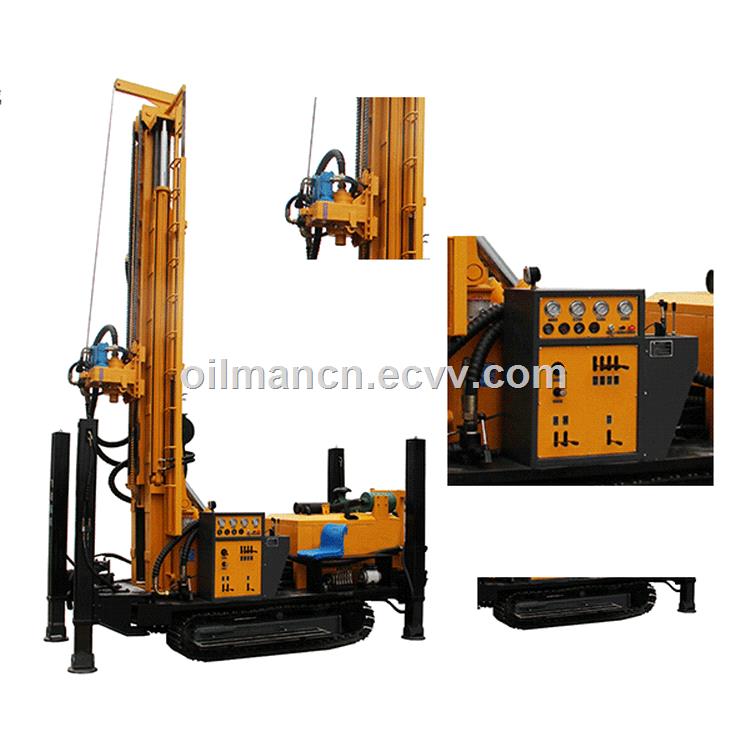

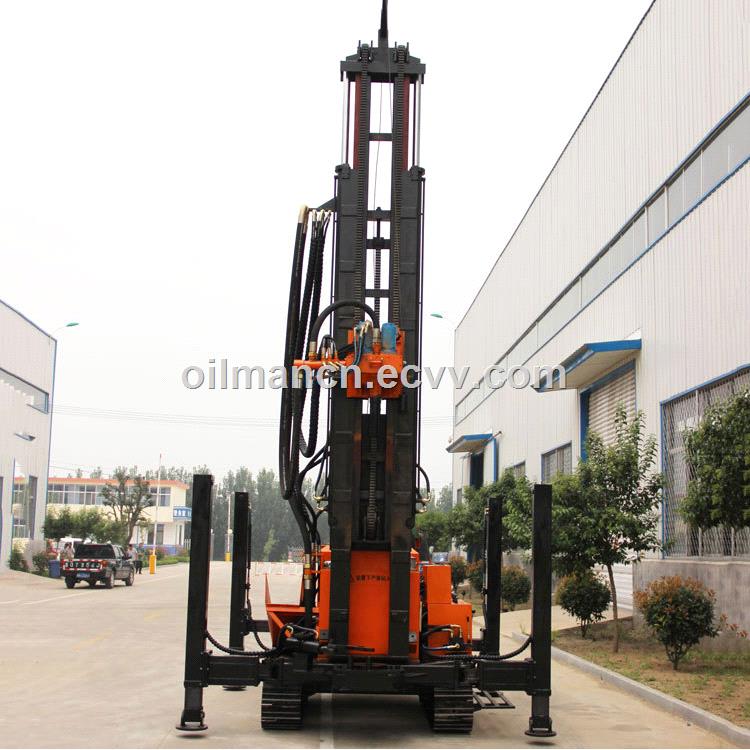

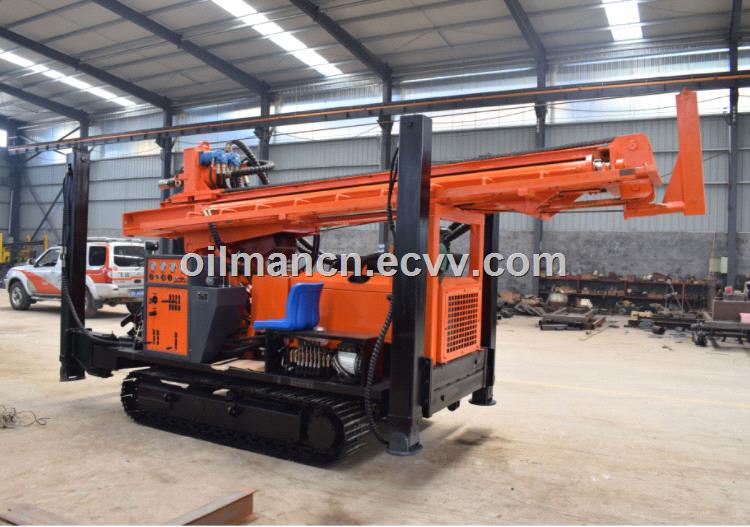

Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine with Air Compressor
| FOB Price: | 10000.00 - 60000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | FOB Tianjin Port |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | In Container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: OilMan
- Power Type: Electric
- Type: Rotary Drilling Rig
- Condition: New
- Warranty: One Year
- Certification: ISO
- Weight: 3.8 - 12 ton
- Dimension(L*W*H): 5050*2100* 2800mm
- Power(W): 42 - 115Kw
- Voltage: 380V
- Usage: Water Well
- Model Number: FY180, FY200, FY260, FY300, FY400, FY600
- Bore Diameter: 130 - 350mm
- Drilling Depth: 180 - 600m
- Usage: Construction Works, Water Well
- Product Name: Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine with Air Compressor
- Keyword: Water Well Drilling Rig Machine
Specifications
Borehole Crawler Pneumatic DTH Deep Water Well Drilling Rig Machine with Air Compressor
FY Series of the Crawler Drill Machinethe FY series water well drilling rig is a light, efficient and multifunctional drilling and drilling equipment powered by diesel engines. It is mainly suitable for drilling wells, agricultural irrigation wells and other well . It is especially suitable for water intake engineering in mountain area and rock stratum. this series of drilling well rigs adopt new technology, which is equipped with high torque hydraulic motor and large cylinder diameter hydraulic cylinder advancement. All drilling rigs need to be used with air compressor.
If you would like more information on prices and more, please request a quote for free, details such as model and quantity. In fact, in addition to crawler drills, we have built many other types of drills, such as ,, and so on. If you need more information, please do not hesitate to
Crawler Water Drilling Rig Machine
| Model | FY180 | FY200 | FY260 | FY300 | FY400 | FY600 |
| Total Weight(kg) | 3800 | 4600 | 6200 | 8800 | 8700 | 12000 |
| Dimension(mm) | 3800*1550* 2350 |
3800*1600* 2450 |
3900*1950* 2550 |
4350*1850* 2750 |
5050*2100* 2800 |
5400*2100* 2850 |
| Hole diameter (mm) | 130-254 | 140-325 | 140-325 | 180-325 | 140-325 | 140-350 |
| Hole depth (m) | 180 | 200 | 260 | 300 | 400 | 600 |
| Disposable drilling depth (mm) | 3000 | 3000 | 3000 | 6000 | 6000 | 6600 |
| Walking speed (km / h) | 2.5 | 2.5 | 2.5 | 2 | 2.5 | 2.5 |
| Climbing ability (Max.) | 30 | 30 | 30 | 30 | 30 | 30 |
| Distance off ground (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Working pressure (Mpa) | 1.7-2.5 | 1.7-3.0 | 1.7-3.0 | 1.7-3.3 | 1.7-3.0 | 1.7-3.5 |
| Air consumption (m3 / min) | 15-27 | 17-35 | 17-35 | 23 | 17-35 | 17-35 |
| Matching power (kw) | 42-65 | 65 | 85 | 85 | 95 | 115 |
| Rotational speed (rpm) | 48-70 | 50-70 | 40-70 | 55-115 | 45-75 | 45-110 |
| Rotational torque (N.M) | 4200-5600 | 5000-6500 | 7000-9000 | 7200-8500 | 8500-10000 | 8500-10500 |
Product Details:
Various Drilling Tools
Drilling rigs can be supplied in custom-built models in various configurations as indicated, mounting features to suit all special requirements and technical specifications can be offered accordingly.
We have models from 100m to 600m depth, mounted on wheel trailer, crawler/track/skid and truck for your difference choice!
