| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | In bundles |
Quick Details
- Section Shape: Round
- Outer Diameter: 60.3-508 mm
- Thickness: 4.24-16.13 mm
- Grade: API J55-API P110
- Grade: API J55,API K55,API L80,API N80,API P110
- Standard: API
- Standard: API 5CT,API 5DP,API 5L
- Outer Diameter: 2 3/8" - 20"
- Alloy Or Not: Non-alloy
- Special Pipe: API Pipe
- Certification: API
- Technique: Hot Rolled
- Application: Oil Pipe
- Secondary Or Not: Non-secondary
- Product Name: API 5CT Oilfield Seamless Tubing And Casing Pipes In K55 J55 N80 L80 P110
- Keywords: Casing pipe, tubing pipe
- Length: R1, R2, R3
- Warranty: One year
Specifications
API 5CT Tubing Pipe
We can supply steel grade as following:H-40,J-55/K-55, L-80, N-80, P-110,C-95,Q-125
Size Range
| Size Designation |
Weight Designation lb/ft | Outside Diameter |
Wall Thickness | |||
| Non-upset | Ex-Upset | ln. | mm | ln. | mm | |
| 2 3/8" | 4.00~7.35 | 4.70--7.45 | 2.375 | 60.33 | 0.167~0.336 | 4.24~8.53 |
| 2 7/8" | 6.40~11.50 | 6.50~9.45 | 2.875 | 73.03 | 0.217~0.440 | 5.51~11.18 |
| 3 1/2" | 7.70 ~17.00 | 9.30~12.95 | 3.5 | 88.9 | 0.216~0.530 | 5.49~13.46 |
| 4" | 9.50~22.20 | 11 | 4 | 101.6 | 0.226~0.610 | 5.74`15.49 |
| 4 1/2" | 12.60~26.10 | 12.75 | 4.5 | 114.3 | 0.271~0.630 | 6.88~16.00 |
API 5CT Casing Pipe
the casing we provided that their grade are K55,J55,N80,L80,P110,H-40,M-65,C-95,C-90,T-95,Q-125 and so on..
the size designation are 41/2 " 7", 7 5/8", 7 3/4", 8 5/8", 9 5/8", 10 3/4", 11 3/4", 13 3/8".20"
| API 5CT Oil Casing Pipe | ||||||
| Outer Diameter | Wall Thickness | Grade | Thread | Length | ||
| in | mm | kg/m | lb/ft | |||
| 4 1/2" | 114.3 | 14.14-22.47 | 9.50-15.10 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 5" | 127 | 17.11-35.86 | 11.50-24.10 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 5 1/2" | 139.7 | 20.83-34.23 | 14.00-23.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 6 5/8" | 168.28 | 29.76-35.72 | 20.00-24.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 7" | 177.8 | 25.30-56.55 | 17.00-38.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 7 5/8" | 193.68 | 35.72-63.69 | 24.00-42.80 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 8 5/8" | 219.08 | 35.72-72.92 | 24.00-49.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 9 5/8" | 244.48 | 48.07-86.91 | 32.30-58.40 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 10 3/4" | 273.05 | 48.73-97.77 | 32.75-65.70 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 11 3/4" | 298.45 | 62.50-89.29 | 42.00-60.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 13 3/8" | 339.72 | 71.43-107.15 | 48.00-72.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |

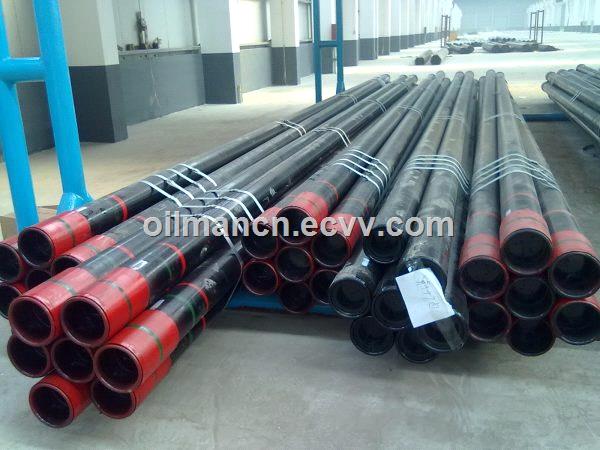

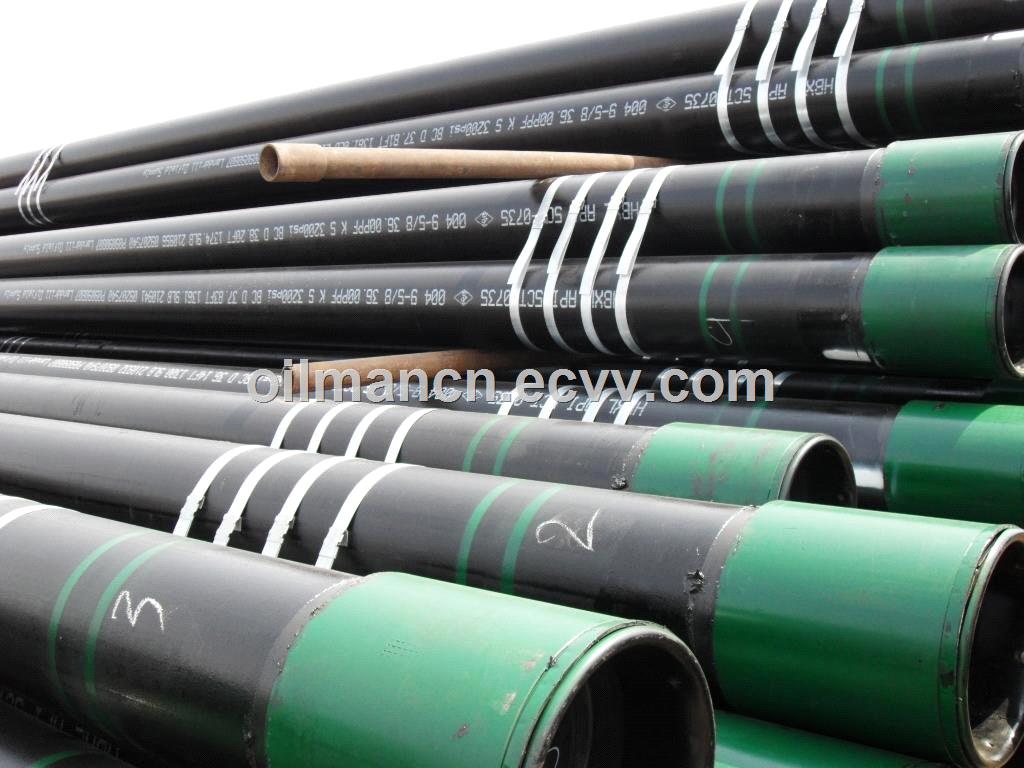

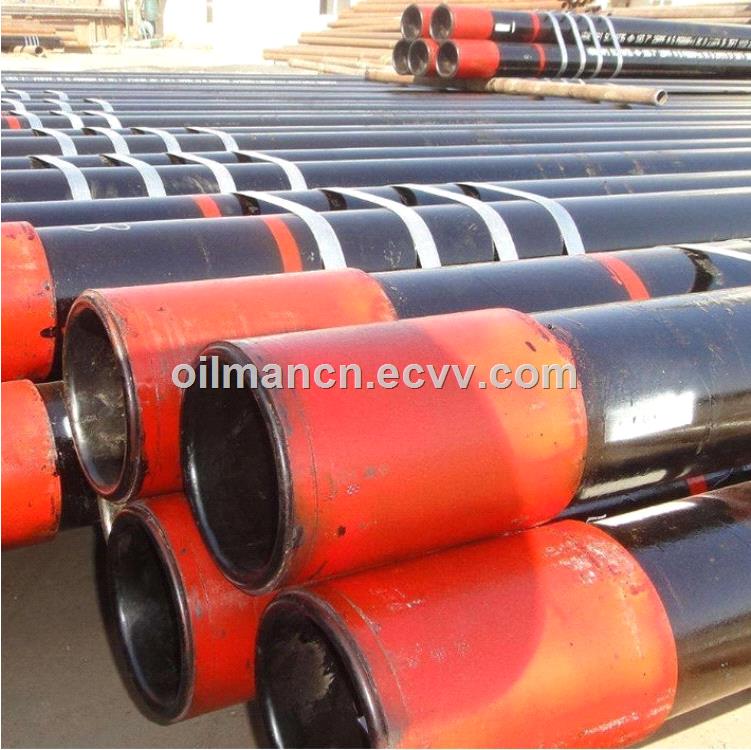

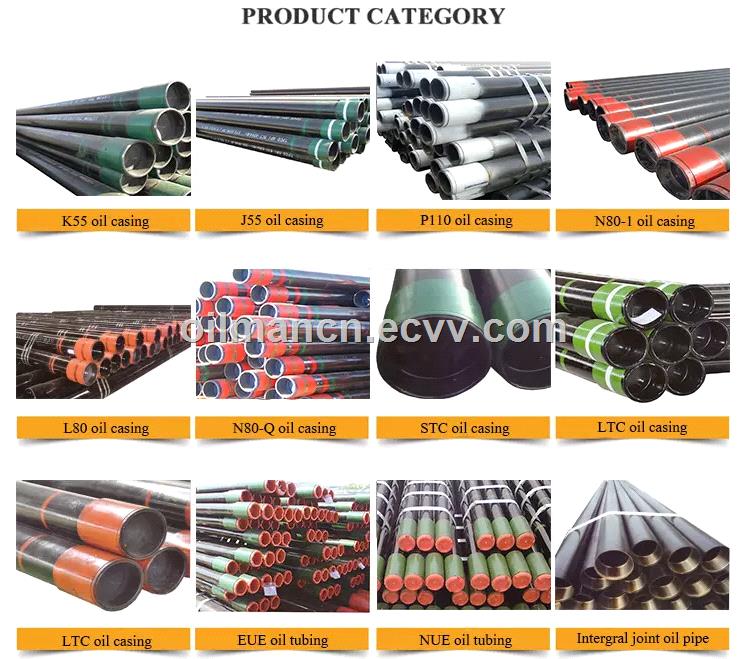

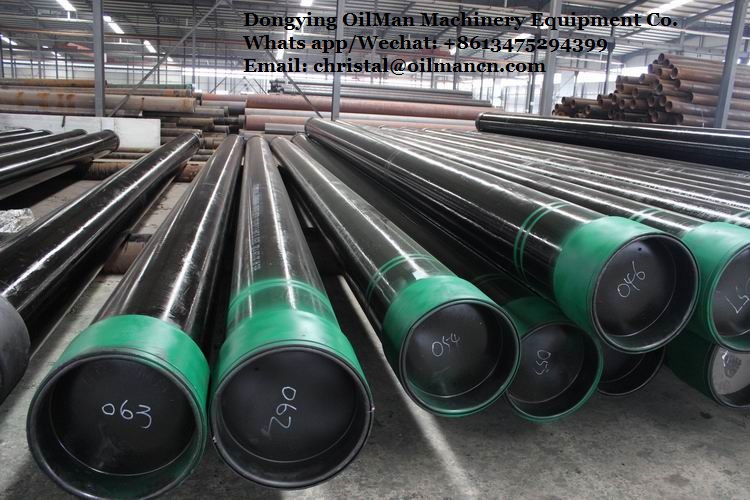

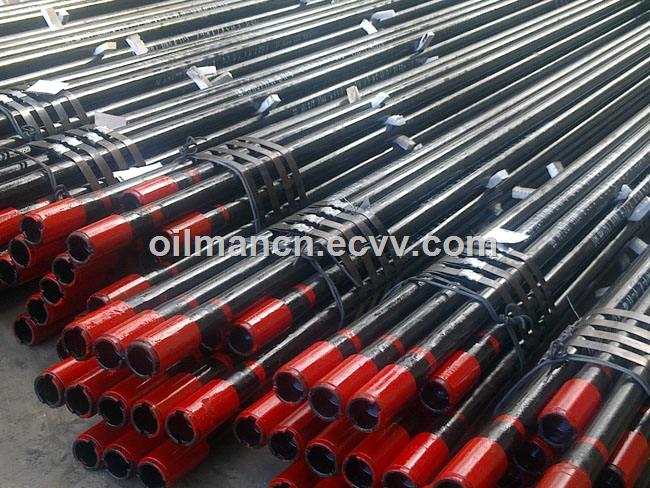

Products Show:

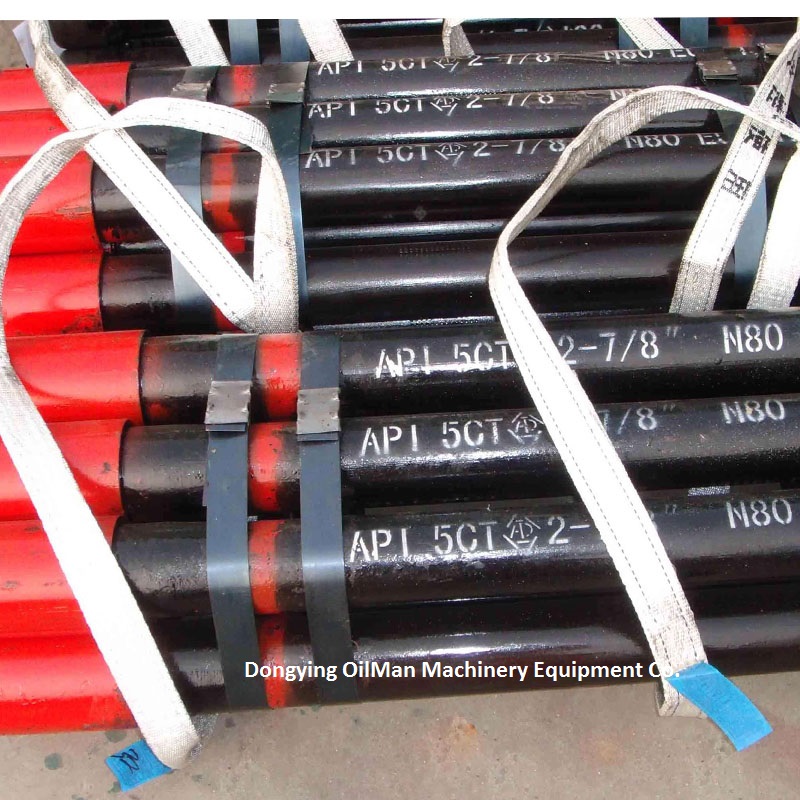

Package & Shipping:
Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
