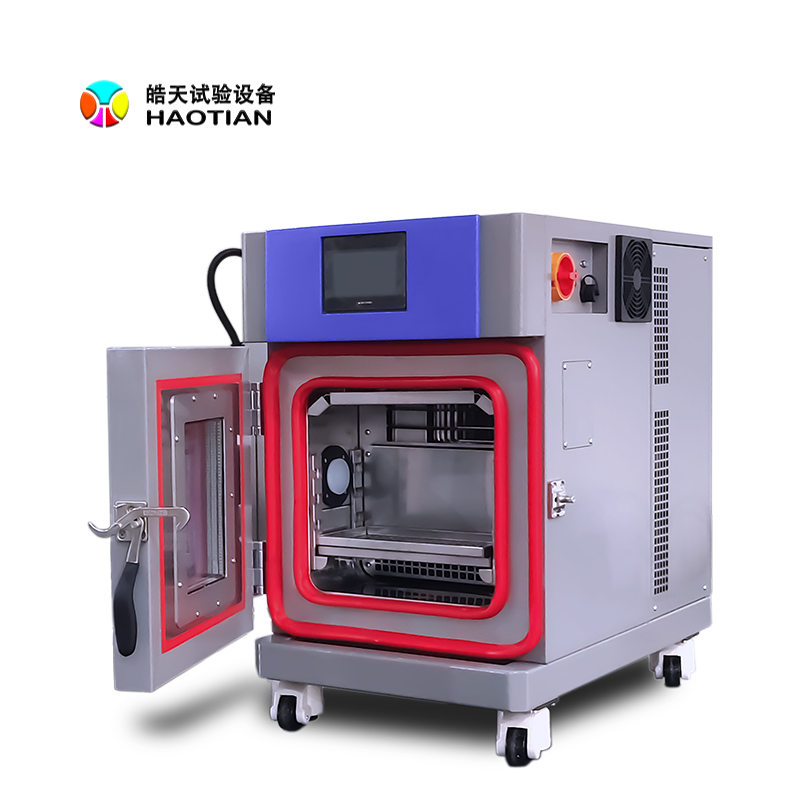

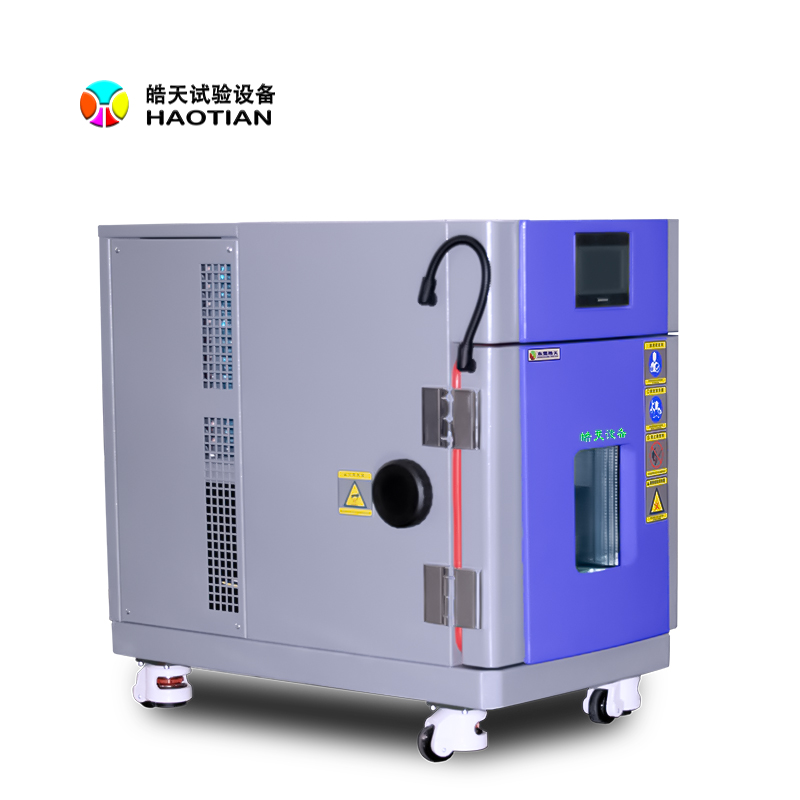

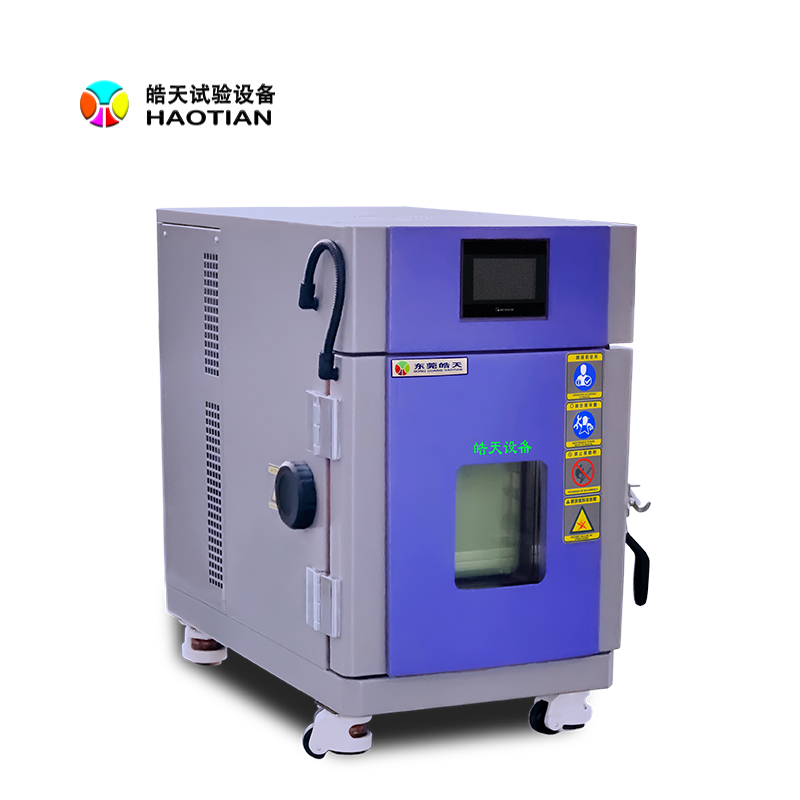

Temperature Test Chamber for LED Lighting
| FOB Price: | 6250.00 - 15000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set(s) per Quarter |
| Shipping: | FOB Shenzhen, China |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Strong Internation shipment standard wooden cartons |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: HAOTIAN
- Warranty: 2 Years
- weight: 150kg
- Model Number: SMC-13PF
- Volume: 13 litres
- Inner size(W*D*H)mm: W300xD150xH300mm
- Exterior size(W*D*H)mm: W500xD790xH740mm
- Temperature: 0~150 Celsius
- Humidity: 20%~98%RH
- Temperature fluctuation: 0.5C
- Temperature deviation: +/-2.0C
- Control way: PID+SSR
- Inner material: SUS#304
- Cool rate: 1C/min
Specifications
Temperature test chamber for LED lighting
Main Advantages:
1. Small overall size, high thermal compensation, low noise, energy saving.
2. Directly display the cause of failure and the solution.
3. Intuitive curve interface with USB download function.
4. Electronic sensor, no need to hang wet gauze, high accuracy, low maintenance cost.
Technical details:
Model |
SMC-22PF |
SMC-36PF |
SMC-50PF |
SMC-63PF | |
Temperature group |
A: 0℃~+150℃, B:-20℃~+150℃, C:-40℃~+150℃, D:-70℃~+150℃. | ||||
Size |
Inner chamber size(cm) |
30x25x30(W*D*H) |
30x30x30(W*D*H) |
35x35x40(W*D*H) |
40x40x40(W*D*H) |
External min size(cm) |
51x80x112(W*D*H) |
52x90x138(W*D*H) |
57x95x138(W*D*H) |
65x95x138(W*D*H) | |
External table size(cm) |
100x83x79(W*D*H) |
100x88x89(W*D*H) |
105x93x89(W*D*H) |
110x98x89(W*D*H) | |
Performance |
Temperature range |
-40℃ ~ +150℃ | |||
Humidity range |
10%~98%RH | ||||
Indication resolution |
0.01℃, 0.1%RH | ||||
Deviation |
±1.0℃, ±2.5%RH | ||||
Heat up time |
about 30min from +20℃ to +150℃ | ||||
Cooling time |
+20℃ ~ -20℃≦30min |
+20℃ ~ -40℃≦55min |
+20℃ ~ -70℃≦75min | ||
Materials |
Structural material |
External: Anti-rust treatment cold rolled steel plate spraying; Internal: SUS#304/316 steel stainless. | |||
Insulating material |
Rigid polyurethane foam with flame retardant. | ||||
Refrigerate system |
Refrigerating method |
France Tecumseh compressor +Finned type all copper evaporator + air cooled condenser | |||
Cooling agent |
, R23. | ||||
Compressor refrigerating capacity |
5/8P |
3/4P |
1P |
1.5P | |
Controller |
Import TEMI series 7" touch screen temperature humidity instrument | ||||
Electrical apparatus element |
the France Schneider industrial control products | ||||
Electronic control |
Heating/humidifying |
Nickel complex heater/SUS#304 jacket type humidifier | |||
Circulation fan |
Macro-axis motor + Steel stainless wind rotor | ||||
Fault alarm devices |
Compressor over current, over pressure, overheating, lack water protection, heater no wind empty burn protection, humidifier lack water dry burn protection, leakage protection, over-temperature protection. | ||||
Water quality |
Pure /deionized water | ||||
Power |
AC 1Φ 220V 50/60Hz, AC 3Φ 380V 50/60Hz | ||||
Max. Current (AC 220V) |
12.5A |
13.0A |
14.0A |
14.5A | |
Others |
Specimen holder *2pcs, Leas hole silicone plug *1pcs, Toughened defogging glass *1pcs. | ||||
Customization |
Customized according to customers' requirements are available. | ||||
Our Factory:
Dongguan Haotian Testing Equipment Co., Ltd, is a national high-tech enterprise which mainly products the simulated reliability environmental testing instrument and integrates the production, marketing, research and development. There are high and low temperature test chamber, constant temperature humidity test chamber, fast change rate temperature test chamber, lithium battery cold resistant test chamber, thermal shock chamber, ultraviolet aging test chamber, xenon aging test chamber, waterproof test chamber, dust proof test chamber, walk in temperature humidity test room, salt spray tester, etc non-standard products' designs. Equipment design includes the electron, hardware, plastic, aviation, universities, research institutes and other fields. through years of development and innovation vigorously, company successively won the Chinese instrument and meter industry quality trusted brand,independent innovation brand, China science and technology pioneer enterprise honorary title, the continuous was named the national high-tech enterprises, China credit enterprise of Guangdong and the national credit enterprise demonstration enterprise, the patent for utility model and software for a patent for invention is as high as 50 items.
Certificates:
Our Service:
Before sales service, Design, after sales service
FAQ:
Q: What's the payment term?
T/T, L/C and other payment terms could be negotiated.
Q: Do you accept customization service?
Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q: Do you offer after-sales service? how can I ask for that? and how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,we can extend 2 months for our customers.If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or Skype video chat if necessary. after confirmation of the problem,we can send you new spare parts or provide on-site repair.
