Home >Products Catalog > Bi-Telecentric Lens for Support 1/2.5 Sensor C-Mount Cameras, 26mm~300mm Fov

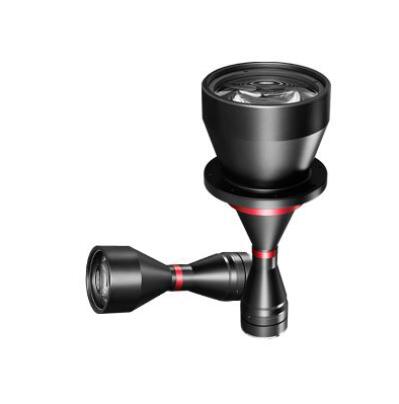

Bi-Telecentric Lens for Support 1/2.5 Sensor C-Mount Cameras, 26mm~300mm Fov

FOB Price:	1000.00 - 1500.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Shape: Aspheric
Structure: Double Convex
Usage: Optical
Material: Glass
Brand Name: huitenghaina
Model Number: HTCD125-26

Specifications

BiTelecentric Lens for Support 125ldquo Sensor CMount Cameras 26mm300mm Fov
HTCD Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspectation etc;
Optimized for 1/2.5"~1.1" C-Mount cameras;
Large FOV from 26mm upto 300mm;
Excellent resolution for high pixel cameras;
Low distortion, good telecentricity,big aperture and big depth of field for high end application;
Support from 1/2.5;

Model	Detector(Φmm)	Mag.Β(x)	FOV(Φmm)	WD
HTCD125-26	1/2.5''(7.2mm)	0.277x	26mm	73±1mm
HTCD125-36	1/2.5''(7.2mm)	0.2x	36mm	110±2mm
HTCD125-42	1/2.5''(7.2mm)	0.171x	42mm	118±3mm
HTCD125-48	1/2.5''(7.2mm)	0.15x	48mm	128±3mm
HTCD125-56	1/2.5''(7.2mm)	0.129x	56mm	138±3mm
HTCD125-64H-AL	1/2.5''(7.2mm)	0.113x	64mm	158±3mm
HTCD125-72-AL	1/2.5''(7.2mm)	0.1x	72mm	178±3mm
HTCD125-80H-AL	1/2.5''(7.2mm)	0.09x	80mm	228±4mm
HTCD125-90-AL	1/2.5''(7.2mm)	0.08x	90mm	208±3mm
HTCD125-100-AL	1/2.5''(7.2mm)	0.072x	100mm	258±4mm
HTCD125-110-AL	1/2.5''(7.2mm)	0.066x	110mm	263±4mm
HTCD125-120-AL	1/2.5''(7.2mm)	0.06x	120mm	280±5mm
HTCD125-136-AL	1/2.5''(7.2mm)	0.053x	136mm	288±5mm
HTCD125-150-AL	1/2.5''(7.2mm)	0.048x	150mm	300±5mm
HTCD125-170-AL	1/2.5''(7.2mm)	0.042x	170mm	318±5mm
HTCD125-190-AL	1/2.5''(7.2mm)	0.038x	190mm	330±5mm
HTCD125-216-AL	1/2.5''(7.2mm)	0.033x	216mm	372±5mm
HTCD125-240H-AL	1/2.5''(7.2mm)	0.03x	240mm	410±6mm
HTCD125-268-AL	1/2.5''(7.2mm)	0.027x	268mm	438±6mm
HTCD125-300-AL	1/2.5''(7.2mm)	0.024x	300mm	465±6mm
