Home >Products Catalog > Bi-Telecentric Lens for Support 2/3 Sensor C-Mount Cameras, 26mm~300mm Fov

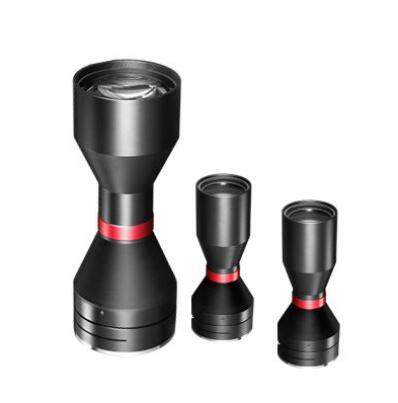

Bi-Telecentric Lens for Support 2/3 Sensor C-Mount Cameras, 26mm~300mm Fov

FOB Price:	1000.00 - 1500.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Shape: Aspheric
Structure: Double Convex
Usage: Optical
Material: Glass
Brand Name: huitenghaina
Model Number: HTCD230-26

Specifications

BiTelecentric Lens for Support 23ldquo Sensor CMount Cameras 26mm300mm Fov
HTCD Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspectation etc;
Optimized for 1/2.5"~1.1" C-Mount cameras;
Large FOV from 26mm upto 300mm;
Excellent resolution for high pixel cameras;
Low distortion, good telecentricity,big aperture and big depth of field for high end application;
Support from 2/3;

Model	Detector(Φmm)	Mag.Β(x)	FOV(Φmm)	WD
HTCD230-26	2/3''(11.4mm)	0.438x	26mm	73±1mm
HTCD230-36	2/3''(11.4mm)	0.317x	36mm	110±2mm
HTCD230-42	2/3''(11.4mm)	0.271x	42mm	118±3mm
HTCD230-48	2/3''(11.4mm)	0.238x	48mm	128±3mm
HTCD230-56-AL	2/3''(11.4mm)	0.204x	56mm	138±3mm
HTCD230-64H-AL	2/3''(11.4mm)	0.178x	64mm	158±3mm
HTCD230-72-AL	2/3''(11.4mm)	0.158x	72mm	178±3mm
HTCD230-80H-AL	2/3''(11.4mm)	0.142x	80mm	228±4mm
HTCD230-90-AL	2/3''(11.4mm)	0.127x	90mm	208±3mm
HTCD230-100-AL	2/3''(11.4mm)	0.114x	100mm	258±4mm
HTCD230-110-AL	2/3''(11.4mm)	0.104x	110mm	263±4mm
HTCD230-120-AL	2/3''(11.4mm)	0.095x	120mm	280±5mm
HTCD230-136-AL	2/3''(11.4mm)	0.084x	136mm	288±5mm
HTCD230-150-AL	2/3''(11.4mm)	0.076x	150mm	300±5mm
HTCD230-170-AL	2/3''(11.4mm)	0.067x	170mm	318±5mm
HTCD230-190-AL	2/3''(11.4mm)	0.060x	190mm	330±5mm
HTCD230-216-AL	2/3''(11.4mm)	0.053x	216mm	372±5mm
HTCD230-240H-AL	2/3''(11.4mm)	0.048x	240mm	410±6mm
HTCD230-268-AL	2/3''(11.4mm)	0.043x	268mm	438±6mm
HTCD230-300-AL	2/3''(11.4mm)	0.038x	300mm	465±6mm
