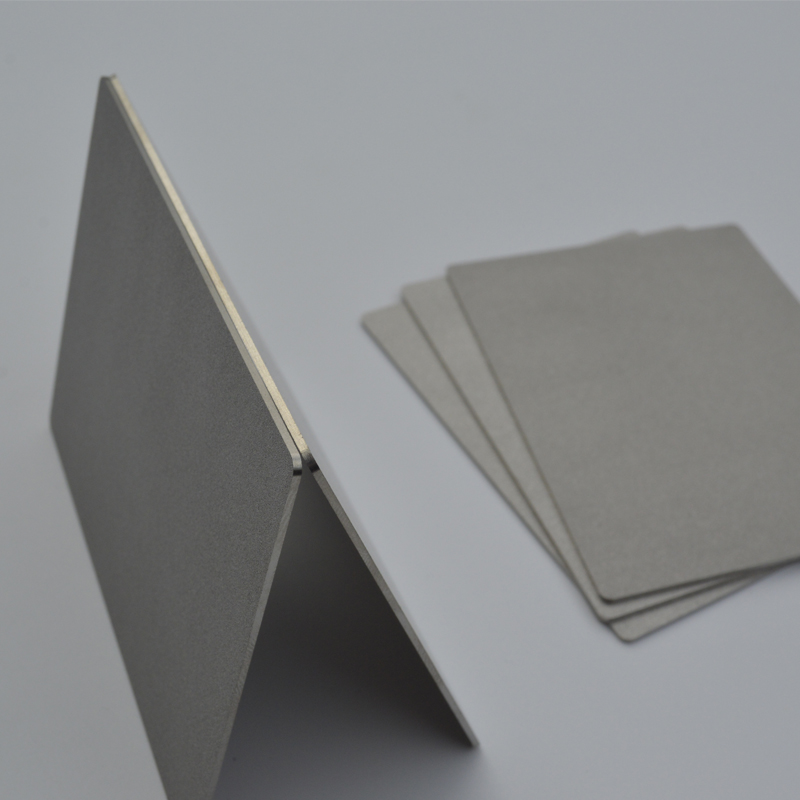

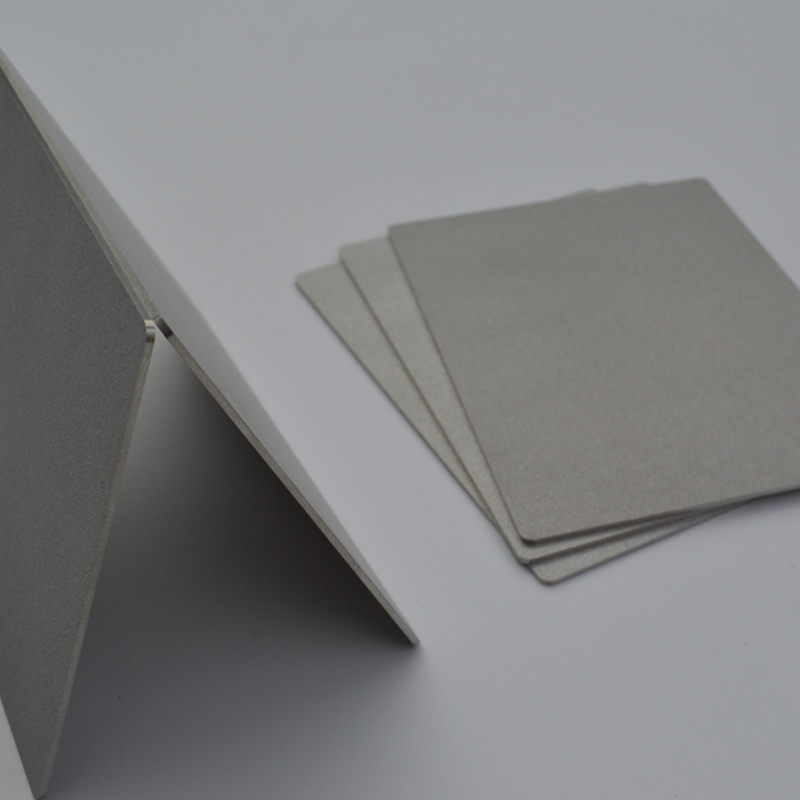

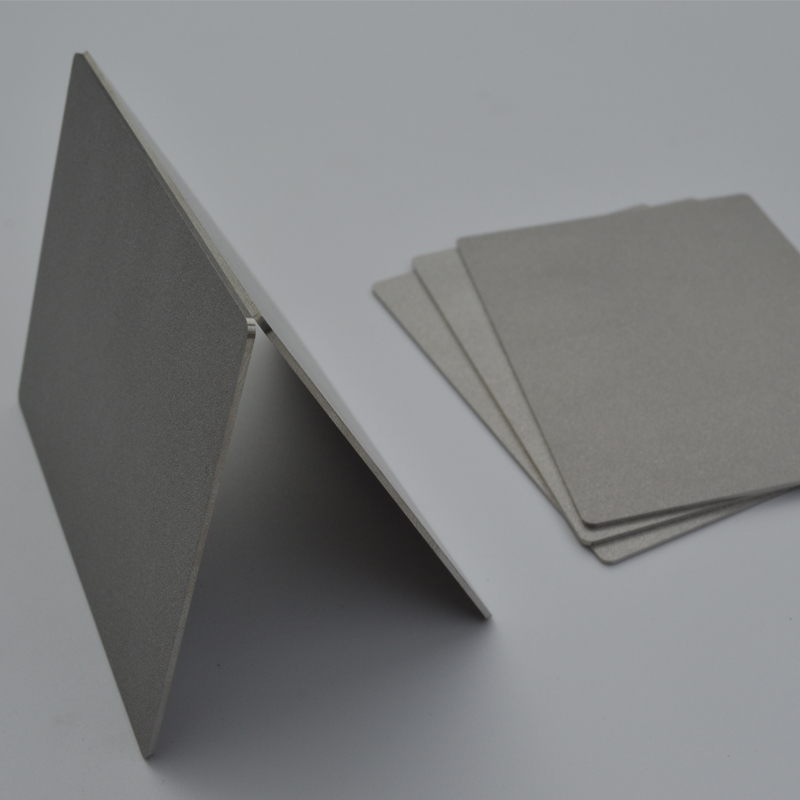

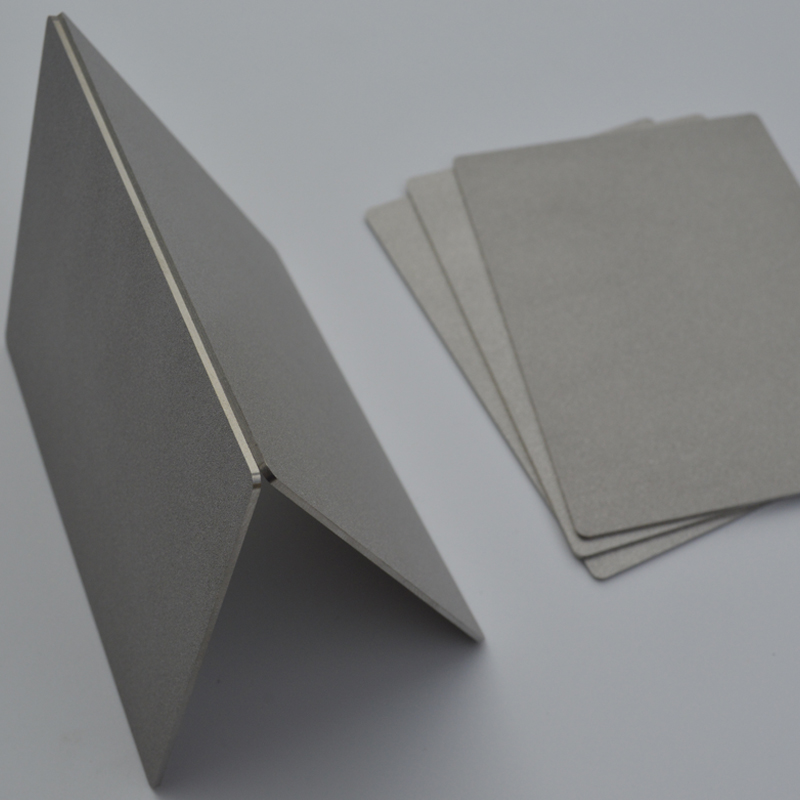

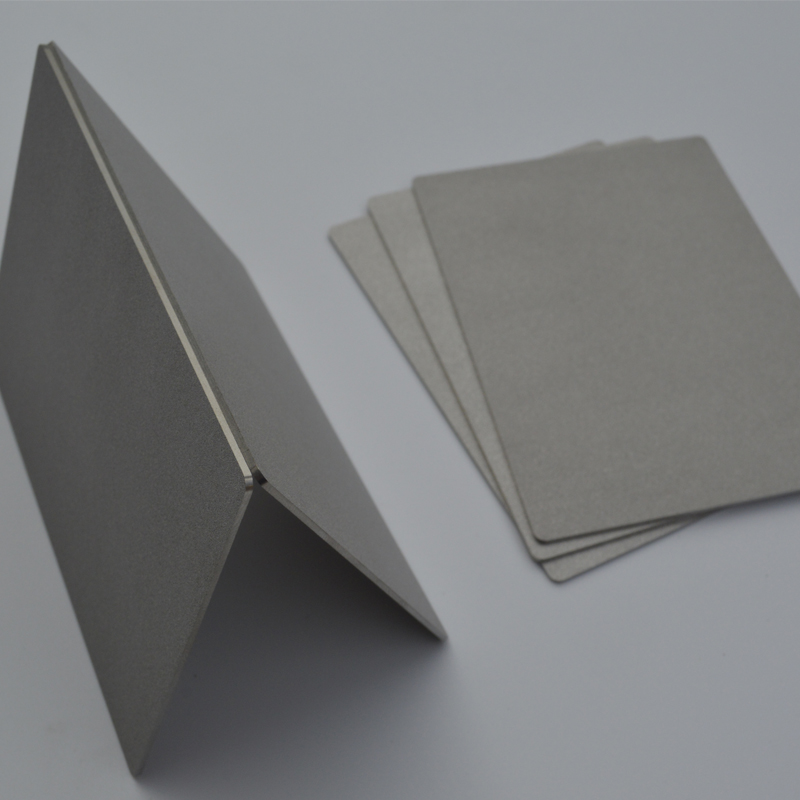

Pure Titanium 10um Powder Sintered Filter Plate

FOB Price:	12.00 - 15.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	Freight Express
Payment Terms:	T/T, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	Packing in wooden box or carton after vacuum bag

Quick Details

Width: 100mm
Material: Titanium
Type: Filter Plate
Usage: Air Filter
Brand Name: Along
Length: 100mm
Thickness: 1mm
Filter Rating: 10um
Technical: Sintering
Cutting: Machining
Filter Rating Range: 5-100um
MOQ: 10pcs

Specifications

Pure Titanium 10um Powder Sintered Filter Plate

Available Size Range of Metal Sintered Products
Product	Max Length(Diameter)	Width(Diameter)	Thickness Range	Customized
Sintered Porous Plate	800mm	300mm	0.5-2.2mm	Yes
Sintered Porous Disc	300mm	300mm	0.5-2.2mm	Yes

Metal powder sintered porous material is made of metal or alloy powder by forming and sintering at high temperature and with a rigid structure.

Production Steps: Filtrate-- Isostatic compaction--Vacuum sintering

Feature: the material contains a large number of connected or semi-connected pores, the pore structure is composed of regular and irregular powder particles, the size and distribution of pores and the size of porosity can be adjusted according to the powder particle size combination and preparation process to meet the actual needs of customers.

Advantage: good permeability,Pore size and porosity are controllable,Shape stability,High filtration accuracy,Wear proof,Good mechanical properties,Good thermal conductivity, heat resistance, heat dissipation performance, back flush and reuse.

Titanium sintering porous materials

Titanium sintered porous material is a kind of porous material with high quality spherical and high purity titanium powder as raw material and It is made rigid by forming and sintering at high temperature.

Features of titanium sintered porous materials

Titanium sintered porous materials have the characteristics of low density, high specific strength, good corrosion resistance and good biocompatibility.

Application of titanium sintered porous materials

1) Decarburization filtration of pharmaceutical liquids.

2) Electrolytic gas industry precision filtration, gas distribution.

3) the medical industry makes biological implants.

4) Water treatment industry odor sterilization filtration and ozone aeration.

5) Clarification and filtration in food and beverage processing.

6) Prefiltration of reverse osmosis system for electronics industry.

7) Terminal filtration of petroleum products in petrochemical industry and filtration of carbonic alkali liquid in chemical industry.

8) High pressure air filtration in aerospace industry.

9) Filtration and recovery of precious metal catalyst in fine chemical industry.

10) the electrode matrix of a fuel cell.

11) Catalyst carrier in gas and liquid catalytic reactions.
