Dongying Oilman Machinery Equipment Co., Ltd.
China Manufacturer with main products: Drilling Rig & Components, Mud Pump and Spare Parts, Top Drive and Spare Parts, Wellhead & Pressure Control Equipment, Solid Control & Mud... |
API 6A 2" 3" Fig1502 FMC SPM 15000 Psi Forged Plug Valves For Oilfield
| FOB Price: | 300.00 - 500.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | FOB Tianjin Port |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Export wooden case |
Quick Details
- Brand Name: OilMan
- Temperature of Media: Normal Temperature
- Material: Alloy
- Pressure: High Pressure
- Standard or Nonstandard: Standard
- Model Number: FMC SPM Type
- Port Size: 1" - 3"
- Media: Oil
- Power: Manual
- Structure: Plug
- Product Name: API 6A 2" 3" Fig1502 FMC SPM 15000 psi Forged Plug Valves for Oilfield
- Size: 1" - 3"
- Working pressure: 42 Mpa ~ 140 Mpa
- Working Temperature: -29 degree~121 degree(Class PU)
- Material Class: AA,BB,CC,DD,EE,FF,HH
Specifications
API 6A 2" 3" Fig1502 FMC SPM 15000 psi Forged Plug Valves for Oilfield
Product Description:
High pressure plug valve produced by our company is designed for a wide range of standard and sour gas drilling production and well servicing application with maximum pressure up to 15000psi. this kind valve features a compact structure, low torque,quick open/and close an easy operation. They are mostly applied on various oilfield manifold.
-Main parts include body, bonnet,plug,segments and hand wheel.
-Cylinder-shaped metal to metal sealing surface between plug and segments ensure reliable working performance.
-Regular end connection is fig 1502M* F unions which can be customized per request.
-Valve shall successfully complete hydro test prior to delivery.
Technical Parameter
| Product Name | High pressure plug valve |
| Working Pressure | 42MPA~140MPA |
| Nominal Bore | 1-3 Inch |
| Working Medium | Oil,natural gas,mud and gas containing H2S,CO2 |
| Working Temperature | -29°C~121°C(Class PU) |
| Material Class | AA,BB,CC,DD,EE,FF,HH |
| Specification level | PSL1-4 |
| S/N | Model | Description | Rated | WP End connection |
| 1 | SF42-1" | 1" plug valve | 6000psi | 2" male (LP) |
| 2 | SF70-1" | 1" plug valve | 10000psi | 2" male (LP) |
| 3 | SF105-1" | 1" plug valve | 15000psi | 2" male (LP) |
| 4 | SF105-1" | 1" plug valve | 15000psi | 2" union (F*M) |
| 5 | SF42-2" | 2" plug valve | 6000psi | 2" female (LP) |
| 6 | SF42-2" | 2" plug valve | 6000psi | 2" union (F*M) |
| 7 | SF70-2" | 2" plug valve | 10000psi | 2" female (LP) |
| 8 | SF105-2" | 2" plug valve | 15000psi | 2" union (F*M) |
| 9 | SF42-3" | 3" plug valve | 6000psi | 3" female (LP) |
| 10 | SF70-3 | 3" plug valve | 10000psi | 3" female (LP) |
| 11 | SF105-3 | 3" plug valve | 15000psi | 3" union (F*M) |

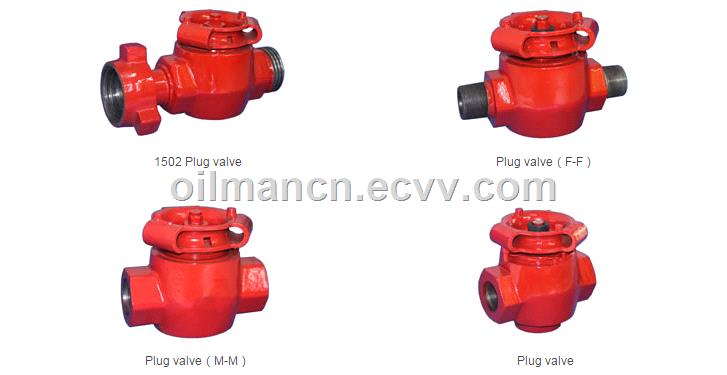

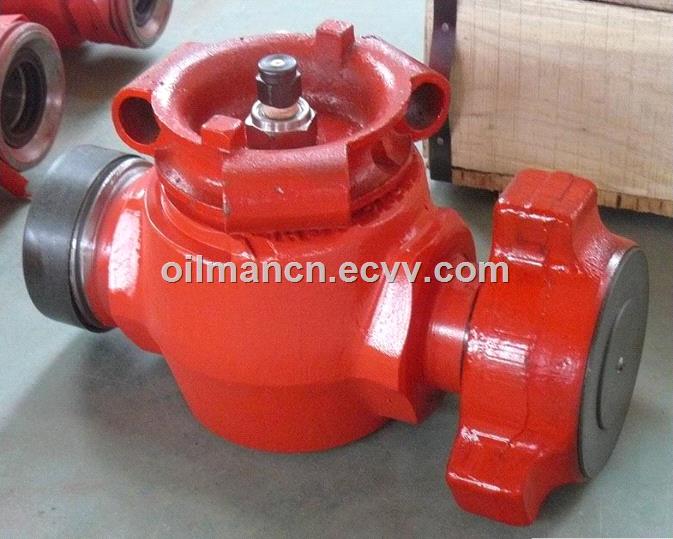

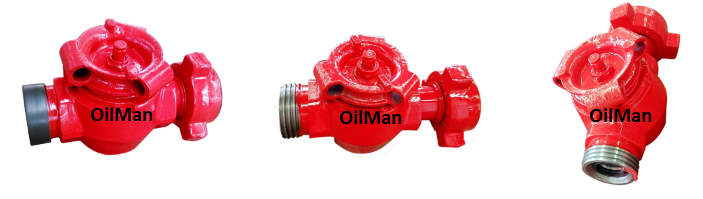

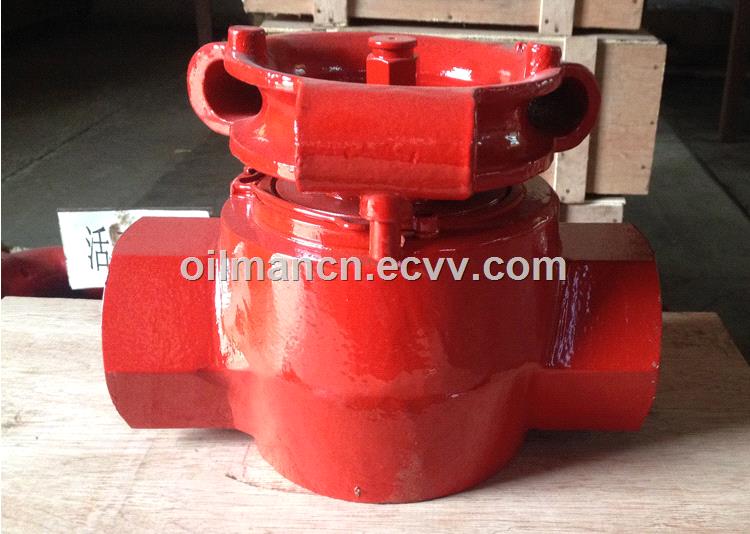

Product Show
Packaging & Shipping

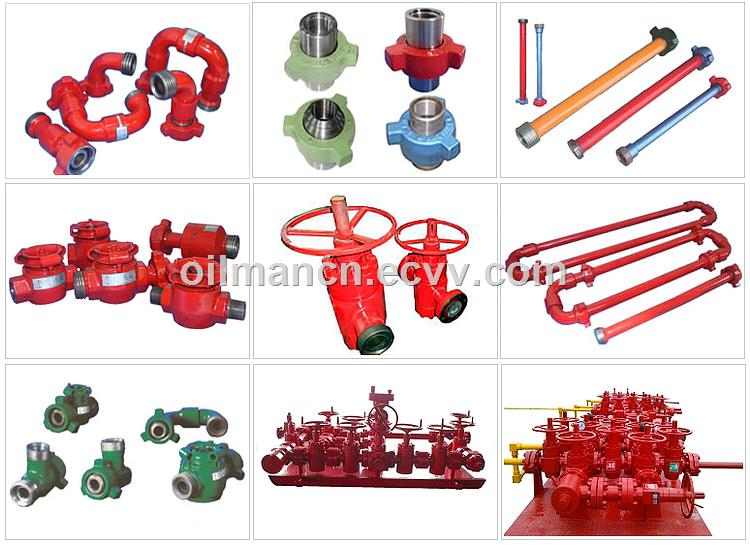

Related Products:
Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
