Hangzhou Leisu Cleaning Equipment Co., Ltd.
China Manufacturer with main products: Leisuwash 360, Leisuwash DG, Leisuwash SG, Leisuwash Touch Free Car Wash Machine, Touchless Car Wash Machine, Car Wash Machine, Touch Free... |
Home
>Products Catalog > Leisuwash 360 touch free car wash machine > Leisuwash 360 Touch Free Car Wash Machine
Leisuwash 360 Touch Free Car Wash Machine
| FOB Price: | 25500.00 - 28500.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | Within 15 days, FOB NINGBO or CIF |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Polywood case for main machine: 3660*1410*1255mm Polywood case for water pump system: 1350*890*640mm Polywood case for chemical mixing system: 920*545*610mm Rails: 2pcs ( 7.5 meters ) Frames: 13pcs Shipping weight: 2600kgs, Shipping volume: 11CBM. |
Quick Details
- Type: Car Washer
- Material: stainless steel
- Size: 3500mm*1200mm*900mm
- Brand Name: Leisuwash
- Type: car washer
- weight: 2800KGS
- Model Number: Leisuwash 360 glow
- Min Mounting Dimensions ( length*width*height ): 7600mm*3850mm*3350mm
- Rail length: 7500mm
- Max car wash size ( length*width*height ): 5900mm*2900mm*2050mm
- Power Requirement: 380V/22Kw, 50Hz/60Hz
- Air switch: 80A air switch
- Longitudinal motor power: 0.37Kw stepless frequency control
- Central processor: Industrial PLC embedded central processor + dual-core system
- Drive System: Servo drive system
- Sensor System: Ultrasound+ Absolute value of the digital encoder
- Detection system: Smart three-dimensional monitoring system
Specifications
Overview
the newest LeisuWash inbay automatic car wash raises the standard for touchless car wash equipment. with Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360? Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to " think for itself", increasing up-time and optimizing the wash process.
Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.
| Machine size | 3500mm*1200mm*900mm | Water pump size | 1250mm*800mm*600mm |
| Chemical mixing system size | 800mm*450mm*1400mm | Track rail length | 6800mm~7500mm |
| Total weight / Volume | 2.6 Ton, 11CBM | Installation size(L*W*H) | 7500mm*3850~4200mm*≥3350m |
| Power Requirements | 380V/22Kw, 50Hz/60Hz | Total power | 45KW |
| Water pump motor power | 15kw/18.5Kw | Fan motor power | 20.5Kw / full pressure 11000Pa / Air volume 23000 cubic meters / h |
| Central processor | Industrial PLC embedded central Processor + dual-core system |
Washing speed | 250S totally |
| Water consumption | 200-300L/car | Power Consumption | 1.2-1.5degeree/car |
| Tire cleaner | Include | Anti-collision function | Include |
| Soft water with crystal wax coat | Include | Magic color polish shampoo | Include |
| LED system | Include | Air dryer system | Include |
over glow Hi-Gloss Application System
Soft water with crystal wax coat
Automatic Liquid proportioning system

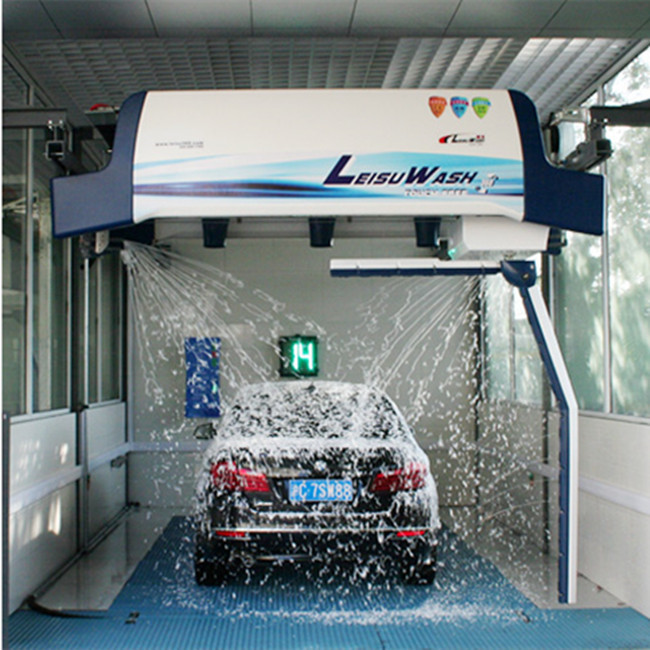

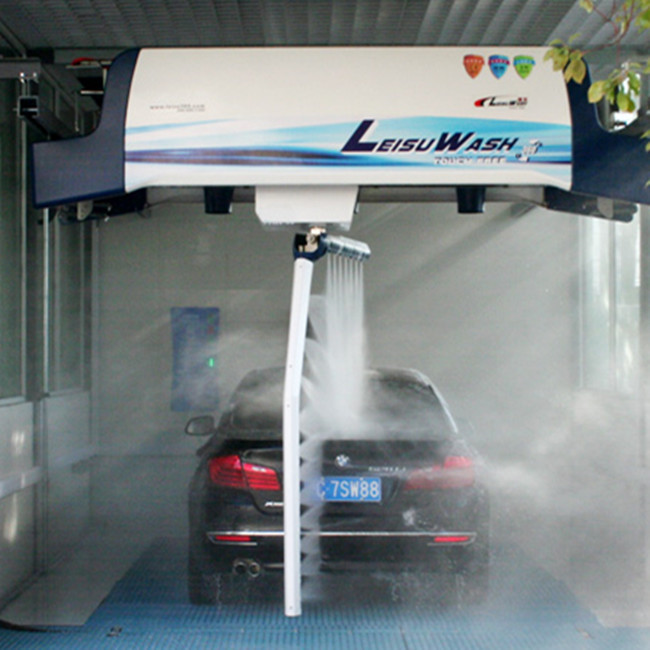

Smart 360 rotate arm, Flush car body 360° with high pressure water spray

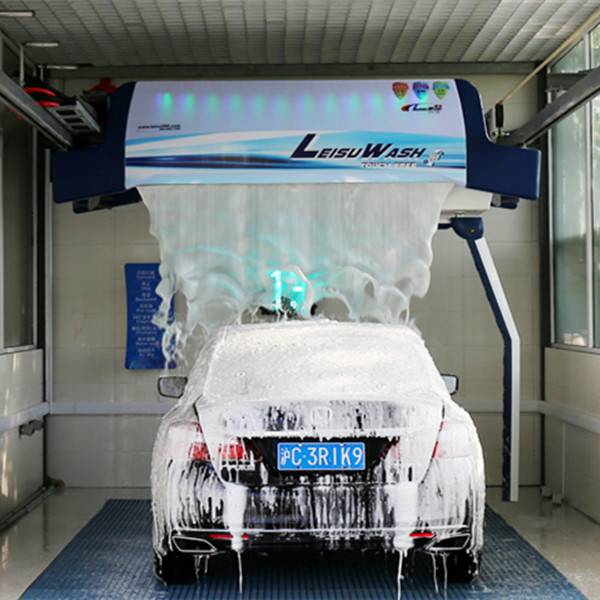

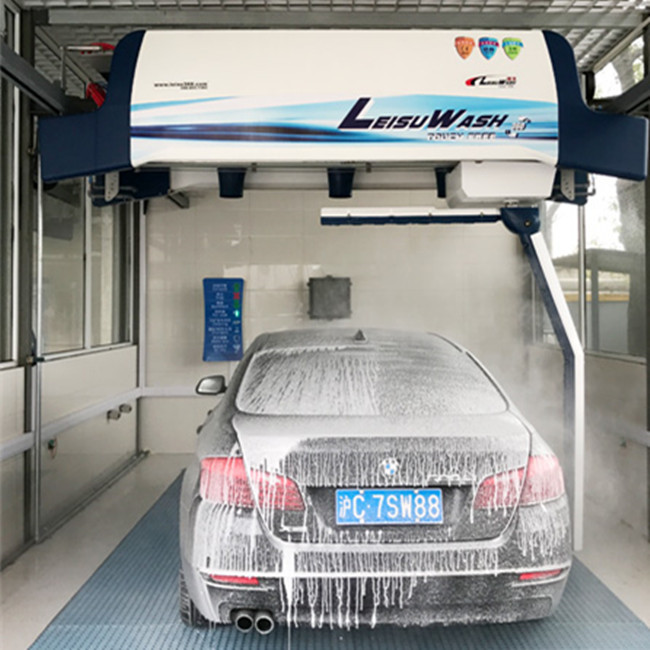

Shampoo magic color foam spray,washing and polishing at the same time:
User-Friendly Design
* LED with voice guidance
* Automatic clean rearview mirror
* Faulty record with data report
* Automatic standby service
* Multi control mode ( could operate wash system through touch panel, magnetic card, payment station button, remote controller )
Leisuwash Leibao360 installation 3D drawing:
1. the service and maintenance of Leisuwash system should be done by specialist technician, Cut off power supply when machine under service. Factory setting management code is 8888, it has permissions to modify the parameters, view vehicle wash quantities and change the password. Default password is 0 for operating the wash system, it can be changed to others like 12345, then the operator need enter into management center firstly, type in password 12345 then can start the operation.
2. Keep the main control box and touch screen in drying circumstance, it's not allowed to touch these devices with wet hands, keep chemical mixing box with water pump box at drying circumstance as well. Before turn on the power supply, make sure the main control box voltage display stability and consistency.
3. Service and maintain wash system regularly, regularly cleaning machine surface, remove dirt on sensors, remove water in drive control box. Cleaning water tank when it becoming dirty, especially inlet filter of water pipe. It's strictly prohibited to start rinse when water tank lack of water, use chassis to exhaust air firstly, never exhaust air with " L " arm rinse.
4. Exhaust water in pipes and tank during car wash equipment idle time, and when temperature under zero degree, must close inlet valve of chemical mixing system before shutdown the machine, use one key drain function to exhaust liquid in machine pipes, and open the discharge valve, exhaust water to prevent freezing. Don't start machine once freezing, otherwise will break the water pump and motor.
5. Add wash chemicals in-time, it will can not spray out the chemicals if air go inside the hose, prevent impurities fall into washing liquid bucket and water tank, otherwise may cause stuck inside the chemical mixing box.
6. Air compressor need to install oil-water separator, exhaust water in compressor every 15 days, the air supply for wash system can not contain a lot of water and oil, otherwise will cause lack of air during chemical spraying, It is strictly forbidden to directly use heavy alkaline water (PH value> 8) or high salty water.
7. Inspect water pump and pump motor belt every 30 days, tension belt if belt fluctuate too large, ensure parallelism during belt tensioning. Cleaning water pump filter regularly. Replace oil in water pump regularly( every 5000 cars ), or when the oil is dirty. Oil volume more than half but not full, Taiwan Wuli WH-10120 pump use No 30, 40 or 68 engine oil( 2.36L ), German Pinfl pump use 220 Shell gear oil ( 3.3 L )
8. Check synchronous belts every 30 days, immediately tighten it if happened deviation and loose phenomenon, otherwise machine will jump with grinding noise.
9. Check terminals inside Electrical cabinet every 30 days, especially terminals for water pump and air fan power line, and terminals in drive control box ( because it walking every day ), tighten it if any loose. this can ensure a stable performance of electricity system.
10. Inspect frame screws and rail fixing screws every 90 days, Check the walking wheels every half year.
