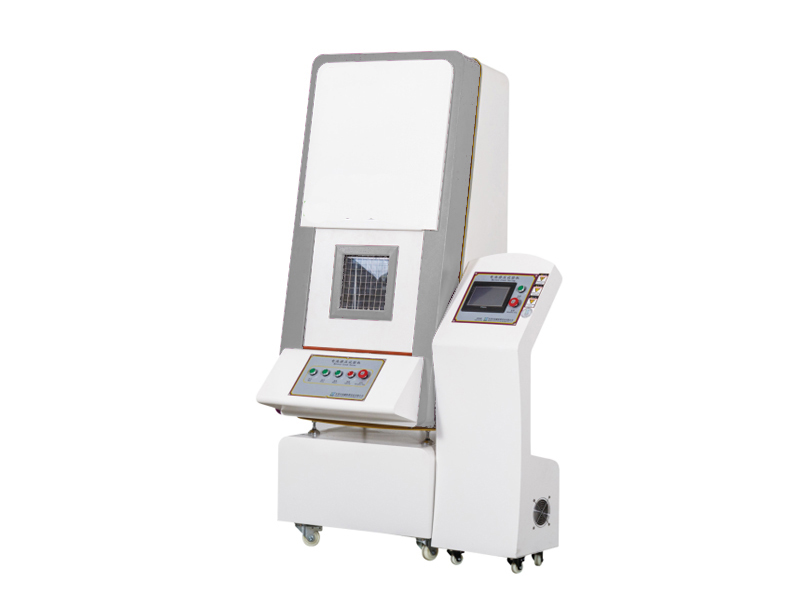

Lithium Ion Battery Cell Crush Testing Equipment for UN38.3 IEC 62133

Supply Ability:	100 Set(s) per Month
Shipping:	loaded in shenzhen or guangzhou port
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Temp&humi vibration test chamber

Price:4,532.00-7,524.00 USD/Set

Min. Order:1 Set
CE certified sand dust test chamber

Price:4,000.00-12,000.00 USD/Set

Min. Order:1 Set
computer screen display universal testing machi...

Price:

Min. Order:
Single Phase Meter Test Bench - Split Type

Price:

Min. Order:1 Set
Tel Line Tester

Price:

Min. Order:
Digital LCD PC Computer PC Power Supply Tester ...

Price:12.00-17.00 USD/Piece

Min. Order:50 Pieces
Electronic Tensile Tester

Price:

Min. Order:1 Piece

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Individually wrapped by wooden case

Quick Details

Usage: Battery testing equipment
Power: Electronic
Brand Name: Amade-tech
Warranty: 12 months
weight: 150kg
Model Number: AT-L5001

Specifications

Features
1. Made from high quality materials.
2. Servo motor is employed to improve the control precision.
3. Transparent window is available for better observation during test.
4. LED display is available for better experience of interaction between machine and operators.
5. Multiple test modes are available.
6. Test results can be exported and stored.
7. Castors at the bottom for better movement.

Test Standards: IEC62133-2-2017, UN38.3, GB 31241-2014, UL 1642

Main Specifications

Model	at-L5001
Force applied range	0~20KN
Crush speed	1.5cm/s, the speed range is 0.01~900mm/min adjustable (0.01~1.5cm/second)
Drive method	Servo motor and driver
Crush travel	0~300mm
Test Space	More than 300X300X300mm (WxDxH)
Force accuracy	+/- 0.5%
Crush retention time	0~9999 Sec adjustable
Control mode	Professional test software control on the computer
Battery crush test conditions	during the test, as long as any one of the following conditions is met (whichever comes sooner), the equipment relieve pressure and complete the crush test 1. Applied Crushing force up to (13±0.78)kN 2. the voltage of battery drops by at least 1/3 or 100mV 3. the cell is deformed by 1/10 or 50% of its original thickness.
Test software feature	1. with 1 channel of voltage acquisition Voltage acquisition resolution: 5mV Voltage acquisition range: 0~10V 2. the test software with real time monitoring of battery voltage changes, the force applied to battery and deformation of battery 3. Battery temperature acquisition is optional with exact cost
Test chamber structure	the test chamber is separated from the control cabinet the test chamber door can slide up and down and with door lock and the test area has 2 wire holes, a lighting lamp, an exhaust fan, and a pressure relief port. Crush head size: 15cm diameter crush plate
