Shanghai Bontek Optoelectronic Technology Development Co., Ltd.
China Manufacturer with main products: Lithium Niobate Wafer, Lithium Tantalate Wafer, Quartz Crystal Wafer, Quartz Crystal Blank, Fused Silica/Quartz Substrate, Fluoride Optical... |

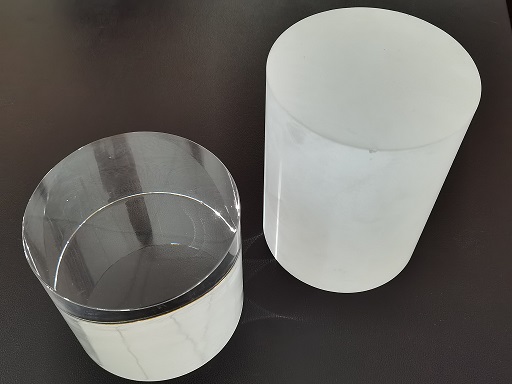

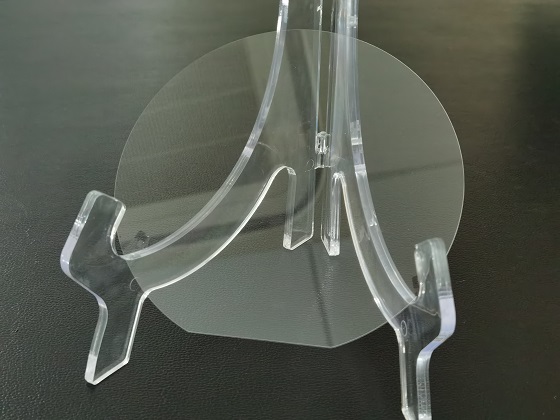

Fused Silica / Fused Quartz / Borosilica Substrate
| FOB Price: | 1.00 - 500.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Oceania, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: BonTek
- Product Series: GL
- Semiconductor Type: Fused Silica/Quartz
- Manufacturing Technology: Wafer
- Diameter: 25.4 - 325mm
Specifications
Material Brand
Schott |
Borofloat33 / BK7 / B270 / D263 etc. | |
Corning |
Eagle XG, Fused Silica 7980 / 7978 / 7979 etc. | |
Feilihua |
Fused Silica JGS1 / JGS2 & Single quartz etc. | |
O'hara |
SK-1300 | |
GM |
H-K9L / Soda Lime etc. |
Processing Capacity
SpecIfication |
unit |
3" |
4" |
5" |
6" |
8" |
12" |
Diameter (or Square) |
mm |
76.2 |
100 |
125 |
150 |
200 |
300 |
Tol(±) |
mm |
<0.1~0.25 mm | |||||
Thinnest Thickness |
mm |
>0.10 |
>0.18 |
>0.30 |
>0.30 |
>0.30 |
>0.50 |
Primary Flat |
mm |
22 |
32.5 |
42.5 |
57.5/notch |
notch |
notch |
LTV (5mmx5mm) |
m |
<2 |
<2 |
<2 |
<2 |
<2 |
<10 |
TTV |
m |
<8 |
<10 |
<15 |
<20 |
<30 |
<30 |
Bow |
m |
±20 |
±25 |
±40 |
±40 |
±60 |
±60 |
Warp |
m |
<30 |
<40 |
<50 |
<50 |
<60 |
<60 |
PLTV(<0.5um) |
% |
≥95%(5mm*5mm) | |||||
Transmittance |
UV, Optical, IR or Custom option | ||||||
Edge Rounding |
mm |
Compliant with SEMI M1.2 Standard/refer to IEC62276 | |||||
Surface Type |
Single Side Polished /Double Sides Polished | ||||||
Polished side Ra |
nm |
<1.0nm or specific per requested | |||||
Back Side Criteria |
m |
General is 0.2-0.5m or as customized | |||||
Appearance |
Contamination |
None | |||||
Particles >0.3m |
<=30 | ||||||
Saw Marks, striations |
None | ||||||
Scratch |
None | ||||||
Cracks, crowsfeel saw marks, stains |
None | ||||||
