>Products Catalog > Constant Voltage LED Driver > 100W 24V LED Driver Dimming Function Metal Waterproof

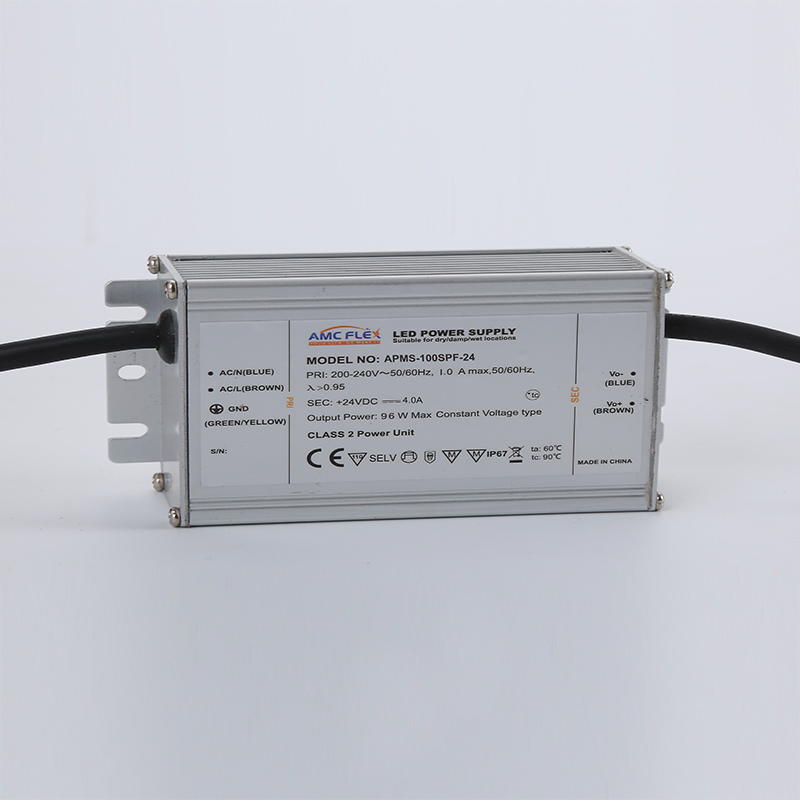

100W 24V LED Driver Dimming Function Metal Waterproof
| FOB Price: | 13.00 - 15.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece(s) per Month |
| Shipping: | shipping by sea |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 0.65KG/PC, 350x310x260mm, 20pcs /14.5Kg / 0.02CBM /CTN |
Quick Details
- Output Voltage: 24V
- Input Voltage: 220V
- Output Type: Single
- Output Power: 51 - 100W
- Brand Name: AMCFLEX
- Output Current: 4A
- Output Frequency: 47-63
- Model Number: APMS-100SPF-24
- PF: >0.95
- THD: <15%
- Output voltage: 24V/27V/36V/48V/54V
- warranty: 5 years
Specifications
Model:APMS-100SPF-24
Technical Specs:
1.Output
Parameters
Rated Output voltage: 24VDC
Rated Output Current:4.0A
Rated Output Power: 96W Max
Efficiency>91%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.0A
Inrush Current<70A
Power Factor>0.95
THD<15%
3. Protection
Overload
Short Circuit
over voltage
over Temperature
4. Environment
Operating Temperature range:-40 to +80℃
Storage Temperature range:-45 to +80 ℃
Humidity: 1095%
Waterproof Level:IP675. Safety Standards
UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,
GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P:3KV
EMI,EMS
EN55015(CISPR15), GB17743, EN61000-3-2, Class C, EN61000-4-2,
8KV air; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,
EN61000-4-5, 4KV/Line-Line 6KV/Line-Earth, EN61000-4-6
6. Others
MTBF>200Khours
Dimension:140(L)*63 (W)*37(H)mm
Model NO |
Input Voltage |
Output Voltage |
Output current |
Output Power |
Efficiency |
Dimension/mm |
APMS-100SPF-24 |
200-277Vac |
24V |
0-8.0A |
0-96W |
88% |
140x63x40 |
APMS-100SFP-36 |
200-277Vac |
36V |
0-2.77A |
0-100W |
89% |
140x63x40 |
APMS-100SPF-48 |
200-277Vac |
48V |
0-2.08A |
0-100W |
89% |
140x63x40 |
APMS-100SPF-54 |
200-277Vac |
54V |
0-1.85A |
0-100W |
90% |
140x63x40 |
