| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Export wooden case |
Quick Details
- Brand Name: OilMan
- Temperature of Media: Medium Temperature
- Material: Alloy
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: Slab or expanding gate valve
- Port Size: 1 13/16"~7 1/16"
- Media: Oil
- Power: Manual
- Structure: Gate
- Product Name: API 6A Wellhead Equipment 2000-15000psi Mud Expanding Gate valve For Kill Manifold Choke Manifold
- Size: 1 13/16"~7 1/16"
- Working Pressure: 2000psi ~ 15000psi
- Working Temperature: -46 degree -121 degree(Class LU)
- Material Grade: AA, BB, CC, DD, EE, FF, HH
- Specification Grade: PSL 1- PSL4
- Warranty: One year
Specifications
Description
the Mud Gate Valve, with superior design features precision workmanship and a proven principle are engineered to meet the harsh drilling requirements in today's oilfield.
the Valve standard trim includes 316SS Gates 316SS Stems and Buna N seats, optional trims are available which include Ni Plated Carbon Steel, Monel and Aluminum Bronze gates. Seats are offered in Viton and Hypalon and optional 303SS Stem is available.
All the Valves conform to API flange dimensions in all pressure class ratings. the valves have rising stems that are driven by a double threaded hub for quick opening and closing with minimum turning effort. the permanently lubricated stems and stem screws are fully sealed assembly consisting of homogenous and fabric backed rings for high and low pressure sealing.
Featuresthe design conforms to the API Spec 6 a standard and API Q1.
1.Sealing for Body and cover is metal to metal seal, improve the sealing performance.
2.STem and cover designed with backseat sealing structure is easy to take pressure change
Valve stem packing.
3.the body is made of high quality alloy steel forgings, no perforation design, safe and reliable.
4.Sealing surface spray weld hard alloy, with corrosion resistance, resistance to erosion and wear resistance performance.
5.Body pad ring groove can according to user requirements overlaying austenitic stainless steel,improve the corrosion resistant ability; to enhance its service life.
6.Use spring preload load in the disc and seat, completely realize two-way seal.
Set to open and close just device, shows that the valve open and close condition, operating torque low.
| Product name | Mud Gate Valve |
| Working pressure | 2000-15000PSI |
| Nominal bore | 1 13/16"7 1/16" (46mm180mm) |
| Working medium | Oil,natural gas,mud and gas containing H2S,CO2 |
| Working temperature | -46℃121℃ |
| Specification level | PSL 1- PSL4 |
| Performance requirement | PR 1-2 |
| Material class | AA,BB,CC,DD,EE,FF,HH |
| Manufacture standard | API Spec 6A |

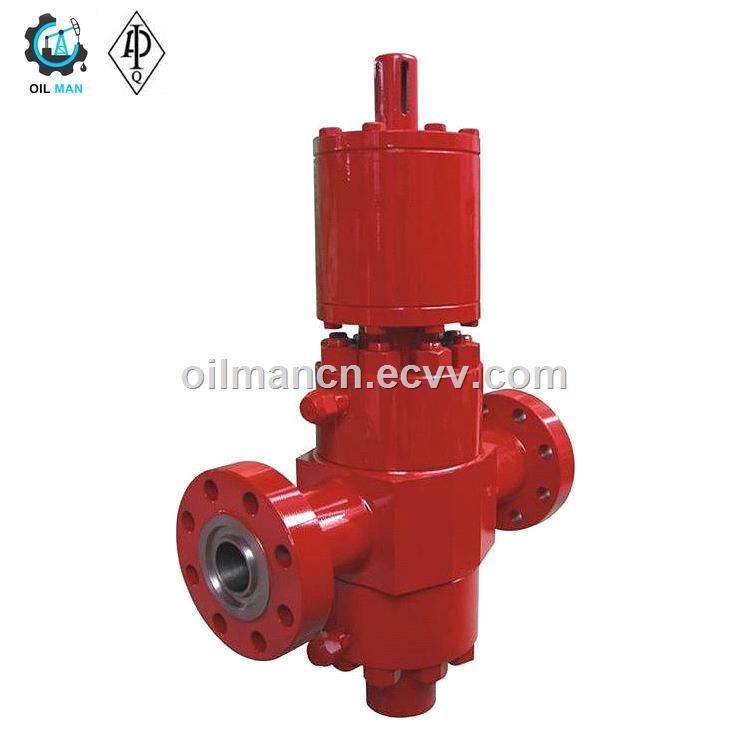

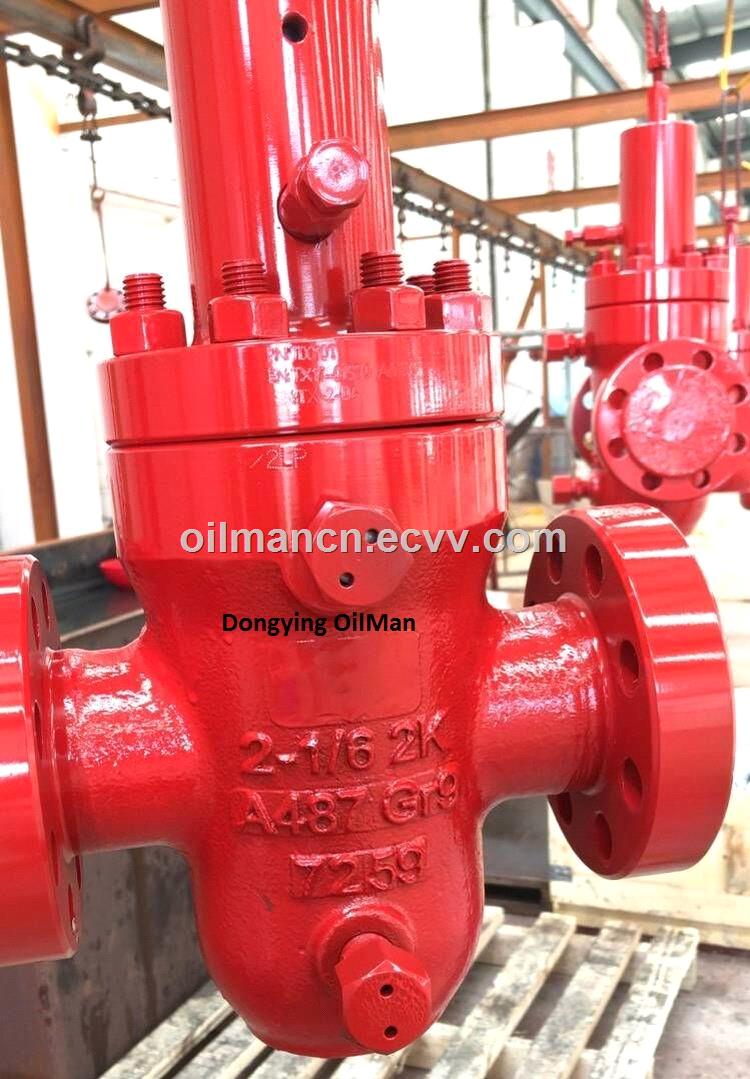

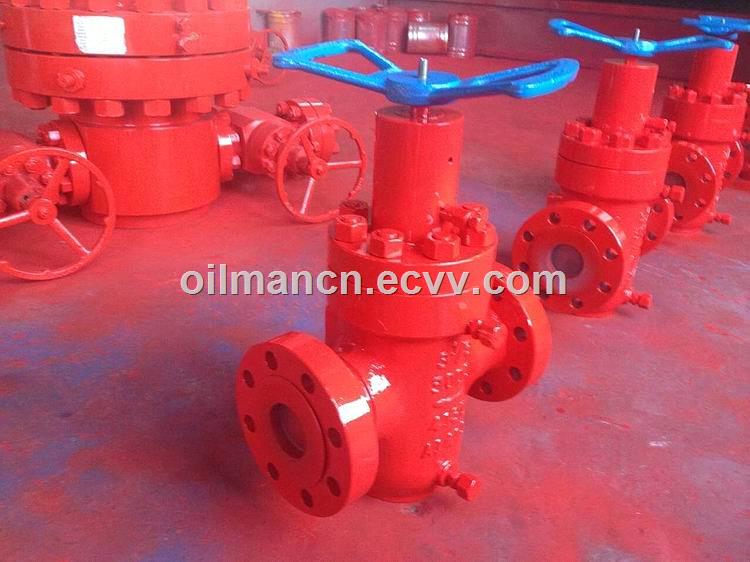

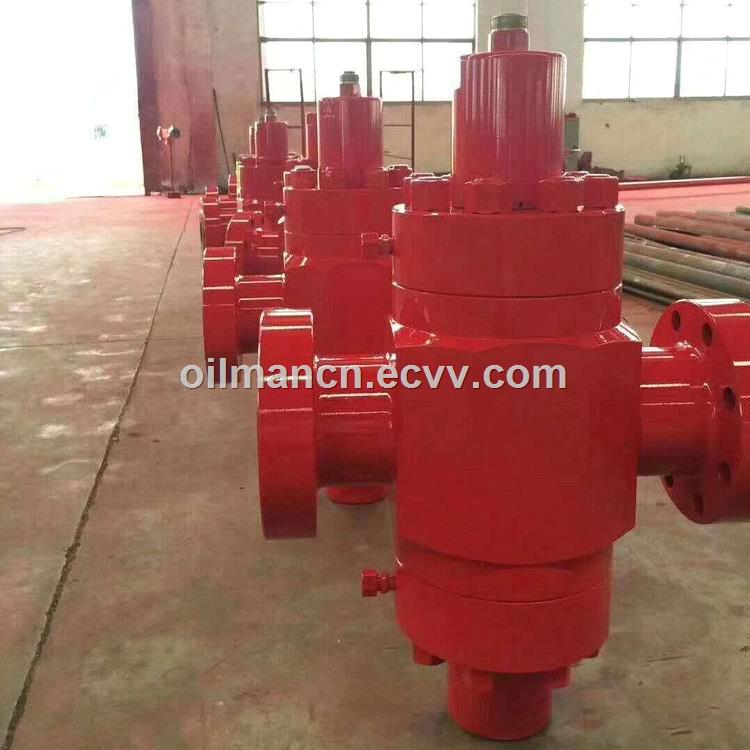

Products Show:
Packaging & Shipping:
Related Products:
Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
