Rackmount Network Application Appliance with Motherboard Based Intel C236 Chipset Support Skylake Lake CPU

Specifications

Network appliance with Intel C236 chipset LGA1151 soket supports Skylake/Kaby Lake, Gen 6th/7th i3 i5 i7 and Xeon E3-1200V5 CPU, single or redundant power supply.

with motherboard  based on C236 chipset based on C236 chipset 6x Intel I210AT GbE Ethernet controllers Supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four LAN cards up to 32 GbE.

More model hardware appliance list for network security, firewall, hardware, utm, VPN, security, IPS, IDS applications:

CPU: Intel LGA1151 Socket H4 supports 14nm Intel Gen6 and Gen7

Xeon / Core? I3/i5/i7 Dual/Quad core processor

 System Chipset: Intel C236 chipset

 BIOS: SPI flash BIOS

 System Memory:

Two 288-pin 2133/1866MHZ Dual-Channel DDR4 SDRAM

Un-buffered DIMM supported (system max. 32GB)

 Ethernet:

Six Intel  I210AT PCIe GbE Ethernet controller

Ordering informations

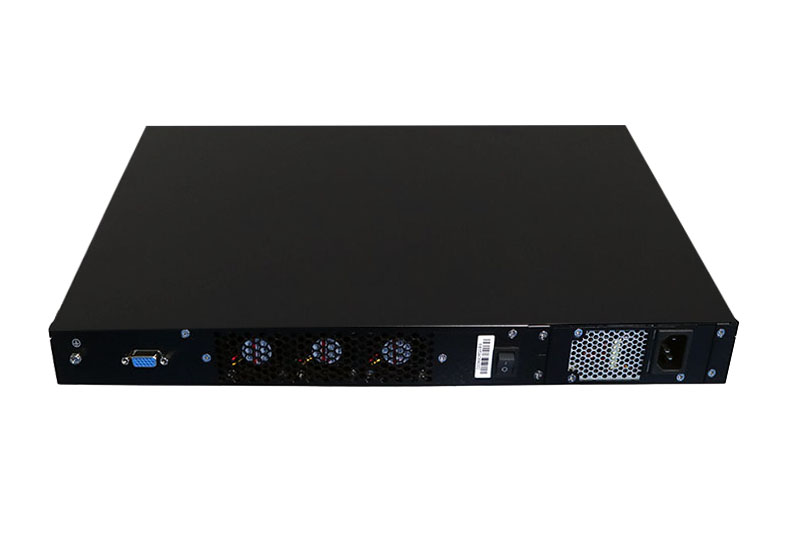

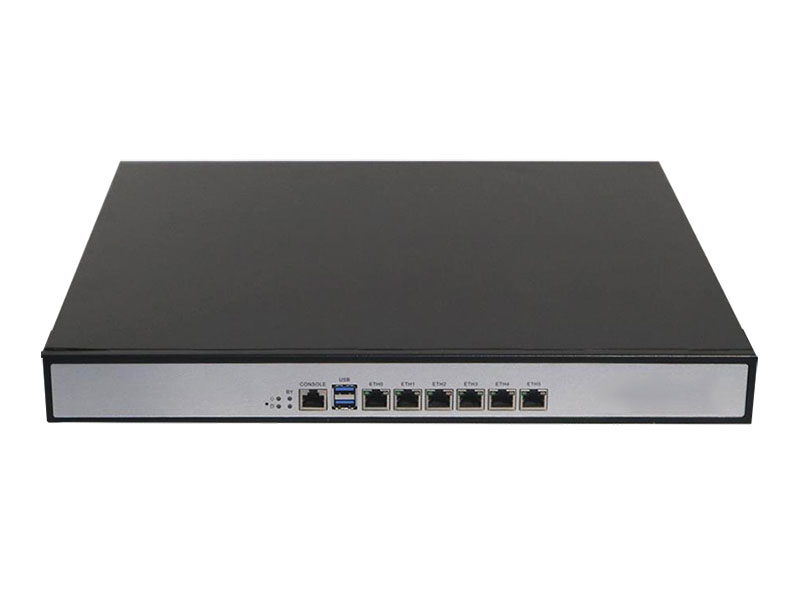

F23611-B2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU

F23611-B2P2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU

Optional Nic Modules

58N4 4 GbE RJ-45 LAN ports NIC module LAN card based on Intel 82580EB controllers

58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers

58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers

58N8 8 GbE RJ-45 LAN ports NIC module LAN card based on Intel 82580EB controllers

58F8 8 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers

58B2 2 GBE SFP LAN ports NIC module LAN card based on Intel 82580DB controllers, with one channel Bypass

59W2 2 10G SFP LAN ports NIC module LAN card based on Intel 82599ES controllers

59B2 2 10G SFP LAN ports NIC module LAN card based on Intel 82599ES controllers, with one channel Bypass

Intel C236 chipset
Four dual channels 2133/2400MHz DDR4 slots, up to 64 GB
Two GbE Console ports, support four NIC modules up to 32 GBEs
Four SATA3.0 6Gb/s, support RAID 0, 1, 5, 10
Supports USB3.0, mSATA, COM
Specifications
Motherboard
CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
Chipset Intel C236
BIOS UEFI BIOS
System memory Four dual-channels DDR4 RAM slots, up to 64GB
Storage
Interface Four SATA3.0 connectorssupport RAID 0, 1, 5, 10
Hard Drive Four 3.5/2.5" HDD trays
SSD One mSATA slot
Ethernet
LAN Port Two 10/100/1000Mbps RJ-45 ports

Ethernet Controller TwoIntel PCIe controllers

System I/O
USB Two USB3.0
Internal with four USB2.0 and two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Watchdog Timer Software programmable supports 1~255sec System reset
Expansion Four PCIex8 for 4 expansion LAN cards and one built-in PCIEx4
Power supply
Power consumption Built-in 300W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10C ~ 50C
Storage Temperature -20C ~ 75C
Operate Humidity 5% ~ 85% non-condensing @ 40C
Storage Humidity 5% ~ 95% non-condensing
Mechanical
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 550x440x88mm
Weight 18.3 kg
Ordering informations

F23224 2u rackmount chassis, C236 Chipset, 2 GbE ports, 4 nic slots, 300W PSU
F23224-P2 2u rackmount chassis, C236 Chipset, 2 GbE ports,4 nic slots, 350Wredundant PSU
