LED Panel Lights for Metal Ceiling Concealed Ceilings

FOB Price:	9.00 - 120.00 USD/Piece
Supply Ability:	50,000 Piece(s) per Month
Shipping:	EXW, FOB, Sea shipping, Air shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Oceania, Mid East, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	2-5 pcs per carton

Quick Details

Item Type: Panel Lights
Light Source: LED
Brand Name: Cyanlite
Certification: C-tick,CE,EMC,GS,LVD,REACH,RoHS,SAA,VDE
Lamp Body Material: Aluminum
CRI (Ra>): 80
Lamp Power(W): 30
Working Lifetime(Hour): 50000
Color Temperature(CCT): Pure White
Lamp Luminous Efficiency(lm/w): 125
Lamp Luminous Flux(lm): 3750
Input Voltage(V): 220
Warranty(Years): 5
LED Light Source: SMD
UGR: <19
Sizes: 300x300, 300x600, 300x900, 300x1200, 300x1500, 300x1800, 312.5x625, 312.5x1250, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750
Compatible Ceiling Models: SAS120, SAS150, Armstrong S/Q/R Clip-F, DURLUM S1, FURAL KQK1/KLK1, Knauf AMF Clip-in, BURGESS CEP Clip-in/A-Bar, Linder LMD-K420, OWA S22

Specifications

Cyanlite LED panel for different ceilings Overview

Covering most of ceiling types
Suitable for 95% of ceiling brands
Warranty: 5 Years
CE, RoHS2.0, REACH approval

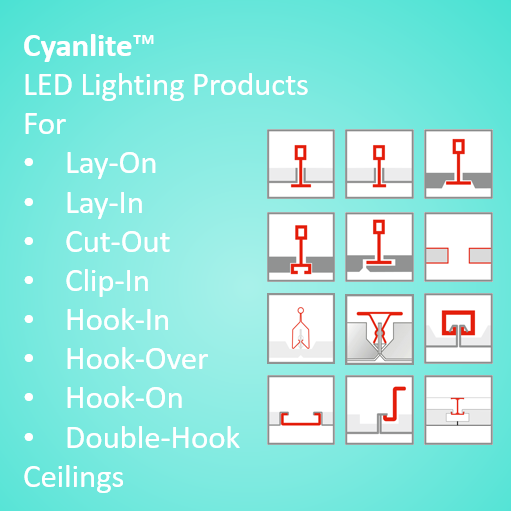

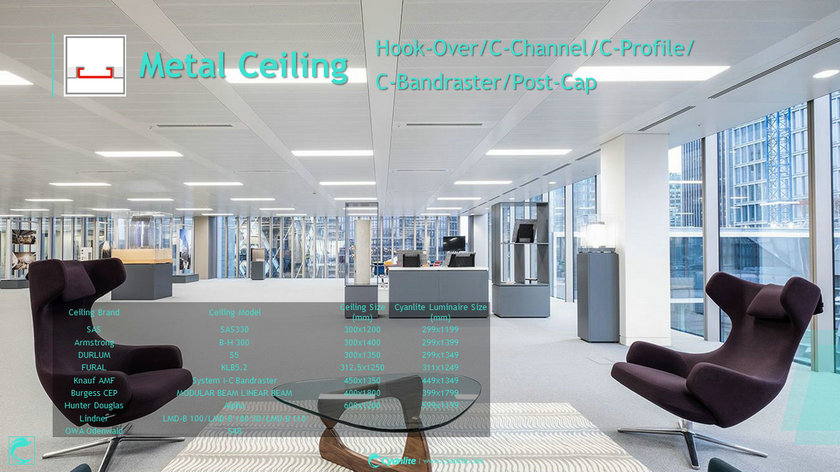

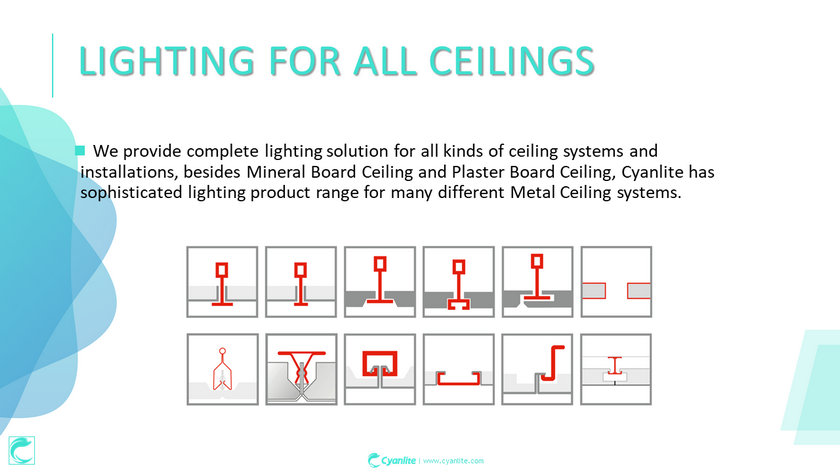

Product description: Cyanlite LED panel for different ceilings overview. Mineral ceiling, metal ceiling, plasterboard ceiling, Lay-On ceiling, Clip-In ceiling, Hook-Over ceiling, Hook-On ceiling etc.,

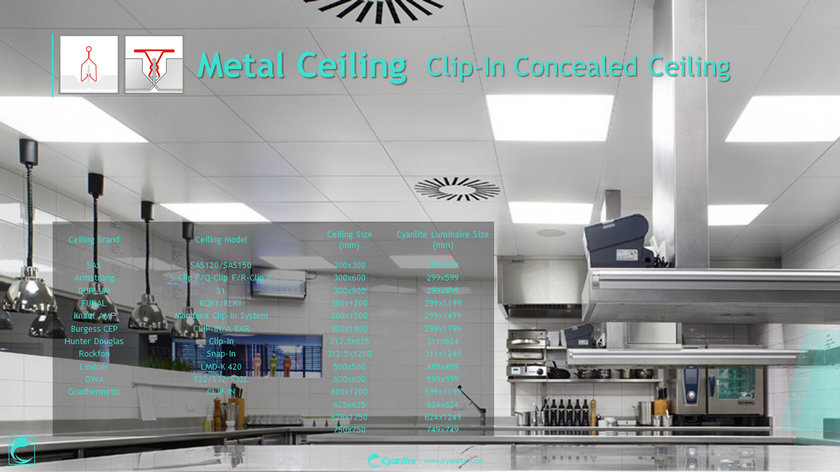

the Cyanlite? LED panel lights CI150 series has been designed specifically for seamlessly integrated with premium Clip-In, also called SAS120/SAS150 or A-BAR metal ceiling systems. these luminaires fit into the Clip-In ceiling systems perfectly and flush with the ceiling elements with seamless design. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly.

LED Panel Lights for Metal Ceiling Concealed Ceilings

Advantages

- Specifically designed for Clip-in metal ceilings, perfectly match with the whole ceiling system

- All installation brackets included, needs no additional accessories, saving material cost

- Easy and fast installation, tool-less installation, saving installation cost

- CI150 has a wide product range for all major standard Clip-in ceiling tile sizes

- Flexible and customization oriented, bespoke sizes are welcome

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

L Standard sizes (mm): 300x300, 300x600, 300x900, 300x1200, 300x1500, 300x1800, 312.5x625, 312.5x1250, 500x500, 600x600, 600x1200, 625x625, 625x1250, 750x750

L RAL9010 as standard to match SAS ceiling colors, other RAL colors available on request

L System Efficiency upto 120 lm/W

L EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

L Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

L 5 Years Warranty

L Various dimming options, including 0-10V, DALI, Switch Dim etc.

L Emergency options available

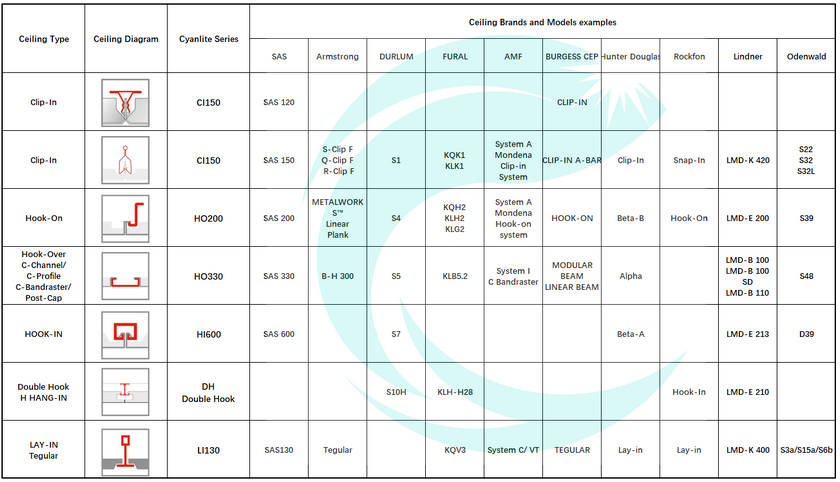

Suitable ceiling brands and models (included but not limited to)

Specifications

Model	Part Number	Dimension(mm)	Lumen Output	System Power
300x300	PS15W030C	299x299	1500 lm	15 W
300x600	PS20W306C	299x599	2400 lm	20 W
300x900	PS25W309C	299x899	3000 lm	25 W
300x1200	PS30W312C	299x1199	3600 lm	30 W
300x1500	PS35W315C	299x1499	4200 lm	35 W
300x1800	PS45W318C	299x1799	5400 lm	45 W
312.5x625	PS20W307C	311x624	2400 lm	20 W
312.5x1250	PS30W313C	311x1249	3600 lm	30 W
500x500	PS30W050C	499x499	3600 lm	30 W
600x600	PS30W060C	599x599	3600 lm	30 W
600x1200	PS50W612C	599x1199	6000 lm	50 W
625x625	PS30W062C	624x624	3600 lm	30 W
625x1250	PS50W613C	624x1249	6000 lm	50 W
750x750	PS50W075C	749x749	6000 lm	50 W
