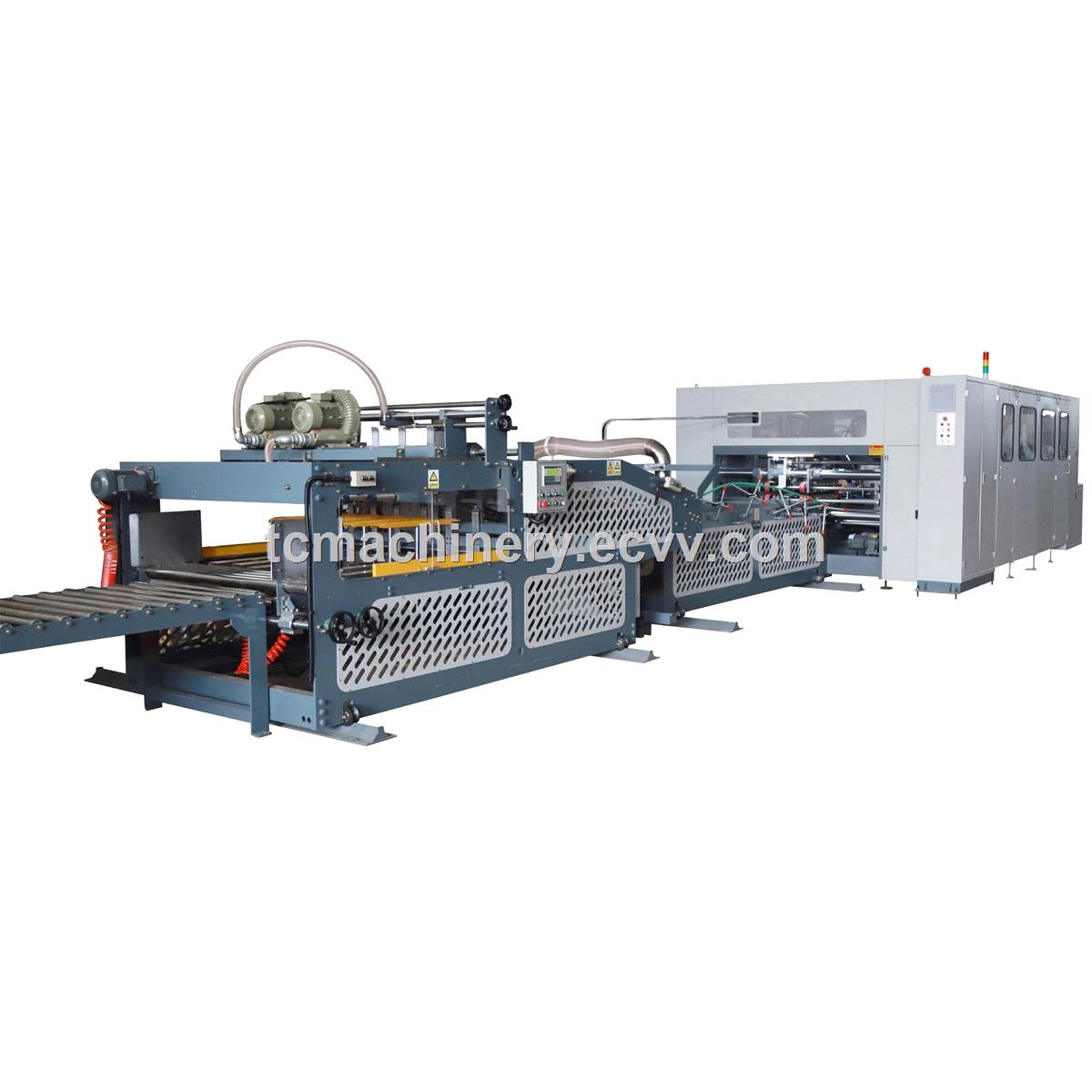

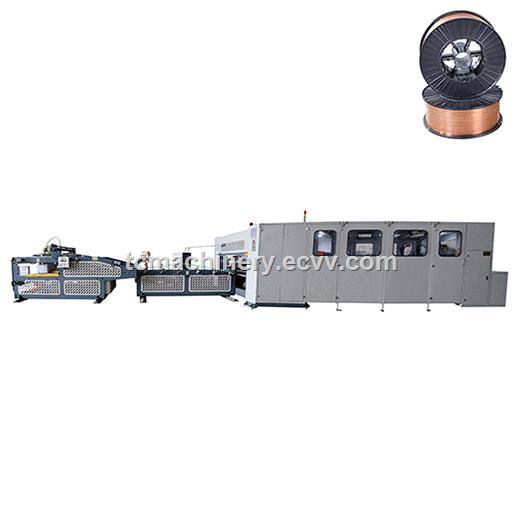

PLC Computerized Controlling System Corrugated Carton Box Folder Gluer Stitcher
| FOB Price: | 170000.00 - 180000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Type: Other
- Brand Name: No
- Packaging Type: Wooden case packaging
- Application: Machinery & Hardware
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 15000*3700*2100mm
- Weight: 15.5TON
- Model Number: TC-2600-2800
- Power: 50KW
- Voltage: 380V 50HZ
- Automatic Grade: Automatic
Specifications
PLC Computerized Controlling System Corrugated Carton Box Folder Gluer Stitcher
TC-2600-2800
TC-2600-2800
AUtomatic corrugated Carton Box folder gluer Sticher inline for flexo printer slotter Mainly used in food corrugated carton box, fruit carton box, Industry carton box and other various corrugated packaging application. It'S with high speed Folding gluing Stitching Production, PLC program system, oRder memory system application. Valco cold gluing system is optional.
Model |
TC-2600 |
TC-2800 |
Max feeding size |
2600*940mm |
2800*940mm |
Min feeding size |
800*300mm |
800*300mm |
Corrugated board |
3ply, 5ply, 7ply |
3ply, 5ply, 7ply |
Max stitching speed |
90pcs/min (3 wire stitches) 80pcs/min (4 wire stitches) 70pcs/min (5 wire stitches) |
90pcs/min (3 wire stitches) 80pcs/min (4 wire stitches) 70pcs/min (5 wire stitches) |
Max gluing speed |
90pcs/min |
90pcs/min |
Stitching head speed |
1000 stitches/min |
1000 stitches/min |
Stitching wire |
1.8mm |
1.8mm |
Stitching distance |
20-80mm |
20-80mm |
Total power |
50kw |
50kw |
Voltage |
380V, 50HZ, 3phase |
380V, 50HZ 3phase |
Weight |
15.5tons |
15.8tons |
Dimension |
15000*3700*2100mm |
15000*3900*2100mm |
