Home >Products Catalog > High Productivity Corrugated Carton Box Folder Stitcher Machine for Industry Carton Box

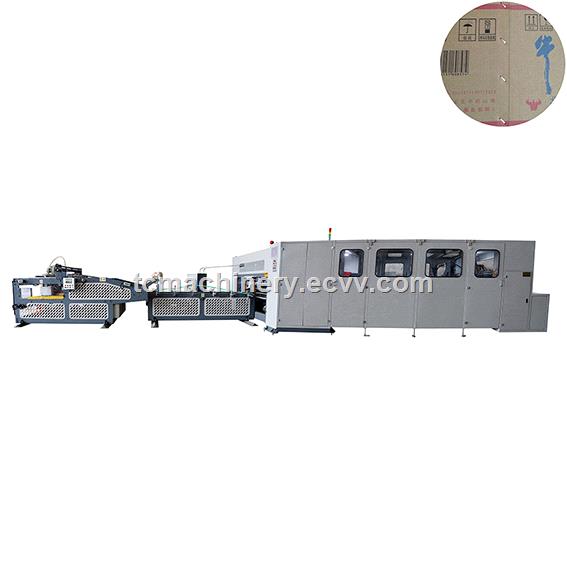

High Productivity Corrugated Carton Box Folder Stitcher Machine for Industry Carton Box

FOB Price:	170000.00 - 180000.00 USD/Set
Payment Terms:	L/C, Western Union

In Stock

Inquiry Now

Related products from verified members

Automatic Pillow Packing Machine

Price:

Min. Order:
XZB450 Automatic Screw/Biscuit Pillow Packing M...

Price:3,000.00-5,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Type: Other
Brand Name: No
Packaging Material: Wood
Packaging Type: Case
Application: Related packaging machine
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): 15000 x 3700 x 2100mm
Weight: 15TONS
Model Number: TC-2600-2800
Power: 50KW
Voltage: 380V
Driven Type: Electric
Automatic Grade: Automatic

Specifications

High Productivity Corrugated Carton Box Folder Stitcher Machine for Industry Carton Box

TC-2600-2800

AUtomatic corrugated Carton Box folder gluer Sticher inline for flexo printer slotter Mainly used in food corrugated carton box, fruit carton box, Industry carton box and other various corrugated packaging application. It'S with high speed Folding gluing Stitching Production, PLC program system, oRder memory system application. Valco cold gluing system is optional.

Model

TC-2600

TC-2800

Max feeding size

2600*940mm

2800*940mm

Min feeding size

800*300mm

800*300mm

Corrugated board

3ply, 5ply, 7ply

3ply, 5ply, 7ply

Max stitching speed

90pcs/min (3 wire stitches)

80pcs/min (4 wire stitches)

70pcs/min (5 wire stitches)

90pcs/min (3 wire stitches)

80pcs/min (4 wire stitches)

70pcs/min (5 wire stitches)

Max gluing speed

90pcs/min

90pcs/min

Stitching head speed

1000 stitches/min

1000 stitches/min

Stitching wire

1.8mm

1.8mm

Stitching distance

20-80mm

20-80mm

Total power

50kw

50kw

Voltage

380V, 50HZ, 3phase

380V, 50HZ 3phase

Weight

15.5tons

15.8tons

Dimension

15000*3700*2100mm

15000*3900*2100mm
