HM-ZD350D Automatic Jewelry Rigid Box Making Machine

FOB Price: 1.00 - 10.00 USD/Set
Supply Ability: 30 Set(s) per Month
Shipping: 25days after confirmation
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: South America, Eastern Europe, Southeast Asia, Mid East
Packaging Details: 40HQ

Quick Details

  • Type: Packaging Line
  • Brand Name: HONGMING
  • Packaging Material: Wood
  • Packaging Type: Cartons,Case
  • Application: Commodity,Textiles
  • Type: package
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE
  • Weight: 5200
  • Dimension(L*W*H): 6000x5000x3200mm
  • Model Number: HM-ZD350D
  • Power: 43Kw
  • Voltage: AC380V
  • Driven Type: Mechanical
  • Automatic Grade: Automatic
  • Condition: New
  • Model: HM-ZD350D
  • Keyword: rigid box making machine
  • Max.Length: 350mm
  • Max.Width: 250mm
  • Max.Height: 110mm
  • Min.Length: 60mm
  • Min.Width: 50mm
  • Min.Height: 10mm



Automatic Rigid Box Making Machine

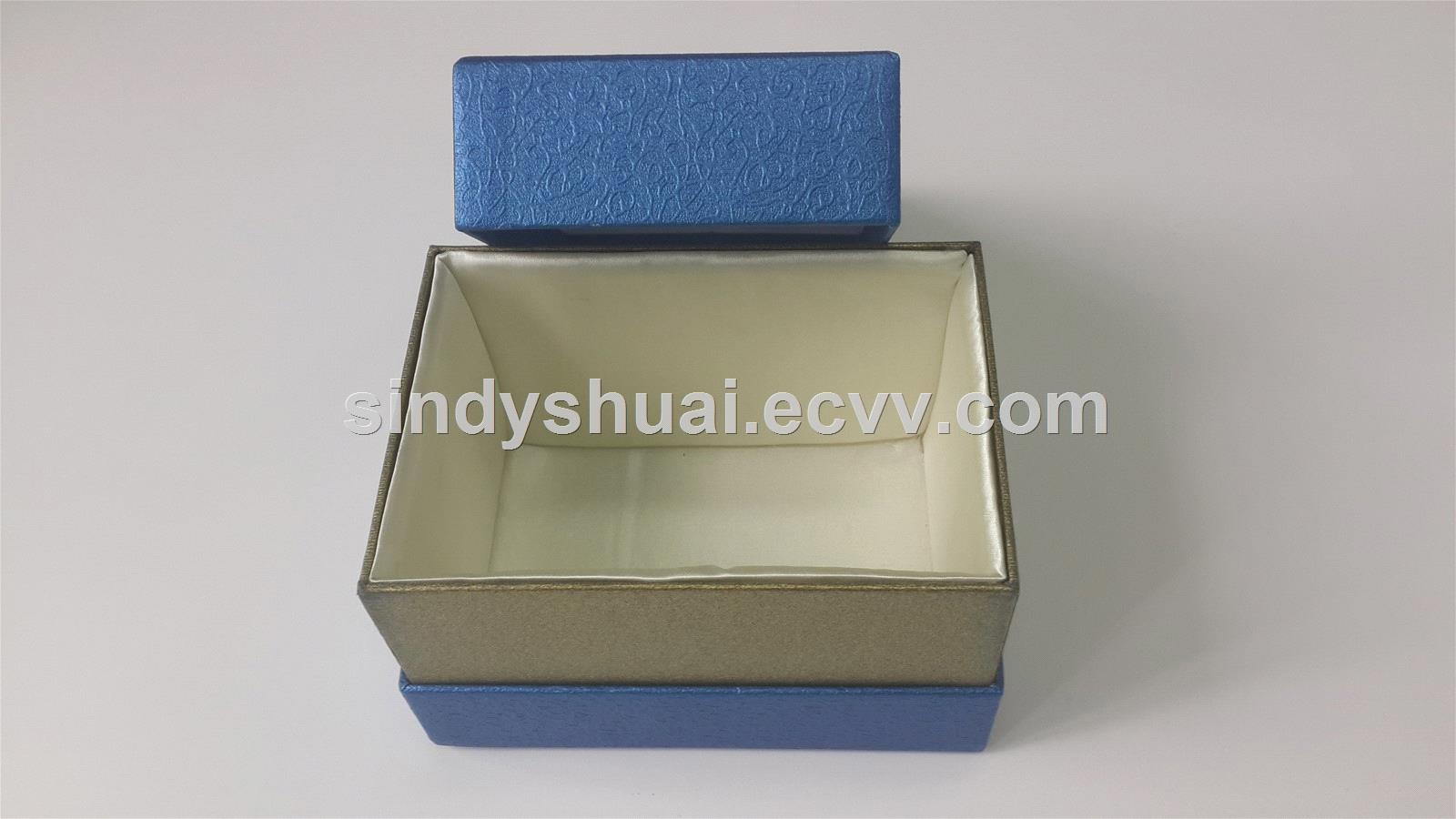

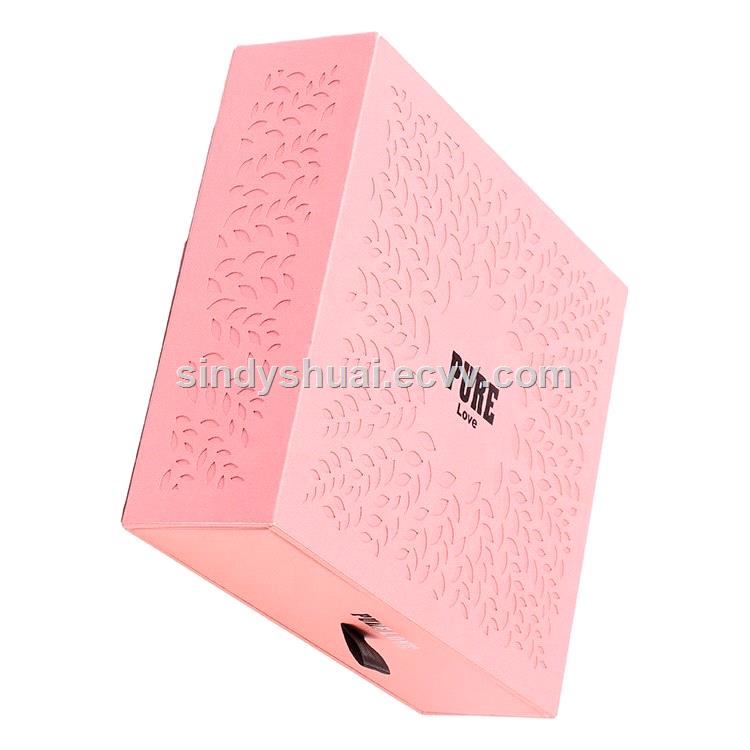

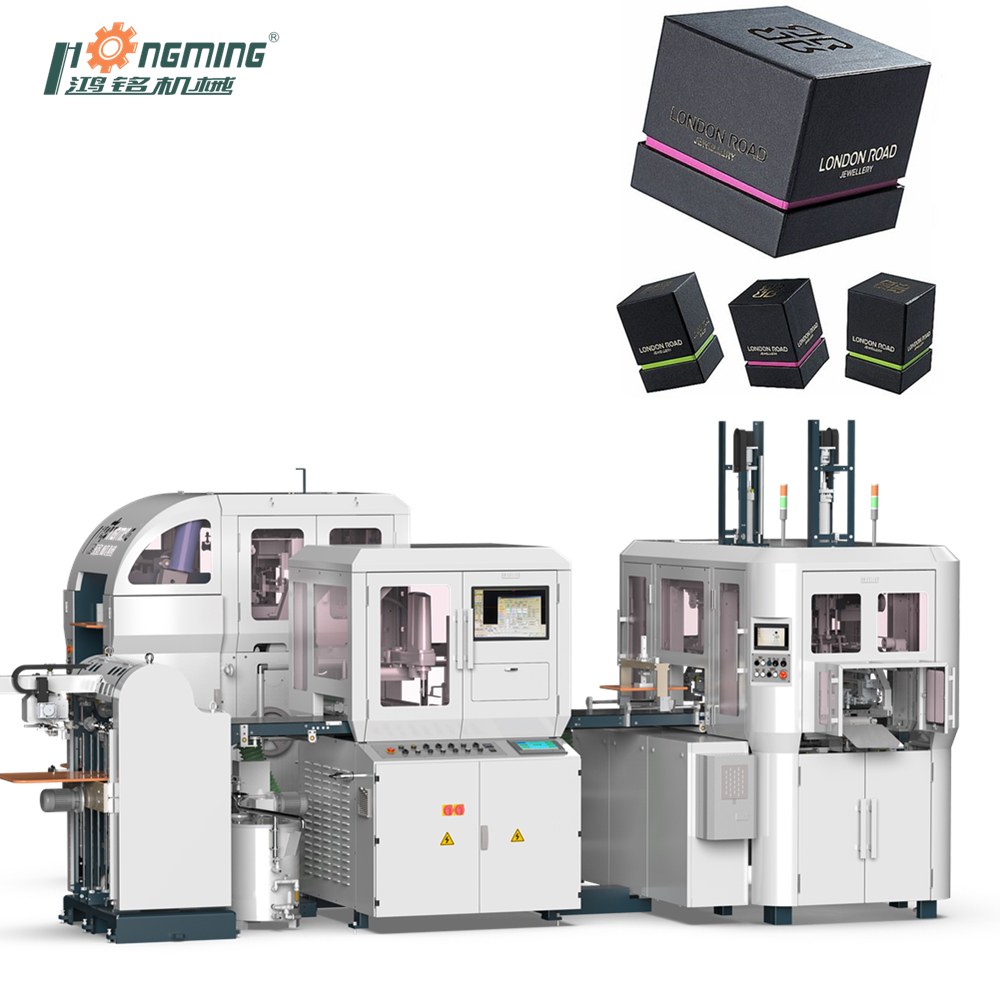

    HM-ZD350D High Productivity Automatic Rigid Box Machine is the most advanced fully auto box machine by our company. It is suitable to make various types of rigid boxes for mass production, such as premium box, mobile phone box, jewelry box, wine box, slanting box,, etc.

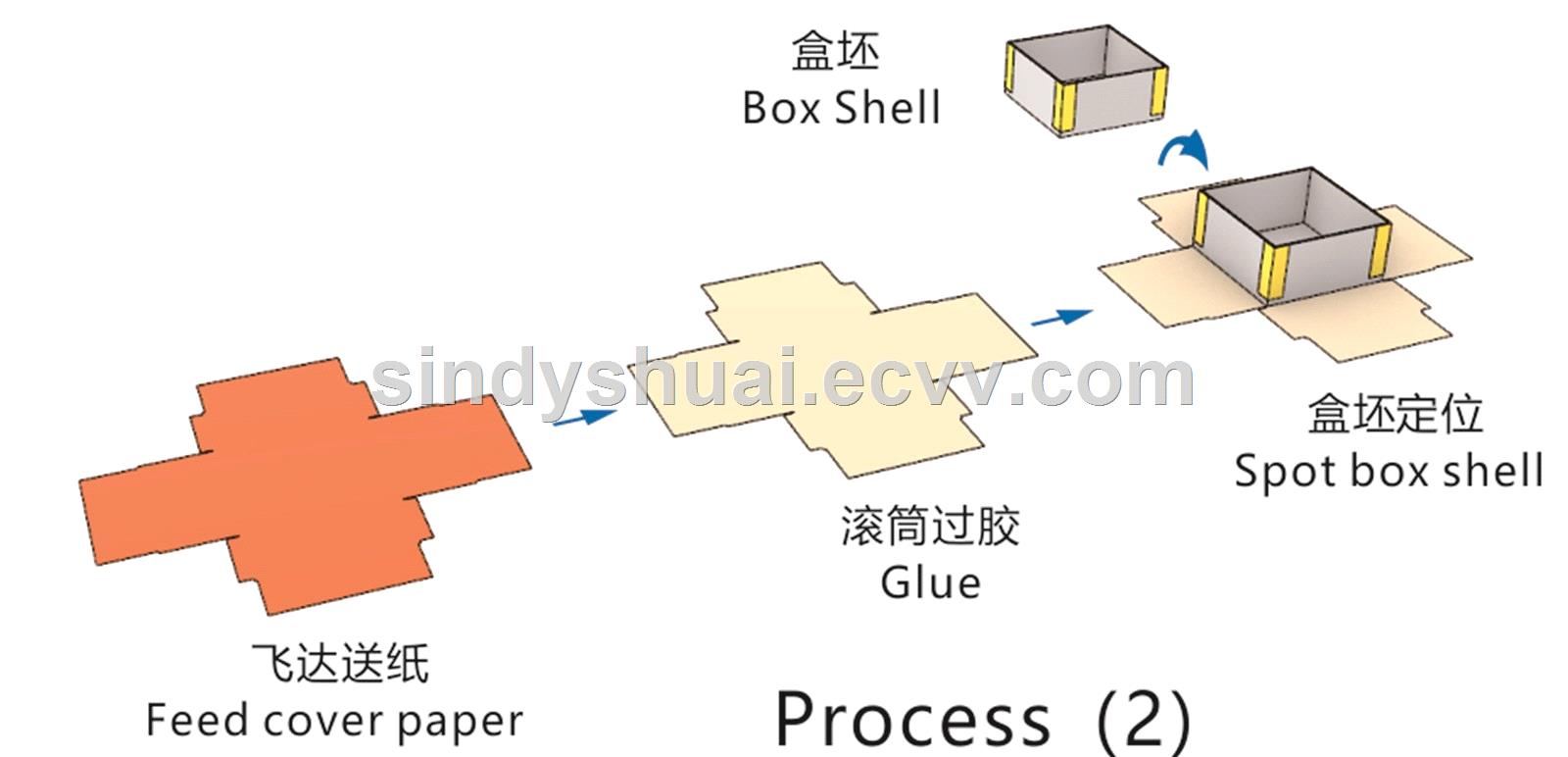

    this machine adopts YASKAWA PLC and motion control, YAMAYA Robot spotter, and can automatically feed cover paper, feed grey board, paste four corners, spot grey board, lift box, wrap box, fold corner edges and form box.

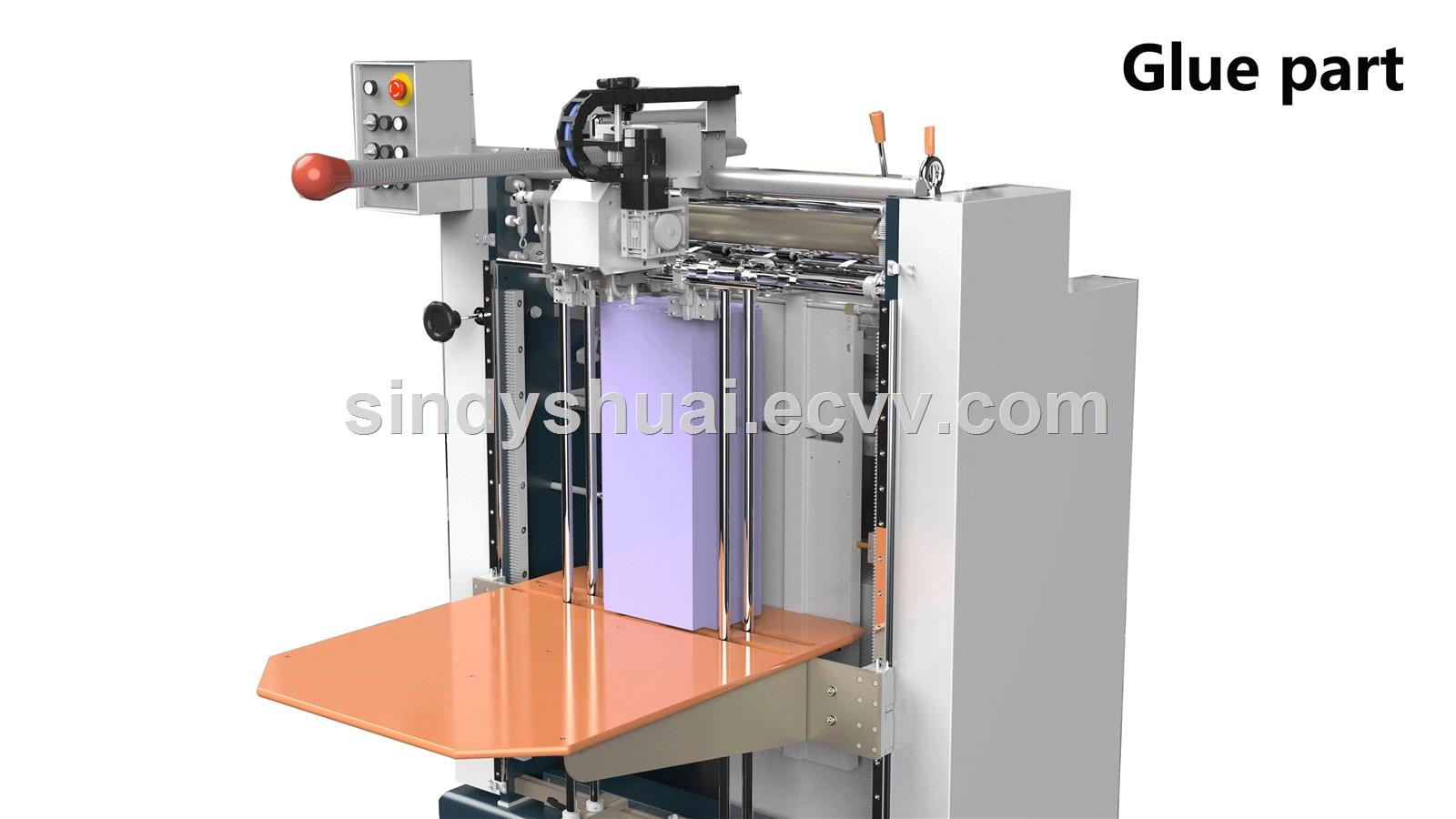

    the feeder, gluer and conveyor are driven servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. the spotter unit adopts Germany Balser camera tracing system with YAMAHA robot and SCARA for rectifying, enhancing the spotting accuracy to ±0.05mm. the forming unit employs electric Cam with Servo motors, guaranteeing the stable quality and fluent movement.



Features and function

1. Suit to all kinds of rigid boxes in mass production;

2. Computer control with error auto stop and display;

3. Wrapper Automatically change mold with servos(Optional);

4. Automatically feed paper and greyboard;

5. 24-hours control for glue pre-heating;

6. Wrapper Input 300 product formul;

7. Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent man-machine control;

8. Spotter by camera tracing system and YAMAHA Robot to spot correctly (spotting accuracy ±0.05mm);

9. Wrapper can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;

10. Automatic control system for glue viscosity (optional).

1, the Finished Box Max. Sizes are determined by paper size.A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2, Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3, the production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
4, Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
