Transcend Machinery Equipment Co., Ltd.
China Manufacturer with main products: Magnetic Driven Pump, Vertical Pump, Self-Priming Pump, Horizontal Pump, Chemical Filter, Chemical Filter Housing |
Home
>Products Catalog > Magnetic Drive Pump > TMP 1/2HP - 5HP Acid & Alkali Resistant Magnetic Drive Pump FRPP/PVDF Sealless Electric Centrifugal Chemical Pump

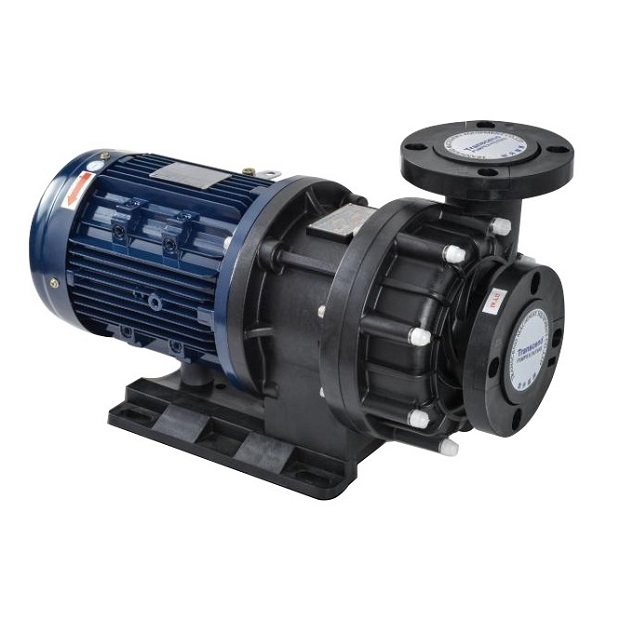

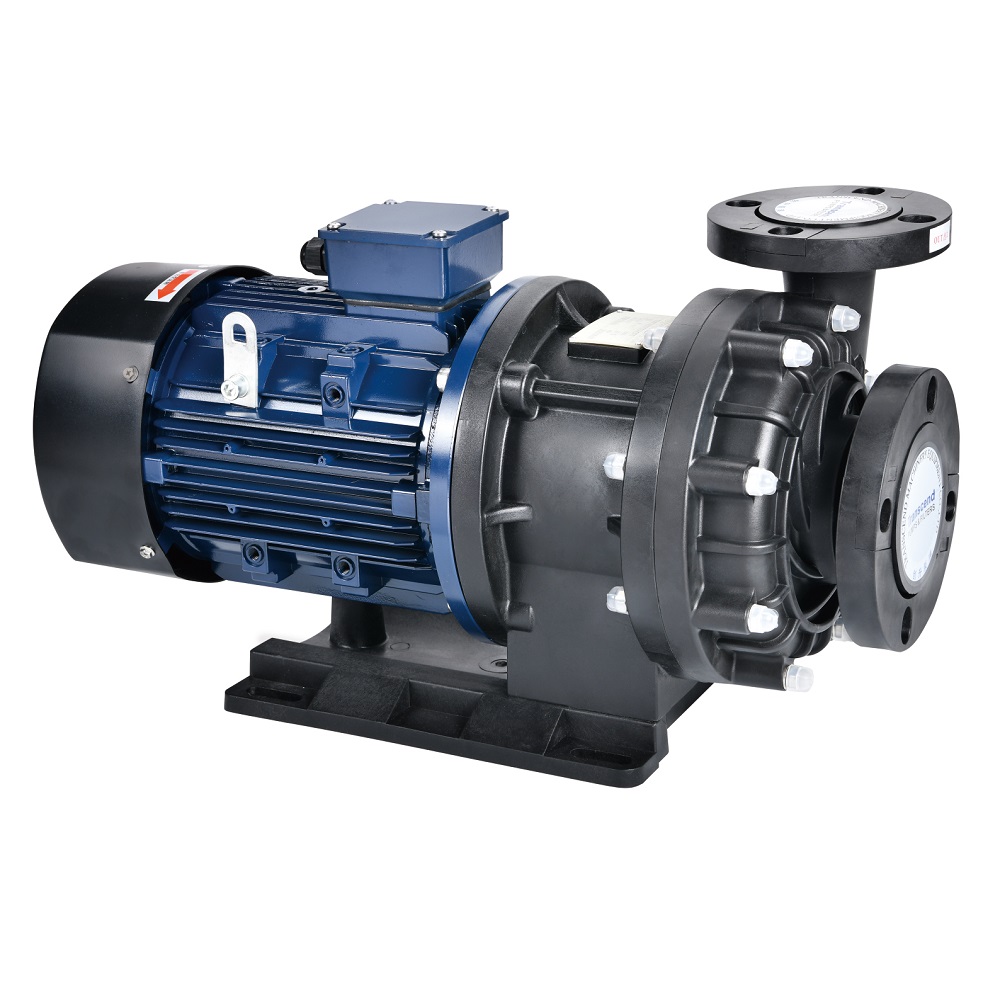

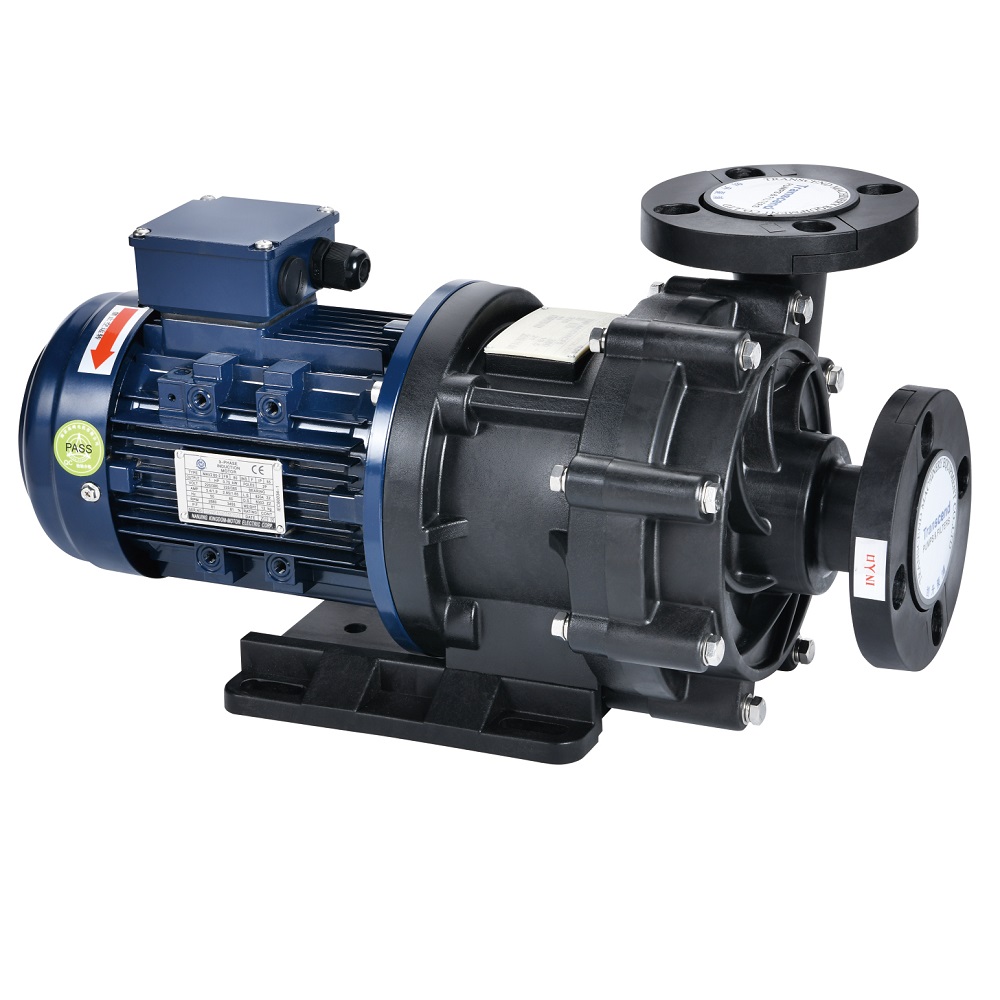

TMP 1/2HP - 5HP Acid & Alkali Resistant Magnetic Drive Pump FRPP/PVDF Sealless Electric Centrifugal Chemical Pump
| FOB Price: | 150.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | FOB Shenzhen Port |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Safebuy, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton / Wooden Box(Size to depend on which model to be ordered); |
Quick Details
- After-sales Service Provided: Overseas service center available
- Brand Name: Transcend
- Product Type: Chemical pump
- material: FRPP/PVDF
- type: Magnetic drive pump
- Model Number: TMP 1/2HP-5HP
- Product Name: Magnetic Drive Pump
- Feature: Innovative design, no leakage
- Advantage: Corrosion Resistance
- Structure: Self-circulating cooling structure
- Warranty: 1 year warranty
- Material: FRPP/PVDF
- Operating temperature: 0-90 Celsius Degree
- Flow: 245L/min. - 1240L/min.
- Head: 12.5m - 43m
- Power: 0.37KW - 3.7KW
Specifications
Transcend Polypropylene Pump(FRPP Pump)
TMP 1/2HP - 5HPChemical pump
Feature and Advantages:
1. TMP Series Magnetic Drive Pump;
2. Non-contact structure: by accurately setting the relative position of the passive magnet and the active magnet, the position of the magnetic capsule can be effectivelyl controlled magnetically. the displacement of the bearing will not contact the rear thrust ring even when idling. this structure is effective, the generation of frictional heat is suppressed and the lubrication of the friction part is ensure.
3. Innovative design, no leakage: a new design of the pump front cover, with a snap-in type, and the front cover inlet and outlet flanges are integrally formed to prevent leakage. There is also a reinforced gasket designed to extend the working life.
4. Newly upgraded self-circulating cooling structure: on the basis of the heat diffusion hole at the connection and fixing place of the impeller and the magnetic capsule, there is also a heat dissipation slot at the junction of the shaft sleeve and the magnetic capsule, which can pump the liquid around the shaft and the bearing forced circulation under the action of centrifugal force and reverse water blades quickly and effectively dissipates the displacement caused by friction, preventing the deformation and melting of the grease material in the pump cavity due to high temperature.
Identification Model No.:
Model.: TMP - 5 4 3 C V A C F 5 1 2 3 4 5 6 7 8 9 10 |
| 1. Type: TMP |
| 2. Import caliber: 6 - 2.5"(Dia.65) 5 - 2"(Dia.50) 4 - 1.5"(Dia.40) |
| 3. Export caliber: 6 - 2.5"(Dia.65) 5 - 2"(Dia.50) 4 - 1.5"(Dia.40) |
| 4. Power: 0-1/2HP 1-1HP 2-2HP 3-3HP 5-5HP |
| 5. Pump body material: C-CFRPP E-ETFE P-GFRPP K-PVDF |
| 6: Rubber Material: E-EPDM V-VITON F-FKM |
| 7.Axis material: A-995 Ceramic S-SIC |
| 8. Bearing material: A-995 Ceramic C-Carbon S-SIC R-PTFE |
| 9.Piping form: F-Flange M-Thread |
| 10. Frequency: 5-50HZ 6-60HZ |
Model No.:
Size:
Performance & Curve:
CE Certificate:
