HM-ZD350A Automatic Jewellery Box Making Machine

FOB Price: 1.00 - 10.00 USD/Set
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1year
  • Voltage: AC380V
  • Brand Name: HONGMING
  • Condition: New
  • Weight: 4200KG
  • Dimension(L*W*H): 5500x4500x3300mm
  • Power(W): 33Kw
  • Model Number: HM-ZD350A
  • Processing Type: Paper Folding Machine
  • Model: HM-ZD350A
  • Keyword: rigid box making machine
  • Max.Length: 350mm
  • Max.Width: 250mm
  • Max.Height: 120mm
  • Min.Length: 60mm
  • Min.Width: 50mm
  • Min.Height: 10mm

Specifications

HM-ZD350A Automatic Jewellery Box Making Machine
HMZD350A Automatic Jewellery Box Making Machine
HM-ZD350A Automatic Jewellery Box Making MachineIs suitable to make various types of rigid boxes such as jewelry boxes, mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slanting box etc. Its maximum length 350mm and maximum width
250mm, Size range is bigger, more suitable for current packaging market. Machine's appearance is new design which
Is safer and more beautiful.
HM-ZD350A Automatic Jewellery Box Making Machine Adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, fold corner edges and wrap box.

the feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable transmission
and enjoys high accuracy, easy adjusting, and efficiency. the spotting unit adopts camera tracing system and robot
Arm to pick and spot the greyboard,enhancing the spotter accuracy to ± 0.05mm. the forming unit employs Japan
THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and
Enlarge the folding-in depth and corner edges.
Feature and functions:
1. Suit to all kinds of rigid boxes in mass production;
2. Parameters adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control
and heating system;
8. Adopt YASKAWA servo control system;
9. Spotter by camera tracing system and SCARA (Selective
Compliance Assembly Robot Arm) (spotting accuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).
12. Digital setting with memory system(optional).



HMZD350A Automatic Jewellery Box Making Machine
HMZD350A Automatic Jewellery Box Making Machine

HMZD350A Automatic Jewellery Box Making Machine
HMZD350A Automatic Jewellery Box Making Machine
HMZD350A Automatic Jewellery Box Making Machine
NOTE

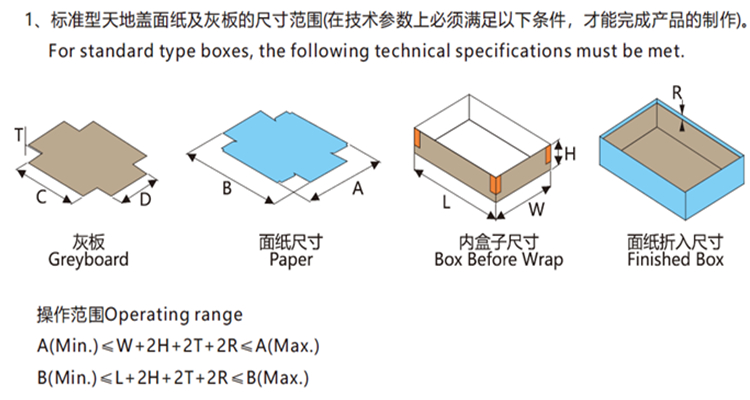

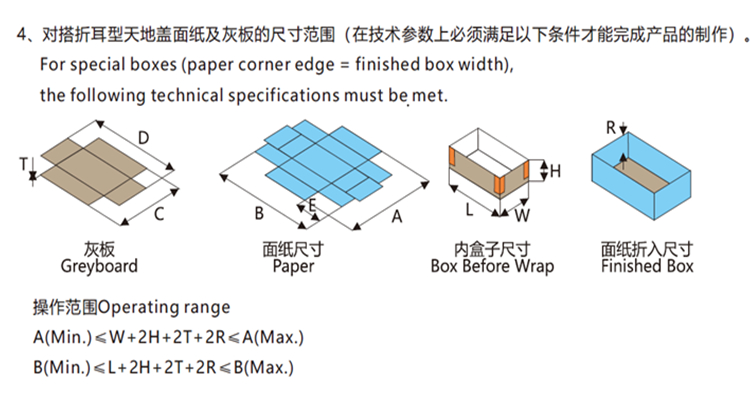

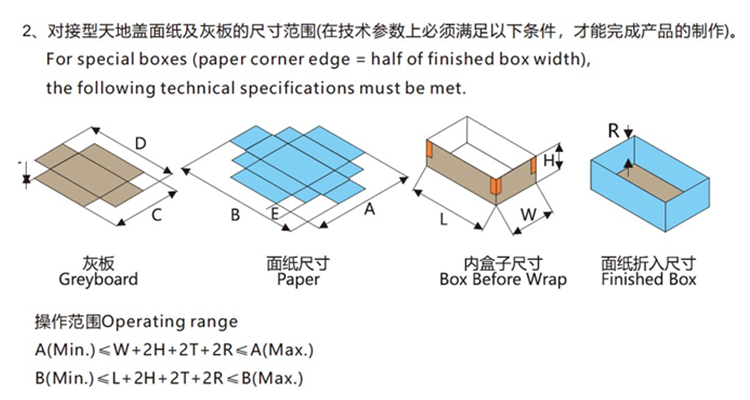

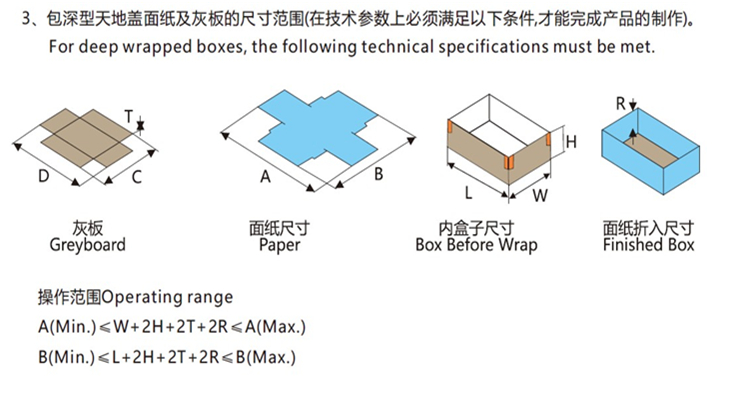

1, the finished Box Max sizes are determined by paper size.
A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2, Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3, the production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
4, Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
5, Item 5 is optional device for HM-ZD350A &HM-ZD350J.
