Home >Products Catalog > Vertical Pump > as 1/15-1/2HP FRPP PVDF Plastic Vertical Pump for Clean Water

as 1/15-1/2HP FRPP PVDF Plastic Vertical Pump for Clean Water

FOB Price:	120.00 - 300.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	FOB Shenzhen Port
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram, Safebuy, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Carton / Wooden Box;

Quick Details

After-sales Service Provided: Overseas service center available
Brand Name: Transcend
Product Type: Chemical pump
material: FRPP/PVDF
type: Submersible vertical pump
Model Number: AS 1/15-1/2HP
Product Name: vertical submersible pump
Material: FRPP/PVDF
Advantage: Suitable for in-tank applicaion
Feature: Durable & Corrosion Resistance
Warranty: 1 year warranty
Certification: CE Certificate
Power: 0.05KW to 0.37KW
Flow: 50L/min. - 170L/min.
Head: 3m-10m
Accesories: Suction basket/Outlet connection/Casing

Specifications

Transcend Power-saving Acid-resistant and Alkali Resistant Vertical Pump

as 1/15HP - 1/2HP Vertical Pump

Features and Advantages:

1. Dry-running without damage.

2. Molded parts are made of PPH, CFRPP, PVDF applicable to various chemicals.

3. the lightweight form and mounting plate structure is suitable for in-tank applications, easy to mount and maintain.

4. Special double shaft seals stop corrosive vapor to reach the motor bearing perfectly.

5. Closed impeller, fastened independence of rotational direction.

6. Shaft is separated from the chemicals by rinforced motor bearings.

7. Double protections of corrosion resistance of paint-coat.

8. with metal or plastic motor casing, single/three-phase motor, 0.05KW to 0.37KW.

Identification for Model No.:

Model Desc.:   AS   - 25   E      P - 250 - 3P   5 F

1 2 3 4 5 6 7 8

1. as: Type

2. in-Outlet: 32-1/2" 20-3/4" 25-1"    15-1/2"

3. Rubber materical:   E-EPDM V-VITON

4. Pump body: P-FRPP K-PVDF

5.  Power: 370-1/2HP 250-1/3HP 180-1/4HP 120-1/6HP 90-1/8HP   50-1/15HP

6. 3P-Three-phase 1P-Single-phase

7. Frequency:   5-50HZ 6-60HZ

8. Baseboard: F-Square Y-Round W- Out-tank T-Special Order

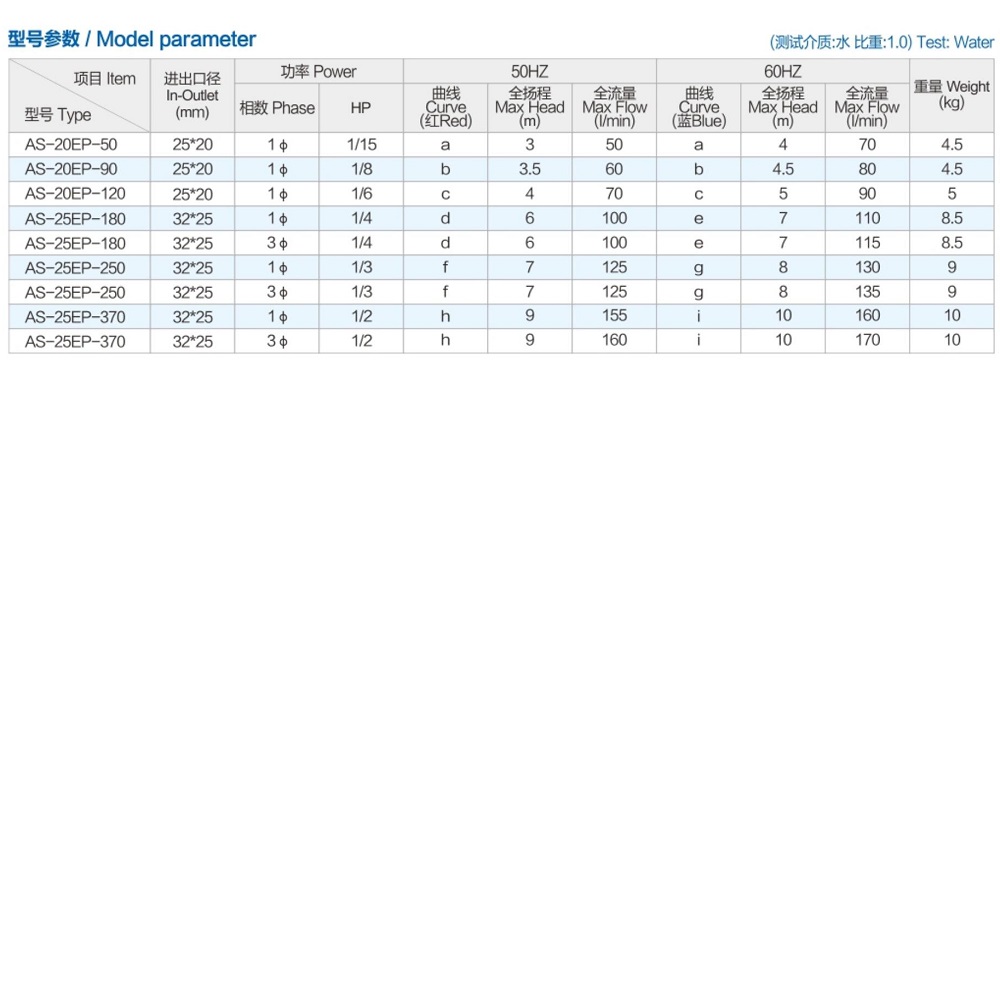

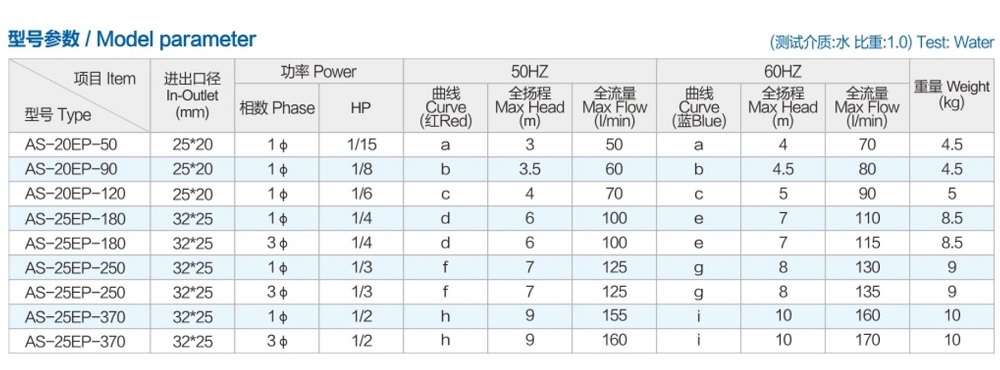

Model Parameter:

Performace and Curve:

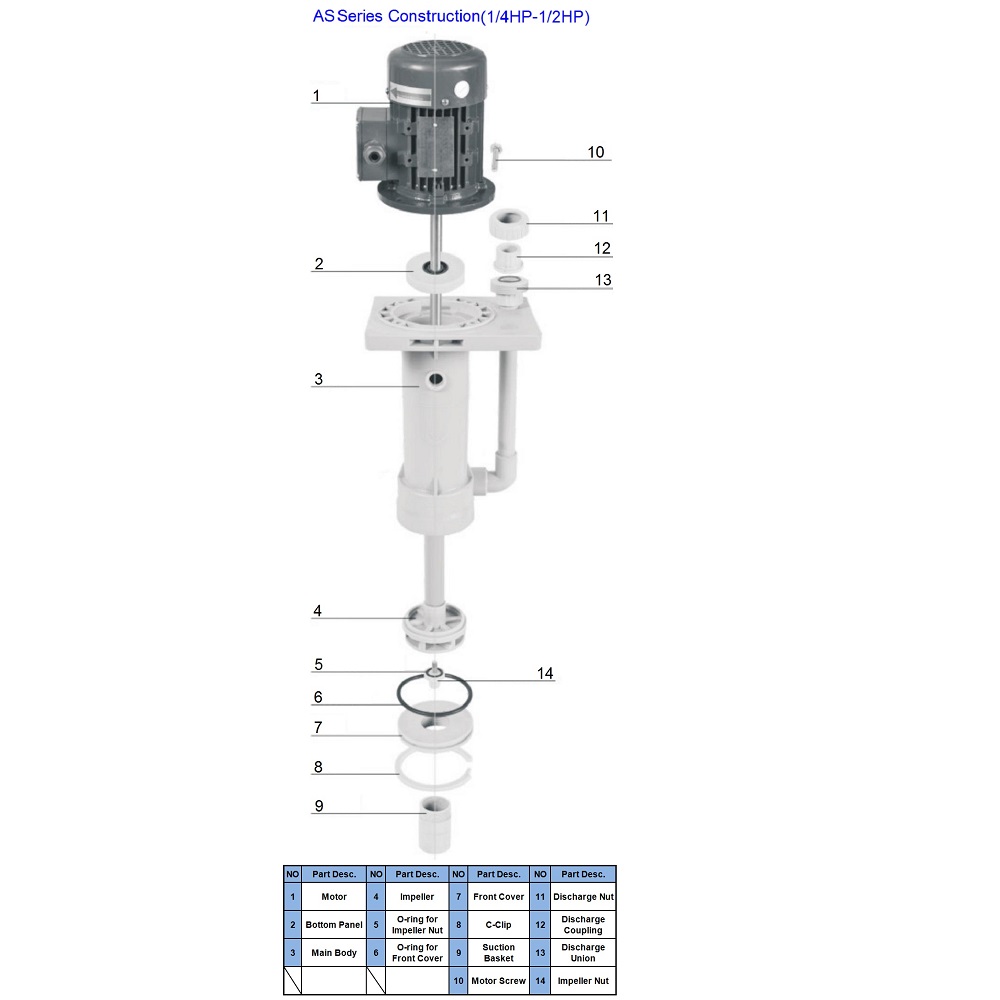

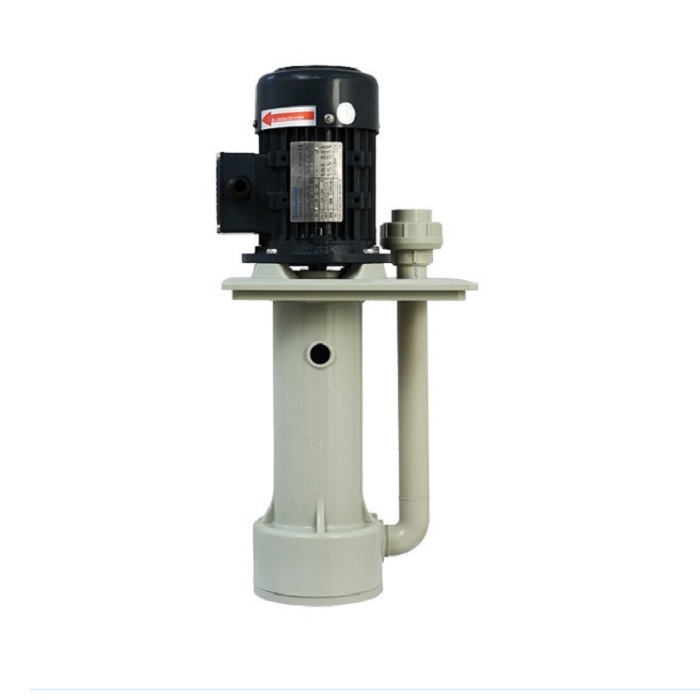

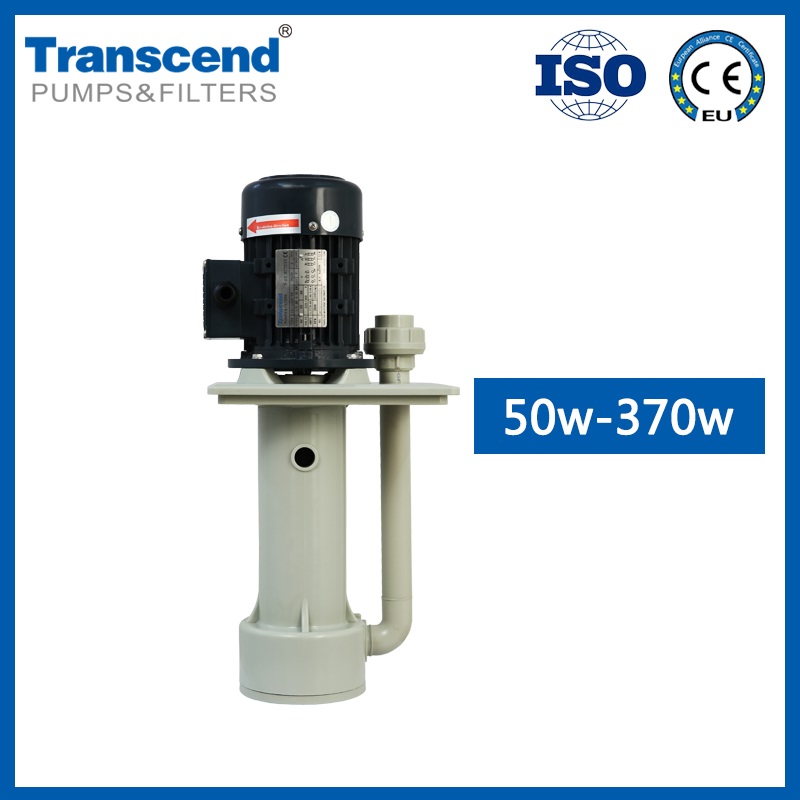

Product Pic.:
