Zhangjiagang Huede Machinery Co., Ltd.

China Manufacturer with main products: PVC Pipe Production Line, PE Pipe Production Line, PPR Pipe Production Line, PE Corrugated Pipe Production Line, PVC Profile Extrusion Line,...

Home >Products Catalog > SJSZ51 Double Screw Plastic PVC PP PE Extruder Machine for Pipe Edge Banding Wall Ceiling Panel Making Machine

SJSZ51 Double Screw Plastic PVC PP PE Extruder Machine for Pipe Edge Banding Wall Ceiling Panel Making Machine

FOB Price:	12000.00 - 13000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Jiangsu in China
Packaging Details:	PE film or wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Power(W): 18500
Brand Name: Huede(HYD)
Application: Pipe
Condition: New
Certification: CE/IOS9001
Weight: 3500kg
Dimension(L*W*H): 3.5M*3M*3M
Voltage: 220V~380V
Model Number: SJSZ51
Automatic Grade: Fully-Automatic
Screw Design: Double-screw
Plastic Processed: PVC
Raw material: PVC Resin
Product name: pvc pipe and profile
capacity: 50-150KG/H

Specifications

Product Description:

as a Plastic Extruder, plastic bag extruder machine is used in plastic processing industry. What are its principle andstructure? next from the conveyor section of the extruder, compression section, metering section to make an analysis of the principle ofplastic filament extruder machine.

the effective length of PE extruder is generally divided into three sections. the effective length of the three sections is determined according to the screw diameter, pitch and screw depth, generally divided by one third of each section.High efficiency single screw extruder adopts two-stage overall design to strengthen plasticizing function, ensure high-speed,high-performance and stable extrusion, special barrier comprehensive mixing design, ensure the mixing effect of materials, high shear, low melting and plasticizing temperature ensure high-performance, low-temperature and low-pressure metering extrusion of materials. Design concept and features: high speed and high yield Extrusion Based on high flatness and straightness.

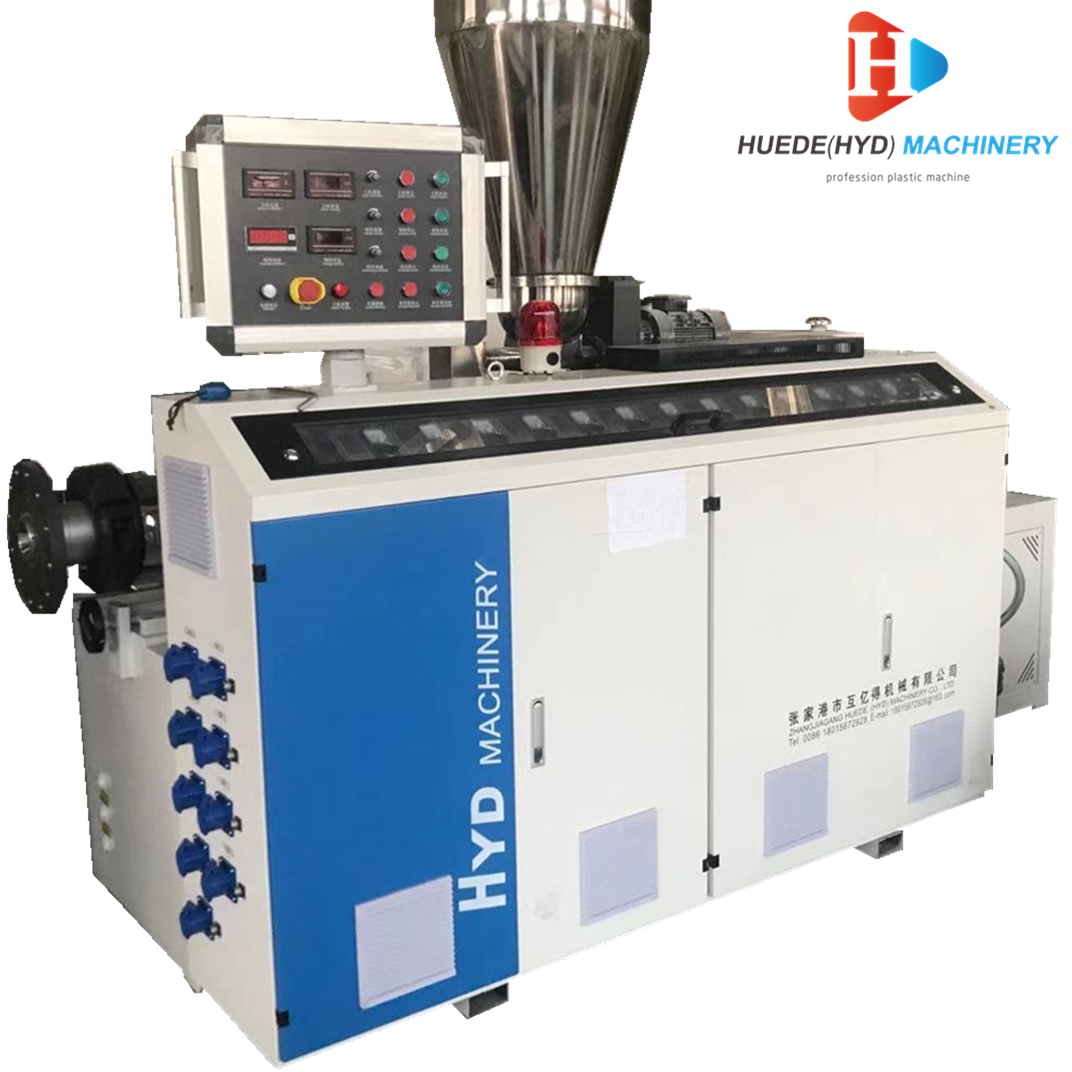

Product Images:

SJSZ51 Double Screw Plastic PVC PP PE Extruder Machine For Pipe Edge Banding Wall Ceiling Panel Making Machine

Machine Parameter:

Items\Model	SJSZ51
Diameter(mm)	51/105
Number of screw	2
Screw direction	Different to the outside
Screw Speed(r/min)	5~35
Effective Length of Screw(mm)	1240
Main motor power(kw)	18.5
Output(max)kg/h	50-150KG/HR
Centre	Screw quantitative
Centre Height of marrel	1000

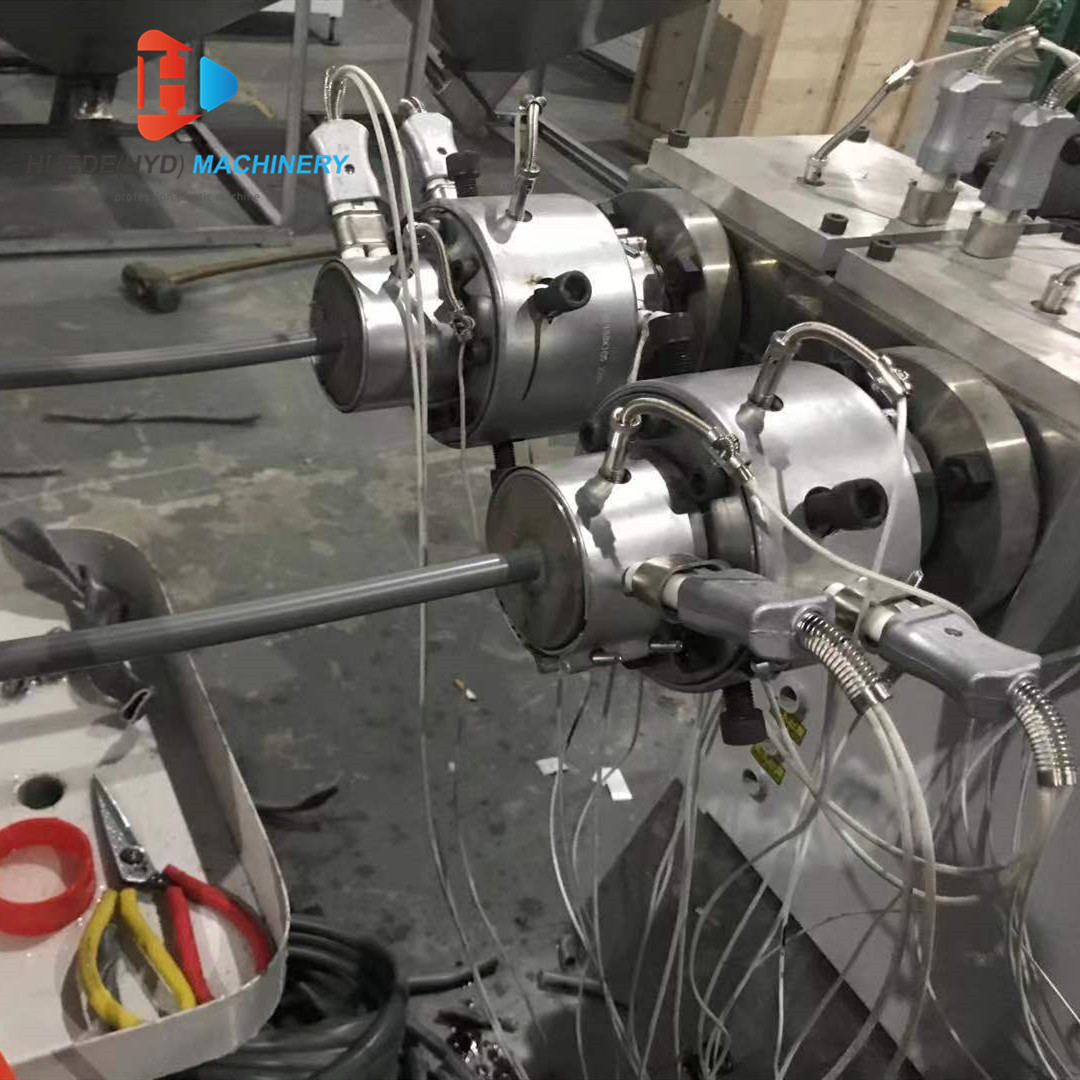

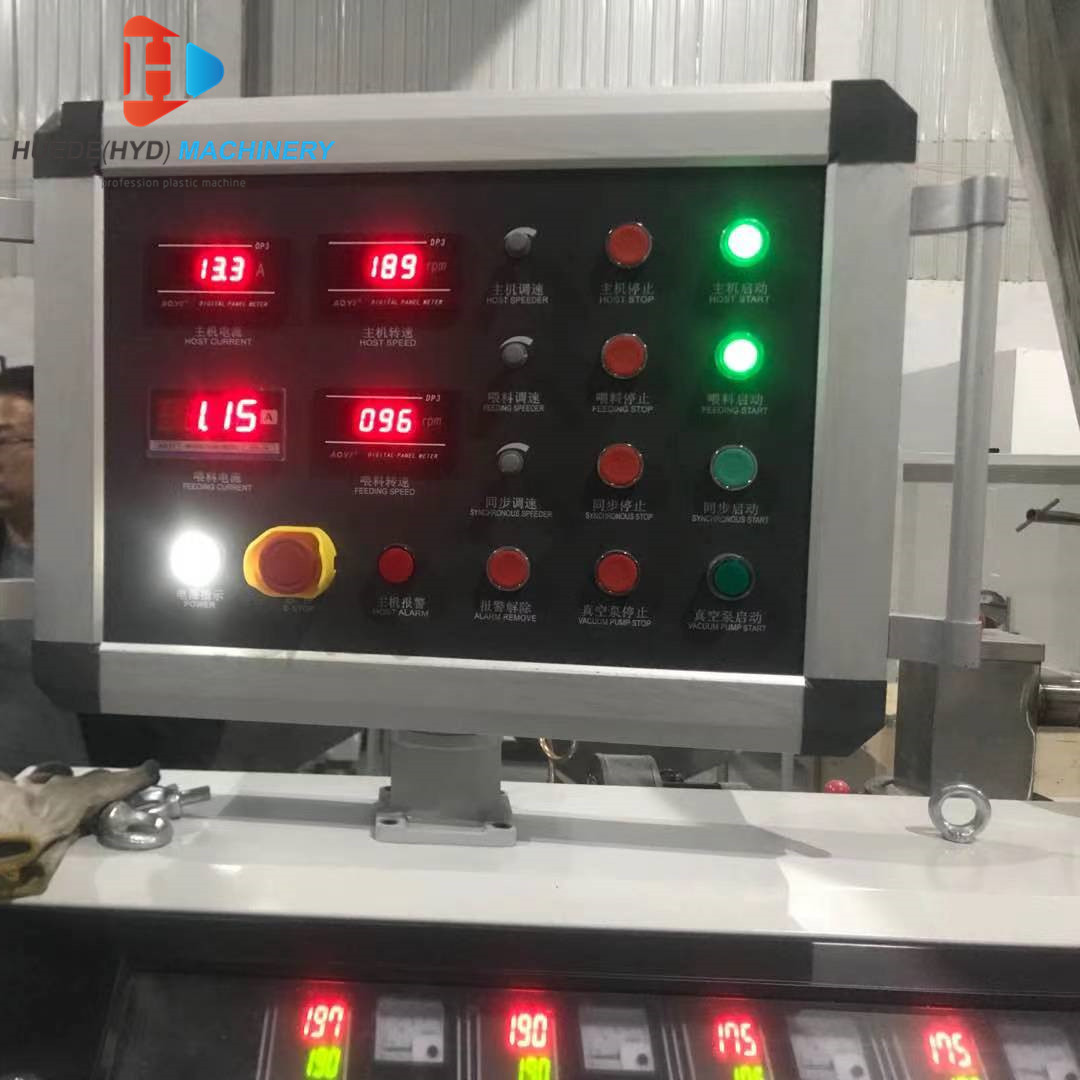

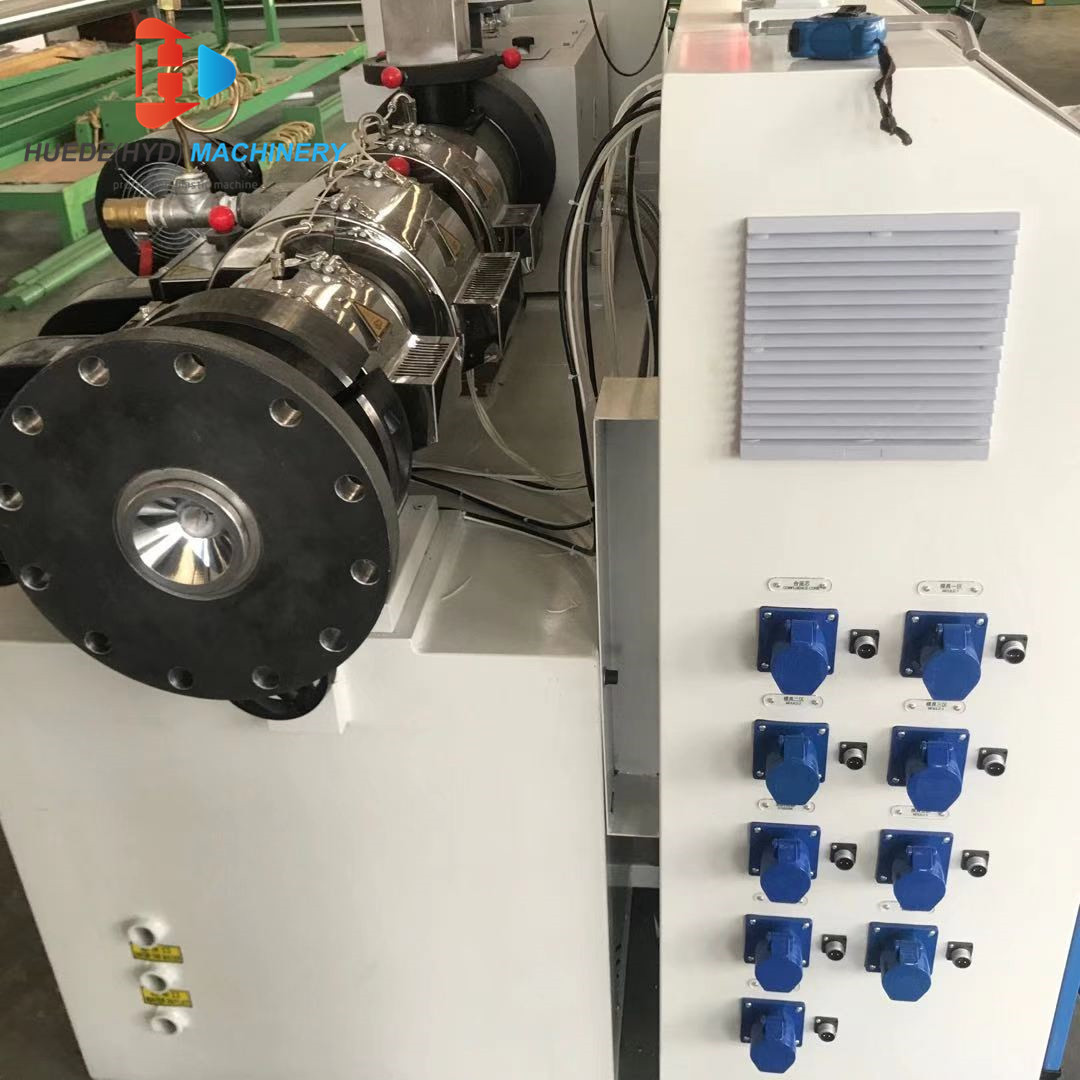

Factory View:

SJSZ51 Double Screw Plastic PVC PP PE Extruder Machine for Pipe Edge Banding Wall Ceiling Panel Making Machine

Our Service:

All equipment, including parts and components, shall be guaranteed for 24 months, and any problem within the warranty period shall be replaced free of charge (except screw and barrel).
