Wuxi Tangcheng Machinery Co., Ltd.
China Manufacturer with main products: Stitcher Machine, Stitching Machine, Folder Gluer Stitcher Machine, Folder Gluing Stitching Machine |
Two Piece Box Stitcher Two Piece Joint Box Semi Auto Stitching Machine
| FOB Price: | 33500.00 - 35000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Type: Other
- Brand Name: No
- Packaging Material: Wood
- Packaging Type: Case
- Application: Related packaging machine
- Condition: New
- Dimension(L*W*H): 3500x3200x2000mm
- Weight: 2900kg
- Model Number: DS-1600
- Power: 8KW
- Voltage: 380V
- Driven Type: Electric
- Automatic Grade: Semi-Automatic
Specifications

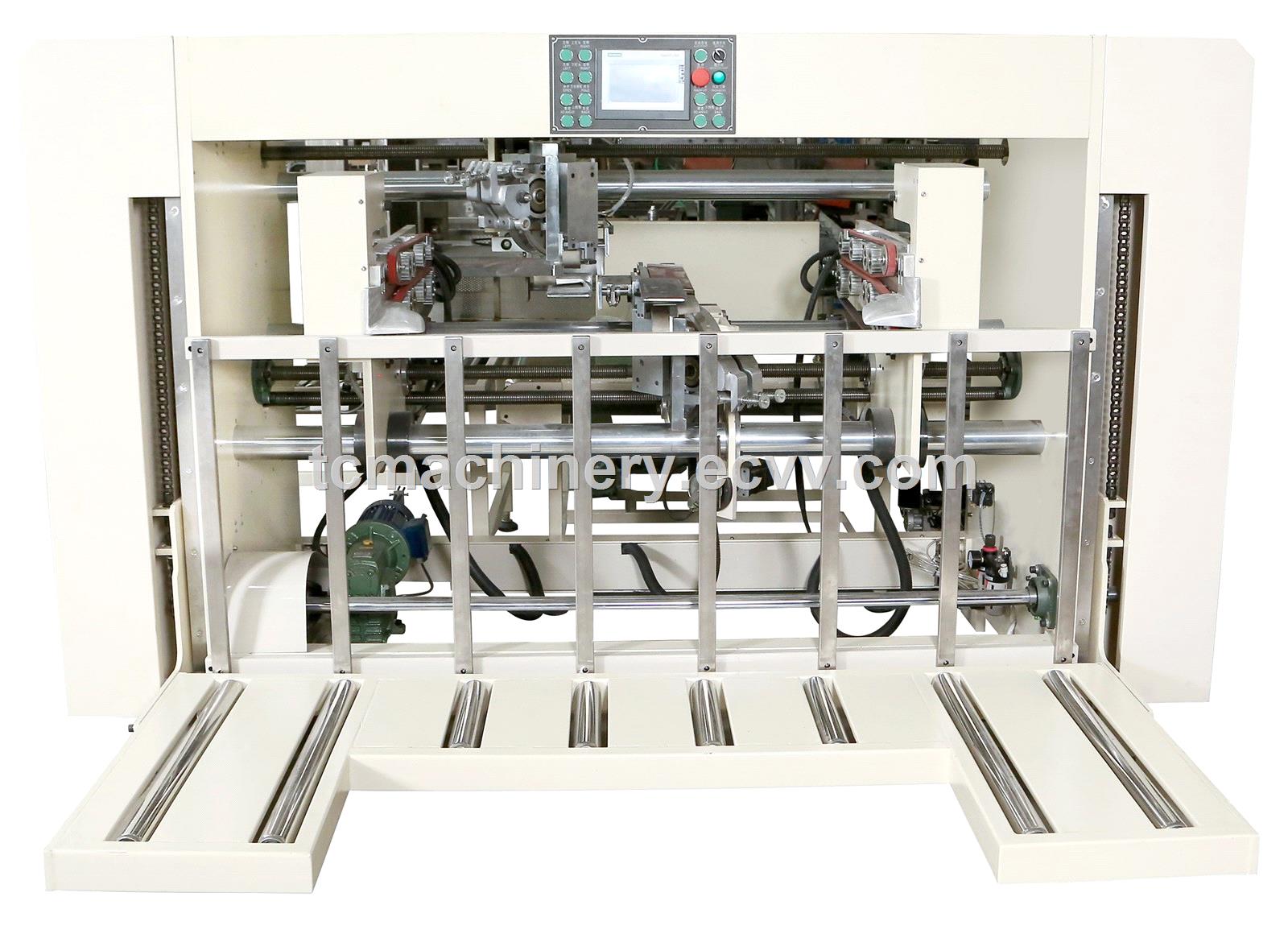

Two Piece BoxStitcherDS-1600
TWo pieceCardboard boxJoint stitcher, two piece box stitching machine, twin head joint stitcher,Two headCorrugated cartonBox stitching machine, double headCorrugatedStitching machine, dOubleheadboxsTitchingmAchine.
1. Adopt ImportdOubleservocOntrolsystem.
2. Applied single, double and irregular corrugated carton stitching.
3. Available for single, double and strengthen nail.
4. Suitable for 3 and 5 lAyer carton boxes.
5. Operating sizes are adjusted by computer, running errors showed on the screen.
6. Automatic counter ejector and bundle sheaves of cartons to make working efficiently.
7. Stitching Pitch from 30-110mm adjusted by computer.
Model |
DS-1600 |
Max size (A+B) x 2 |
3200mm |
Min size (A+B) x 2 |
1060mm |
Max length (A) |
1450mm |
Min length (A) |
350mm |
Max width (B) |
800mm |
Min width (B) |
130mm |
Min height (C+D+C) |
380mm |
Max machine speed |
600 stitches/min |
Stitching distance |
30-110mm |
Stitching quantity |
2-99 stitches |
Stitching wire |
Width: 1.95mm (+/- 0.05mm), thickness: 0.75mm (+/- 0.03mm) |
Stitching forming |
// // // / / / // / // |
Material |
3ply and 5ply corrugated board |
Total power |
8KW |
Voltage supply |
380V, 50HZ, 3phase, 5 lines |
Machine weight |
2900kg |
Machine dimension |
3500x3200x2000mm |
