Tianjin Jiangrui Fluid Equipement Co., Ltd.
China Manufacturer with main products: Butterfly Valve, Marine Butterfly Valve, Check Valve, Gate Valve, Knife Gate Valve, Globe Valve |

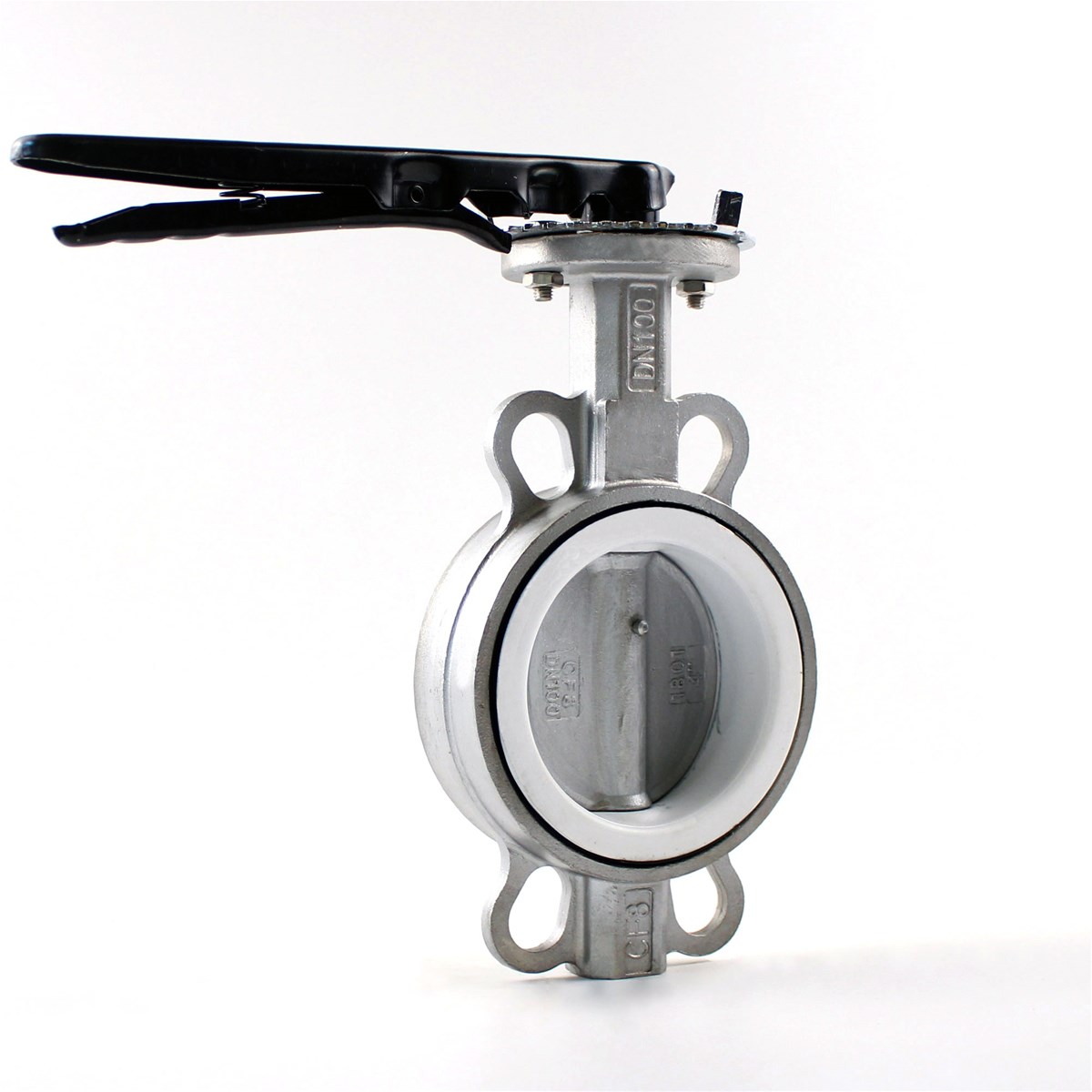

Stainless Steel Wafer PTFE Seat Butterfly Valve
| FOB Price: | 25.00 - 59.00 USD/Piece |
|---|---|
| Supply Ability: | 65,000 Piece(s) per Month |
| Shipping: |
CFR |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | wooden box |
Quick Details
- Brand Name: JRVAL
- Temperature of Media: High Temperature
- Material: Stainless Steel
- Pressure: High Pressure
- Standard or Nonstandard: Standard
- Model Number: D71X-16P
- Port Size: DN50-DN1200
- Media: Oil
- Power: Manual
- Structure: Butterfly
- Pressure: PN10-PN16
- Standard: ISO,DIN,JIS,BS,ATSM
Specifications
Our products with following featurers:
1)Lost wax casting, test material content by the spectrometer, provide material test report for each batch of valve parts;
2)Casting materials like Zircon sand and zircon powder are all imported from Australia. the roughness of the valveis Ra0.8-3.2um, which meets the market standard of Europe and America.
3)Professional steel parts machining, two-step of machining and twice inspection, ensures the accuracy error of±0.20mm, high standard machining assures valve zero-leakage.
4) the valve stem bearing use "copper sleeve", which with good wear and corrosion resistance. Although cost is 50% higher than other materials, prolong the service life by 60-70%;
5) Rubber seat contains over 50% rubber, with stable resilience and tension. Although the cost is 30% higher than that of similar products in the market, its service life can be extended by 1-2 years; valve seat option with PTFE, NBR, EPDM, FKM etc.
6) Operation handle has opotion for 45#steel, stainless steel and aluminium etc.
Nominal Diameter DN(mm) |
32200 | |
Nominal Pressure PN(MPa) |
1.01.6 | |
Nominal Pressure (MPa) |
Strength |
1.52.4 |
Sealing Test |
1.11.76 | |
Main Parts |
Valve Body |
CF8/CF8M/CF3M |
Valve Disc |
Nickel Plated DI / Nylon Plated DI /CF8 /CF8M /CF3M /2507/ 2205 | |
Valve Seat |
EPDM/NBR/PTFE/VITON(Fluorine rubber) etc. | |
Connection Type |
Wafer Type | |
