Transcend Machinery Equipment Co., Ltd.
China Manufacturer with main products: Magnetic Driven Pump, Vertical Pump, Self-Priming Pump, Horizontal Pump, Chemical Filter, Chemical Filter Housing |
Home
>Products Catalog > Magnetic Drive Pump > TMP 30RM-70RM Seal-Less Magnetic Drive Pump/Acid Chemical Pump

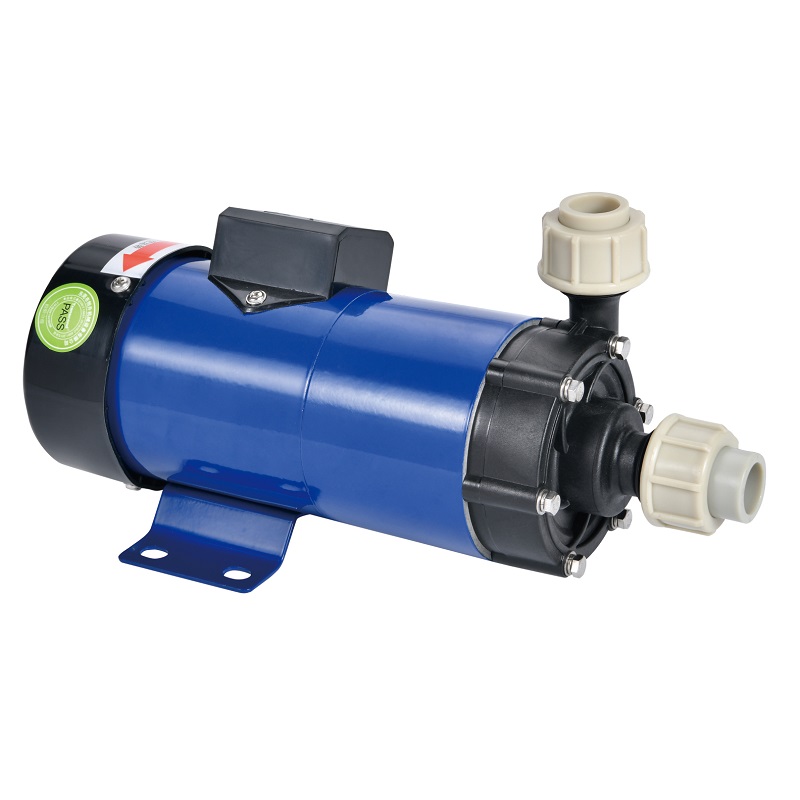

TMP 30RM-70RM Seal-Less Magnetic Drive Pump/Acid Chemical Pump
| FOB Price: | 120.00 - 320.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | FOB Shenzhen Port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Corrugated carton/Wooden box; |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: Transcend
- Product Type: Chemical fluid
- material: FRPP/PVDF
- type: Magnetic drive pump
- Model Number: TMP 30RM-100RM
- Product Name: Magnetic Drive Pump
- Material: FRPP/PVDF
- Advantage: Small and Strong
- Feature: Innovative design
- Warranty: 1 year warranty
- Certification: CE Certificate
- Power: 45W/65W/180W/250W
- Flow: 32L/min. - 130L/min.
- Head: 3.8m - 12.8m
- In-Outlet(mm): 3/4" / 1"
Specifications
Transcend PUMS and FILTERS Seal-less Magnetic Drive Pump
Maximum flow:32L/Min.-130L/Min.
TMP 30RM - 100RM Chemical pump(180W - 250W)
Feature and Benefits:
1. Non-contact structure:
by accurately setting the relative position of the passive magnet and the active magnet, the position of the magnetic capsule can be effectively controlled magnetically. Even when idling, the rear end of the bearing will not contact the rear trhrust ring. this structure is effective, the generation of frictional heat is suppressed and the lubrication of the friction part is ensure.
2. Small and strong:
Lightweight appearance and standardized pump internal parts, easy to assemble, and easy to disassemble, inspect and maintain, convenient and time-saving. All the stress-concentrated parts, such as the front shell and the rear shell of the pump are reinforced with reinforcing ribs to further improve the pressue resistance and mechanical strength of the pump.
3. Innovative design, no leakage:
the new design of the pump front cover, a variety of piping connection methods to match your need, fully sealed, zero leakage. the impeller of one-pieces design ensures high efficiency and quiet operation, is not easy to damage, and improves the reliability of the pump under high temperature conditions.
Desc. for Model:
Model.: TMP - 25 25 3 C V R U 5 1 2 3 4 5 6 7 8 9 TMP - 100 RM C V R 3 5 1 10 11 5 6 7 4 9 |
| 1. Type: TMP |
| 2. in-Outlet: 25-1" |
| 3. Power: 25-250W 18-180W |
| 4. Phase: 1 Single-phase 3 Three-Phase |
| 5. Pump body material: C-CFRPP K-PVDF E-ETFE |
| 6: Rubber Material: V-VITON E-EPDM N-NBR |
| 7.Bearing material: A-Ceramic C-Carbon S-SIC R-PTFE |
| 8. Piping form: U-Union M-Thread H-Intubation |
| 9.Frequency: 5-50HZ 6-60HZ |
| 10. Power: 100-250W 7-180W 40-65W |
| 11. Access mode: RU-Union RM-Thread R-Intubation |

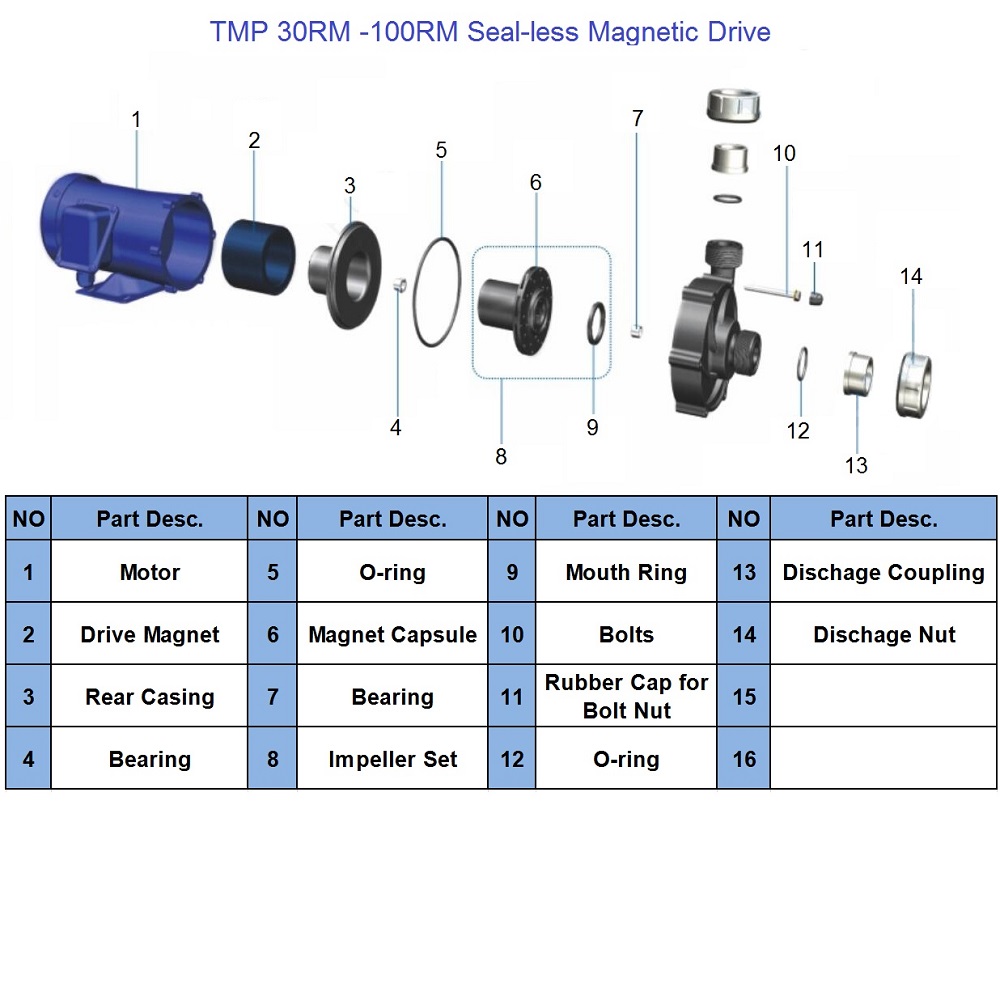

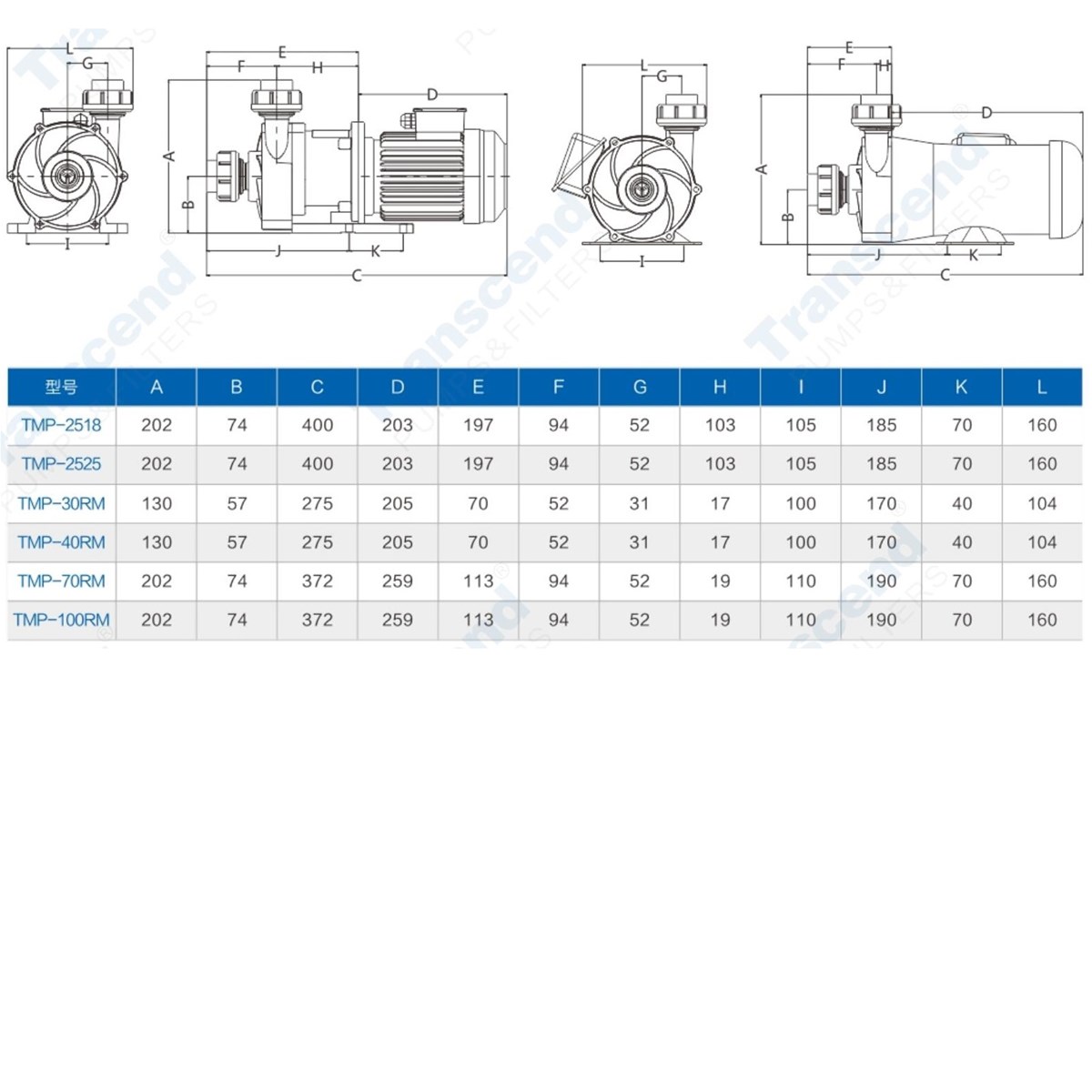

Pic.:
