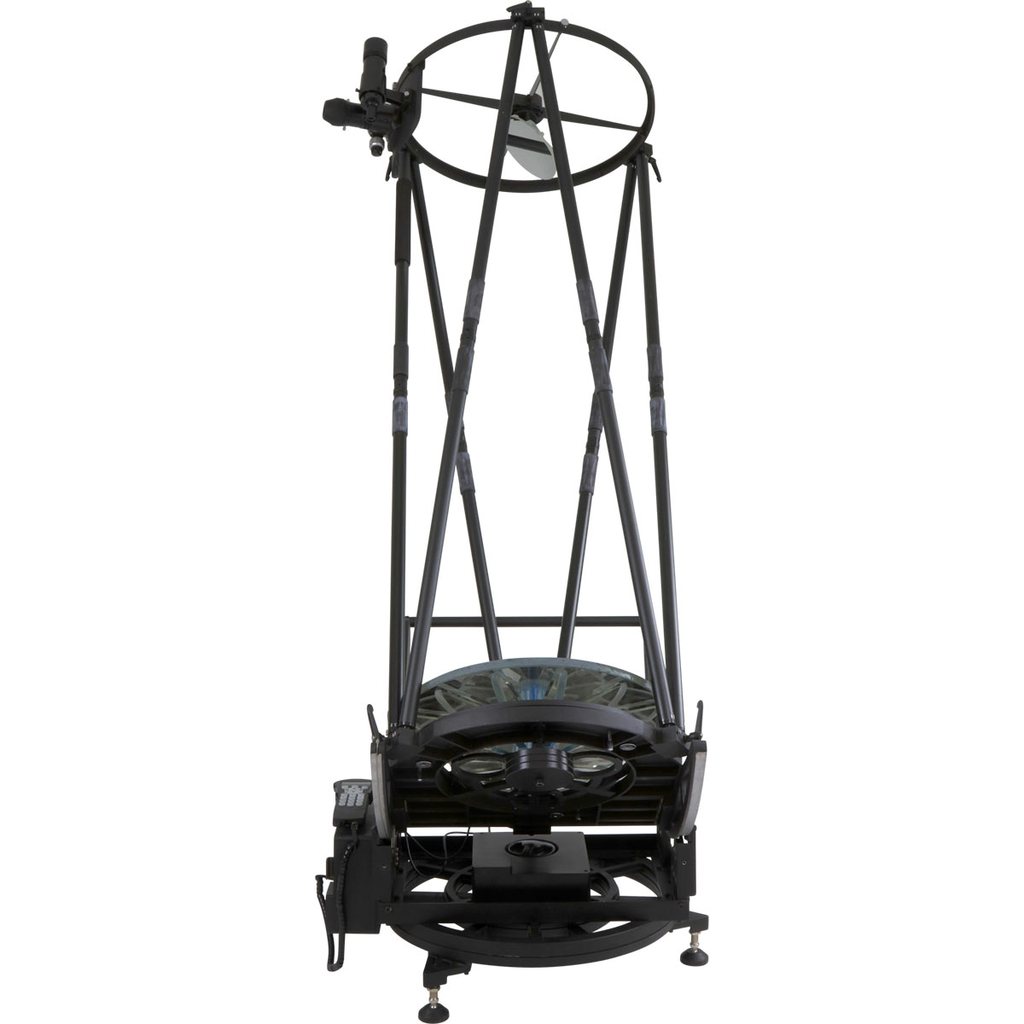

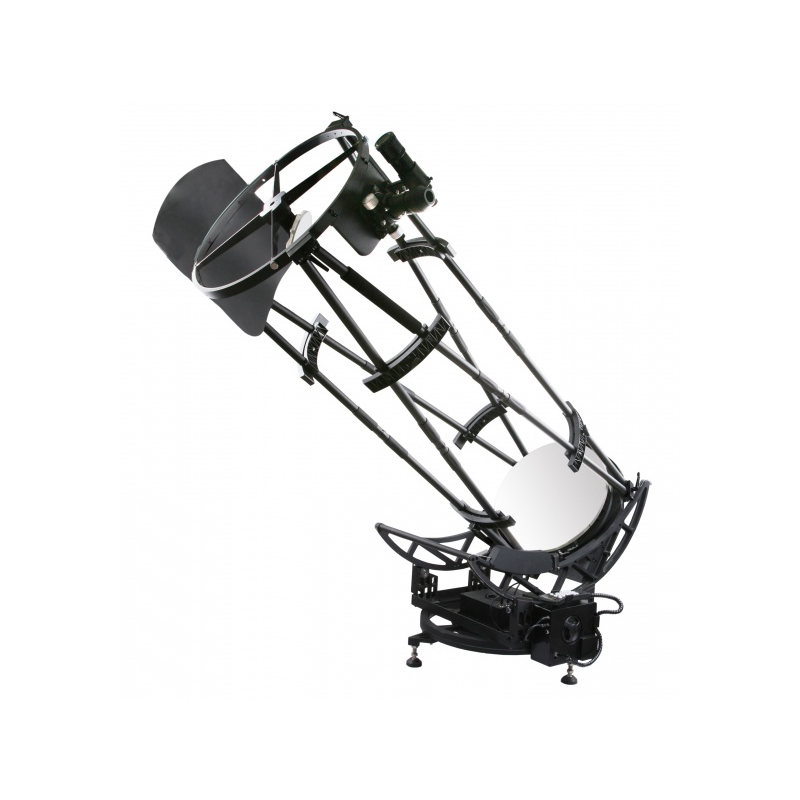

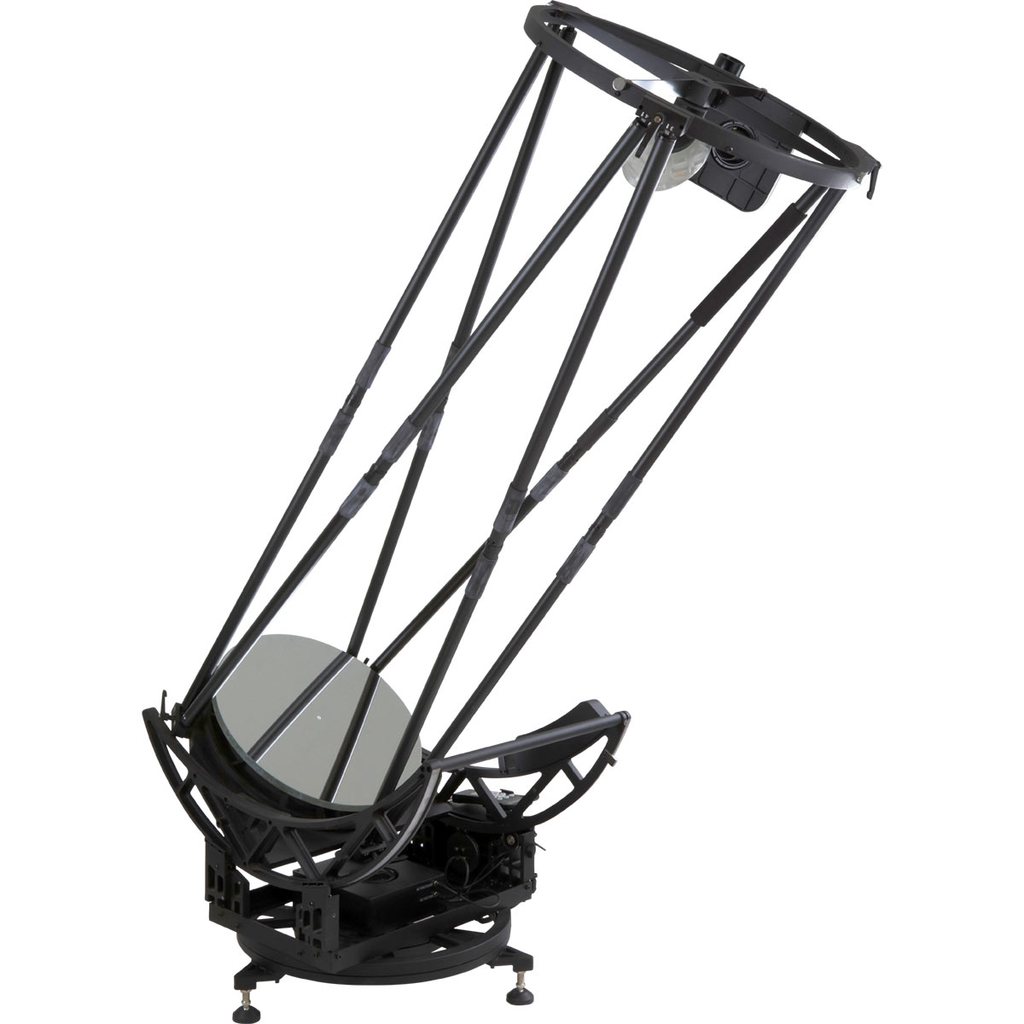

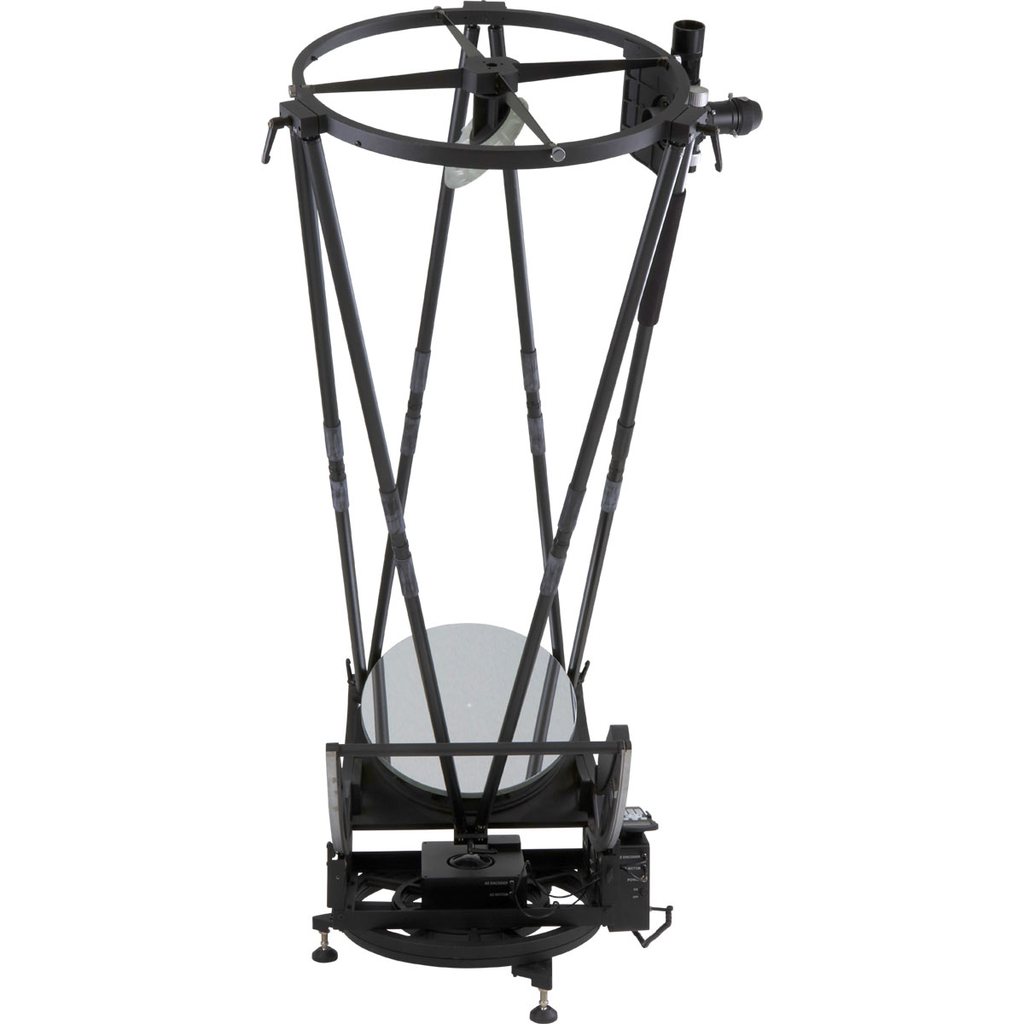

Stargate 500 Synscan 20" Truss Dobsonian, Telescope

FOB Price:	940.00 - 1200.00 USD/Unit
Shipping:	FOBshanghai

In Stock

Inquiry Now

Related products from verified members

25*30 Classical Monocular

Price:13.00-15.00 USD/Piece

Min. Order:10 Pieces
SLC - Binoculars 10 x 42 WB - Green

Price:300.00-350.00 USD/Unit

Min. Order:10 Units
Portable binocular Speaker USB Music speaker

Price:1.00-5.00 USD/Piece

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: sky-watcher
Weight: 1.05
size: 1
Waterproof: YES
Length: 1

Specifications

Sky-Watcher STARGATE Dobsonians with their huge light gathering capabilities provide the ultimate WOW factor experience for aficionados of visual astronomy, delivering outstanding performance on both Planetary and Deep-Sky objects. The elegant and rigid all metal truss tube design is easily transportable when unassembled, and can be assembled and ready for use in about 20 minutes. The mount provides motorised operation in both Alt and Azimuth axes, and can slew the telescope automatically to, and track over 42,900 night sky objects from the Synscan handset's extensive computerised database. Features Freedom-Find? Dual-Encoder technology, which also allows the telescope to be moved manually in either axis without losing it's alignment or positional information, giving the user enormous convenience and flexibility during observing sessions. Simply push the telescope close to the object and let the computer do the rest of the work!

Magnifications (with Eyepieces supplied):	X71 & x200
Highest Practical Power (Potential):	x1016
Diameter of Primary Mirror:	508mm
Telescope Focal Length:	2000mm (f/4)
Eyepieces Supplied:	10mm (1.25") & 28mm (2")
Collimating Eyepiece (1.25")
Dual-Speed 2" Crayford Focuser with 1.25" adaptor
Parabolic Primary Mirror (Patented weight saving design)
136mm Secondary Mirror
9x50 Finderscope
Direct SLR Camera Connection
Fabric Light Shroud
Alt-Azimuth Go-to mount (Metal construction)
Transmission: Worm + Timing Belt + 64 Micro-step/0.9 Stepper Motor Drive
Patented 'Freedom-Find' Dual-Encoder design allows manual movement without losing positional information
Pointing Accuracy: up to 5 arc-minutes (RMS)
Gear Ratio: Azimuth 400, Altitude 1523.796
Synscan Computerised Handset with 42,900+ Object Database
Power requirement: DC11V/5A ~ 15V/3A
61% more Light Gathering than 400mm
Overall Weight 90kg

Stargate 500 Synscan 20 Truss Dobsonian Telescope
