Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2 years
- Certification: CE
- Brand Name: xyz
- Condition: New
Specifications

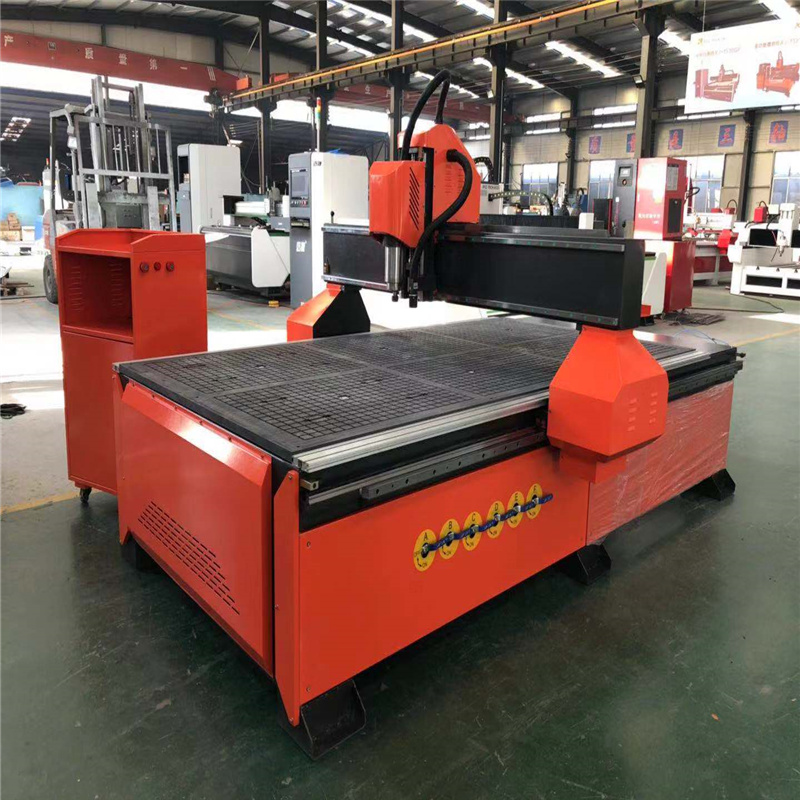

Woodworking engraving machine is mainly used for relief.
Feature1:Lathe bed
Adopt wholly Welded thick-tube steel structure featured by strong
Toughness,smooth
Operation and small vibration.
2:XY-axis adopt rack gear transmission featured by fast speed,high efficiency
and saving cost.
3:Z-axis adopt high precision ballscrew and imported Taiwan Square Linear Rail
to ensure work precisely and more durable.
4:Y-axis equipped with double-motor to drive powerfully keep stable movement
and never out of shape and no vibration under high speed for a long time.
5:Powerful compatibility,Type3,ArtCam,Castmate,Pore,ArtCut and kinds of CAD/CAM
Design software are all acceptable.Relief Sculpture(2D),Shadow carving and 3D
Processing are all easily to be designed.
6:Humanistic design,let you,regardless of being the fine vulture fine-pointed
Finish vigorously cuts can be handy.
Size Information
Model |
XJ1325 CNC Router |
Working Area |
1300*2500*200mm |
Structure,Table Material |
Big steel tube Structure with strong body |
Spindle Motor |
3.2KW Water-Cooling |
Inverter |
BEST Inverter |
Rotating Speed of Spindle |
2,4000RPM |
Motor |
450 Stepper motor |
Drive |
860 Drive |
Linear guide Rails |
XY:Taiwan Hiwin Linear rails and helical rack and pinion Z axis:Taiwan Hiwin linear rails and Taiwan TBI ball Screw |
Motion Positioning accuracy |
± 0.02/300mm |
Repositioning Accuracy |
± 0.0254mm |
Max motion Speed |
50,000mm/min |
Max working speed |
30,000mm/min |
Engraving Tools |
ER25 collect(3.175mm, 6mm,12.7mm) |
Dictate Formate |
G code, *uoo, *mmg, *plt |
Operating voltage |
380V/50HZ/3Phase |
Control system |
NCStudio /DSP/Mach3 |
Interface |
USB |
Flash Memory |
128M |
Table |
T-slot table |
Soft ware |
Type3, JDPaint, ArtCAM software |
Packing |
3.3*2.2*1.7M |
Net weight |
900KGS |
Gross weight |
1000KGS |
Aspirating |
2.2kw/3kw |
Vacuum adsorption Table |
5.5kw/7.5kw vacuum pump |
Company Introduction
JINAN XYZ-TECH CNC EQUIPMENT CO.LTD. is a specialized Manufacturer on advertisement equipments,due to the experiences of 9 years of Research and manufacture in this field,we have produces" XUNJIE" series CNC Routers for woodworking,advertisement stuff machining and mold processing, and Laser equipments as well." XYZ-TECH" is our new brand for oversea market.
We make the high quality advanced machines,provide the best after-sale service in China,and also offer the most competitive price to all of the customers." XYZ-TECH" is known by more and more people.at present,our Products have been exported to many countries and regions such as Czechic,England,Russia,Brazil,Para guay,India,Australia,Thailand,Singapore,Malaysia,China Taiwan,and so on.We have enjoyed the mutual benefit and will move on,and we Hope to establish a long term business relations with more and more oversea Customers.
