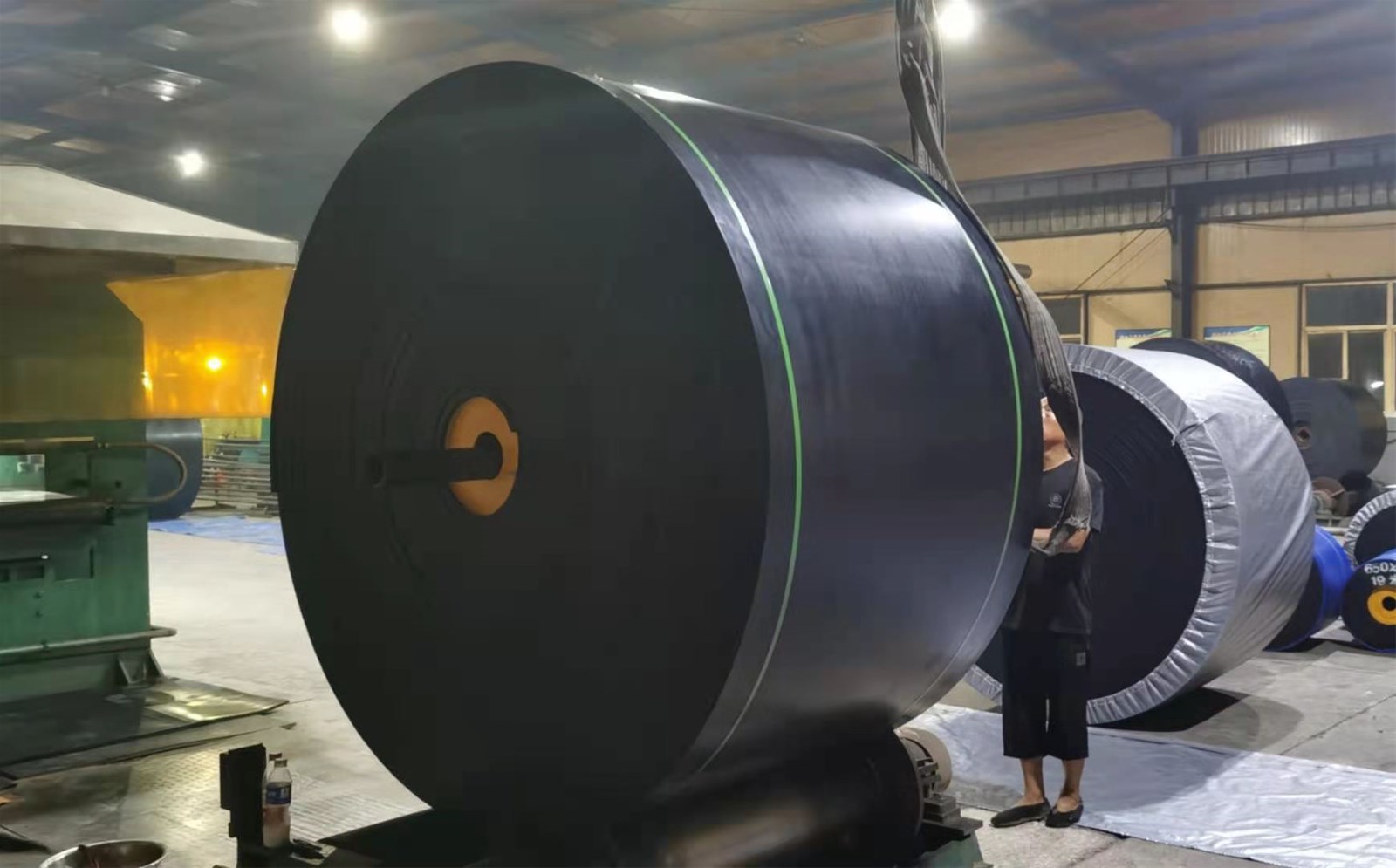

Industrial Heat Resistant Rubber Conveyor Belt

FOB Price:	300.00 - 2000.00 USD/Roll
Shipping:	Tianjin port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole. Outer is packed with one ply water-proof PP fabric

Quick Details

Brand Name: YUANSHENG
Color: BLACK
material: RUBBER
width: 400-1600MM
type: EP

Specifications

Heat Resistant Conveyor Belt is mainly used for transporting high temperature materials, such as sintering ore, hot coke, cement clinker, hot casting, etc. According to the manifestation of that the belt is damaged till it's out-of-function, and according to its heat resistant grade, we use EPDM or SBR as cover rubber and use high-strength EP or cotton canvas as tension element. Heat resistant woven glass fabric can be placed between cover rubber and belt canvas, so as to improve its working life. We can manufacture endless belt as per clients' requirements.

1. Physical and Mechanical Properties of Rubber Cover:

Item		Class
		T1	T2	T3	T4
		Allowable Changing Range
Hardness	Difference between before-aging and after -aging(IRHD)	+20	+20	±20	±20
Hardness	Maximum value after aging(IRHD)	85
Tensile Strength	Change rate after aging(%)	-25	-30	-40	-40
Tensile Strength	Minimum value after aging(MPa)	12	10	5	5
Elongation at break	Change rate after aging(%)	-50	-50	-55	-55
Elongation at break	Minimum value after aging(%)	200	200	180	180

2. Testing temperatures can be divided into four grades:

Grade	Can bear testing temperature(≤)
T1	100℃
T2	125℃
T3	150℃
T4	175℃

Item	between the fabric layers	between cover rubber and Fabric
Item	between the fabric layers	Cover rubber thickness ≤1.5mm	Cover rubber thickness≥1.5mm
Average value of longitudinal test	3.0	2.2	2.6
Lowest Peak of longitudinal test N/mm	2.0	1.6	2.0
