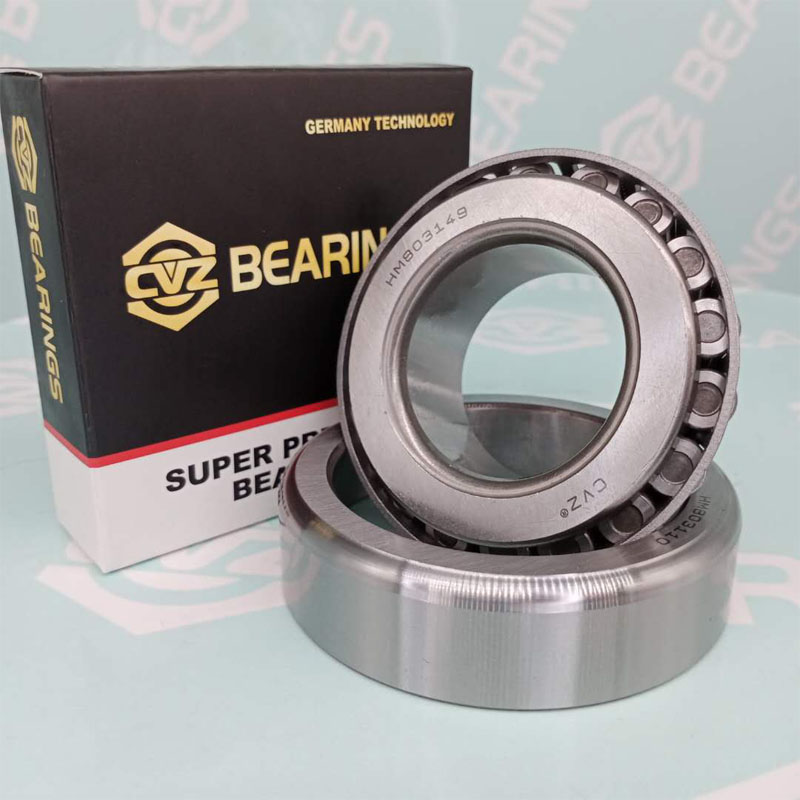

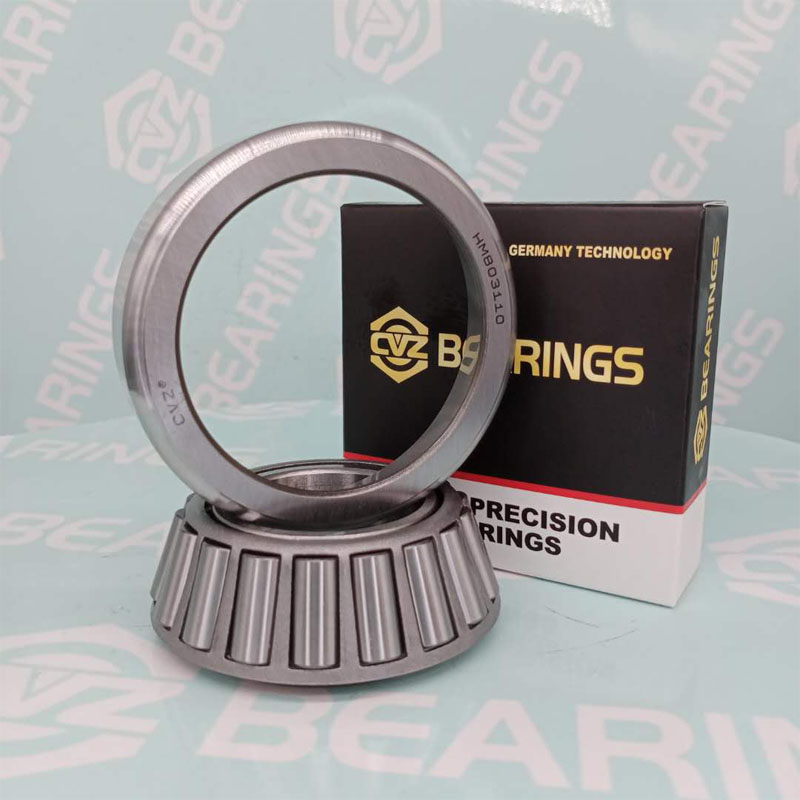

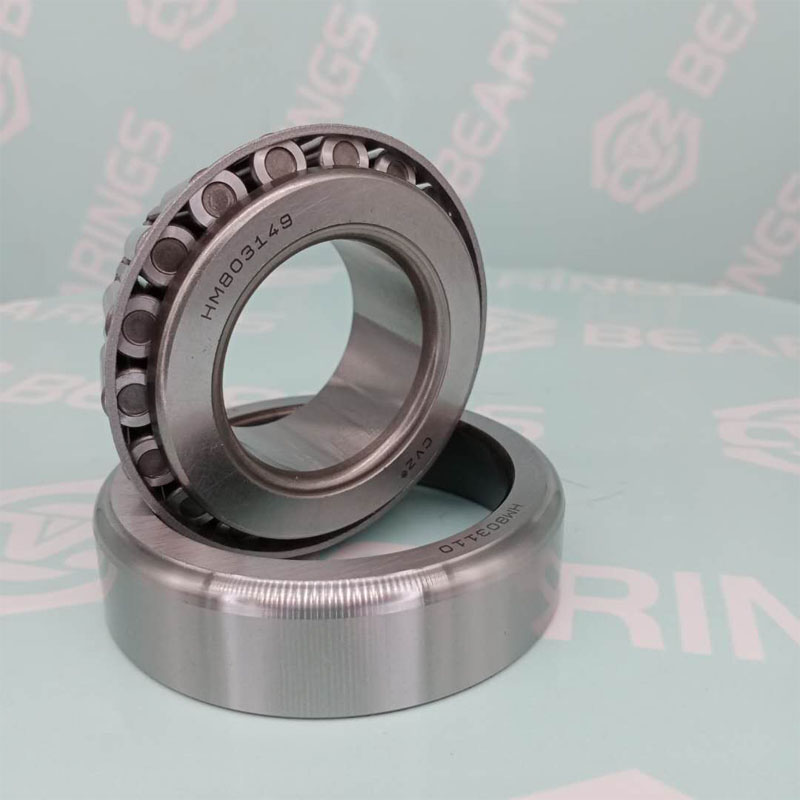

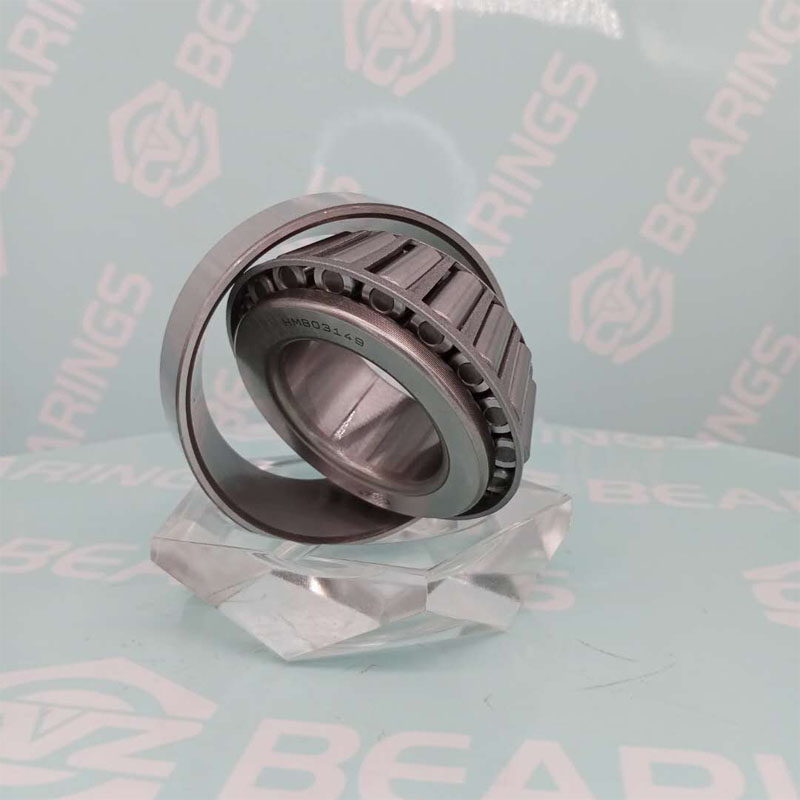

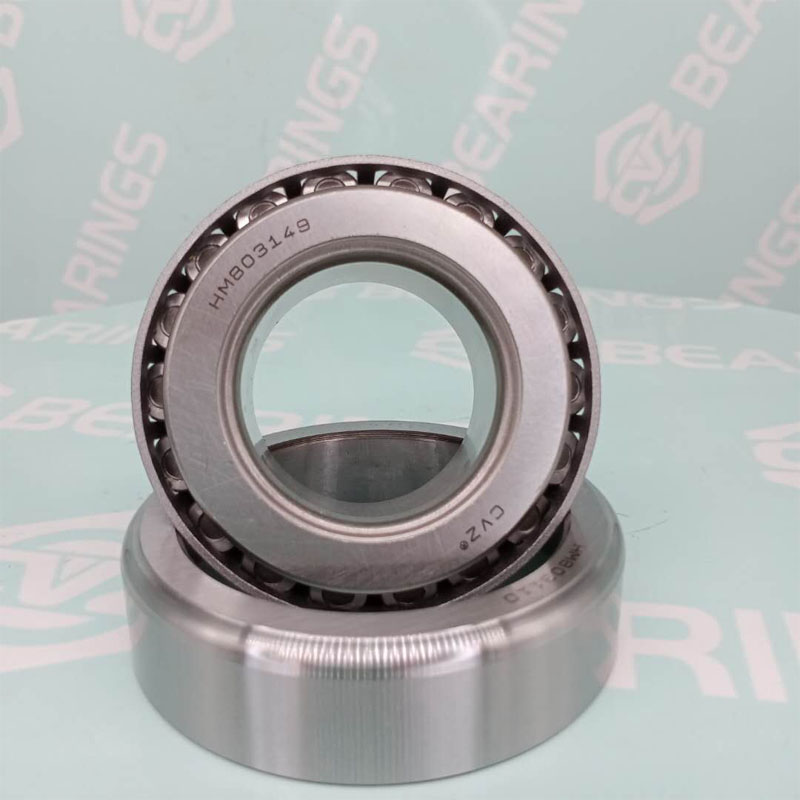

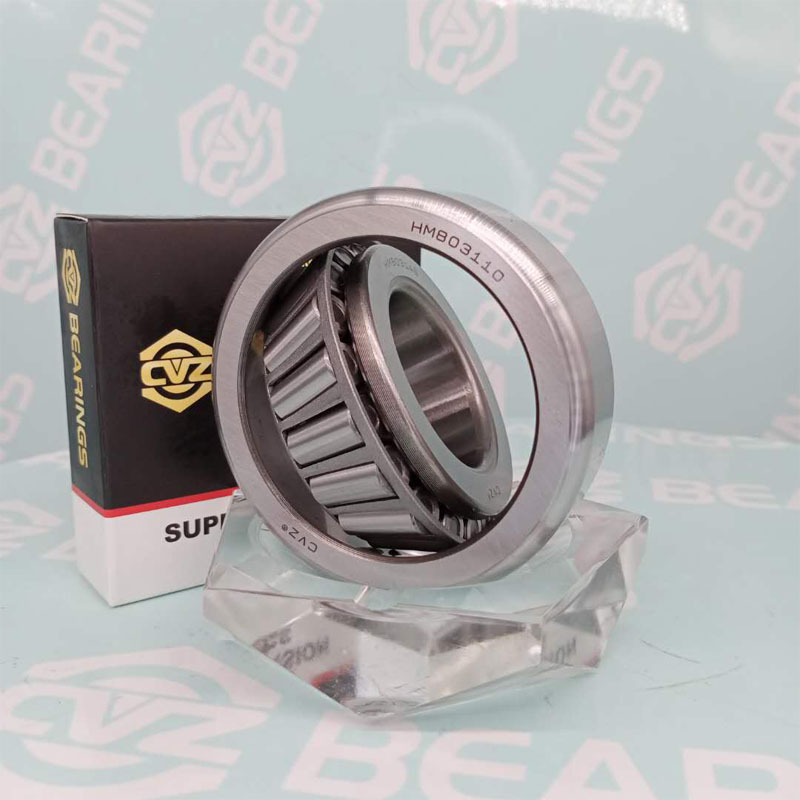

Inch/Imperial Taper Roller Bearings

FOB Price: 0.01 - 1000.00 USD/Set
Supply Ability: 100,000 Set(s) per Year
Shipping: Shipping, Air Transportation
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin: Shandong in China
Packaging Details: Craft Paper or separate box

Quick Details

  • Type: Roller
  • Structure: Taper
  • Number of Row: Single Row
  • Seals Type: Open
  • Outside Diameter: 75-150 mm
  • Bore Size: 40-120 mm
  • Brand Name: CVZ
  • Precision Rating: P5 P6
  • Model Number: H414235/H414210

Specifications

China Manufacture Supplier Distributor Inch/Imperial Taper/Tapered Roller Bearing
InchImperial Taper Roller Bearings
about Guomai Bearing
Shandong Guomai Bearing Co.,Ltd(hereinafter referred to as Guomai) was established in 1999, with more than 20 years of bearing research and manufacturing experience. the factory covers an area of 16000 square meters,7000 of which is manufacturing area and the other is office and warehouse. Guomai has large stock for normally used bearing models and this enables us to deliver the bearing to customers within the shortest time.

There are total 160 staffs, 6 automatic bearing assembly lines,116 CNC machines and 22 sets of precise inspection instruments. We not only have our own R&D team but also cooperate with Henan University of Science and Technology, Luoyang Bearing Research Institute to develop new bearing designing and manufacturing technology.
in addition to conventional bearings, Guomai also provides OEM and ODM service to our respectable customers to meet their individual requirements.We introduced advanced milling, turning machines, heat treatment equipment and bearing testing machines to guarantee the quality of the bearings because we know "Quality is the life of Guomai".Now our top products include taper roller bearing, angular contact ball bearing, deep groove bearing,spherical bearing and cylindrical roller bearing with P5, P4 accuracy grade.

after so many years of developing, Guomai has built up an excellent sales network within China. Our two bearing brands "CVZ" and "Bentu" are well known and have high reputation within the industrial equipment and components field. Moreover, with confidence of our bearing quality, we started to export our bearings 4 years ago. Customers from Europe, North America, Middle East, Southeast Asia and Africa have enjoyed the happiness our bearings brought to them.

Guomai Bearing always upholds "WIN-WIN" spirit and believes in "Details determine success" philosophy, and keep improving bearing quality in the past 20 years.  Some series of our bearings have similar quality with SKF, NSK, Timken, NACHI, KOYO, NTN and other world famous brands but with lower price.
Looking to the future, Guomai will insist on the technology innovation and processing levels to provide the most appropriate bearing products and service to our customers.
Part of Inch tapered roller bearings specifications

Boundary Dimension Net Weight Bearing No.
d[mm] D[mm] T[mm] B[mm] [kg]
133.35 196.85 193.675 193.675 20.2 K67390D/K67322-K67322D
177.8 247.65 192.088 192.088 28.6 K67791DGW/K67720-K67721D
187.325 269.875 211.138 211.138 41.5 KM238849D/KM238810-KM238810D
190.5 266.7 187.325 188.912 32.9 67885D/67820-67820D
198.438 284.162 225.425 225.425 32.9 M240648DD/M240611-M240611D
203.2 317.5 266.7 266.7 76.3 93800D/93125-93127D
206.375 282.575 190.5 190.5 34.4 K67986D/K67920-K67921D
  282.575 190.5 190.5 34.4 67986D/67920-67921D
  282.575 226 226 40.3 3806/206X4
220.662 314.325 239.712 239.712 60.2 KM244249D/KM244210-KM244210D
  314.325 239.712 239.712 60.2 M244249DW/M244210-M244210D/HEC9
  314.325 239.712 239.712 59.8 M244249DGW/M244210-M244210D/HEC9
221.224 355.498 228.6 228.6 81.8 EE127094D/127138-127139D
228.6 311.15 200.025 200.025 43.9 LM245149D/LM245110-LM245110D
  311.15 200.025 200.025 43.9 LM245149DGW/LM245110-LM245110D
  400.05 296.875 296.875 148 EE529091D/529157-529158XD
241.478 349.148 228.6 228.6 71.9 EE127097D/127135-127136D
  349.148 228.6 228.6 71.9 KEE127097D/K127135-K127136D
244.475 327.025 193.675 193.675 42.7 KLM247748DW/KLM247710-KLM247710D
  327.025 193.675 193.675 42.7 LM247748DW/LM247710-LM247710D
254 358.775 269.875 269.875 88.9 M249748D/M249710-M249710D
