Home  >Products Catalog > China Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail Carriage

China Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail Carriage

FOB Price: 0.01 - 1000.00 USD/Set
Supply Ability: 100,000 Set(s) per Year
Shipping: Shipping, Air Transportation
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin: Shandong in China
Packaging Details: As per customers' request

Quick Details

  • Type: Linear
  • Precision Rating: P5 P6
  • Brand Name: CVZ
  • Type: Linear Motion Guide Ball Bearings
  • Linear bearing: Linear Bearing
  • Accessories: None

Specifications

China Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail Carriage
China Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail Carriage
about Guomai Bearing Factory

Shandong Guomai Bearing Co.,Ltd(hereinafter referred to as Guomai) was established in 1999, with more than 20 years of bearing research and manufacturing experience. the factory covers an area of 16000 square meters,7000 of which is manufacturing area and the other is office and warehouse. Guomai has large stock for normally used bearing models and this enables us to deliver the bearing to customers within the shortest time.

There are total 160 staffs, 6 automatic bearing assembly lines,116 CNC machines and 22 sets of precise inspection instruments. We not only have our own R&D team but also cooperate with Henan University of Science and Technology, Luoyang Bearing Research Institute to develop new bearing designing and manufacturing technology.
in addition to conventional bearings, Guomai also provides OEM and ODM service to our respectable customers to meet their individual requirements.We introduced advanced milling, turning machines, heat treatment equipment and bearing testing machines to guarantee the quality of the bearings because we know "Quality is the life of Guomai".Now our top products include taper roller bearing, angular contact ball bearing, deep groove bearing,spherical bearing and cylindrical roller bearing with P5, P4 accuracy grade.

after so many years of developing, Guomai has built up an excellent sales network within China. Our two bearing brands "CVZ" and "Bentu" are well known and have high reputation within the industrial equipment and components field. Moreover, with confidence of our bearing quality, we started to export our bearings 4 years ago. Customers from Europe, North America, Middle East, Southeast Asia and Africa have enjoyed the happiness our bearings brought to them.

Guomai Bearing always upholds "WIN-WIN" spirit and believes in "Details determine success" philosophy, and keep improving bearing quality in the past 20 years.  Some series of our bearings have similar quality with SKF, NSK, Timken, NACHI, KOYO, NTN and other world famous brands but with lower price.
Looking to the future, Guomai will insist on the technology innovation and processing levels to provide the most appropriate bearing products and service to our customers.

Linear Sliding Block Bearing Designation

Model No. Outer dimensions Basic load rating
Radial
Height Width Length Dynamic Static
M W L Rating Rating
      C C0
mm mm mm kN kN
HSR 15A 24 47 56.6 10.9 15.7
HSR 15AM 24 47 56.6 10.9 15.7
HSR 20A 30 63 74 19.8 27.4
HSR 20AM 30 63 74 19.8 27.4
HSR 25A 36 70 83.1 27.6 36.4
HSR 25AM 36 70 83.1 27.6 36.4
HSR 30A 42 90 98 40.5 53.7
HSR 30AM 42 90 98 40.5 53.7
HSR 35A 48 100 109.4 53.9 70.2
HSR 35AM 48 100 109.4 53.9 70.2
HSR 45A 60 120 139 82.2 101
HSR 55A 70 140 163 121 146
HSR 65A 90 170 186 195 228
HSR 85A 110 215 245.6 304 355

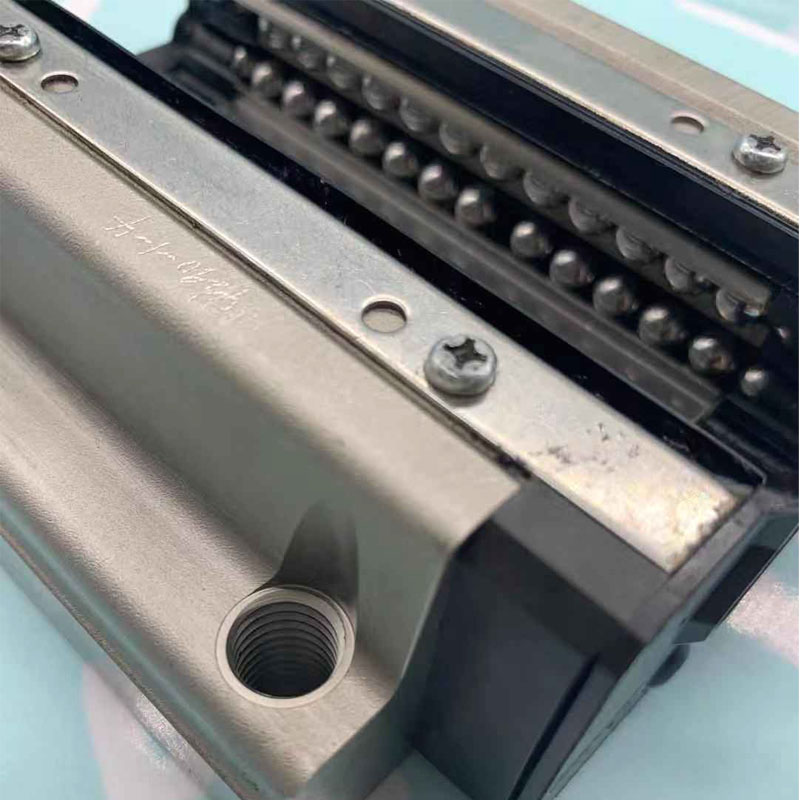

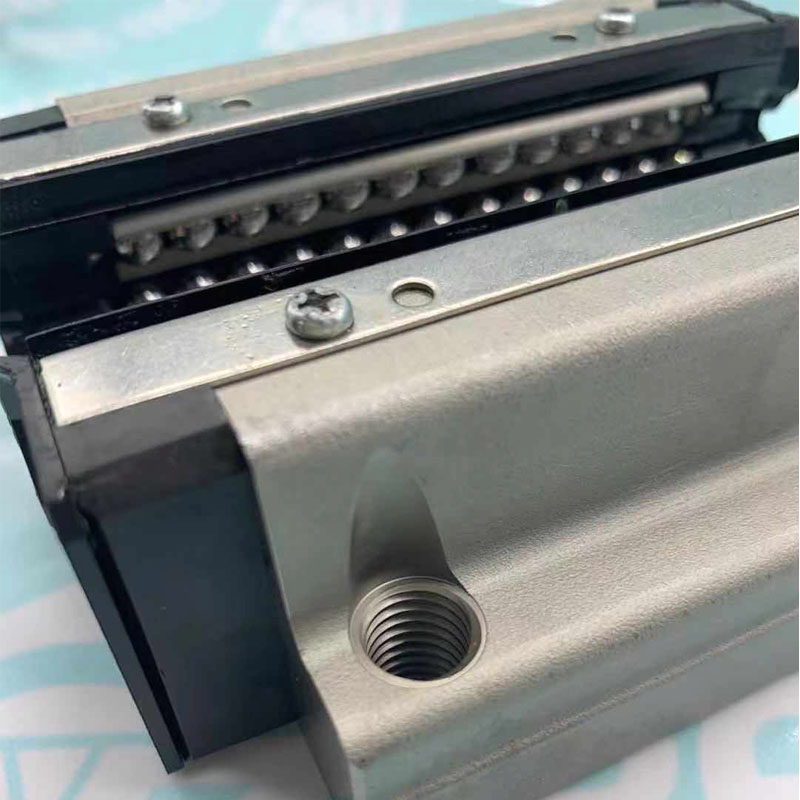

Linear Sliding Block Bearing HSR200A Details
China Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail CarriageChina Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail CarriageChina Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail CarriageChina Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail CarriageChina Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail CarriageChina Factory Supply Linear Motion Block Bearing HSR Series Linear Sliding Block Bearing with Guide Rail Carriage
