Shandong Guomai Power Machinery Co., Ltd.
China Manufacturer with main products: Deep Groove Ball Bearings, Taper Roller Bearings, Cylindrical Roller Bearings, Spherical Roller Bearings, Pillow Block Bearings, Auto... |

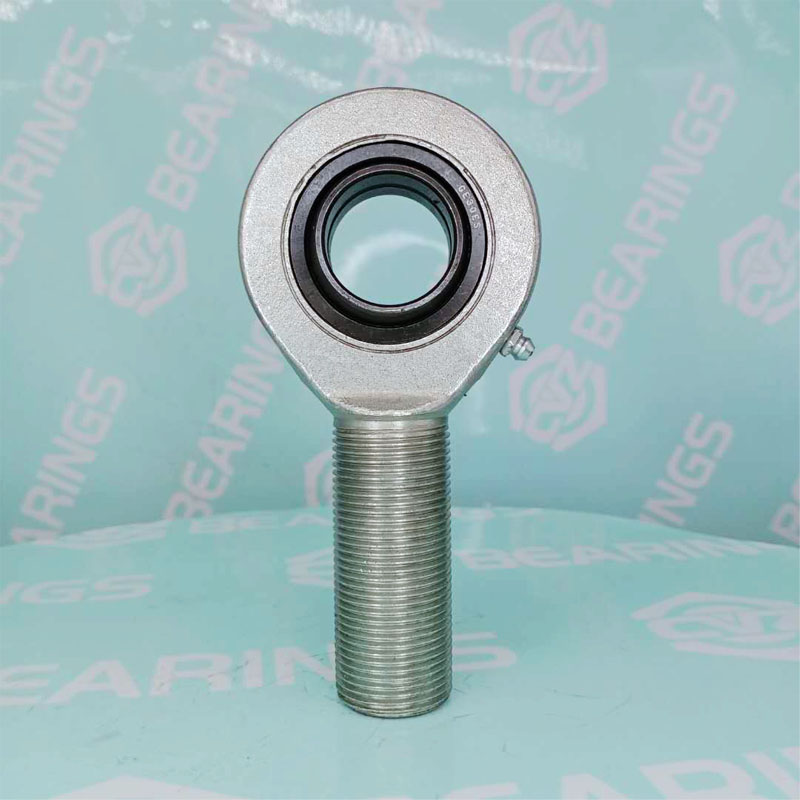

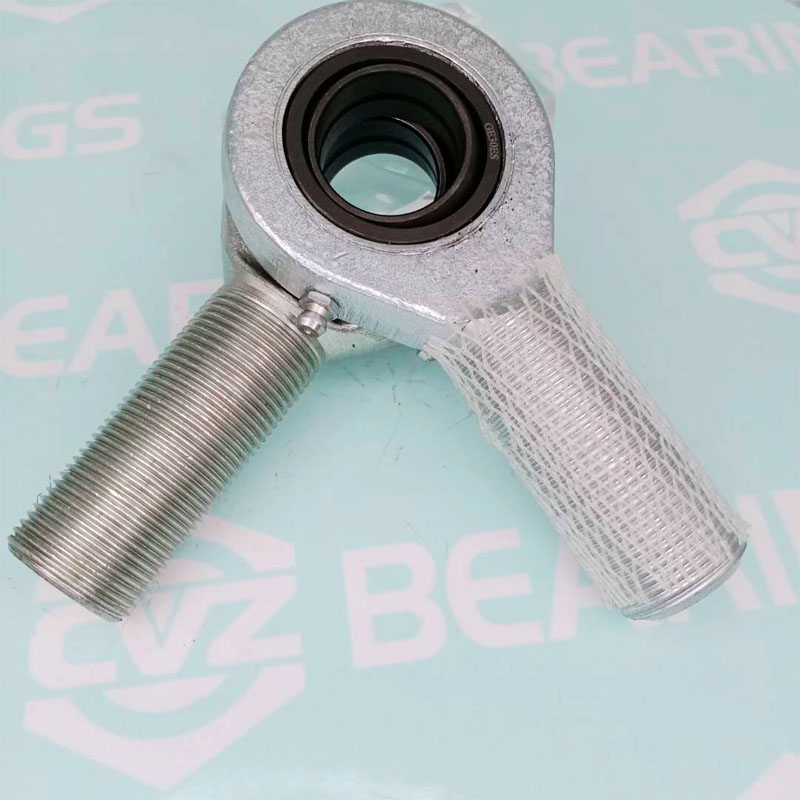

Carbon Steel Rod Ends Bearings Heim/Rose Joint for Tractor
| FOB Price: | 0.01 - 100.00 USD/Set |
|---|---|
| Supply Ability: | 100,000 Set(s) per Year |
| Shipping: | Shipping, Air Transportation |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | As per customers' request |
Quick Details
- Type: Rod End
- Precision Rating: P6
- Bore Size: 10-120 mm
- Brand Name: CVZ
- Type: Rod End Bearing
- Packing: As per customers' request
- Model Number: SA30ES
Specifications
Carbon Steel Rod Ends Bearings Heim/Rose Joint for Tractor about Rod End Bearings

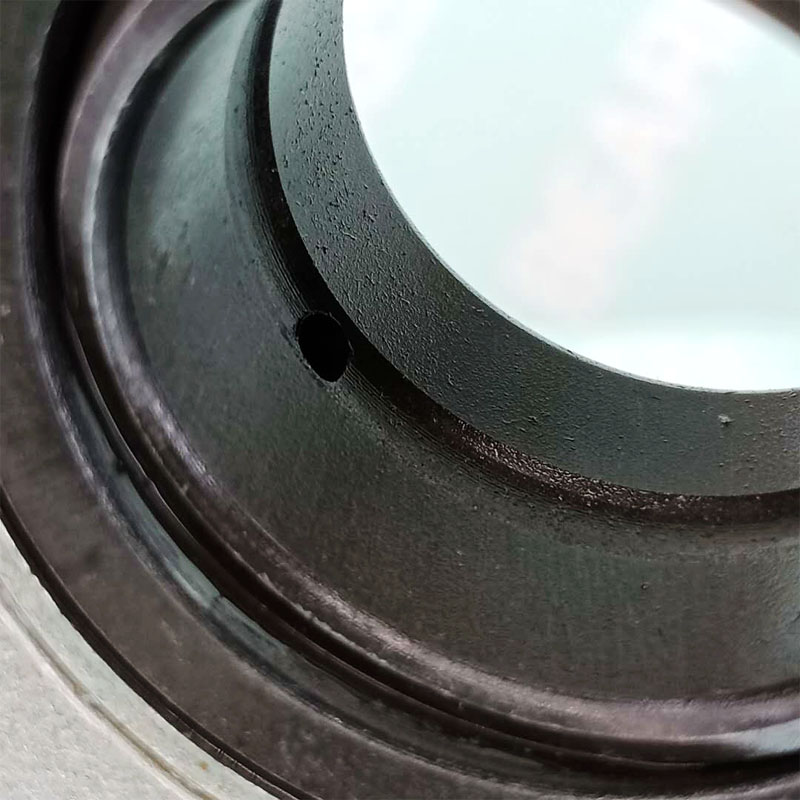

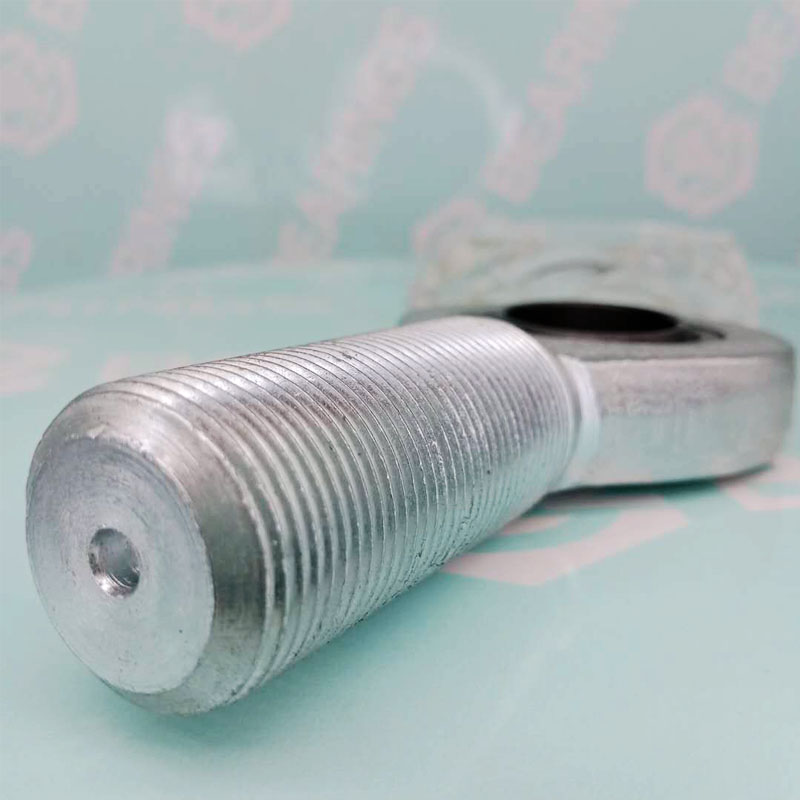

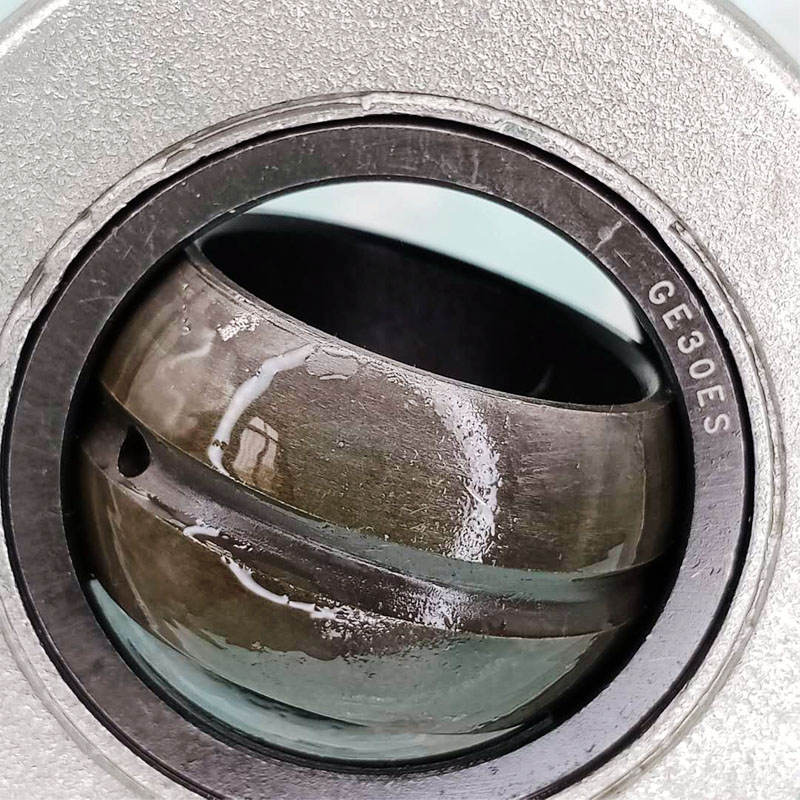

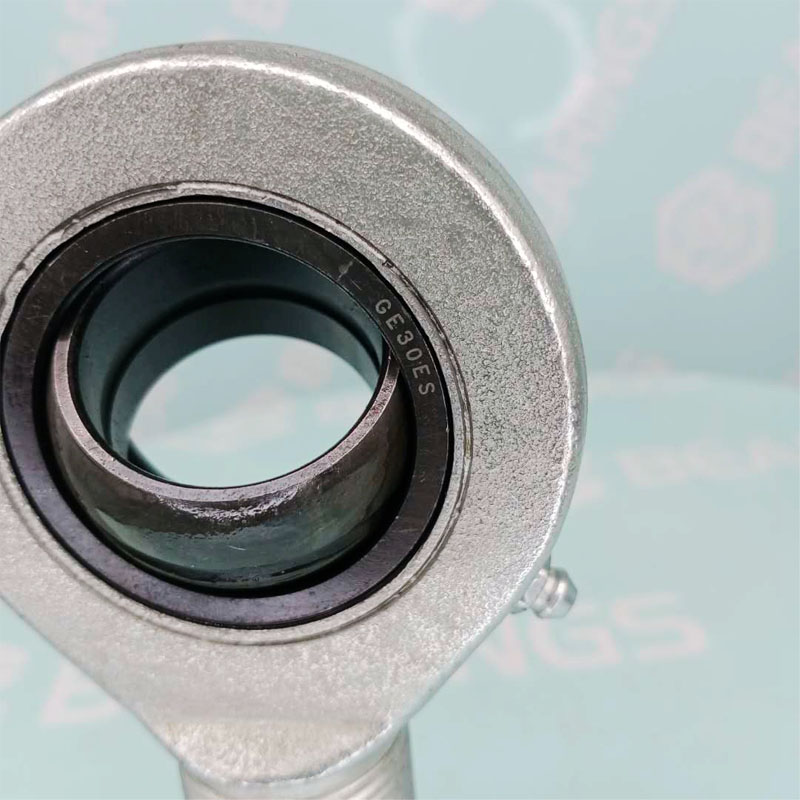

A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. Rod ends are available with left- or right-hand female (internal) or male (external) threads.
the heim joint's advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree (an angle other than 90 degrees). A link terminated in two heim joints permits misalignment of their attached shafts (viz., other than 180 degrees).
Heim Joint Rod End/Ends Bearings
Heim Joint Spherical Plain Rod End Bearing DetailsBearing Designation
Principa Dimensions (mm)
Load Ratings
Mass (KN) d
d3
B
C1
L1
d2
L7
h
L2
dk
R1s
α
C
C0
kg 6g
min
min
≈ SA6E*
6
M6x1.0
6
4.4
18
21
12
36
46.5
10
0.3
13
3.4
8.15
0.017 SA8E*
8
M8x1.25
8
6
22
24
14
42
54
13
0.3
15
5.5
12.9
0.029 SA10E*
10
M10x1.5
9
7
26
29
15
48
62.5
16
0.3
12
8.15
17.6
0.051 SA12E*
12
M12x1.75
10
8
28
34
18
54
71
18
0.3
11
10.8
24.5
0.086 SA15ES
15
M14x2.0
12
10
34
40
20
63
83
22
0.3
8
17
36
0.14 SA17ES
17
M16x2.0
14
11
36
46
23
69
92
25
0.3
10
21.2
45
0.19 SA20ES
20
M20x1.5
16
13
43
53
27
78
104.5
29
0.6
9
30
60
0.31 SA25ES
25
M24x2.0
20
17
53
64
32
94
126
35.5
0.6
7
48
83
0.56 SA30ES
30
M30x2.0
22
19
65
73
37
110
146.5
40.7
0.6
6
62
110
0.89 SA35ES
35
M36x3.0
25
21
82
82
42
140
181
47
0.6
6
80
146
1.4 SA40ES
40
M39x3.0
28
23
86
92
48
150
196
53
0.6
7
100
180
1.8 SA40-1ES
40
M42x3.0
28
23
86
92
48
150
196
53
0.6
7
100
180
1.85 SA45ES
45
M42x3.0
32
27
94
102
52
163
214
60
0.6
7
127
240
2.6 SA45-1ES
45
M45x3.0
32
27
94
102
52
163
214
60
0.6
7
127
240
2.66 SA50ES
50
M45x3.0
35
30
107
112
60
185
241
66
0.6
6
156
290
3.4 SA50-1ES
50
M52x3.0
35
30
107
112
60
185
241
66
0.6
6
156
290
3.5 SA60ES
60
M52x3.0
44
38
115
135
72
210
277.5
80
1
6
245
450
5.9 SA60-1ES
60
M60x4.0
44
38
115
135
72
210
277.5
80
1
6
245
450
6.02 SA70ES
70
M56x4.0
49
42
125
160
87
235
315
92
1
6
315
610
8.2 SA70-1ES
70
M72x4.0
49
42
125
160
87
235
315
92
1
6
315
610
8.38 SA80ES
80
M64x4.0
55
47
140
180
100
270
360
105
1
6
400
750
12 SA80-1ES
80
M80x4.0
55
47
140
180
100
270
360
105
1
6
400
750
12.2
