Home  >Products Catalog > Sealed Spherical Roller Bearings 23024CA-2RS for Elevator Escalator Electric Lift/Liting Traction Machine Motor

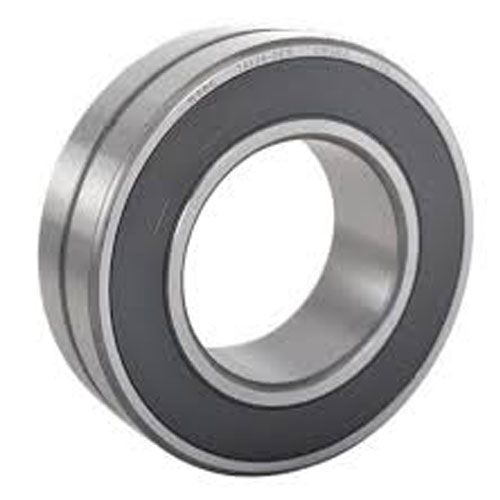

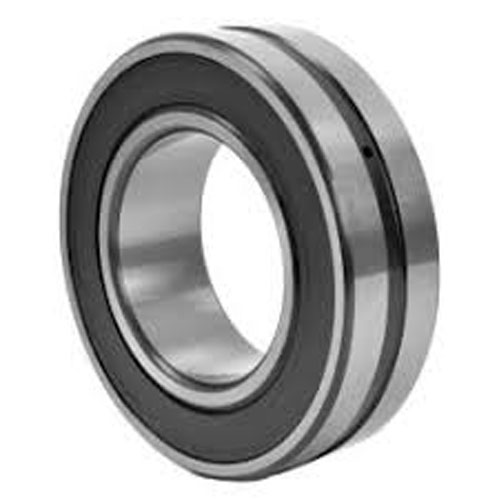

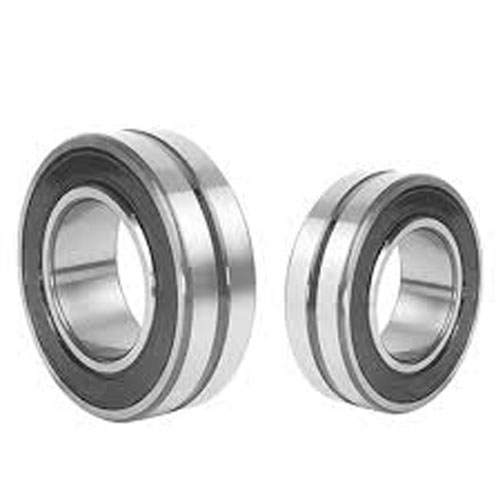

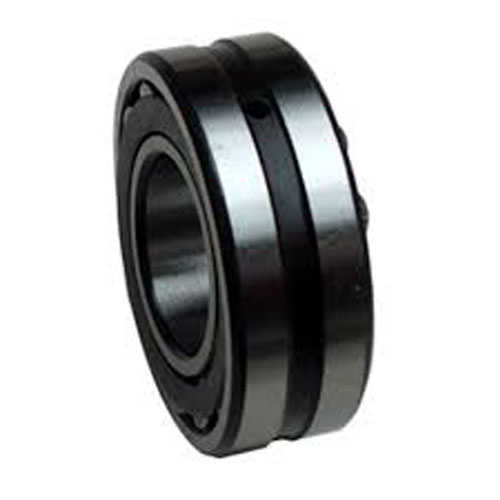

Sealed Spherical Roller Bearings 23024CA-2RS for Elevator Escalator Electric Lift/Liting Traction Machine Motor

FOB Price: 0.01 - 100.00 USD/Set
Supply Ability: 10,000 Set(s) per Quarter
Shipping: Shipping, Air Transportation
Payment Terms: L/C, T/T, Western Union
In Stock
Inquiry Now
Follow ECVV to get products trends and industry news

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: As per customers' requirements

Quick Details

  • Type: Roller
  • Structure: Spherical
  • Outside Diameter: 26-186 mm
  • Bore Size: 10-160 mm
  • Brand Name: CVZ
  • Structure: Spherical Roller Bearings
  • Type: Roller Bearing
  • Number of Row: Double Row
  • Seals Type: 2RS ZZ Sealed
  • Precision Rating: P5 P6
  • Model Number: BS-2218-2CS/VT143

Specifications

Sealed Spherical Roller Bearings 23024CA-2RS 120SAR46A BS-2216-2CS/VT143 BS-2218-2CS/VT143 for Elevator Escalator Electric lift/liting Traction Machine Motor
Sealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine Motor
Sealed Spherical bearing description

Spherical roller/rolling bearing is also called self-aligning roller bearing. It has two rows of rollers sharing the same raceway of the outer ring. It mainly withstand radial loads but also axial loads from either direction because of its self-aligning design.

Sealed Spherical Roller/Rolling Bearing Relating Models
Principal dimensions Rated Load Fatigue Load Limit Limiting speed Bearing Designation
Dynamic Static
d[mm] D[mm] B[mm] C[kN] C0[kN] PU[kN] [r/min]
25 52 23 49.9 44 4.75 6100 Shandong Guomai Bearing
30 62 25 66.1 60 6.4 5100 BS2-2206-2RS/VT143
35 72 28 88.8 85 9.3 4300 BS2-2207-2RS/VT143
40 80 28 98.5 90 9.8 3900 BS2-2208-2RS/VT143
40 80 28 98.5 90 9.8 3900 BS2-2208-2RSK/VT143
40 90 38 155 140 15 3900 BS2-2308-2RS/VT143
45 85 28 104 98 10.8 3500 BS2-2209-2RS/VT143
45 85 28 104 98 10.8 3500 BS2-2209-2RSK/VT143
45 100 42 190 183 19.6 3400 BS2-2309-2RS/VT143
50 90 28 107 108 11.8 3200 BS2-2210-2RS/VT143
50 90 28 107 108 11.8 3200 BS2-2210-2RSK/VT143
50 110 45 228 224 24 3000 BS2-2310-2RS/VT143
55 100 31 129 127 13.7 2900 BS2-2211-2RS/VT143
55 100 31 129 127 13.7 2900 BS2-2211-2RSK/VT143
55 120 49 280 280 30 2800 BS2-2311-2RS/VT143
60 110 34 159 166 18.6 2700 BS2-2212-2RS/VT143
60 110 34 159 166 18.6 2700 BS2-2212-2RSK/VT143
60 130 53 325 335 36 2500 BS2-2312-2RS/VT143
65 120 38 198 216 24 2400 BS2-2213-2RS/VT143
65 120 38 198 216 24 2400 BS2-2213-2RSK/VT143
65 140 56 357 360 38 2400 BS2-2313-2RS/VT143
70 125 38 213 228 25.5 2300 BS2-2214-2RS/VT143
70 125 38 213 228 25.5 2300 BS2-2214-2RSK/VT143
70 150 60 413 430 45 2100 BS2-2314-2RS/VT143
75 115 40 181 232 28.5 2300 24015-2RS5/VT143
75 130 38 217 240 26.5 2200 BS2-2215-2RS/VT143
75 130 38 217 240 26.5 2200 BS2-2215-2RSK/VT143
75 160 64 462 475 48 2100 BS2-2315-2RS/VT143
75 160 64 462 475 48 2100 BS2-2315-2RSK/VT143
80 140 40 243 270 29 2000 BS2-2216-2RS/VT143
80 140 40 243 270 29 2000 BS2-2216-2RSK/VT143
80 170 67 516 530 54 2000 BS2-2316-2RS/VT143
80 170 67 516 530 54 2000 BS2-2316-2RSK/VT143
85 150 44 291 325 34.5 1900 BS2-2217-2RS/VT143
85 150 44 291 325 34.5 1900 BS2-2217-2RSK/VT143
90 160 48 331 375 39 1800 BS2-2218-2RS/VT143
90 160 48 331 375 39 1800 BS2-2218-2RSK/VT143
90 190 73 637 695 67 1700 BS2-2318-2RS5/VT143
90 190 73 637 695 67 1700 BS2-2318-2RS5K/VT143
95 170 51 393 450 45.5 1700 BS2-2219-2RS/VT143
100 180 55 433 490 49 1600 BS2-2220-2RS5/VT143
100 180 55 433 490 49 1600 BS2-2220-2RS5K/VT143
100 215 82 847 950 88 600 BS2-2320-2CS5/VT143
100 215 82 847 950 88 600 BS2-2320-2CS5K/VT143
110 200 63 572 640 63 1500 BS2-2222-2RS5/VT143
110 200 63 572 640 63 1500 BS2-2222-2RS5K/VT143
20 215 69 652 765 73.5 1400 BS2-2224-2RS5/VT143
120 215 69 652 765 73.5 1400 BS2-2224-2RS5K/VT143
30 230 75 758 930 88 700 BS2-2226-2CS5/VT143
130 230 75 758 930 88 700 BS2-2226-2CS5K/VT143
Sealed Spherical Roller/Rolling Bearing
Sealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine MotorSealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine MotorSealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine MotorSealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine MotorSealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine MotorSealed Spherical Roller Bearings 23024CA2RS for Elevator Escalator Electric liftliting Traction Machine Motor
