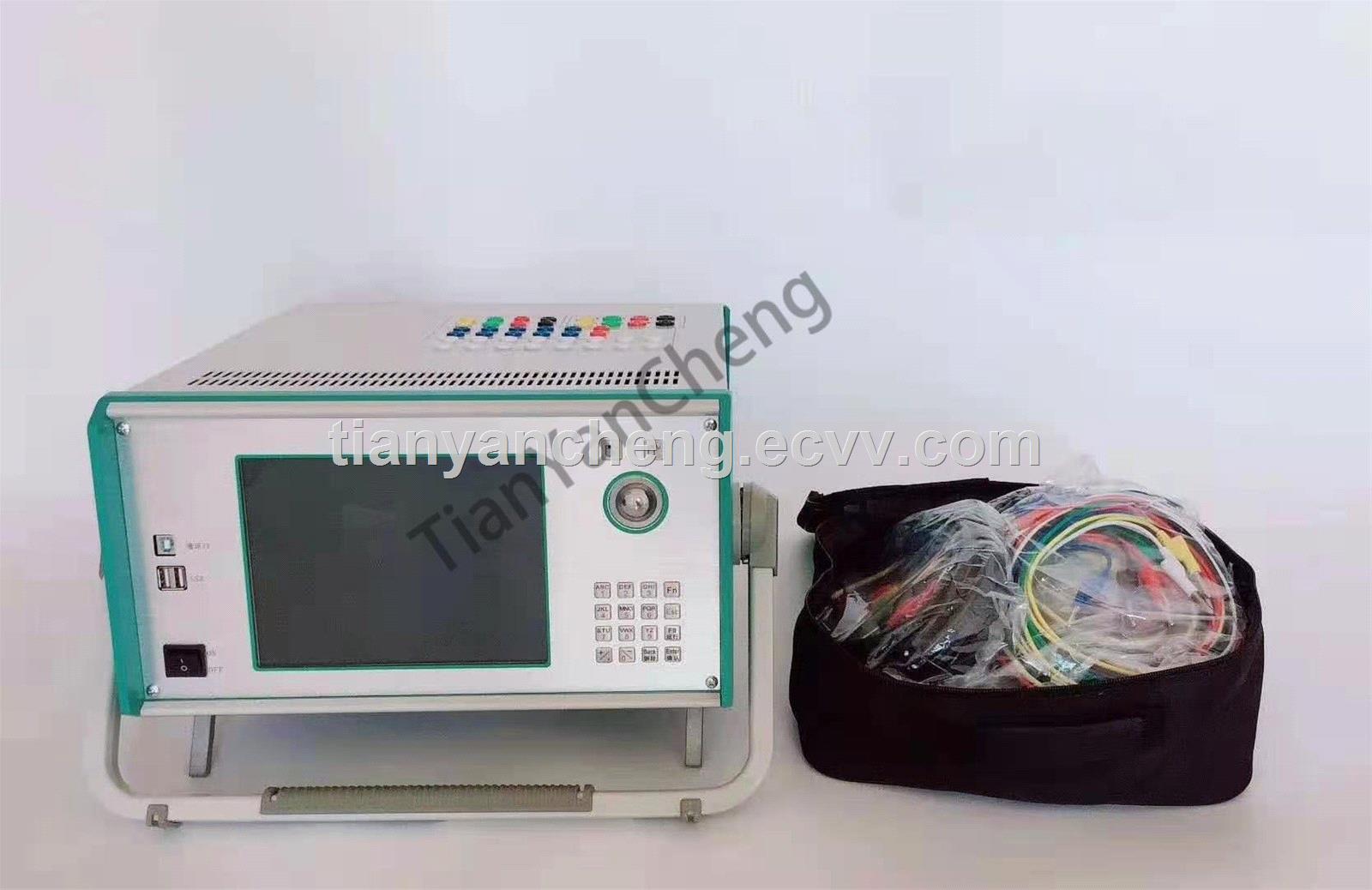

TY-1300--Protection Relay Test Set 6 Phase Electrical Secondary Injection Protection Relay Tester

Specifications

I  Introduction:

Relay Protection microcomputer test device plays a key role in operating electricity Power systems reliably and safely. It is the testing device used in Professional field of microcomputer protection, relay protection, excitation measurement, Fault recorder.

II  Performance

1.Output voltage and current Combine  flexibly

Output 6 phase voltage and 6 phase current can be arbitrarily combined to realize the conventional 4 phase Voltage and 3 phase current mode, 6 phase voltage mode, 6 phase current mode, and 12 phase output mode. Not only compatible with the traditional various test Methods, but also can be convenient for three-phase transformer differential Test and plant power fast cutting and standby self-switching test.

2Operation method

the Device can also be directly connected to a laptop or desktop computer for Operation, which is convenient and fast with stable performance.

3.New hi-fi linear power amplifier

Output terminal has always insisted on using high fidelity, High reliability  linear power amplifier Module type, It is not a switch mode power amplifier,  and It will not produce high and medium Frequency interference on the site, so it ensures smooth waveform accuracy from Large current to small current.

4. High performance host.

the output part is Controlled by DSP, which has the advantages of fast operation speed, strong Real-time digital signal processing ability, transmission bandwidth, control High resolution D/A conversion.the output waveform is  high precision, low distortion and good Linearity.  It adopts a large number of Advanced technology and precision components and materials, and professional Design, so small in size, light in weight, full in function, easy to carry, can Be started up to work, flow test is very convenient.

5.Strong function of software

 It can complete all kinds of large complex check work requiring for high degree automation, such as three phase differential test, auxiliary power supply for fast cutting and automatic input test, line protection by synchronism checking voltage reclosing and so on. and it can easily test and scanning all kinds of protection setting for fault playback, storage real-time test data, display vector chart, online print reports, etc.

6 Independent DC power output

the device is equipped with a way of 110v DC and 220v DC special adjustable power output.

7.Completed interface,

 USB directly connect with PC and other external devices, without any adapter Cable, easy to use.

8.Self-protection

Use reasonable design of the heat dissipation structure, has various reliable and perfect protection and power soft start, along with fault self-diagnosis and locking function.

III Technical Parameter:
