Hubei Tianyancheng Electricity Equipment Mfg Co., Ltd.
China Manufacturer with main products: Secondary Injection Relay Test Series, Microcomputer Relay Protection Test Device 3 Phase, Circuit Breaker Tester, Circuit Breaker Tester,... |
Home
>Products Catalog > Transformer test series > TY-3310 DC Resistance Tester High Precision Transformer Winding Resistance Tester

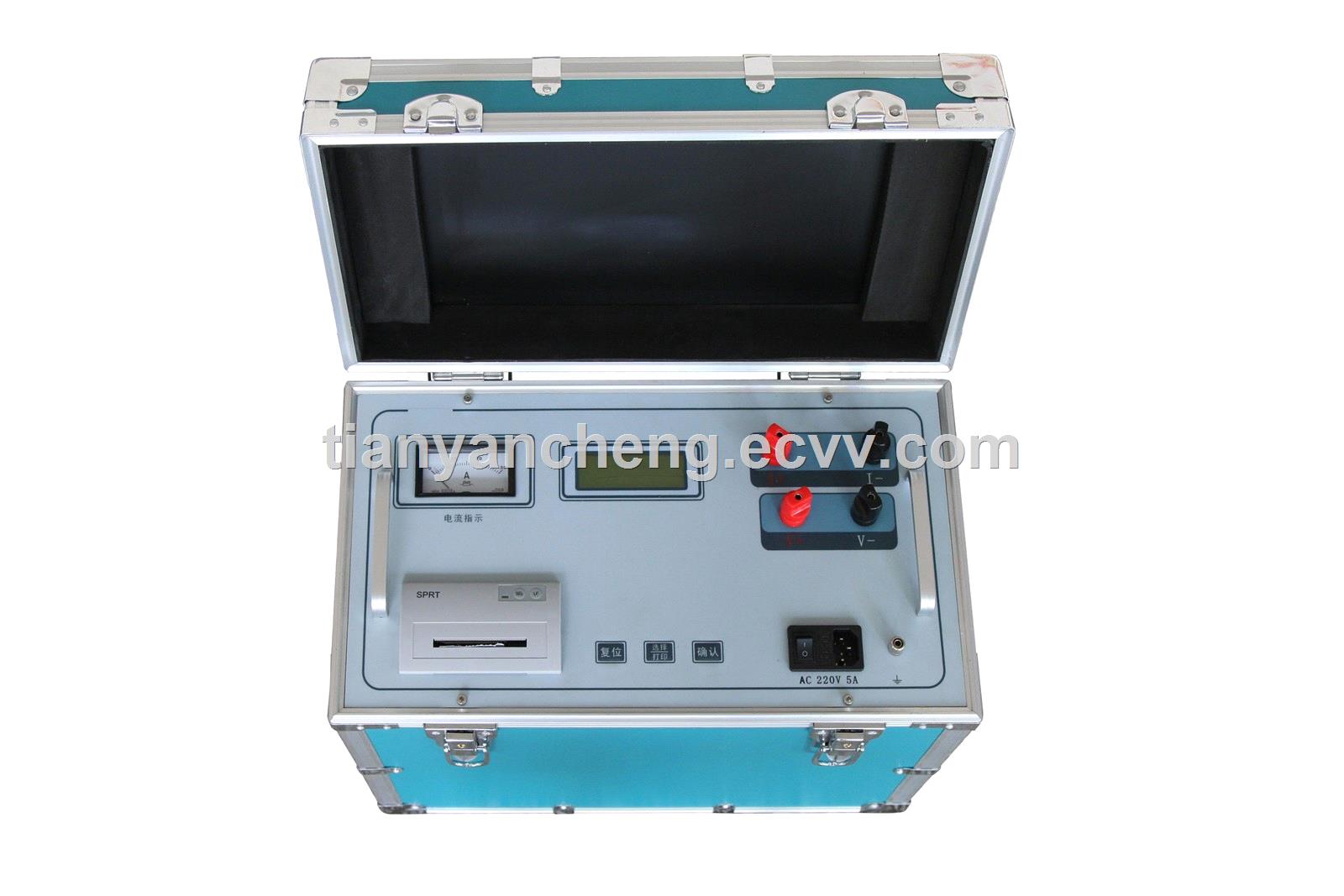

TY-3310 DC Resistance Tester High Precision Transformer Winding Resistance Tester
| FOB Price: | 1600.00 - 1800.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece(s) per Month |
| Shipping: | Shanghai shenzhen |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | wooden box |
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Single
- Usage: Electronic
- Brand Name: TYC
- Model Number: TY-3310
Specifications
1, Large output current, light weight.
2,Select Output current automatically,the max output current 10A.
3, Wide Measuring range, 2 m Ω -20kΩ, measure all the inductive DC resistance under 110 Kv level.
4, completed protection circuit, strong reliability.
5, Vertical chassis structure, easy to operate on site.
6, Sound discharge alarm, Discharge indication clear, reduce misoperation.
III Technical parameter
Output Current |
<10A,5A,1A,100mA,4mA |
range |
0.2mΩ----0.5Ω (10A) |
2mΩ------3Ω (5A) | |
10mΩ-----20Ω (1A) | |
100mΩ----200Ω (100mA4mA) | |
200Ω-----20kΩ (4mA below) | |
Accuracy |
0.2%±1μΩ |
Resolution |
0.1μΩ |
Working Temperature |
040℃ |
Ambient Humidity |
≤90%RH,(NO-condensation) |
Power Supply |
AC220V±10%,50HZ±1HZ |
Dimension |
L 395mm W 240mm H250mm |
N.W |
10.5kg |
