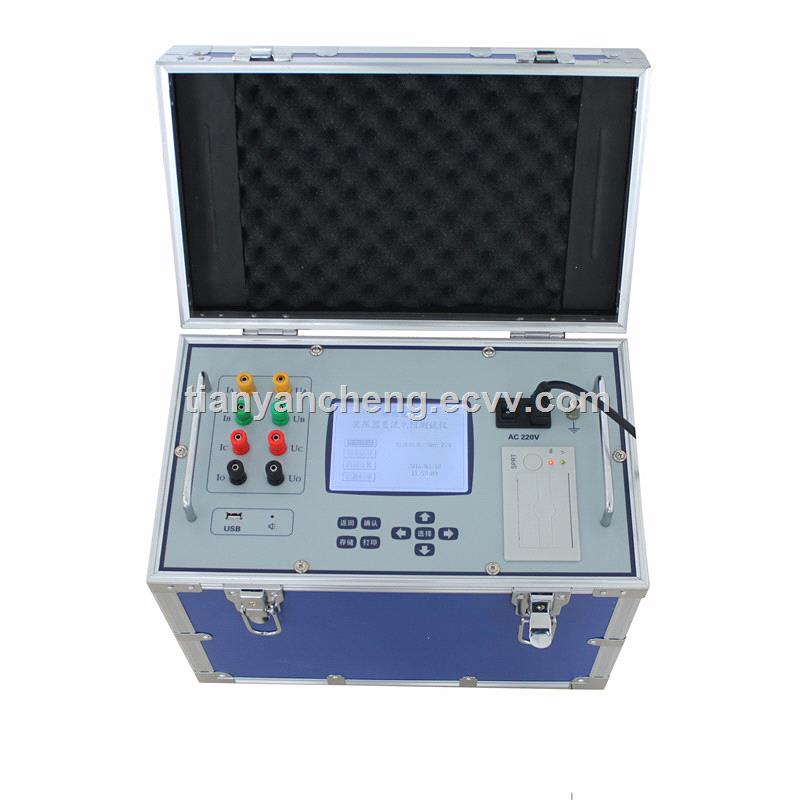

TY-3100S-Three Channel DC Resistance of Transformer Tester

FOB Price:	1000.00 - 2000.00 USD/Piece
Supply Ability:	3,000 Piece(s) per Month
Shipping:	Shanghai shenzhen
Payment Terms:	D/P

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hubei in China
Packaging Details:	wooden box

Quick Details

Dimensions: L 420mm W250mm H340mm
Accuracy Class: 0.2 percent
Measuring Range: 10A 500micr ohm to 500m ohm
Display Type: Digital Only
Brand Name: TYC
Model Number: TY-3100S

Specifications

Performance:

1.When testing windings with neutral points drawn out by star Connection method, the instrument can adopt three-phase measurement method to Test the DC resistance of A0, B0 and C0 phases simultanously, which greatly Saves the test time.

2.Display and print all test data of transformer high and low voltage windings, calculate the three-phase unbalance rate Automatically;

3.Equip perfect Anti-potential protection function;

4 discharge and discharge Indication automatically to reduce misoperation and ensure the safety of Equipment and worker.

5.Not only Store 500 groups of test data permanently, but also Use USB to store data;

6.. Adopt 5.7 inch large LCD, print test results at any time;

7.Wide applicable temperature, high accuracy, shockproof, Anti-interference,easy to carry.

Technical parameter

Output current Tri-phase: 2*10A, 2*5A, 2*2A

Single phase: 20A, 10A, 2A

Test range 2*10A: 500μΩ500mΩ

2*5A: 1mΩ1Ω

2*2A: 2.5mΩ2.5Ω

20A: 250μΩ1Ω

10A: 500μΩ2Ω

2A: 2.5mΩ10Ω

Resolution 0.1μΩ

Measuring accuracy ±(0.2% reading +2d)

Dimension 420mm250mm340mm

Weight 15kg
