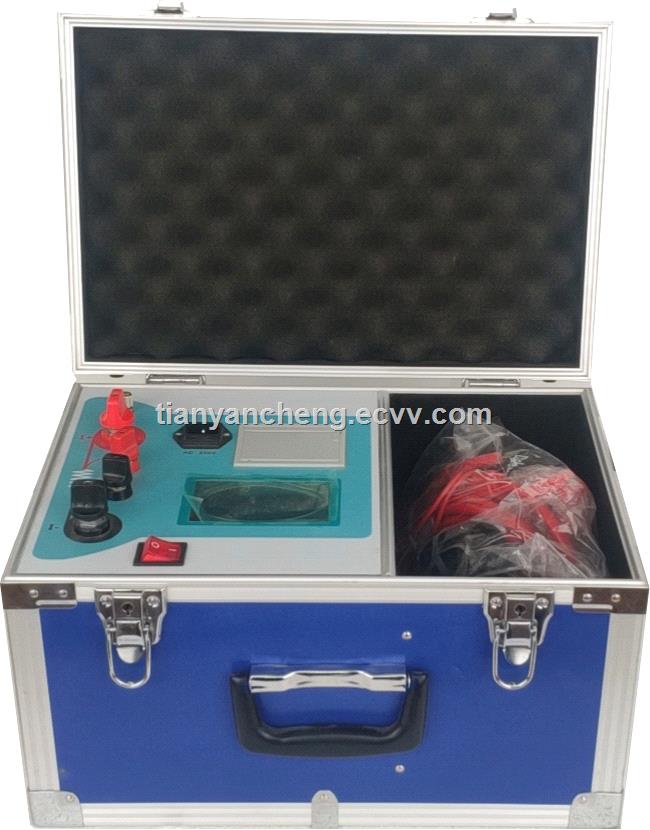

TY-5100 Loop Resistance Tester High Voltage Circuit Breaker Analyzer

FOB Price:	1000.00 - 2000.00 USD/Piece
Supply Ability:	500 Piece(s) per Month
Shipping:	Shanghai shenzhen
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Eastern Asia
Place of Origin:	Hubei in China
Packaging Details:	Wooden box

Quick Details

Poles Number: Twin
Type: High Voltage
Brand Name: TYC
Rated voltage: 220V
Certificate: CE
Model Number: TY-5100

Specifications

II Performance

1, the test current is large, fully meet the requirements of the National standard of the test contact resistance.

2, the test current comes from the high-precision switching Constant current power supply, without manual adjustment, the test is prompt and accurate.

3, the use of four terminal wiring method, effectively eliminate the test line resistance on the test results of the influence.

4, the device adopts touch screen display, test speed is fast, USB interface can be connected to PC, upload test data.

5, long working time, setting overheat protection circuit, the device Is reliable and stable.

6, easy to operate, light weight.

III Technical parameter

Test Current:

Model	Test current
TY-5100	50A,100A
TY-5200	50A,100A,150A,200A
More current Can be customized according to requirements

Test Range:

Model	Measure range
TY-5100	1-9999μΩ
TY-5200	1-9999μΩ

Max Resolution: 0.1μΩ

Accuracy: 0.5%±0.1μΩ

Output Voltage: Max 5V

Working Way: can setting output time

Power: AC220V±10 50Hz

Power Consumption:

Model	Power
TY-5100	≤500W
TY-5200	≤1000W

Operating Temperature: -20℃40℃

Relative Humidity: ≤80%RH, no condensation

Weight

Model Mo.	Weight
TY-5100	3 Kg
TY-5200	5 Kg
